Function description

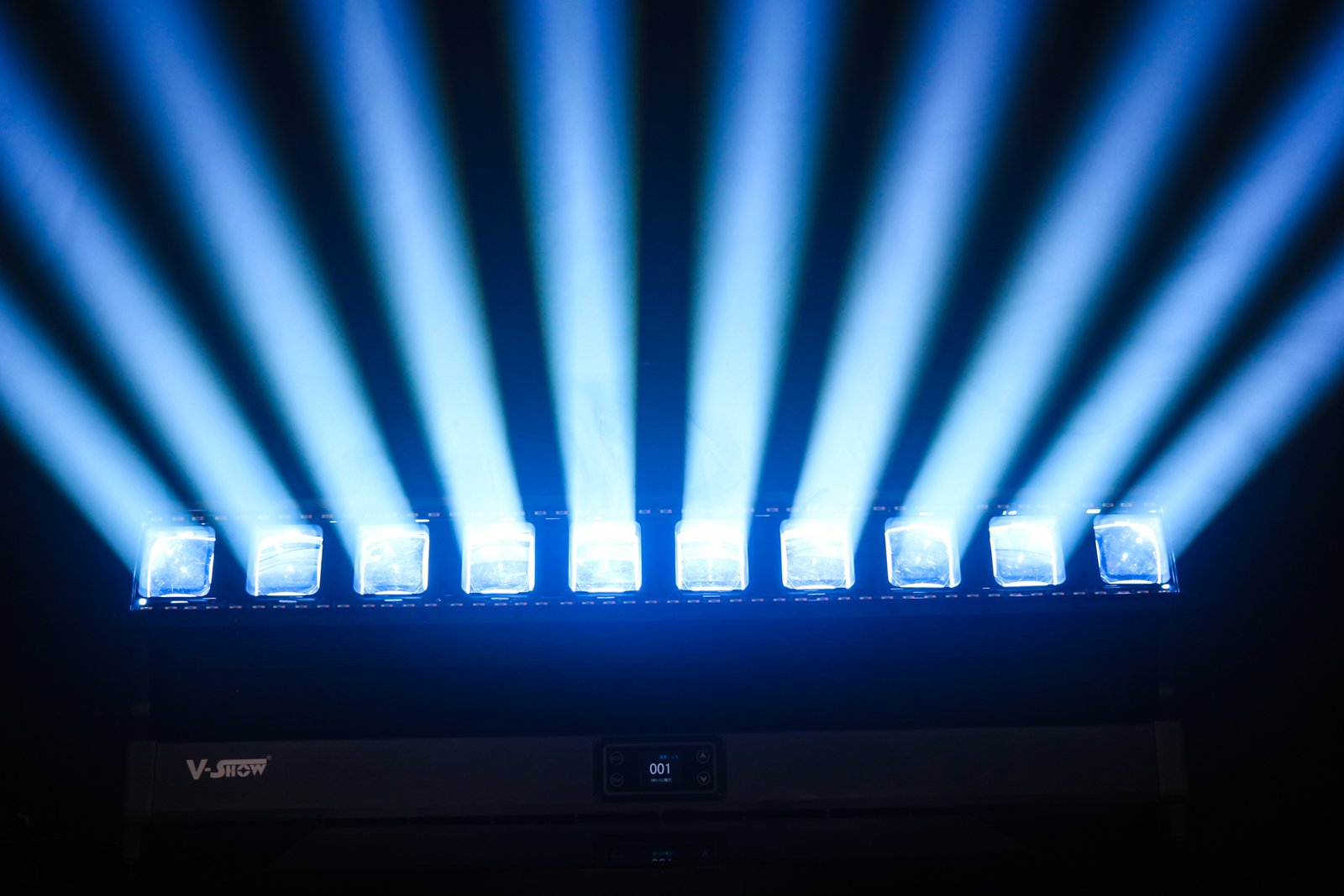

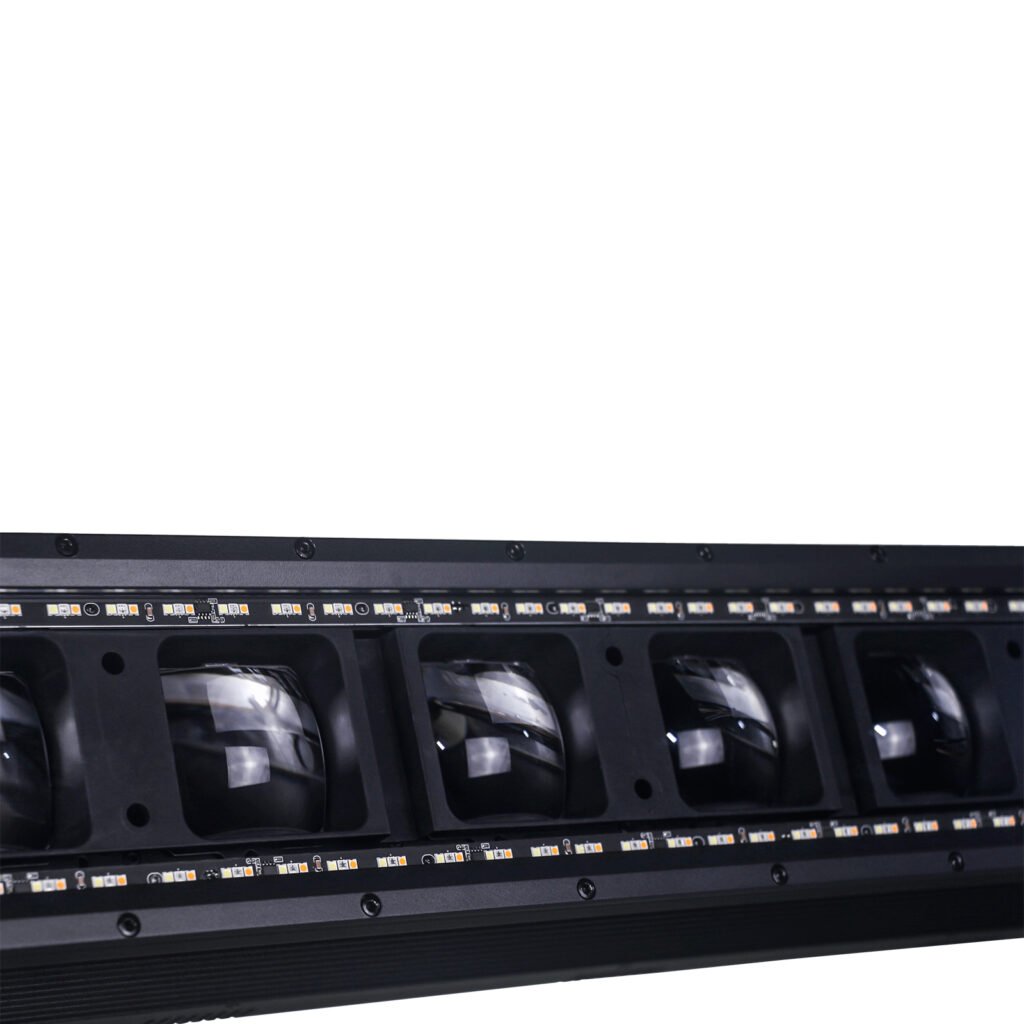

<p class=”MsoNormal”>The B1060 is a multi-functional effect lamp that integrates light beam, stroboscopic and dyeing effects. When multiple lamps are seamlessly spliced, the light beam emitted by the equidistant LED can cover a wide area, and it is sharp and clear. The auxiliary light area uses LED light strips independently controlled by 12 areas on one side, which has the color mixing function</p>
Parameters
| Input Voltage | 100-240V,50/60Hz | Light Source | 10x60W RGBW LED | LED Lifespan | >20000 hours |
Total power | 800W | Zoom angle | 5~46 ° | Dimming | 0-100% linear dimming |
Strobe | 1-25Hz | DMX Channels | 17CH/27CH/99CH/108CH/168CH/170CH | Control mode | DMX512, Auto€Sound, Master/Slave |
Auxiliary light | 6X3W CW LED :96X3W WW LED :96X0.5W RGB LED | Signal input/output | Three core or five core XLR head | White temperature | 6500k |
| Size | 1002x131x370mm | N.W | 25kg | Protection level | IP65 |
Details&Features

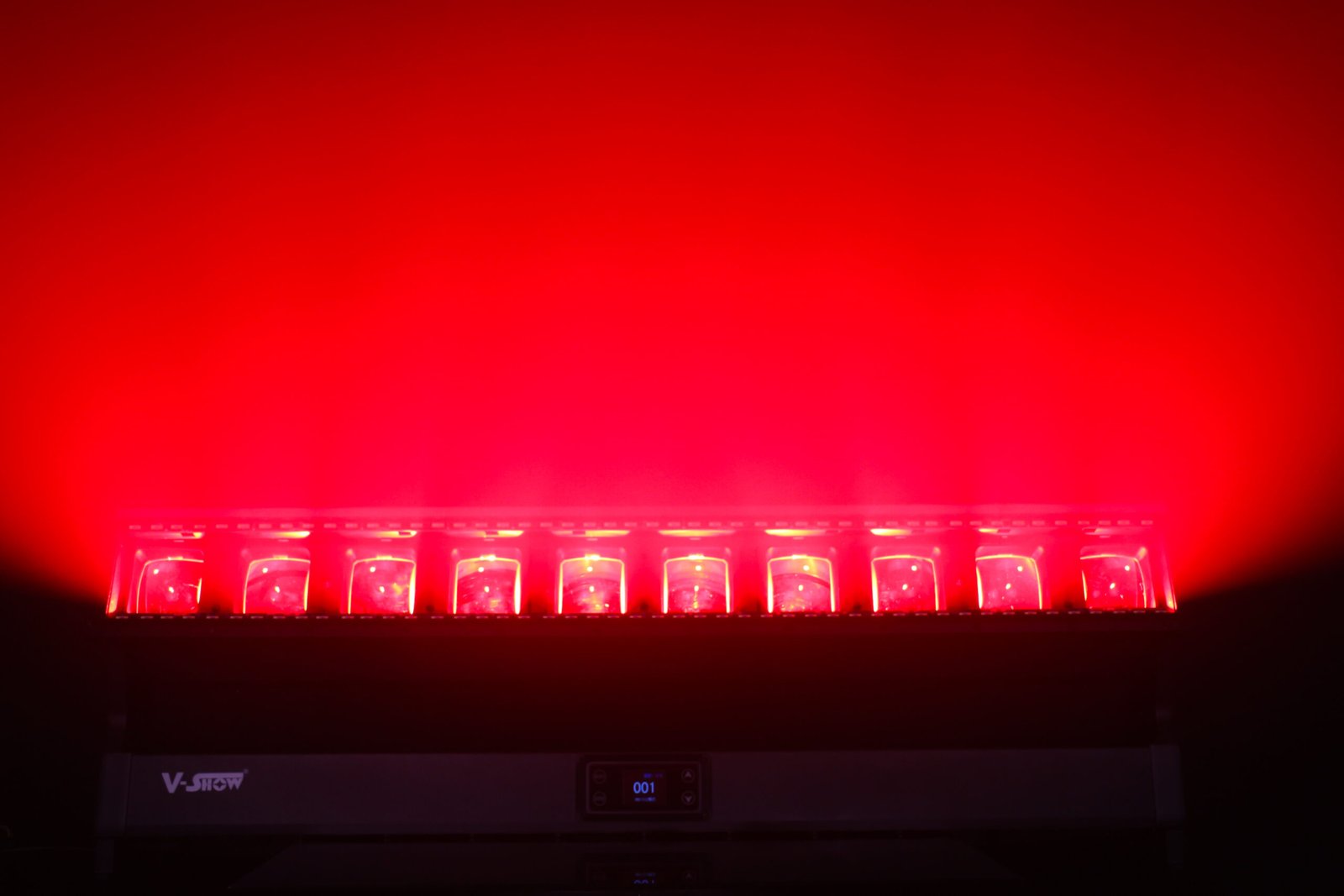

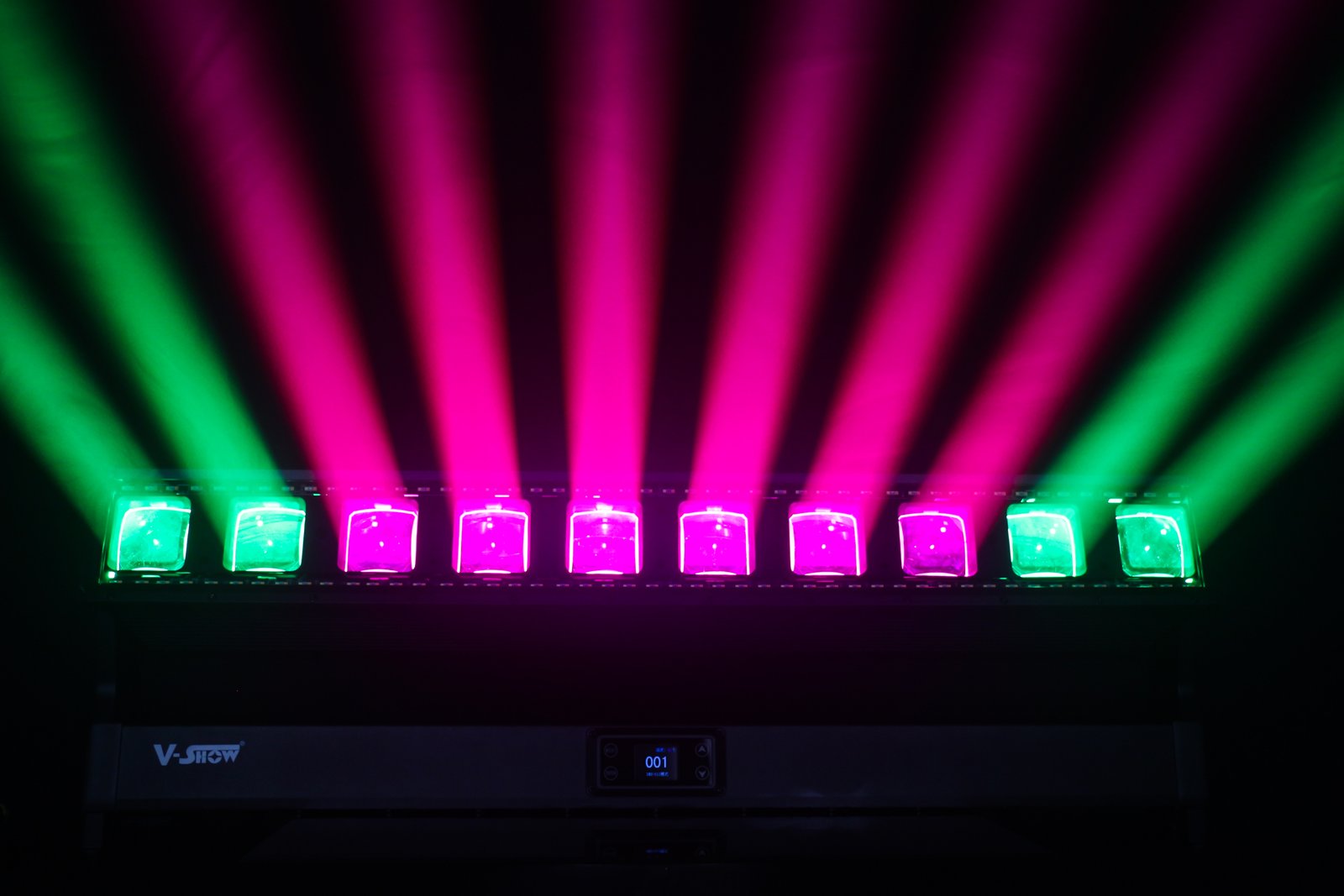

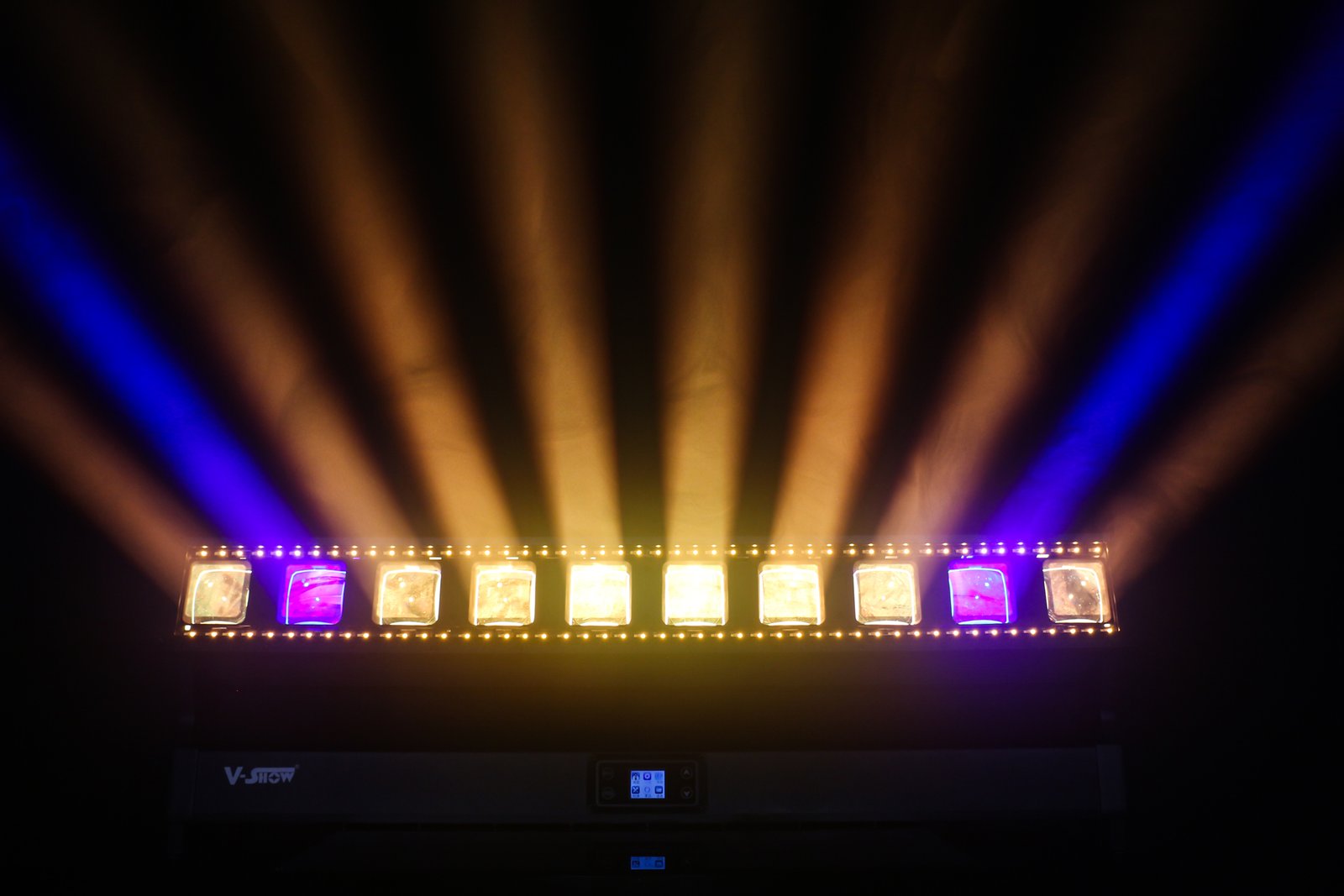

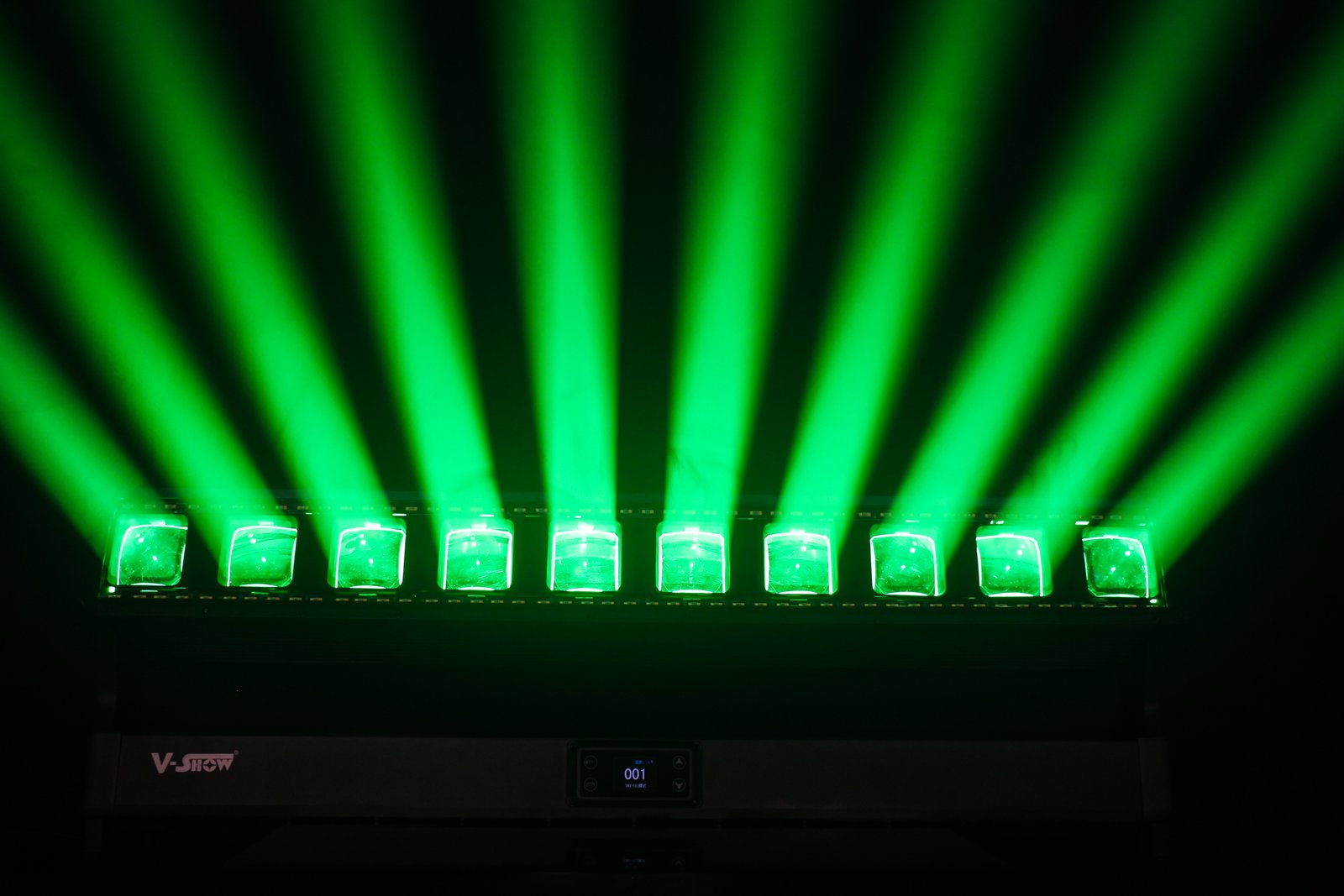

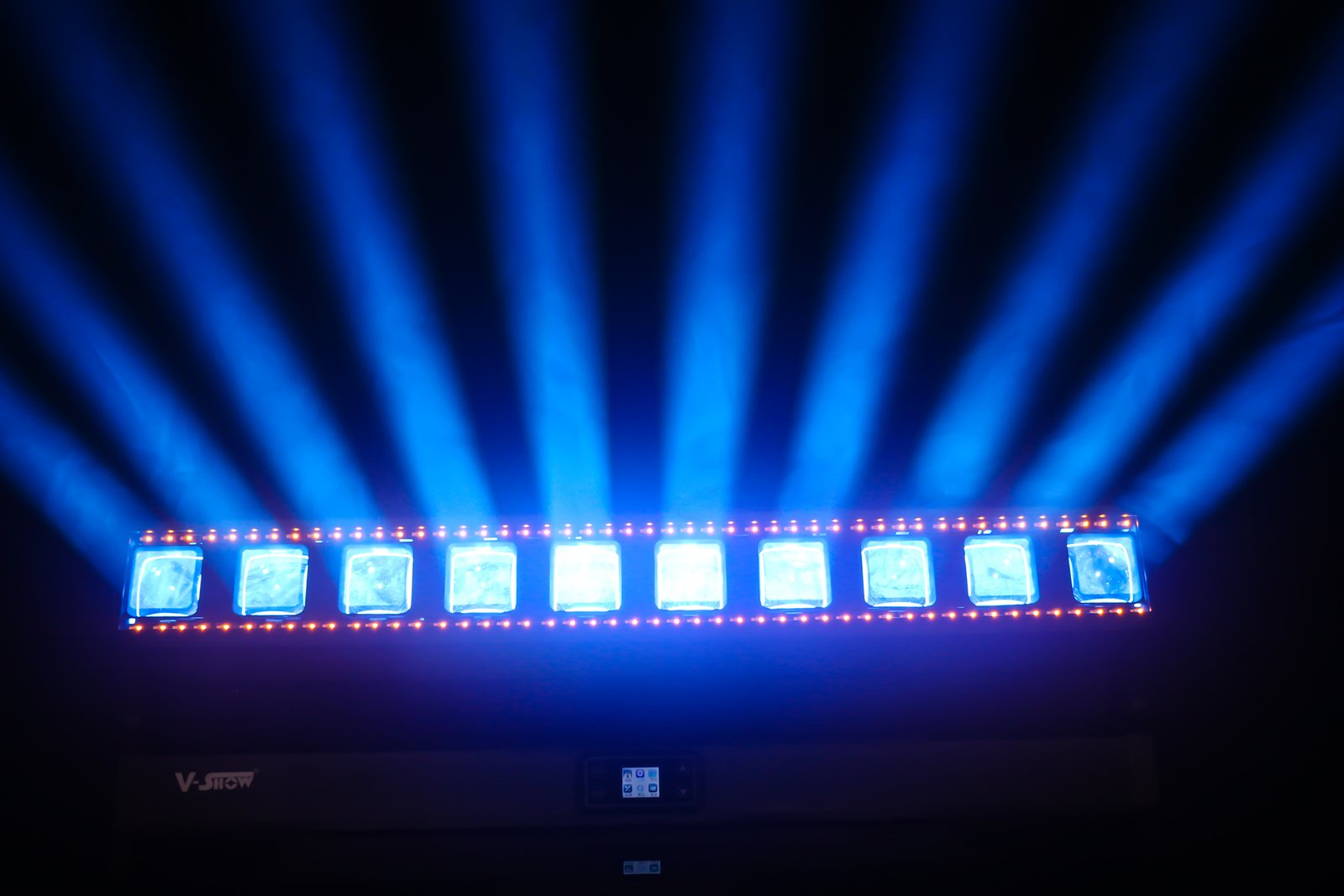

Excellent color mixing effect
