Function description

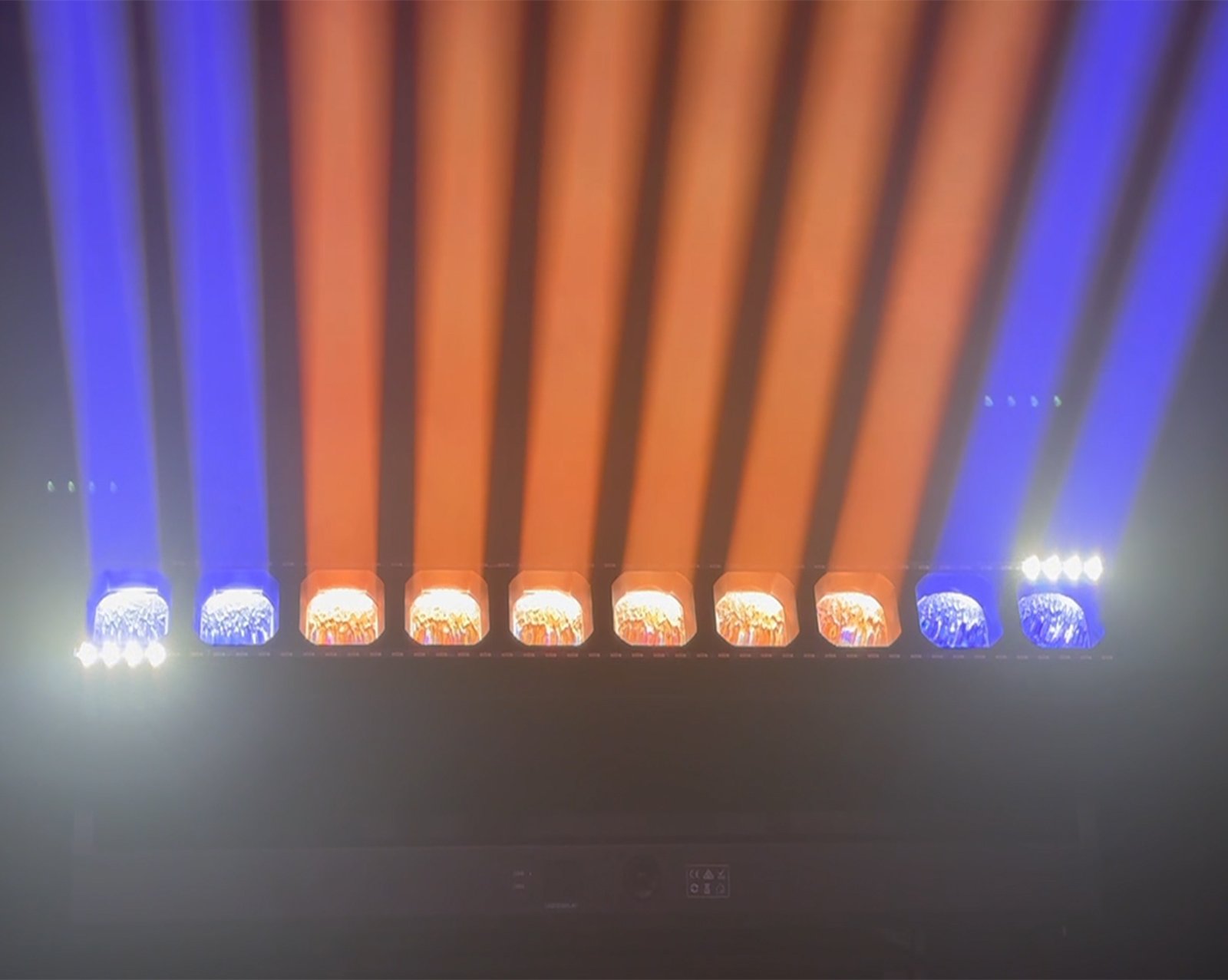

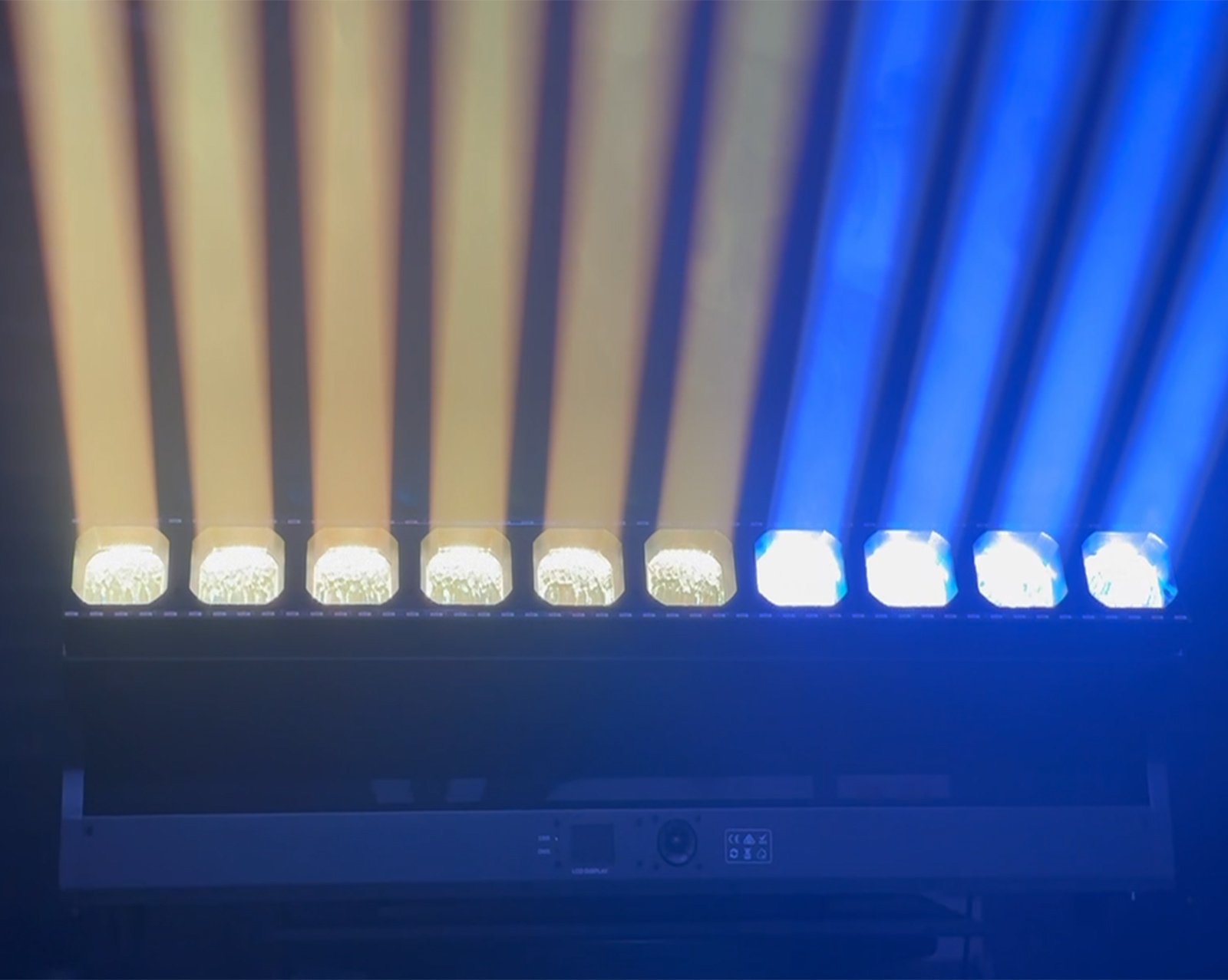

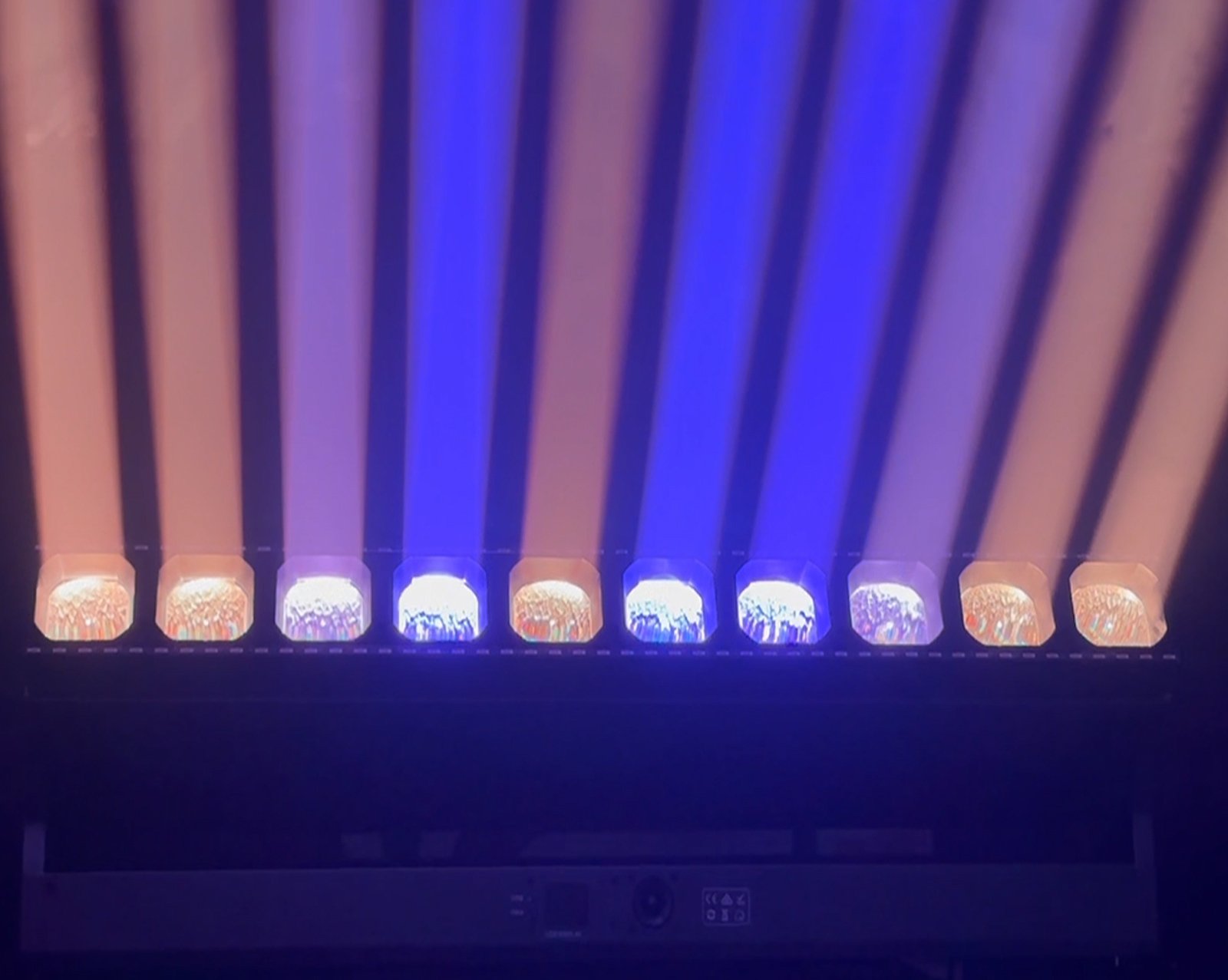

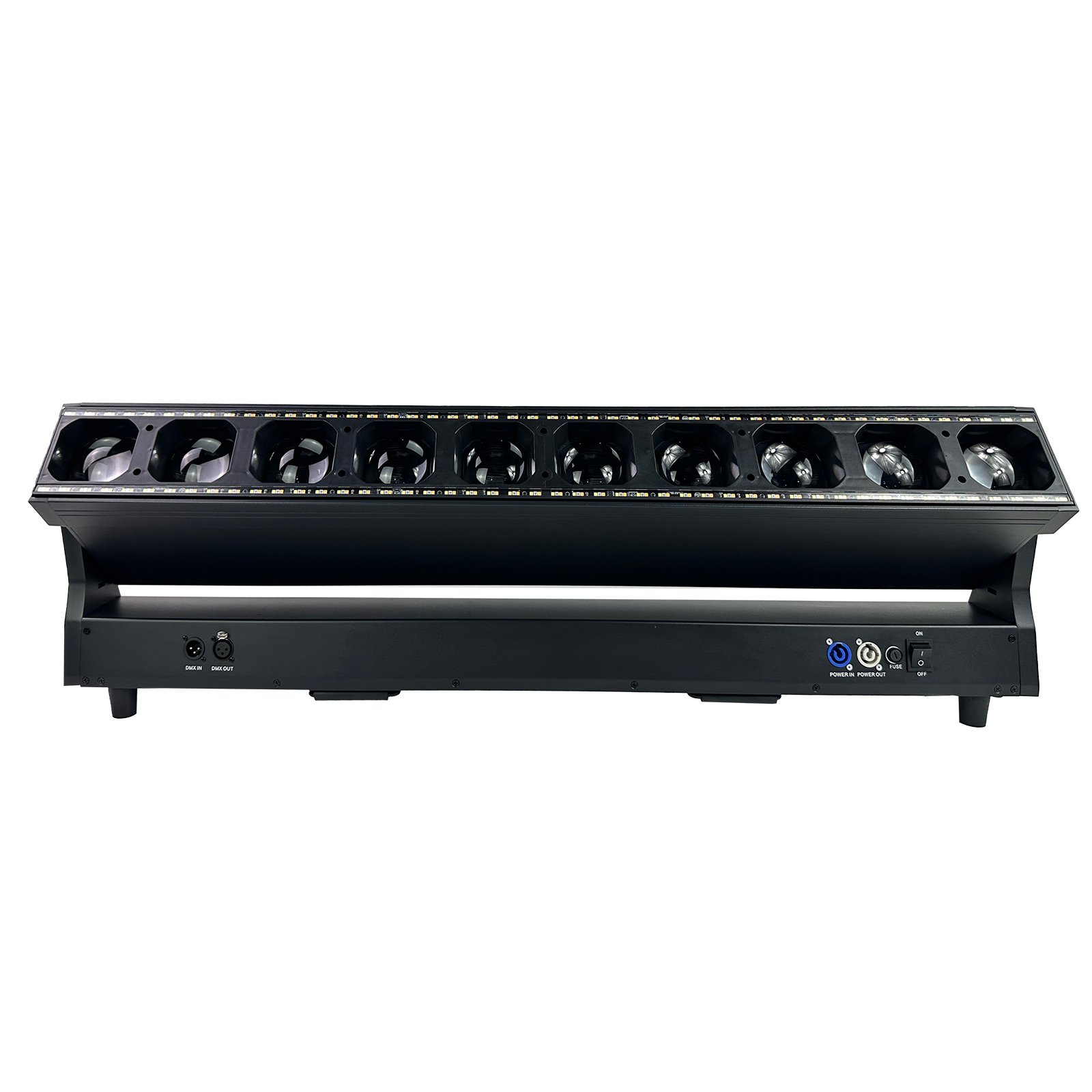

<p>The B1060S is a multi-functional effect lamp that integrates light beam, stroboscopic and dyeing effects. When multiple lamps are seamlessly spliced,<br>the light beam emitted by the equidistant LED can cover a wide area, and it is sharp and clear.</p>
<p>The auxiliary light area uses LED light strips independently controlled by 12 areas on one side, which has the color mixing function.</p>
<p>The auxiliary light area uses LED light strips independently controlled by 12 areas on one side, which has the color mixing function.</p>
Parameters
|

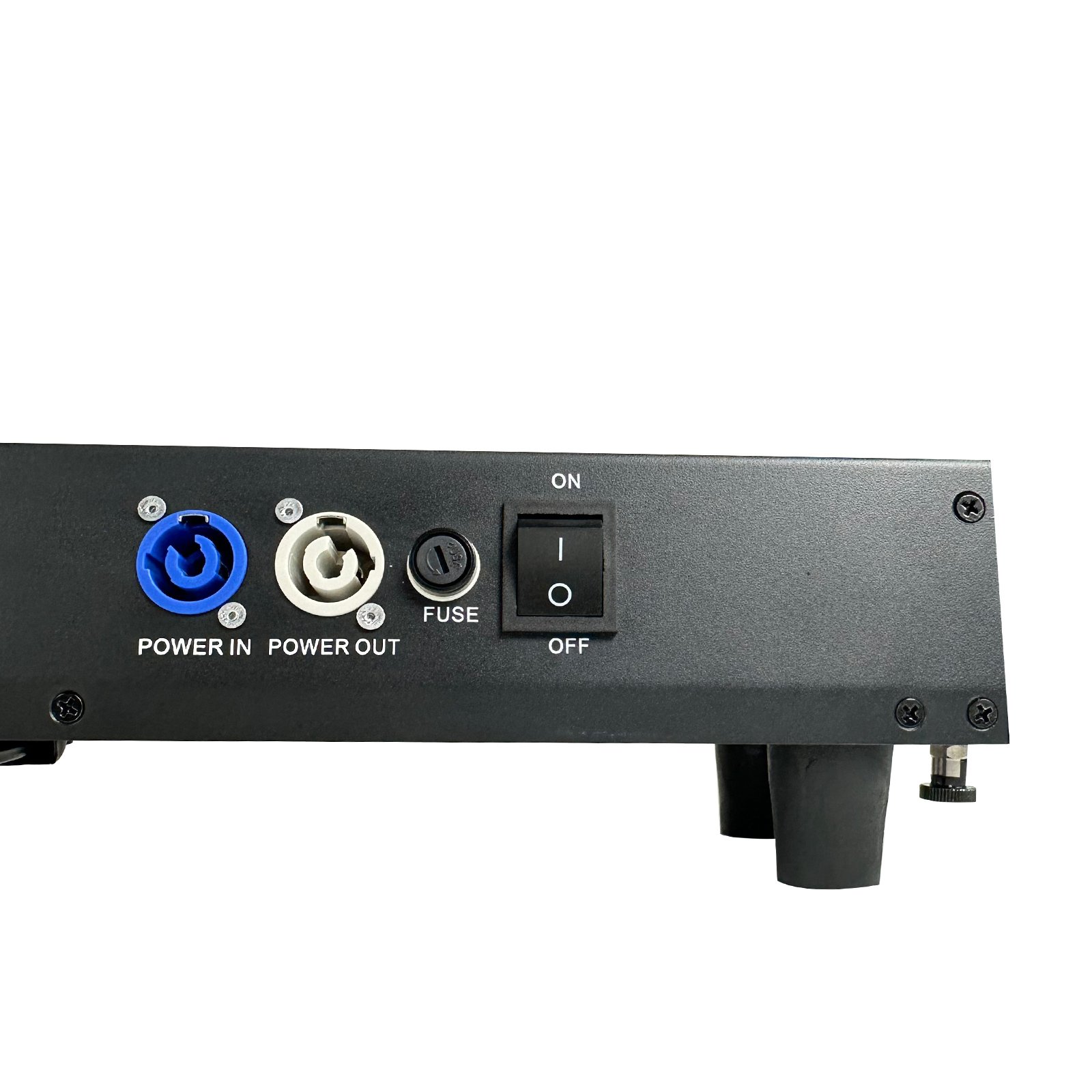

Input Voltage |
100-240V, 50/60Hz |
Light Source | 10X60W RGBW LED |
LED Lifespan |
20000 Hours
|
|
Light source life |
20000 hours |
Zoom angle |
5~46 °linear focus
|
Dimming |
0-100% linear dimming
|
|
Strobe |
1-25Hz |
DMX Channels |
17CH/27CH/99CH/108CH/168CH/170CH
|
Operate mode |
DMX512, Autoã€Sound, Master/Slave
|
| Light size |
1002x110x268mm
|

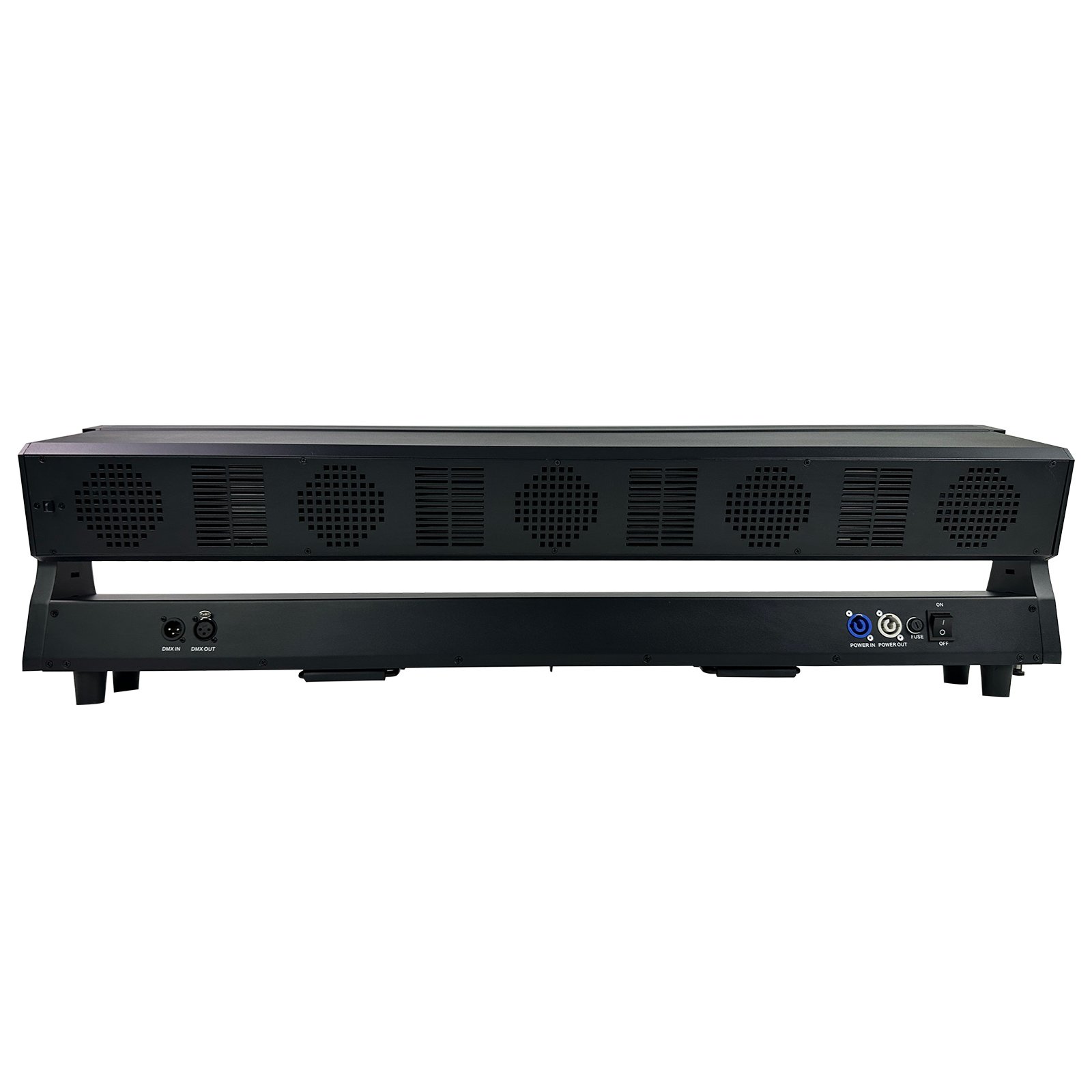

 Signal Outle |
Three core or five core XLR head
Y axis magnetic coding positioning is more accurate

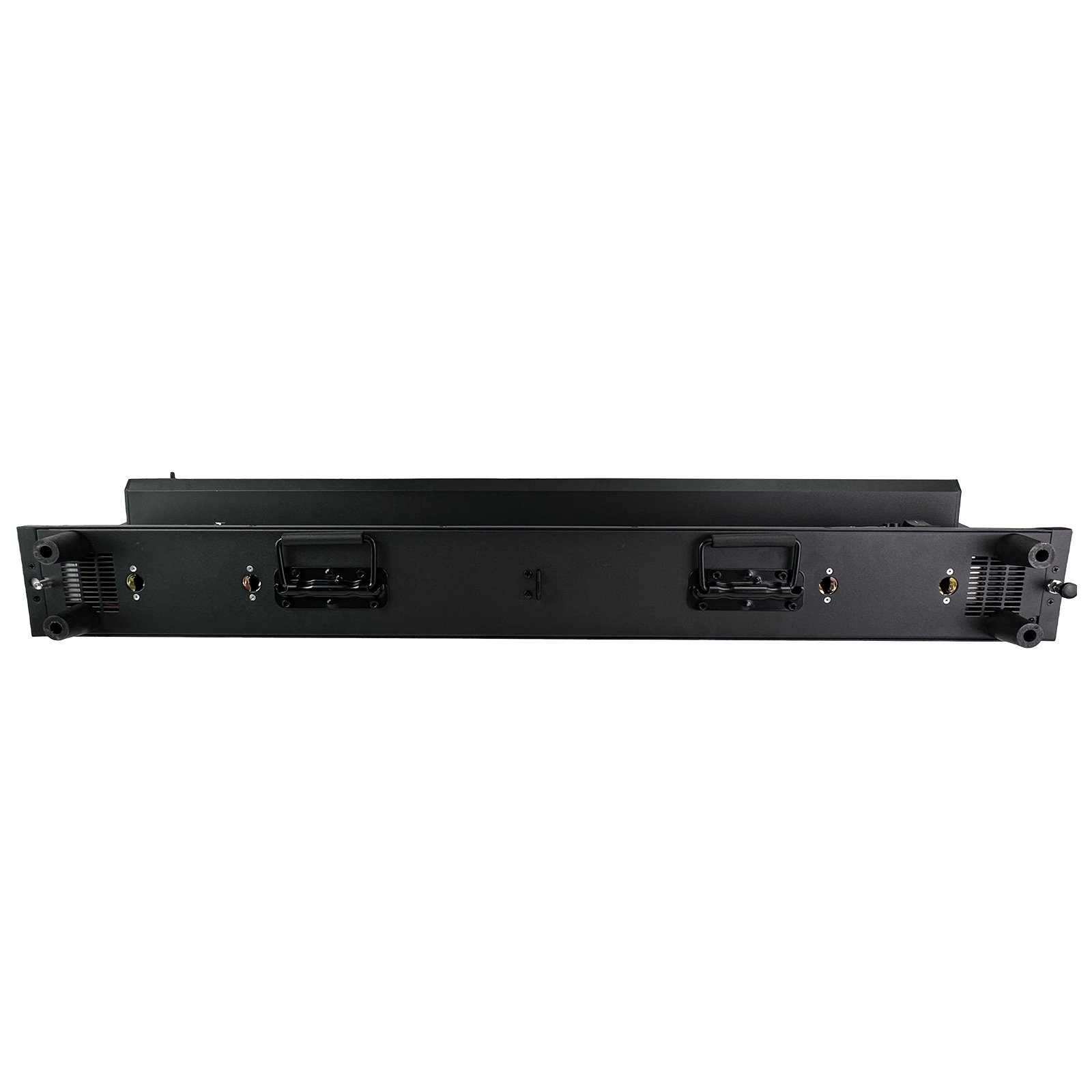

Unique concealed splicing lock
Seamless splicing of lamps (all equidistant)
|
Backlight LED | 96X3W CW LED ,96X3W WW LED ,96X0.5W RGB LED |
Details&Features

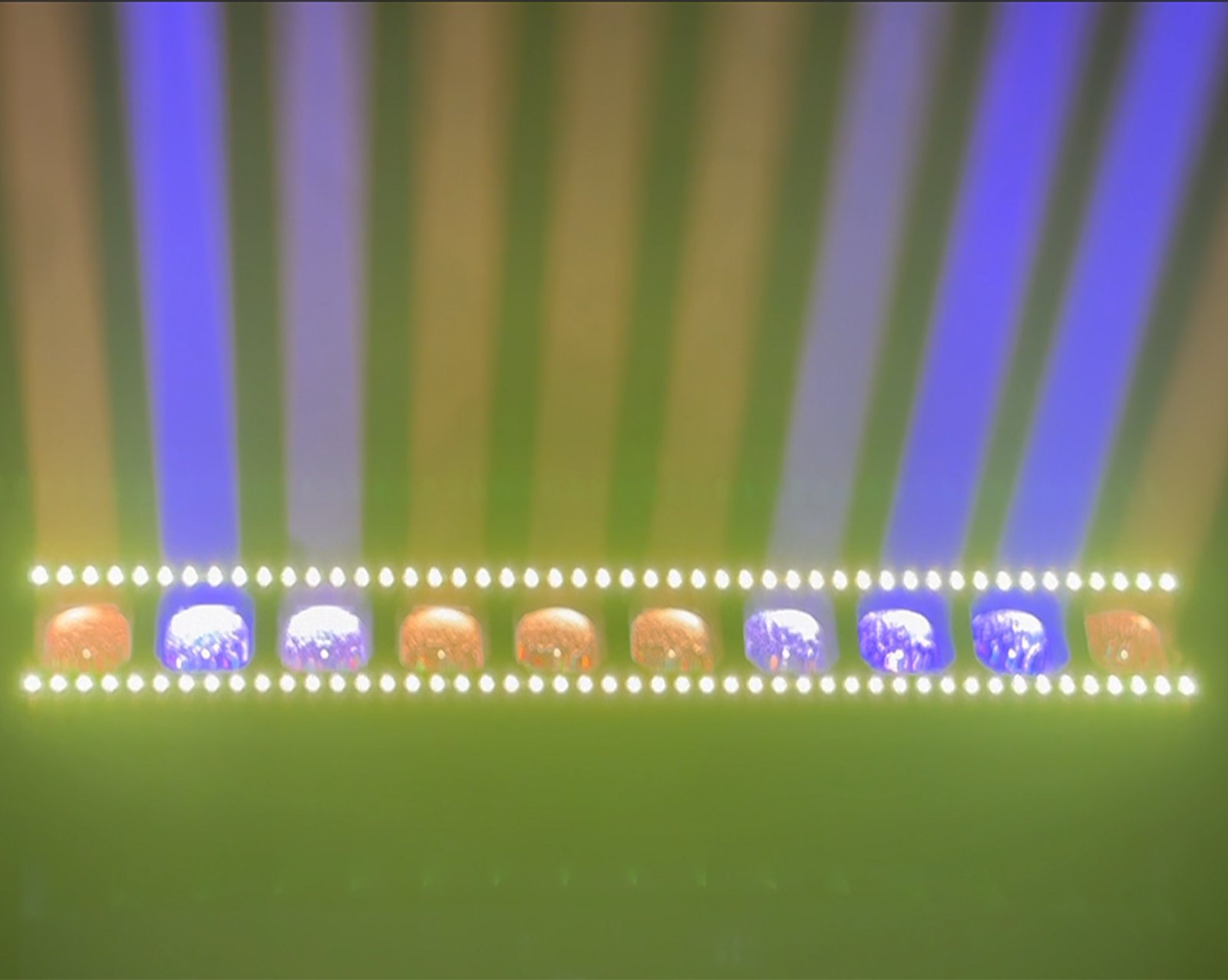

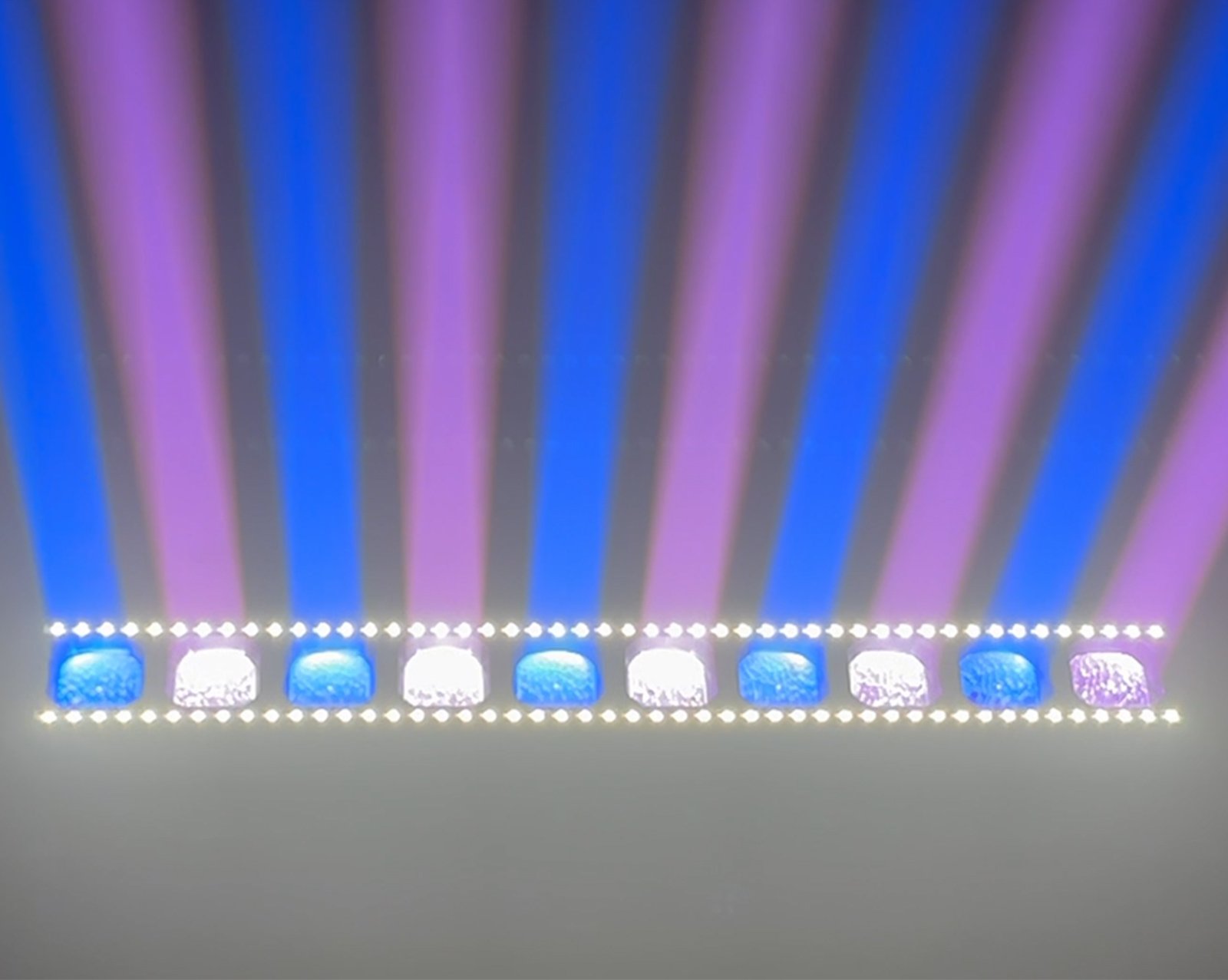

Excellent color mixing effect
