Function description

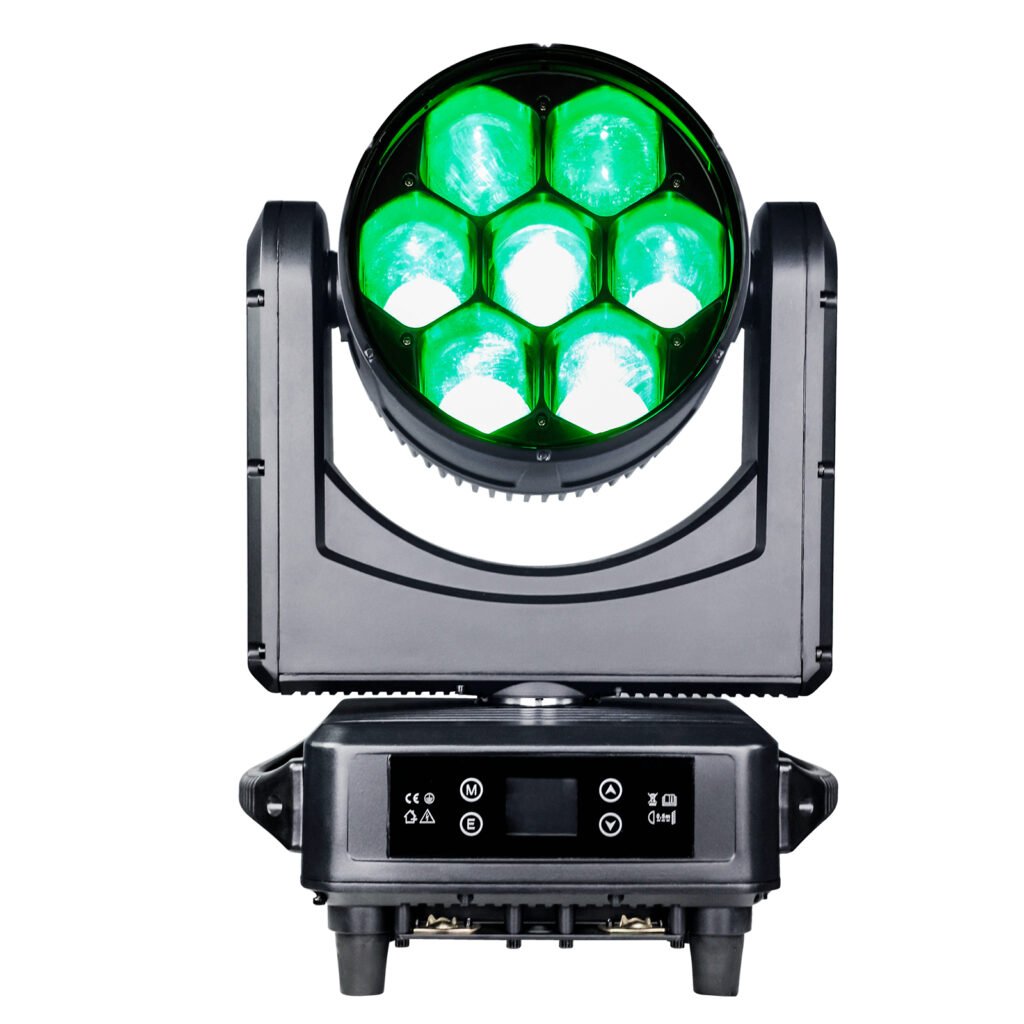

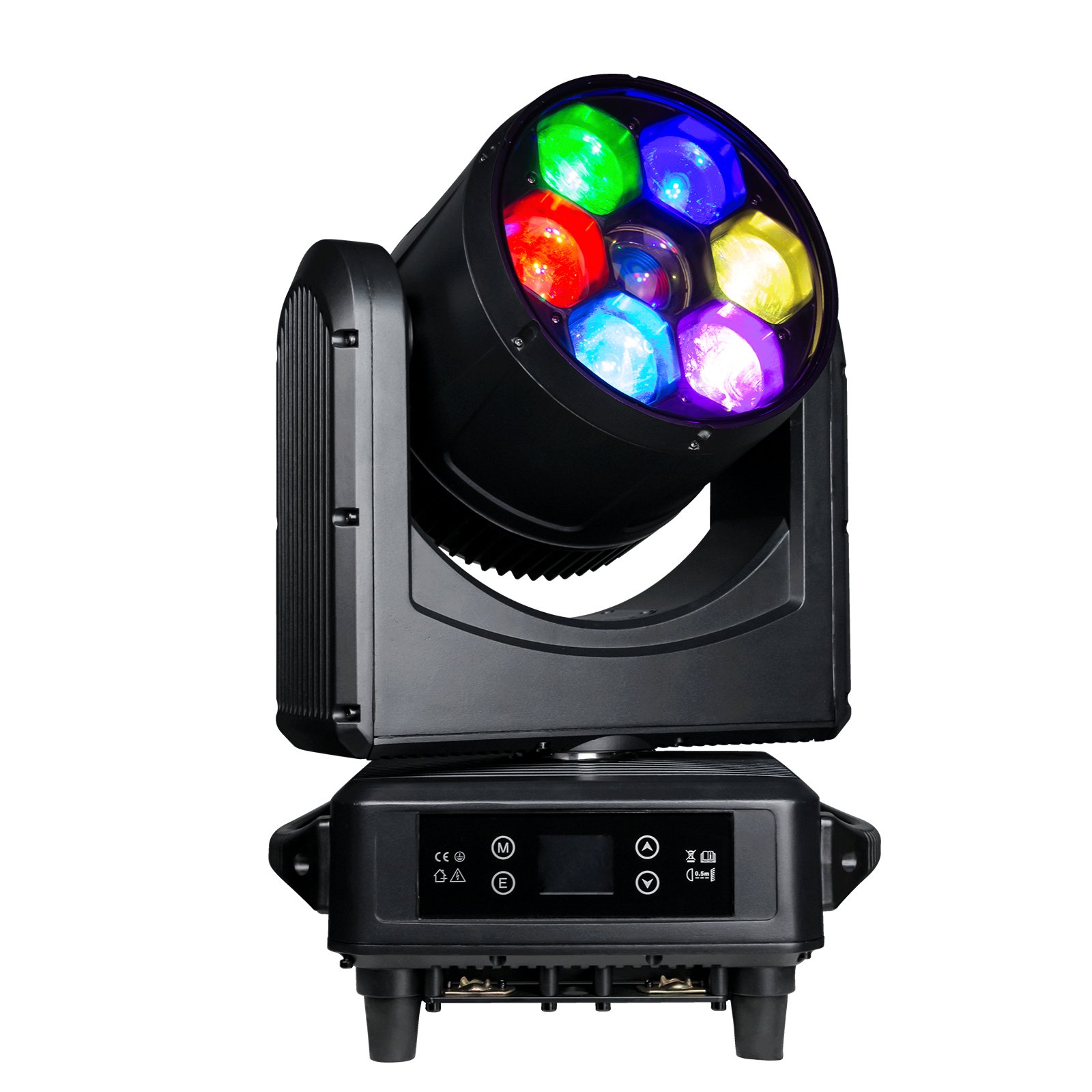

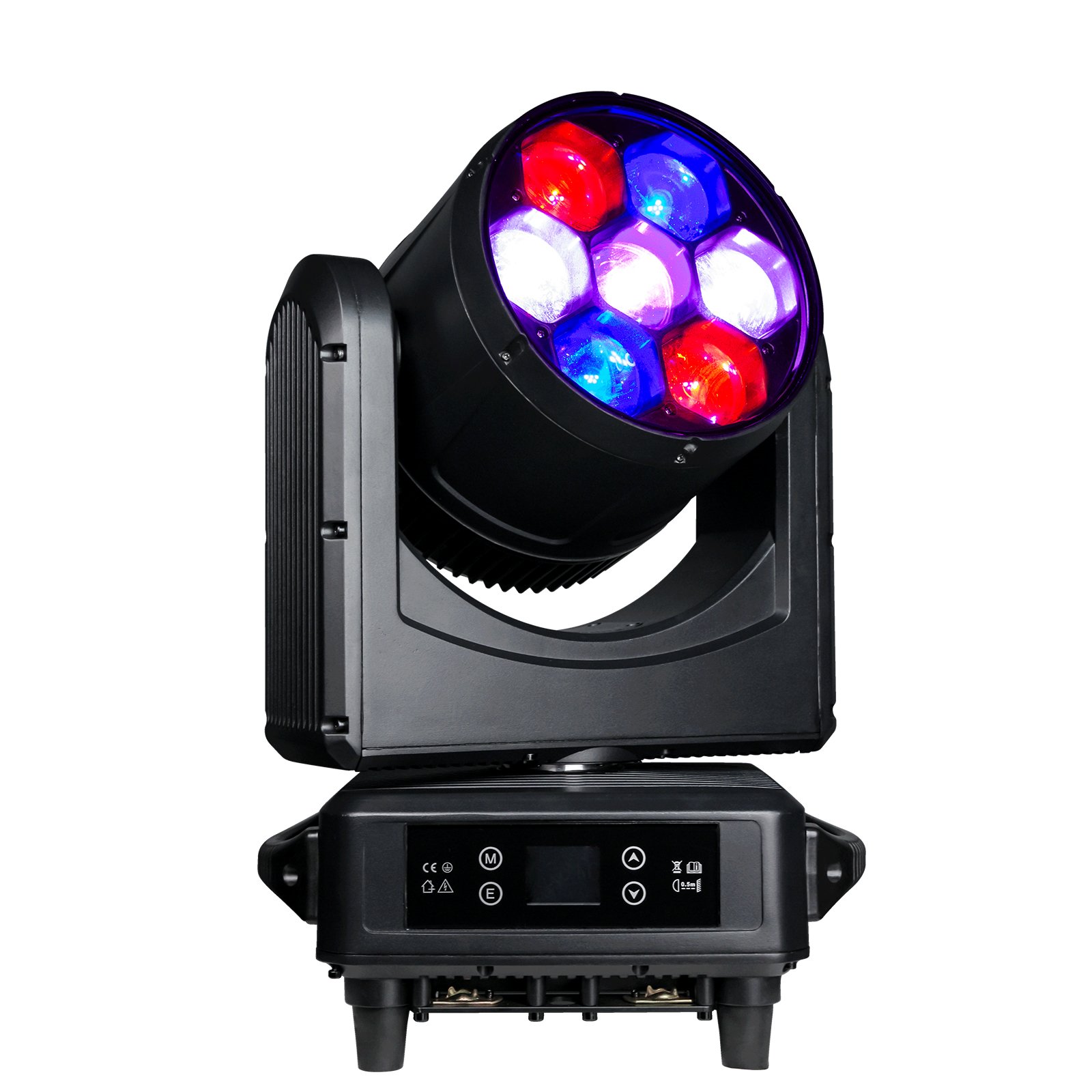

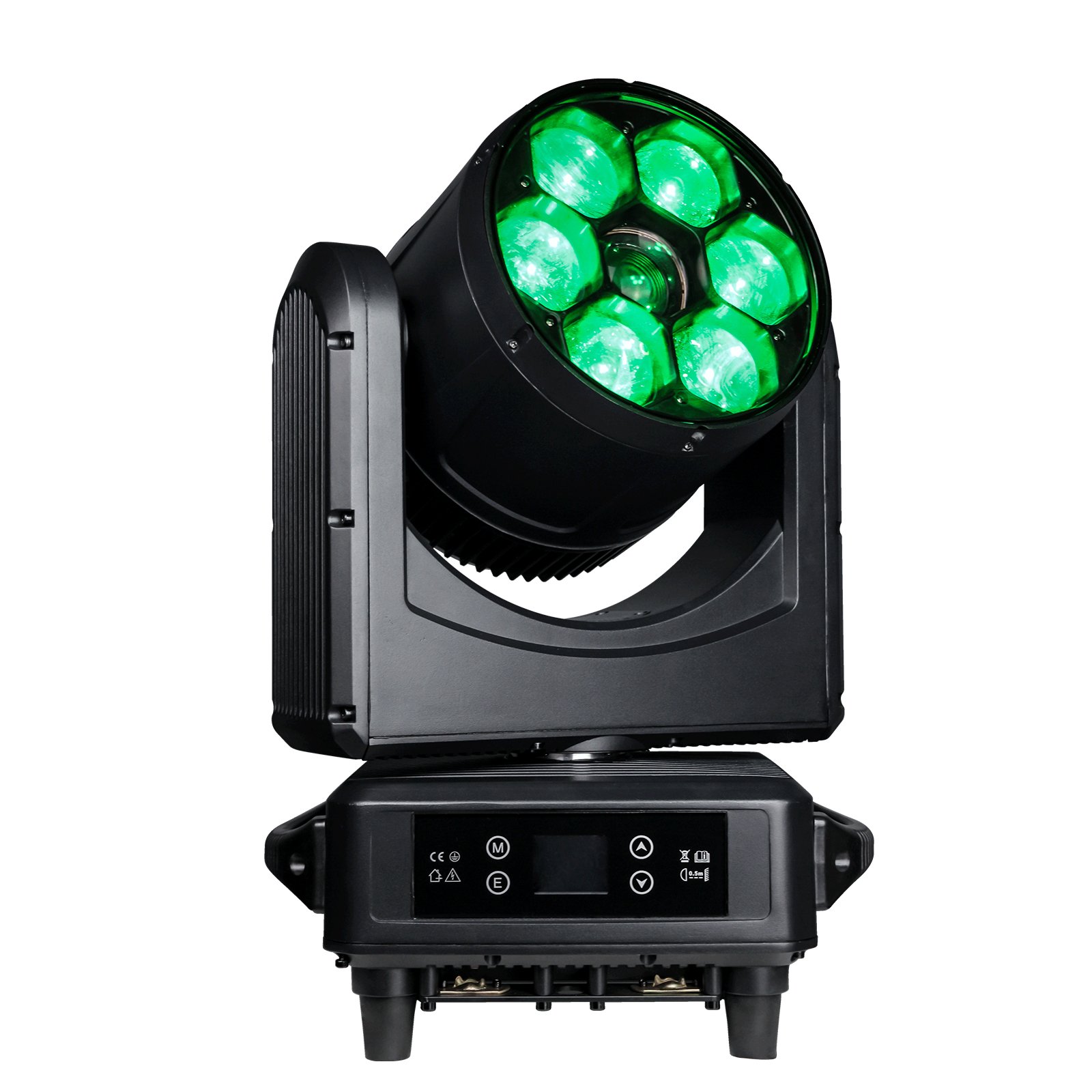

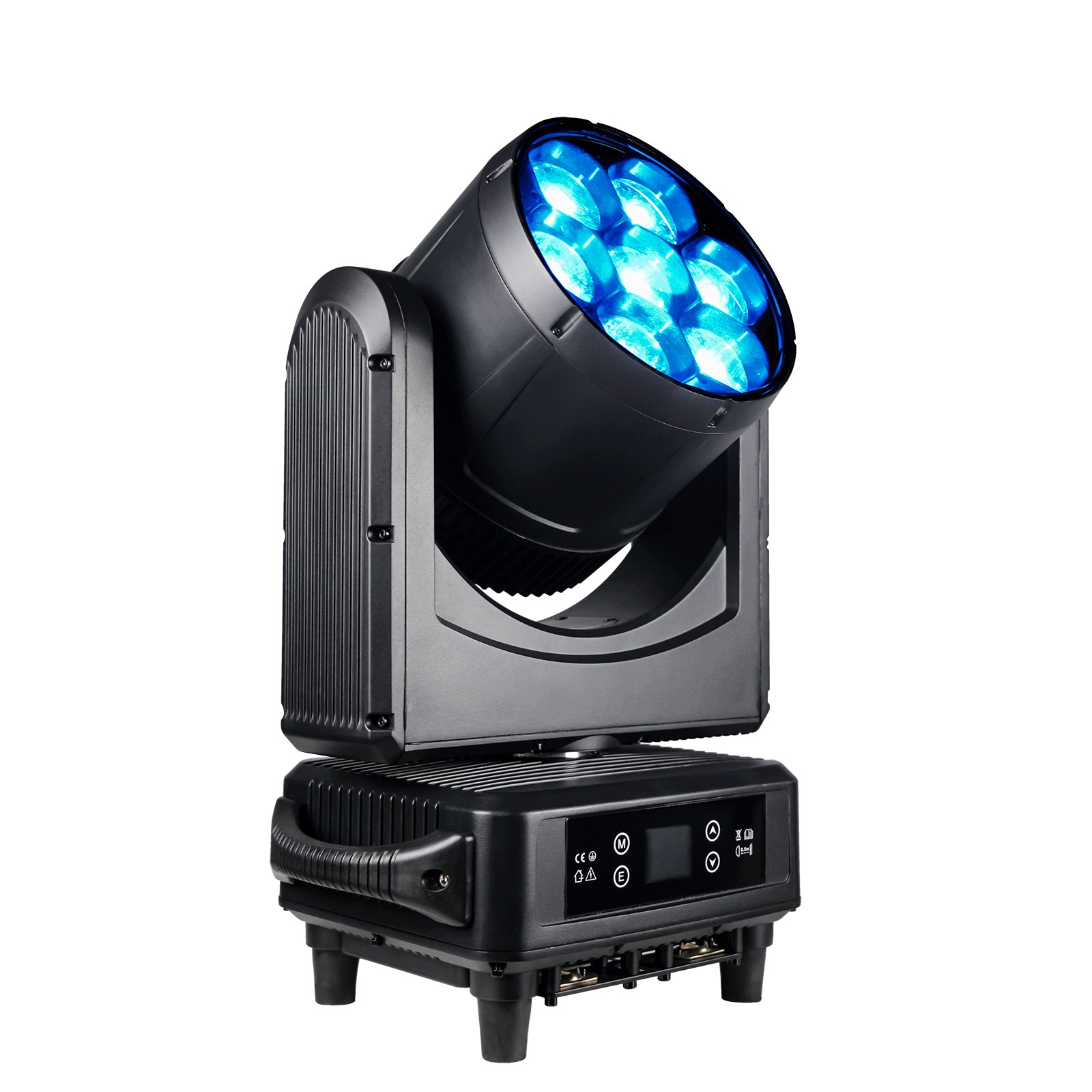

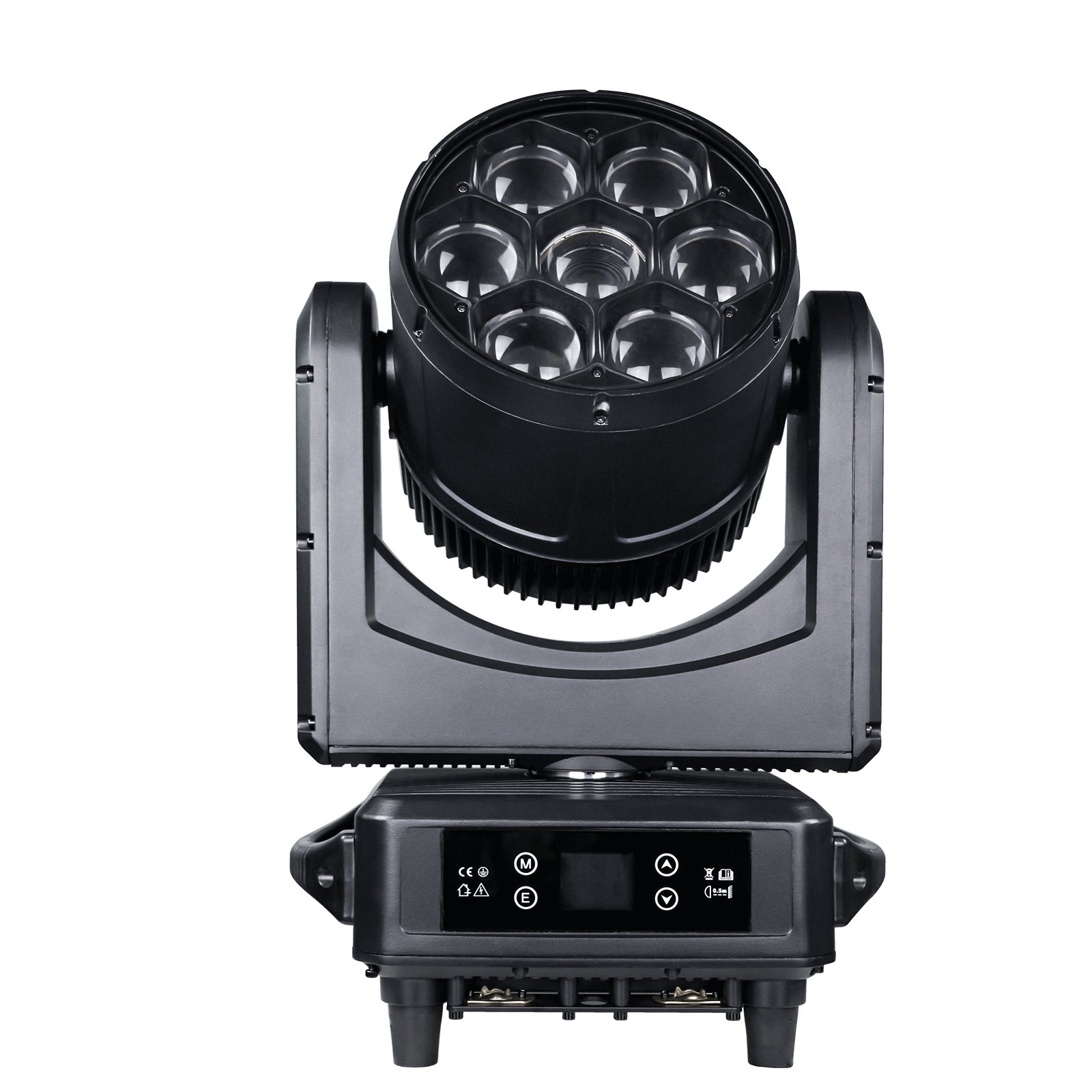

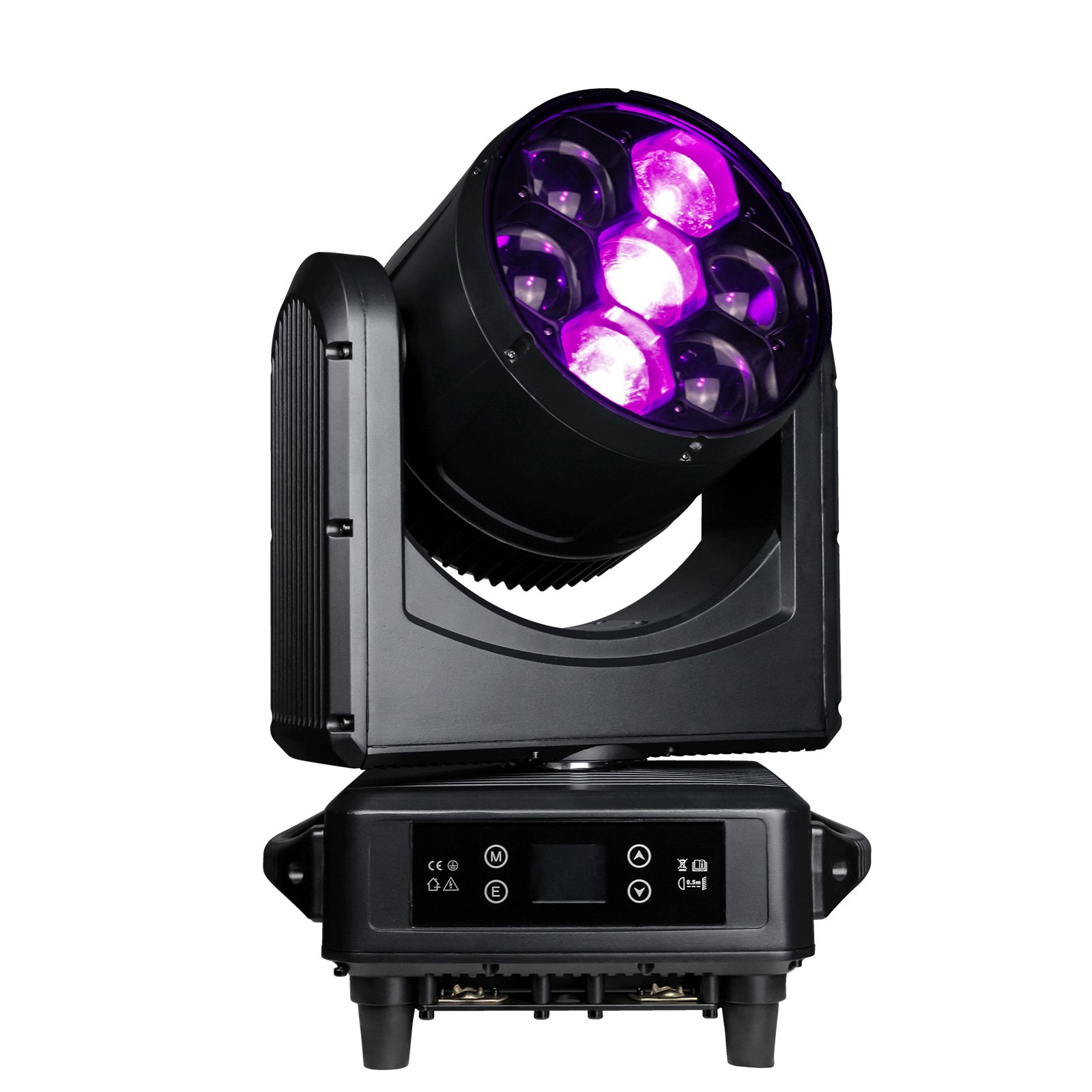

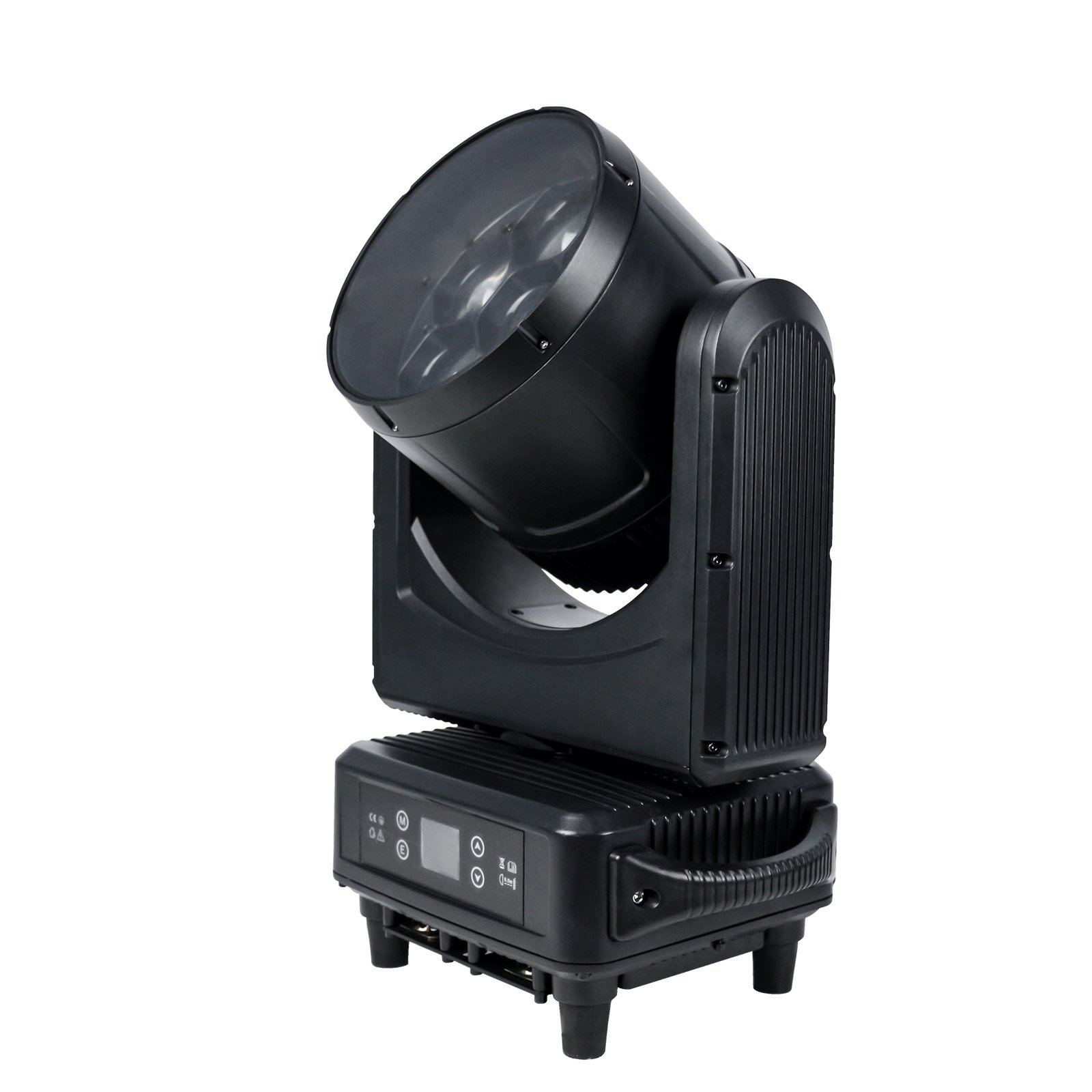

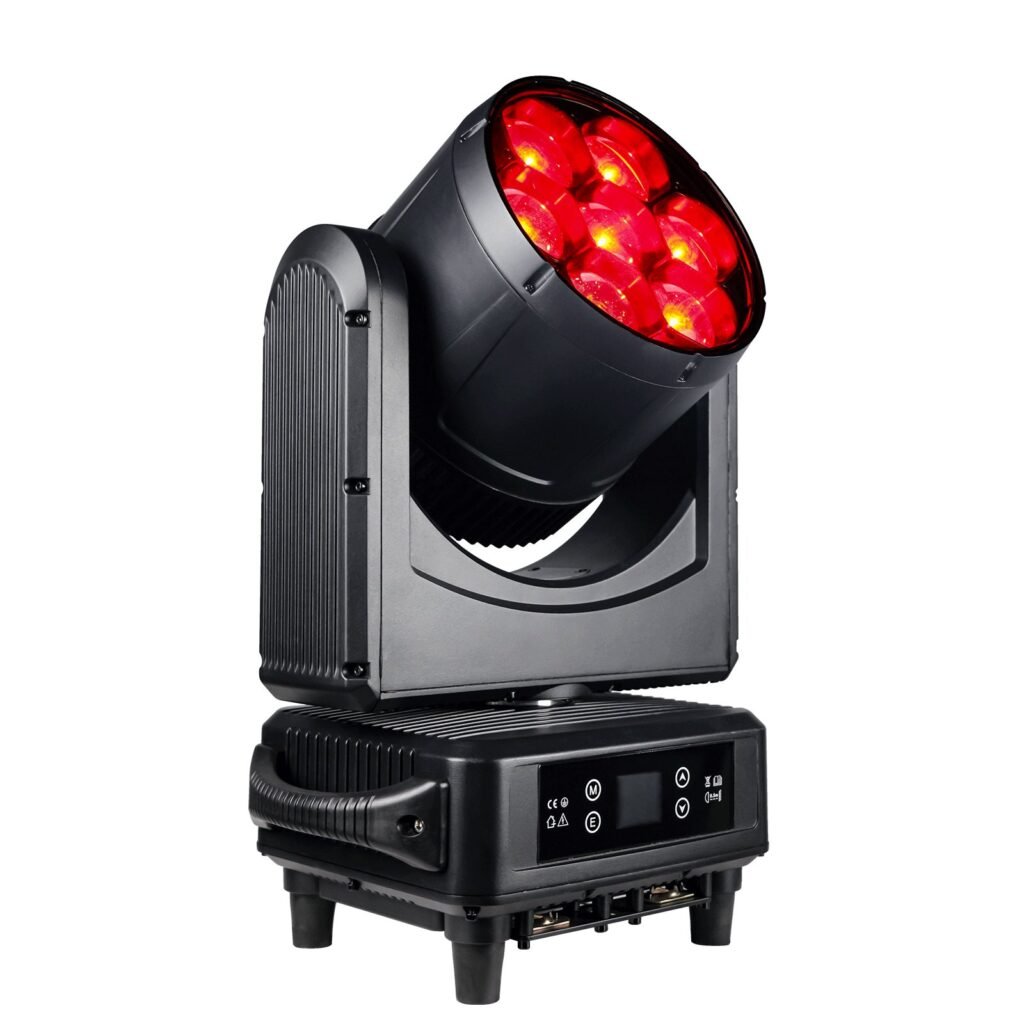

<div>LED shaking head dyeing light, with fast operation speed, no noise during</div>
<div>operation, and no flicker under high-definition camera. It consists of 7 40W</div>
<div>RGBW four color LEDs as a light source, creating a uniform color mixing</div>
<div>system and rainbow effect, easily creating a fast and powerful beam, adding</div>
<div>dynamism to the stage. Multiple channel modes are available, with point by</div>
<div>point control of the light beads. The lighting engineer can flexibly switch colors,</div>
<div>angles, and lighting effects. A linear focusing system with a beam angle of</div>
<div>4.5 ° -45 °, multiple speed stroboscopic effects, and a smooth dimming</div>
<div>function of 0~100% 16BIT.</div>
<div>operation, and no flicker under high-definition camera. It consists of 7 40W</div>
<div>RGBW four color LEDs as a light source, creating a uniform color mixing</div>
<div>system and rainbow effect, easily creating a fast and powerful beam, adding</div>
<div>dynamism to the stage. Multiple channel modes are available, with point by</div>
<div>point control of the light beads. The lighting engineer can flexibly switch colors,</div>
<div>angles, and lighting effects. A linear focusing system with a beam angle of</div>
<div>4.5 ° -45 °, multiple speed stroboscopic effects, and a smooth dimming</div>
<div>function of 0~100% 16BIT.</div>
Parameters
|
Input Voltage |
100-240V, 50/60Hz |
Output Voltage |
 V1:36V(LED driver+ main board), |
Power consumption |
480W |
|
Power supply |
600W |
Operate mode |
DMX512, AUTO master/slave, Voice control,RDM
|
Light source |
7x60W RGBW 4IN LED |
|
Beam angle |
4-60° |
DMX Channel |
23/35/51CH
|
Electronic dimmer |
0~100% linear |
|
Fixture size |
334*227.5*490mm
|
 Waterproof grade
|
IP65
|
 Linear CTO color temperature adjustment
|
2500-8000K
|
Details&Features

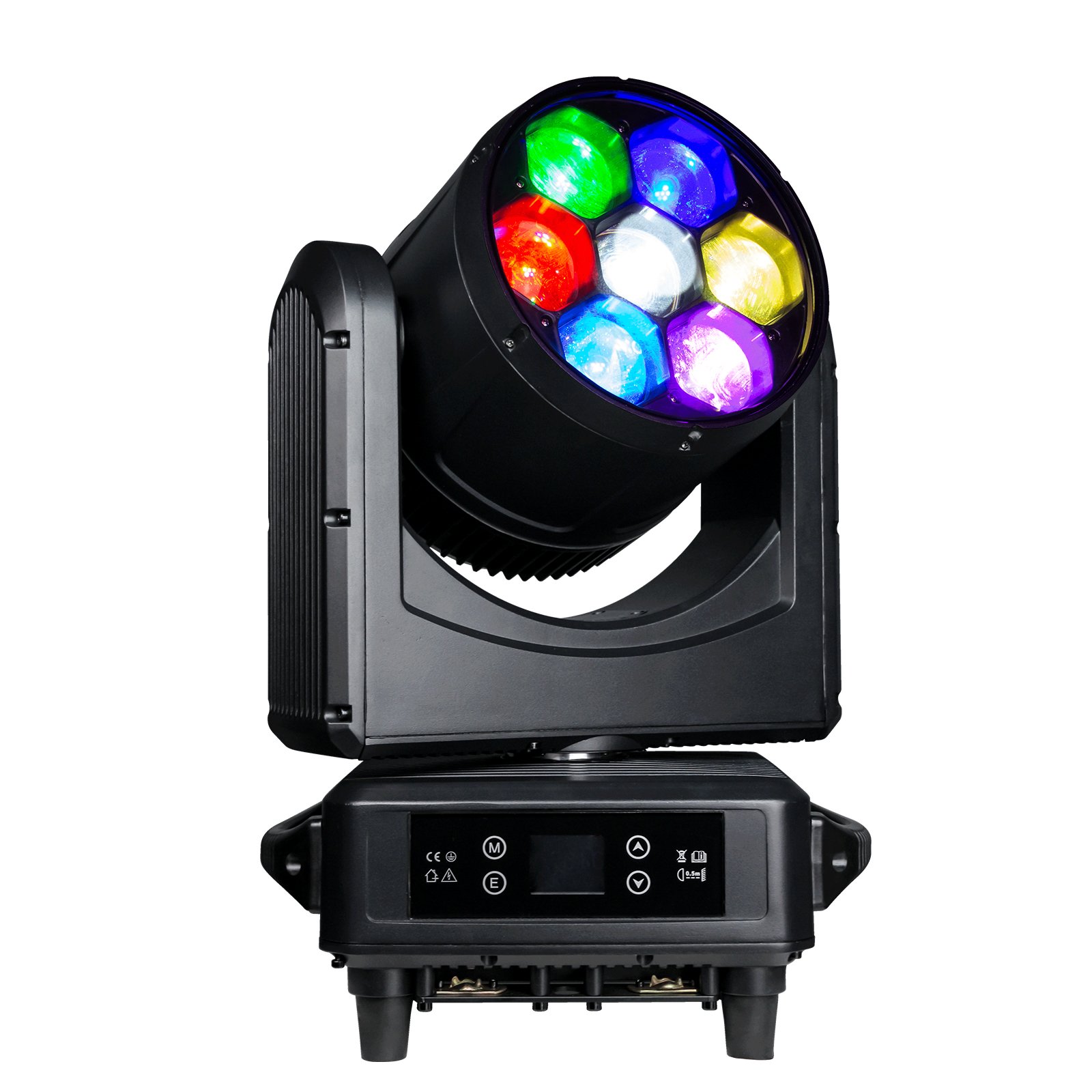

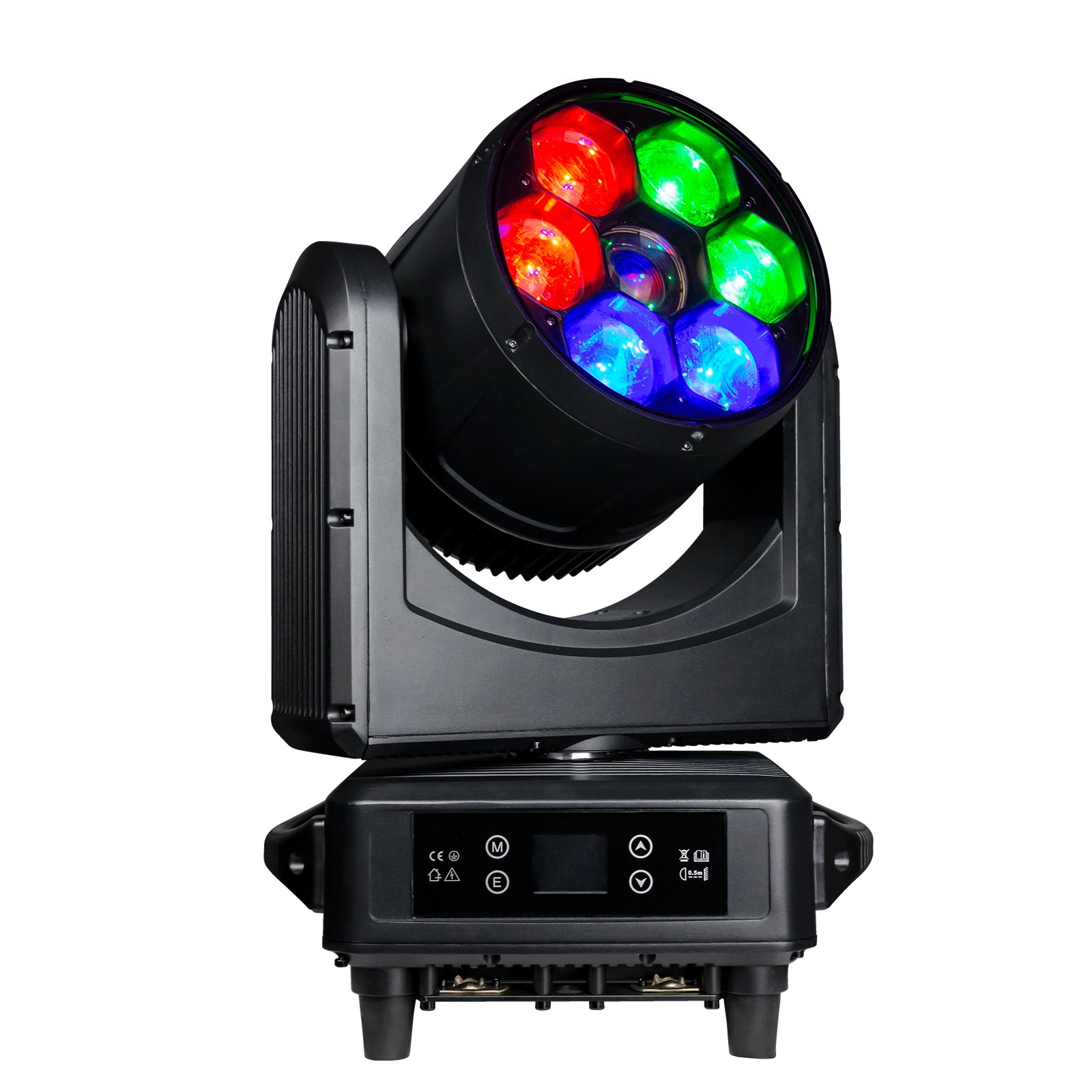

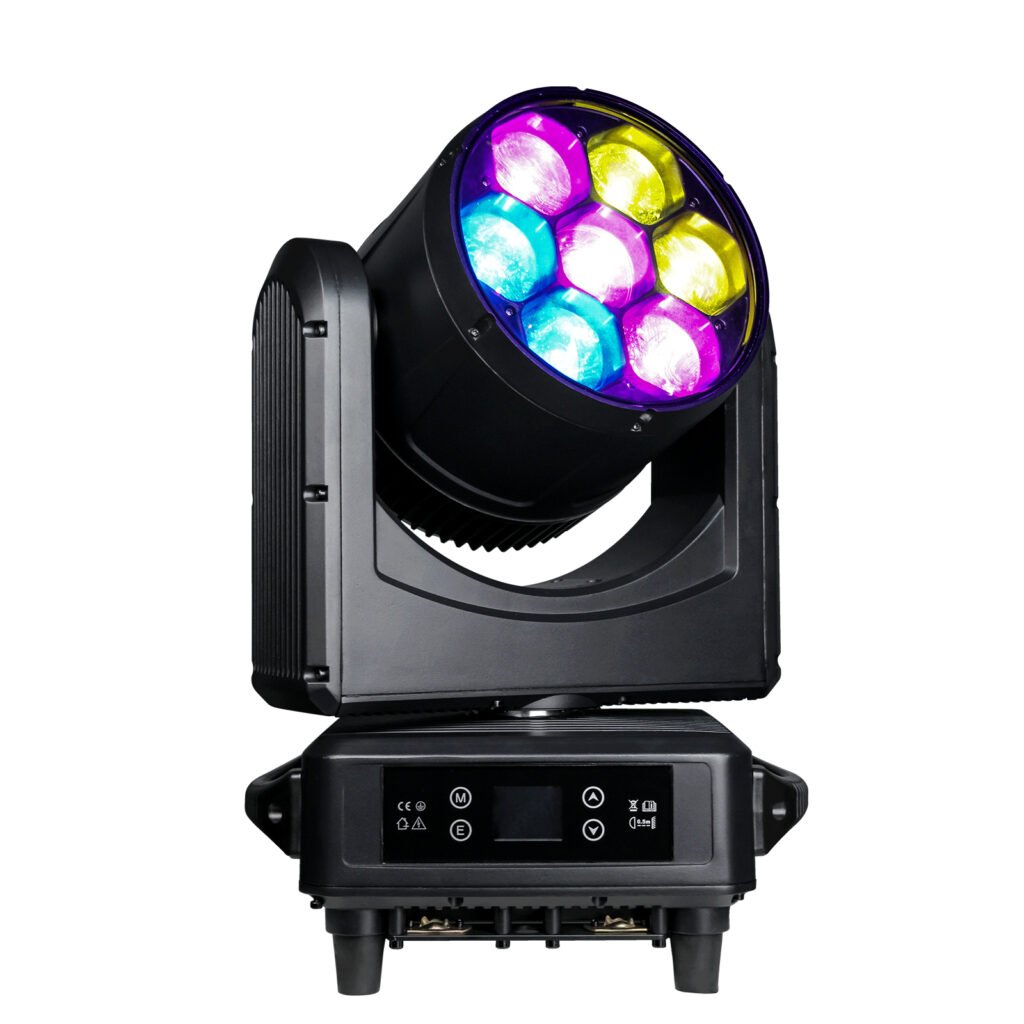

Excellent color mixing effect
