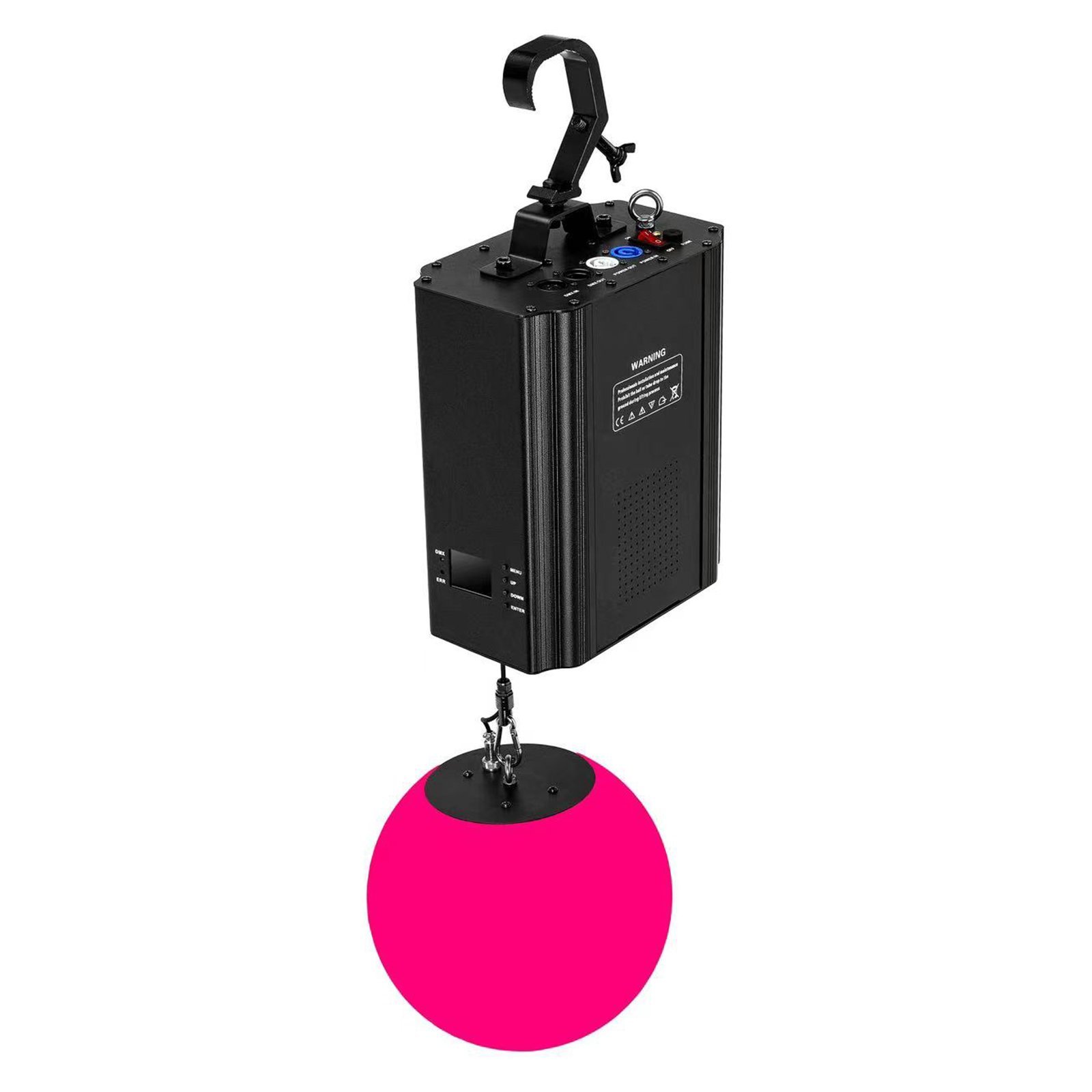

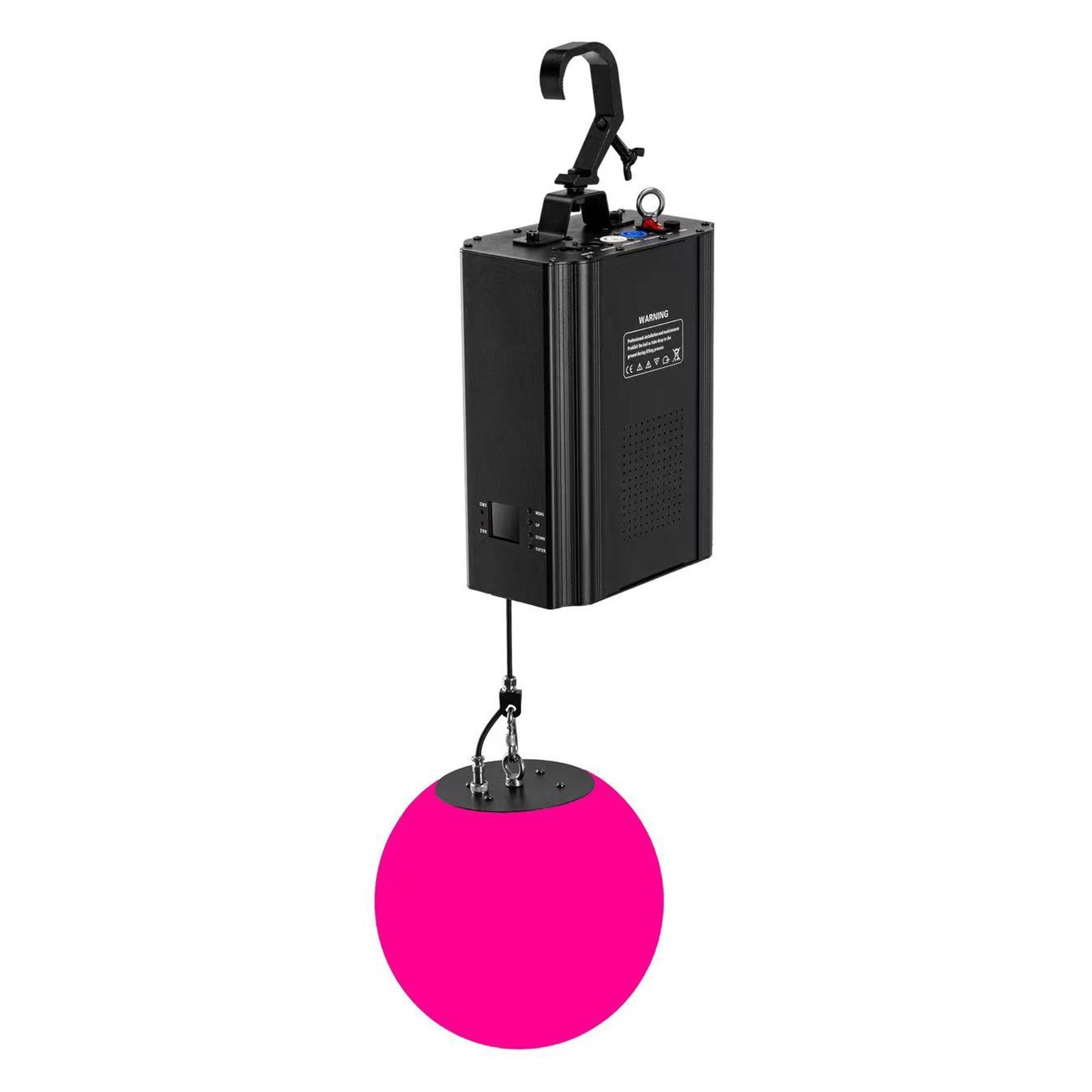

VSHOW Kinetic light lifting ball combination of kinetic energy and light for stage

Function description

DMX-512 control connections，Connect the provided XLR cable to the female 3-pin XLR output of your，controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple<br>Moving heads be connected together through serial linking. The cable needed. <div> </div> <div>Please contact the nearest authorized technical assistance center if needed. Disconnect this product from its power source before servicing. DO use the original packaging if the device is to be transported. Avoid direct eye exposure to the light source while the product is on. DO NOT operate this product if you see damage on the housing, shields, orcables. Have the damaged parts replaced by an authorized technician at once.</div>

Parameters

Input Voltage	100-240V, 50/60Hz	Power consumption	500W	Power supply	600W
Dimmer	0-100% smooth dimming	Strobe	1-30Hz High output strobe effect Excellent color mixing effect	Display	OLED display
Excellent color mixing effect		CW power	200W	WW power	200W
Light source	672pcs 0.5W 5050 RGB LED 112pcs 4W 3535WW/CW 2in1 LED	Color temperature	WW:2000K CW:6000K	Main light	16pcs WW/CW LED zones can be controlled individually
Auxiliary light	Â 32pcs RGB LED zones can be controlled individually	DMX Channel	17/07/15/22/42/128/20/40/80/83/132/85CH	Operate mode	DMX512, Auto,Master/slave, sound active/RDM
Power socket	waterproof power connector input/output	Protection Rating	IP66	Size	1000x108x125mm
Net weight	8.8kg	RGB power	400W	Built in splicing pins for quick machine splicing
Signal input/output:3pin waterproof XLR socket (optional with 5pin)		Power socket: waterproof power connector input/output		Â

Details&Features

Excellent color mixing effect

Function description

Moving heads be connected together through serial linking. The cable needed.

Please contact the nearest authorized technical assistance center if needed. Disconnect this product from its power source before servicing. DO use the original packaging if the device is to be transported. Avoid direct eye exposure to the light source while the product is on. DO NOT operate this product if you see damage on the housing, shields, orcables. Have the damaged parts replaced by an authorized technician at once.

Parameters

Input Voltage	100-240V, 50/60Hz	Power consumption	500W	Power supply	600W
Dimmer	0-100% smooth dimming	Strobe	1-30Hz High output strobe effect Excellent color mixing effect	Display	OLED display
Excellent color mixing effect		CW power	200W	WW power	200W
Light source	672pcs 0.5W 5050 RGB LED 112pcs 4W 3535WW/CW 2in1 LED	Color temperature	WW:2000K CW:6000K	Main light	16pcs WW/CW LED zones can be controlled individually
Auxiliary light	32pcs RGB LED zones can be controlled individually	DMX Channel	17/07/15/22/42/128/20/40/80/83/132/85CH	Operate mode	DMX512, Auto,Master/slave, sound active/RDM
Power socket	waterproof power connector input/output	Protection Rating	IP66	Size	1000x108x125mm
Net weight	8.8kg	RGB power	400W	Built in splicing pins for quick machine splicing
Signal input/output:3pin waterproof XLR socket (optional with 5pin)		Power socket: waterproof power connector input/output
