Function description

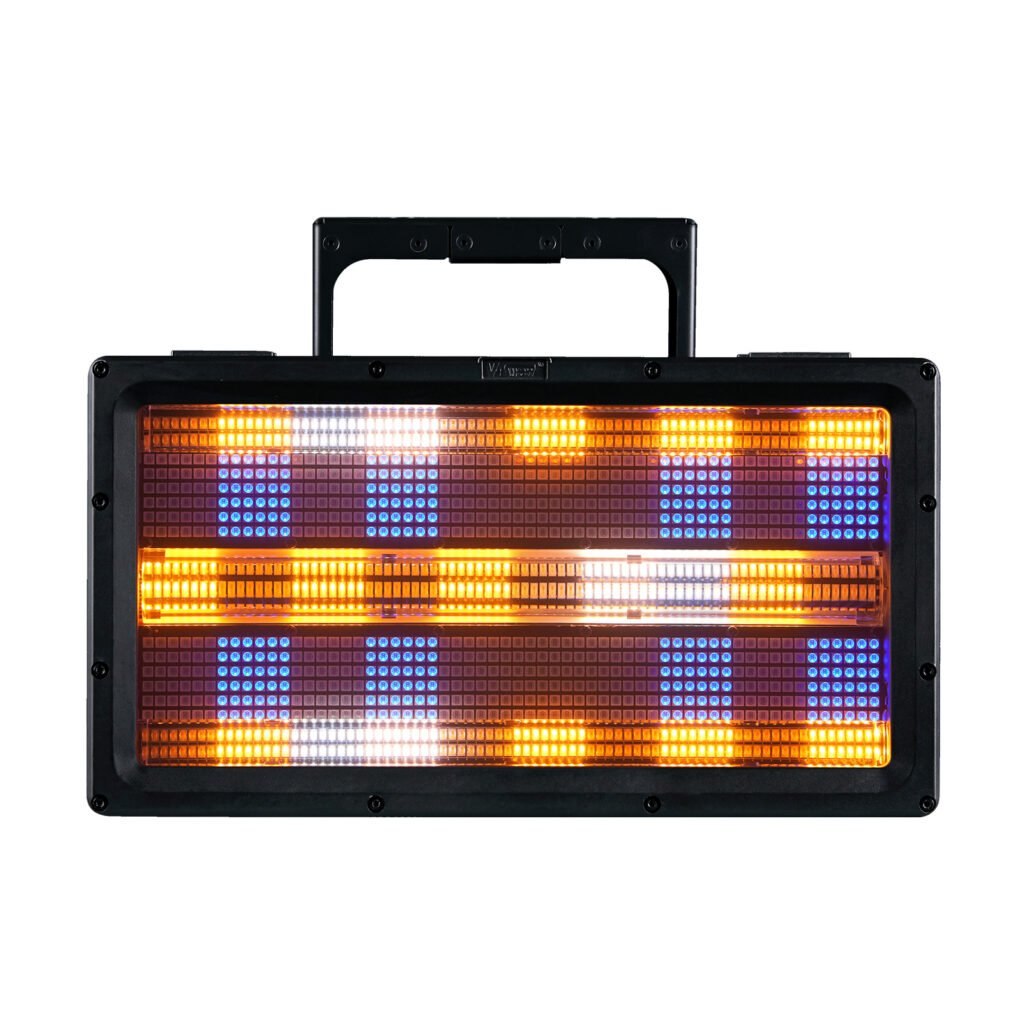

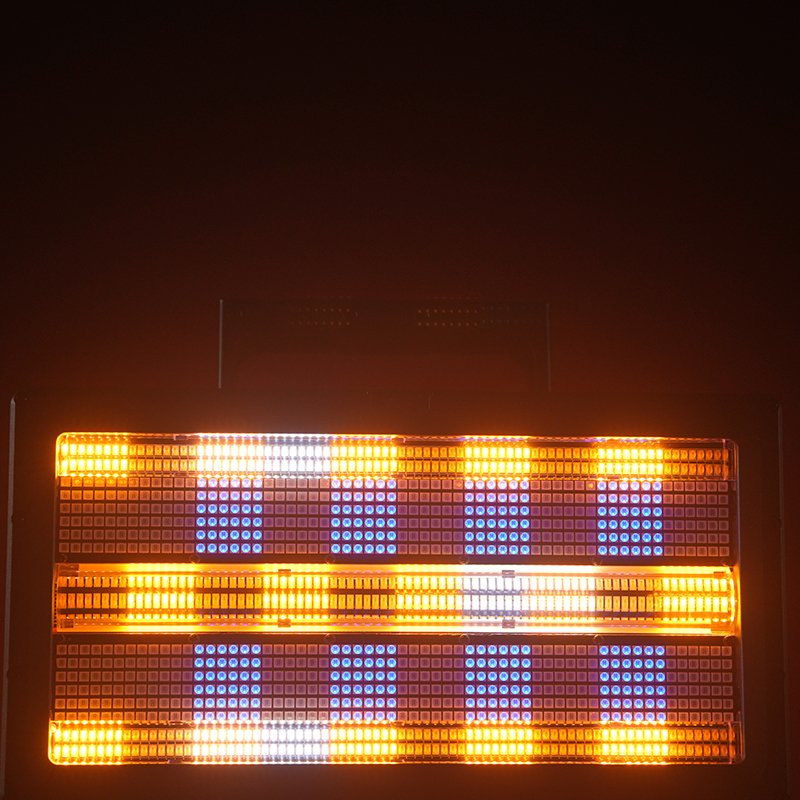

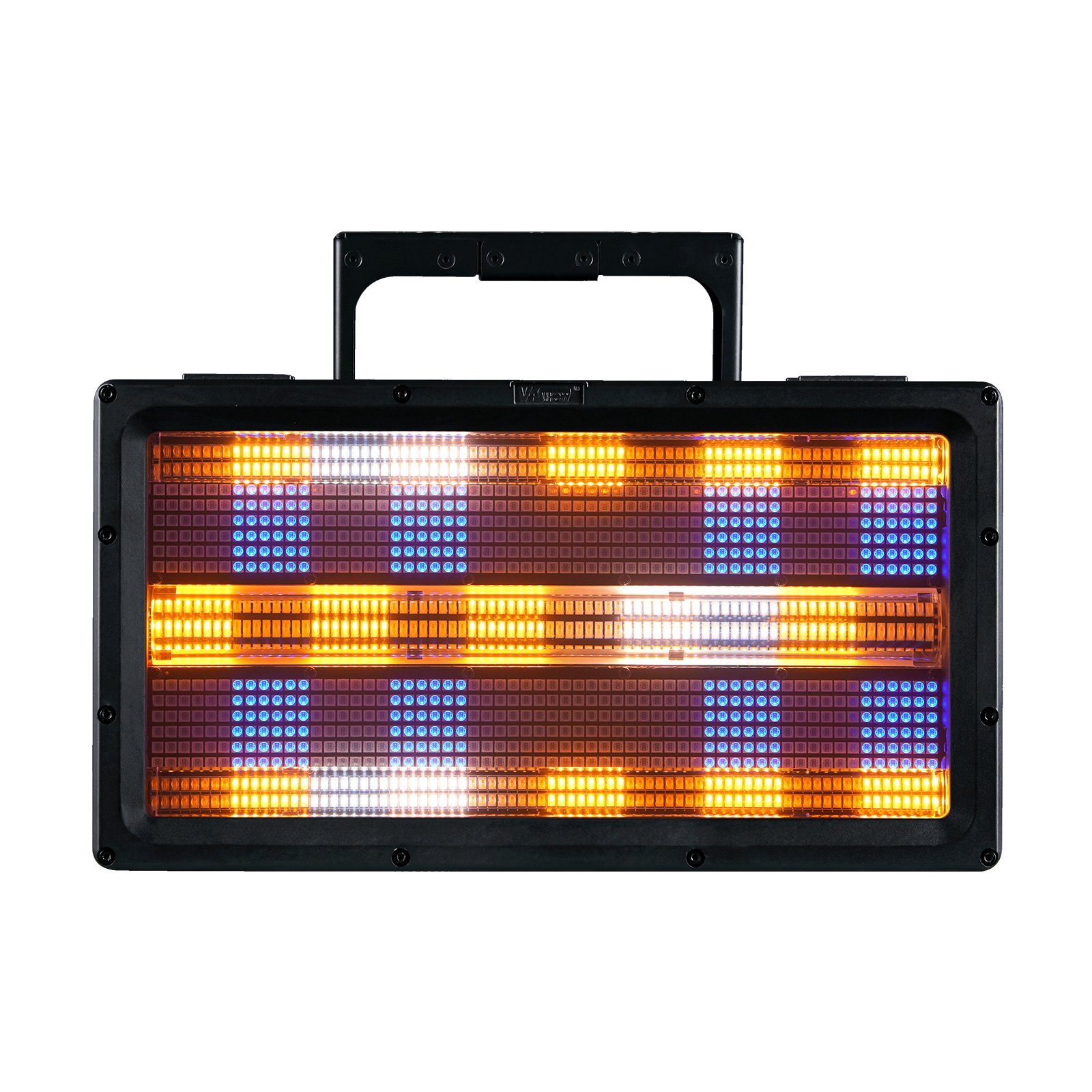

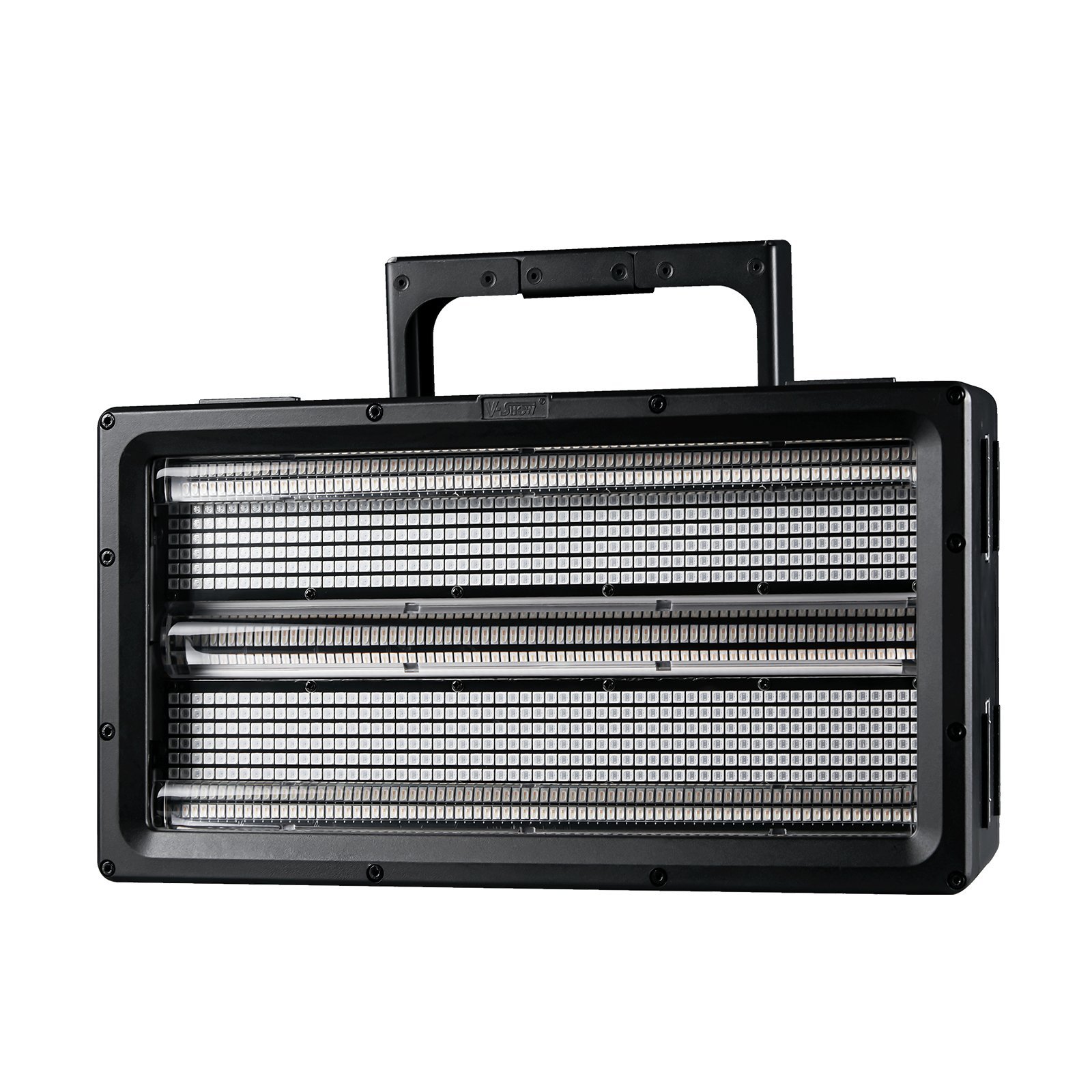

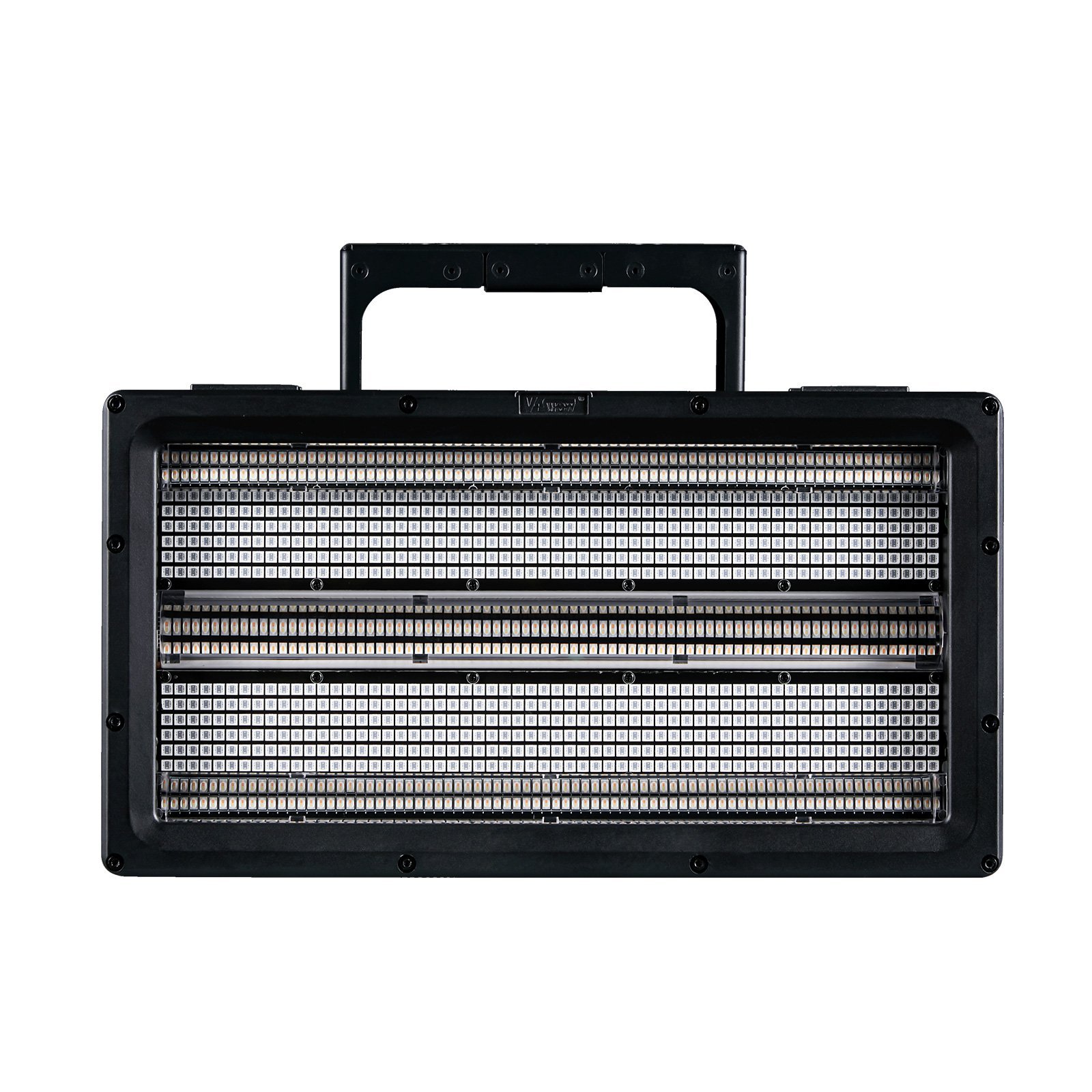

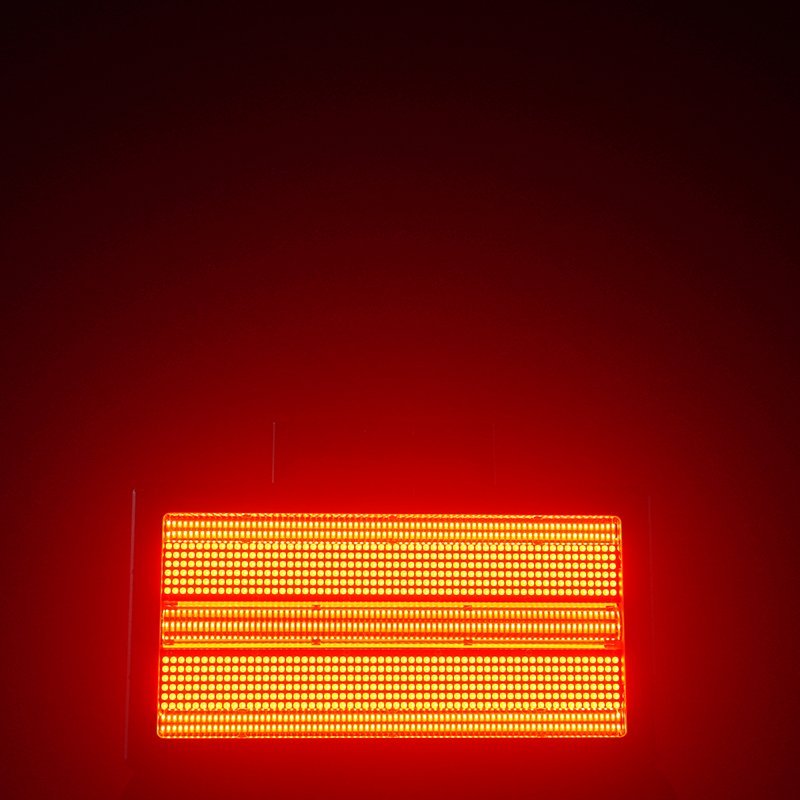

The dot matrix luminous surface can also be used as a colored light strobe light to produce rich color strobe effects; when used as an effect light, use fade in and out, white light/colored light speed direction selection, white light/colored light shape selection, and background dimming The combination of equal channels and the use of electronic atomization film will make the effect more colorful; multiple lamps can be spliced horizontally and vertically, just like running as one lamp; when multiple lamps are used in combination, video effects can be run; advanced heat dissipation design ensures The lamp beads will not be damaged during full-color continuous lighting or instantaneous high-brightness strobe. The product has a simple appearance, compact structure, small lamp body and only weighs 14 kg. It is suitable for various performance venues such as bars, stages, dramas, concerts, and network variety shows.</p>
Parameters
| Input Voltage | 100-240V, 50/60Hz | Power consumption | 800W | Power supply | 1000W |
RGB power | 700W | CW power | 800W | WW power | 800W |
Light source | 720pcs 1.5W 5050 RGB LED 560pcs 4W 3535WW/CW 2in1 | LED Life | >20000Hour | DMX Channel | 20/120CH |
Operate mode | DMX512, Auto,Master/slave, /RDM | Dimmer | 0-100% 32BIT smooth dimming | Dimming curve | Linear, Square Law, Inv SQ Law ,S Curve |
Dimming speed | Fast, slow | Strobe | Strong output strobe effect at 1-30Hz | Fan mode | Auto, low speed, high speed |

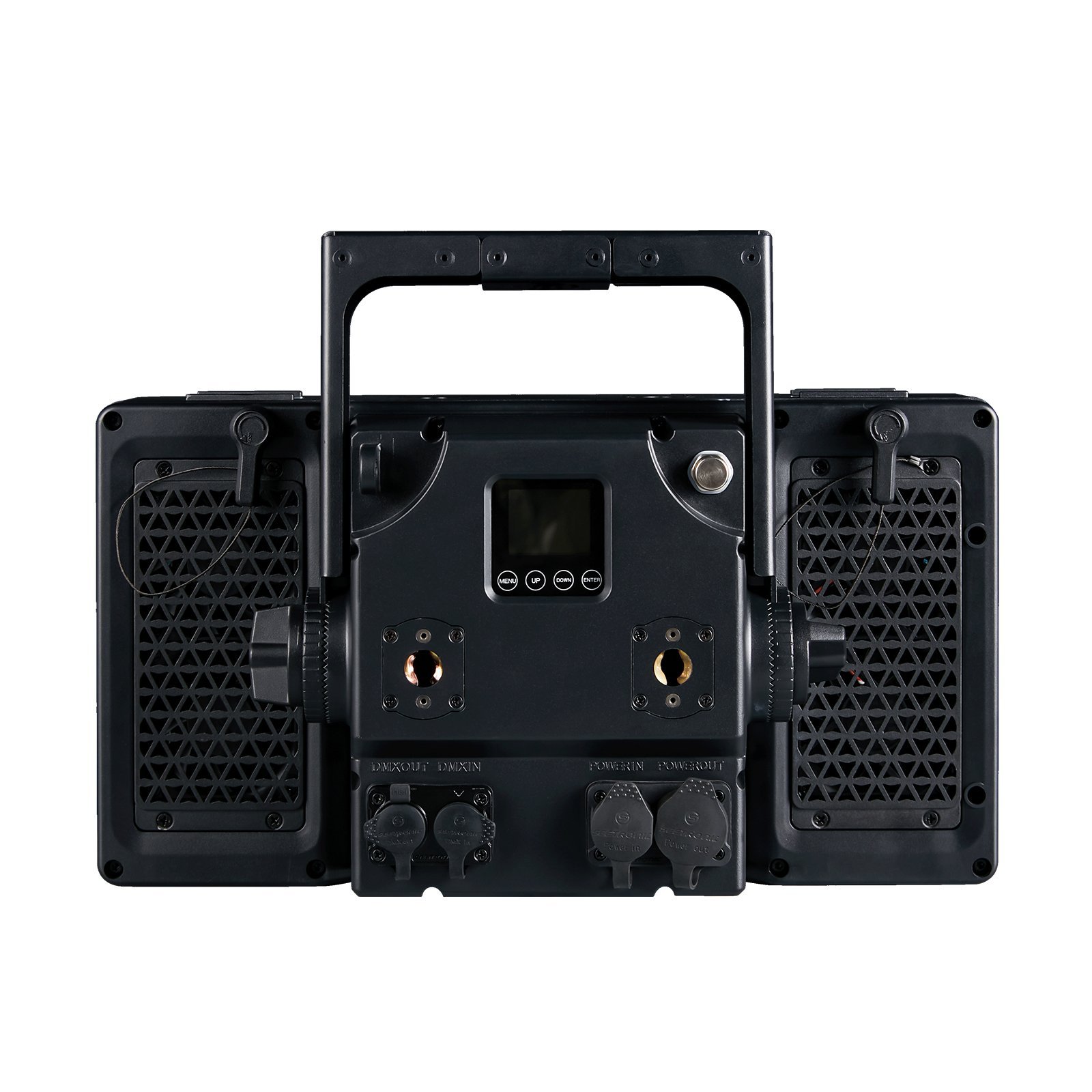

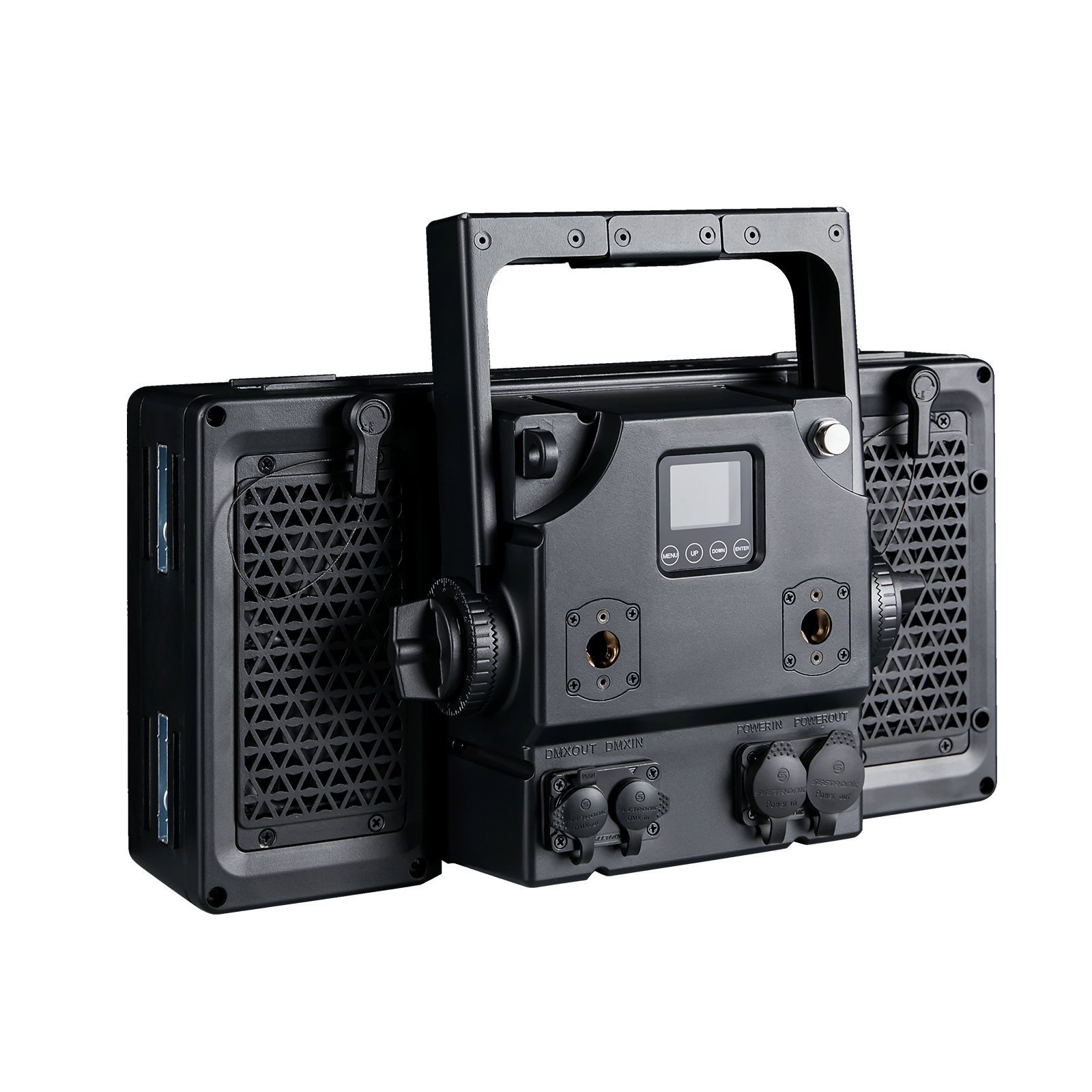

Display | OLED display | Signal input/output | 3pin waterproof XLR socket (optional with 5pin) | Power socket | Waterproof power connector input/output |
Protection Rating | IP66 | Size | 413x184x300mm | Net weight | 14kg |
Color temperature | WW:2000K CW:6000K | Main light | 30pcs WW/CW LED zones can be controlled individually | Auxiliary light | 36pcs RGB LED zones can be controlled individually |

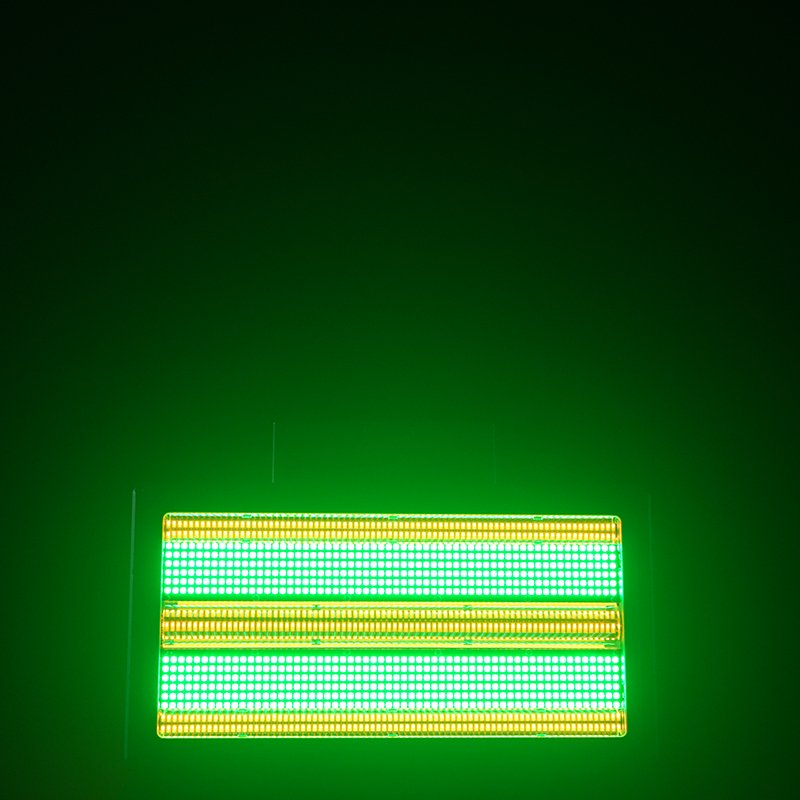

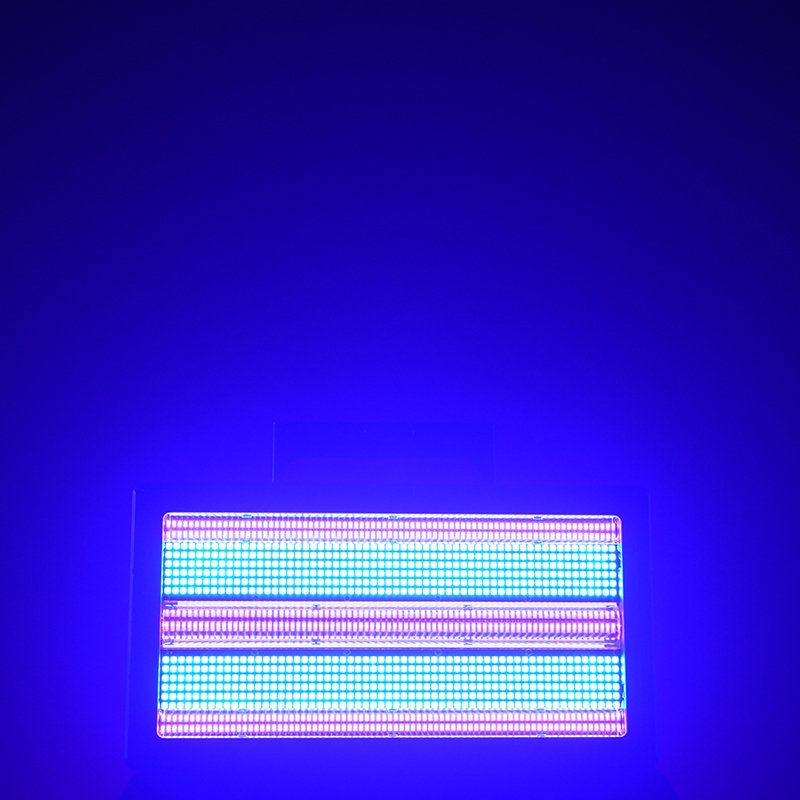

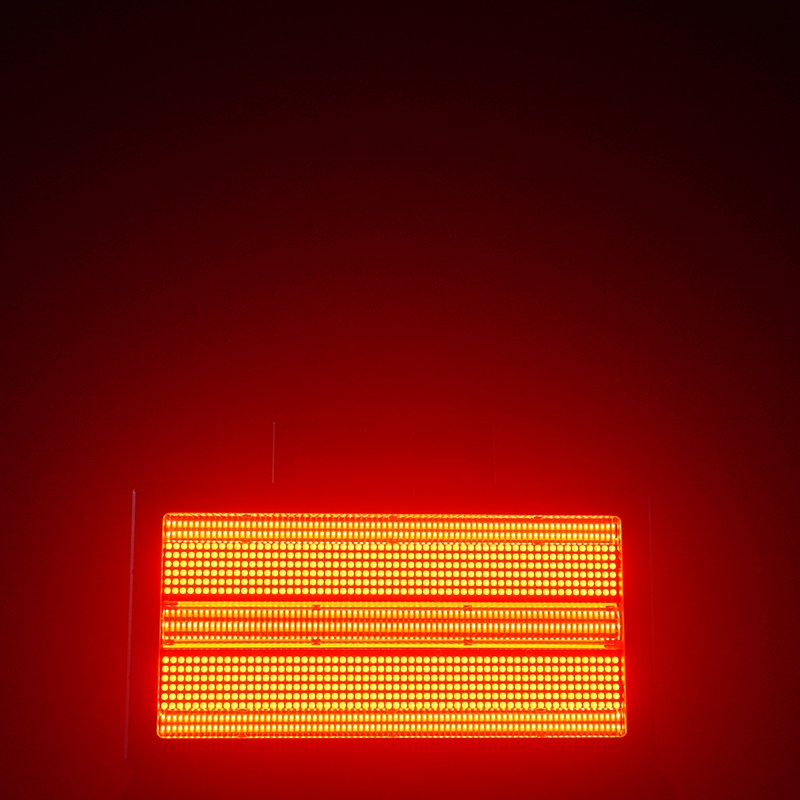

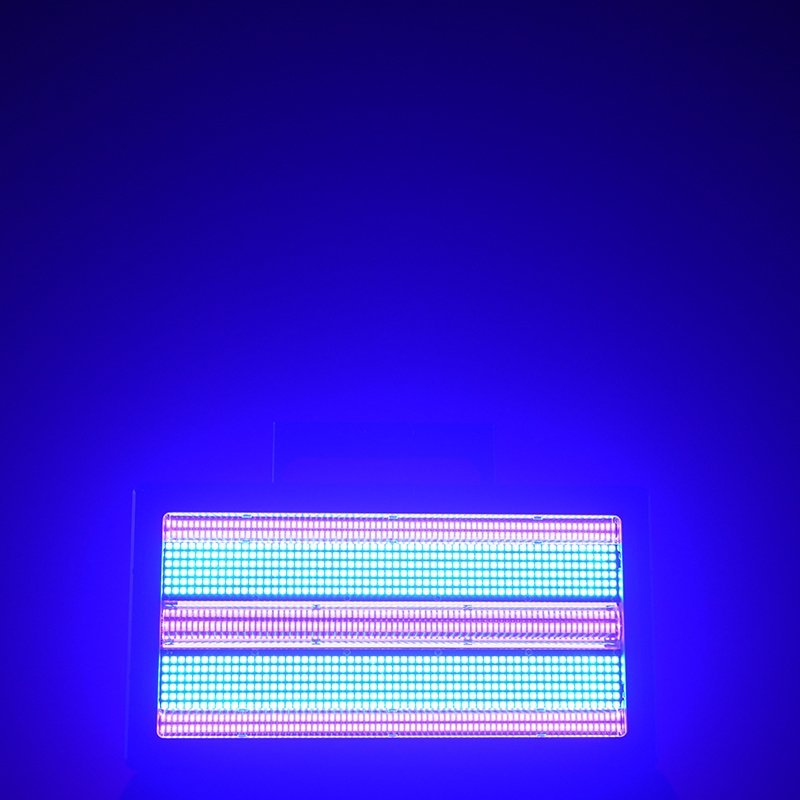

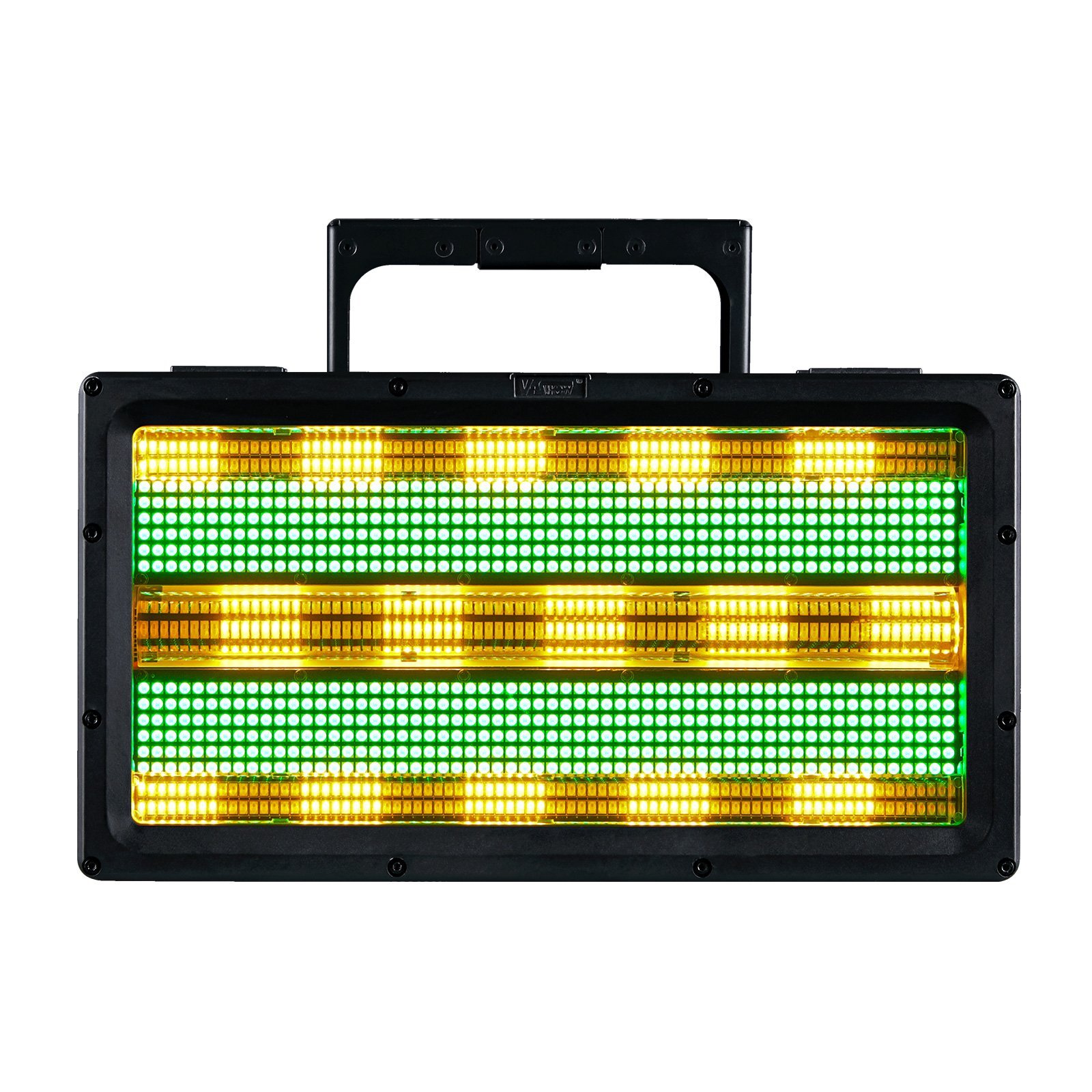

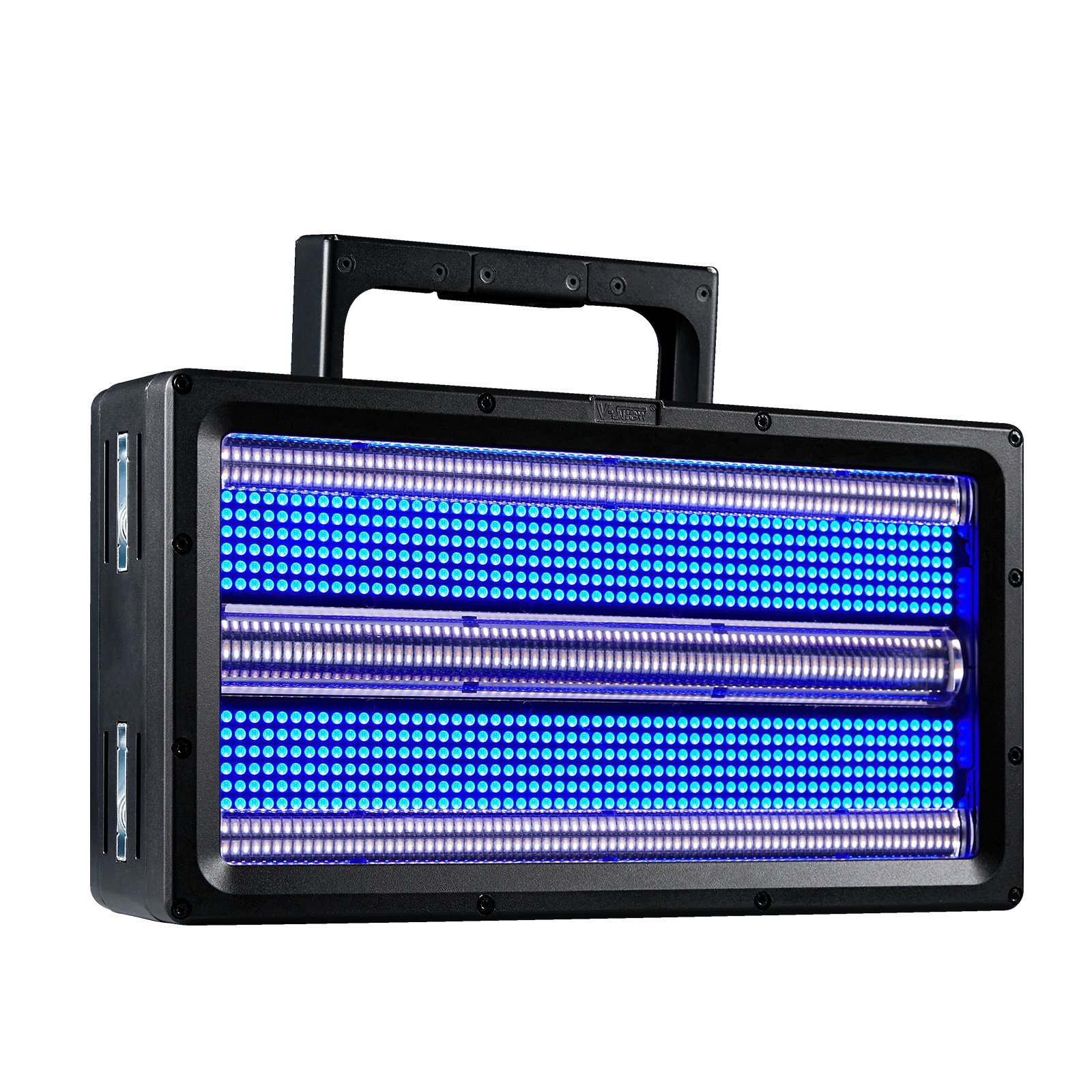

Excellent color mixing effect
