Function description

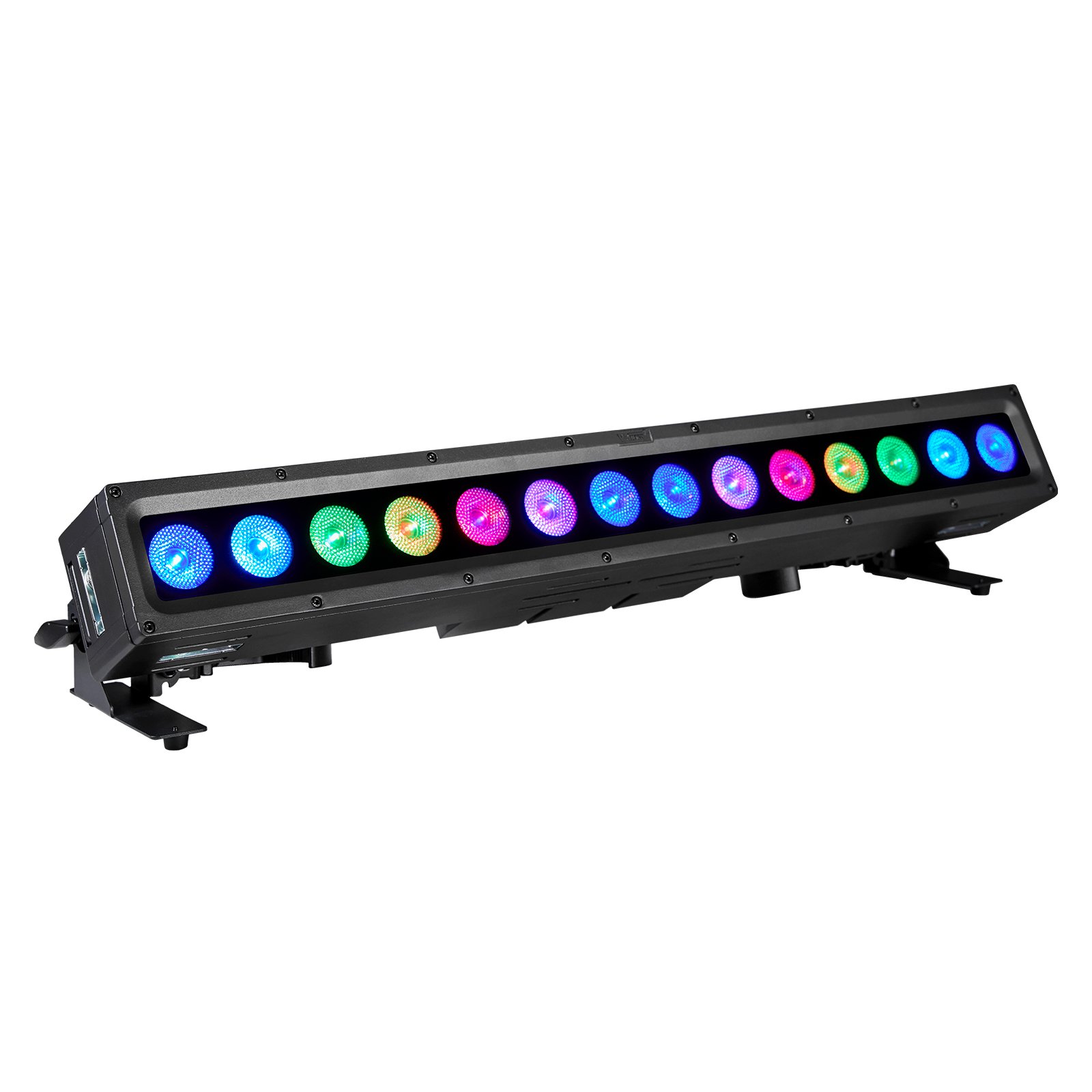

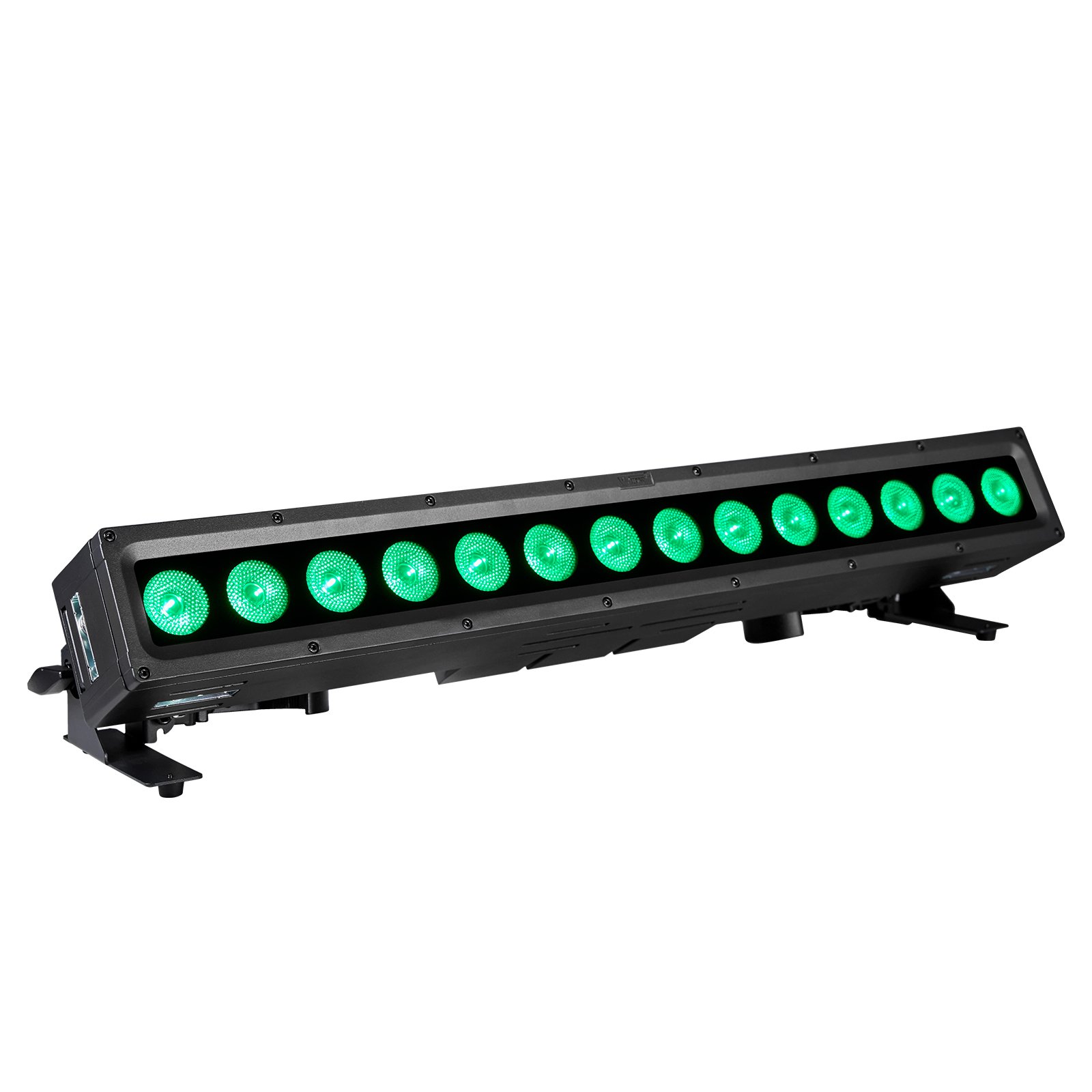

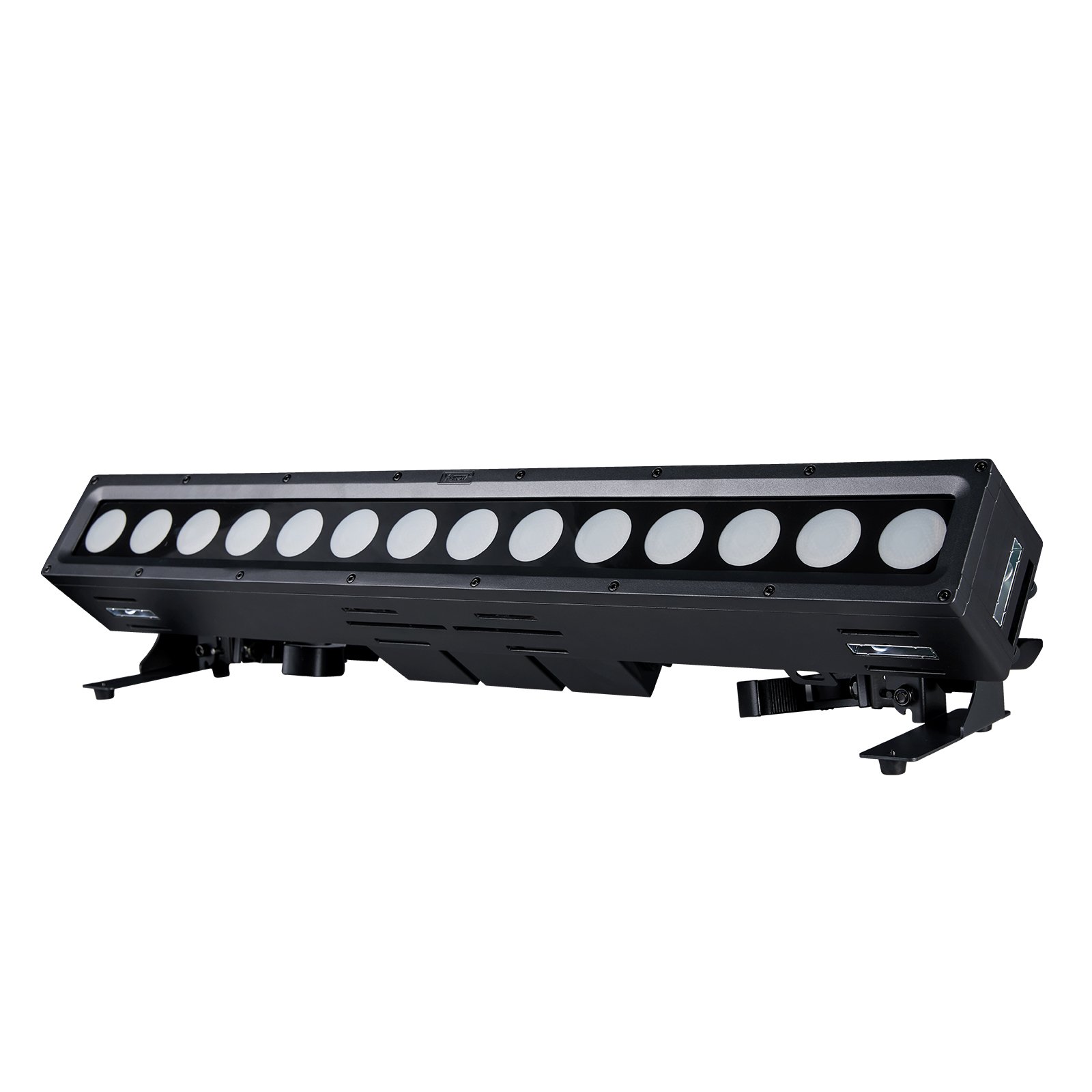

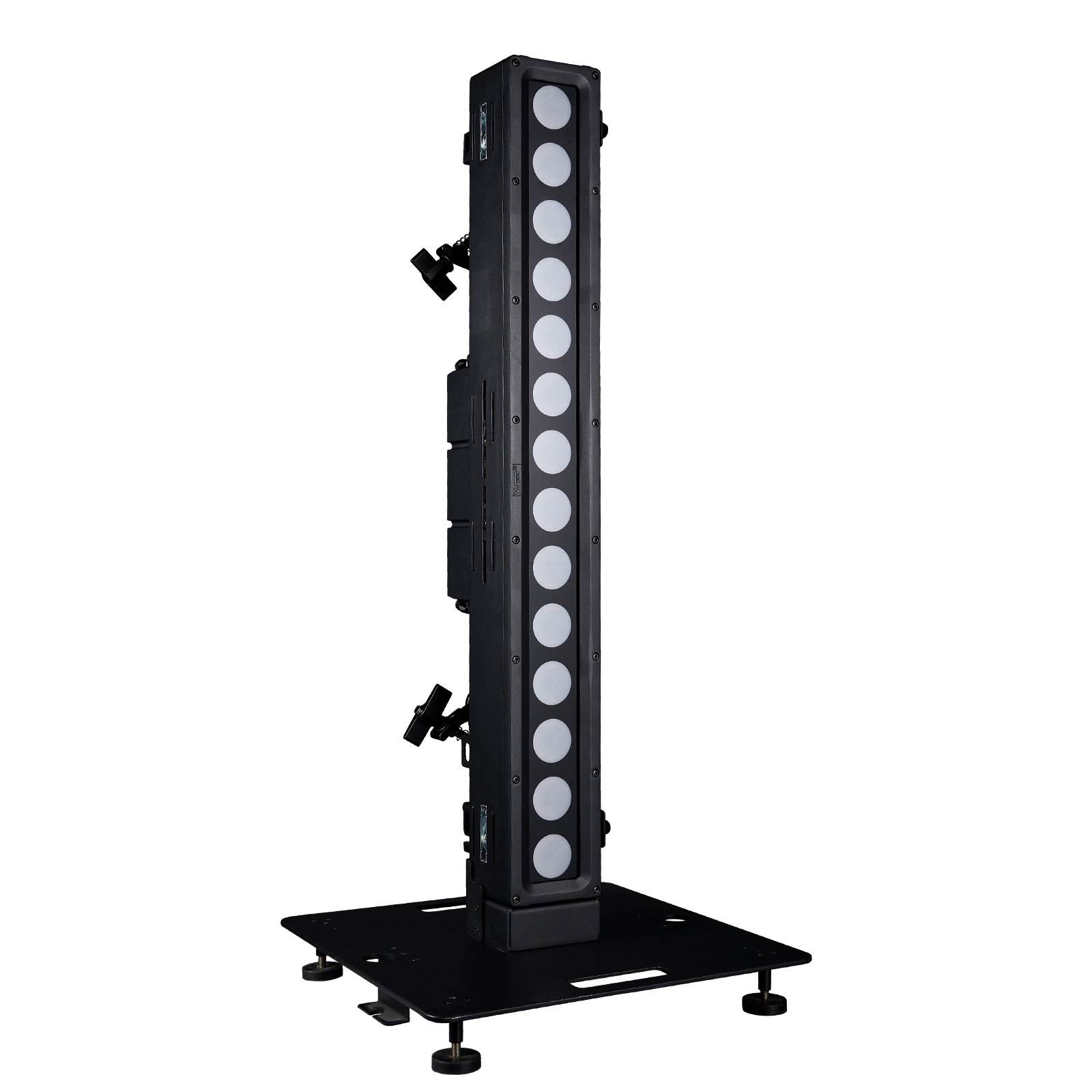

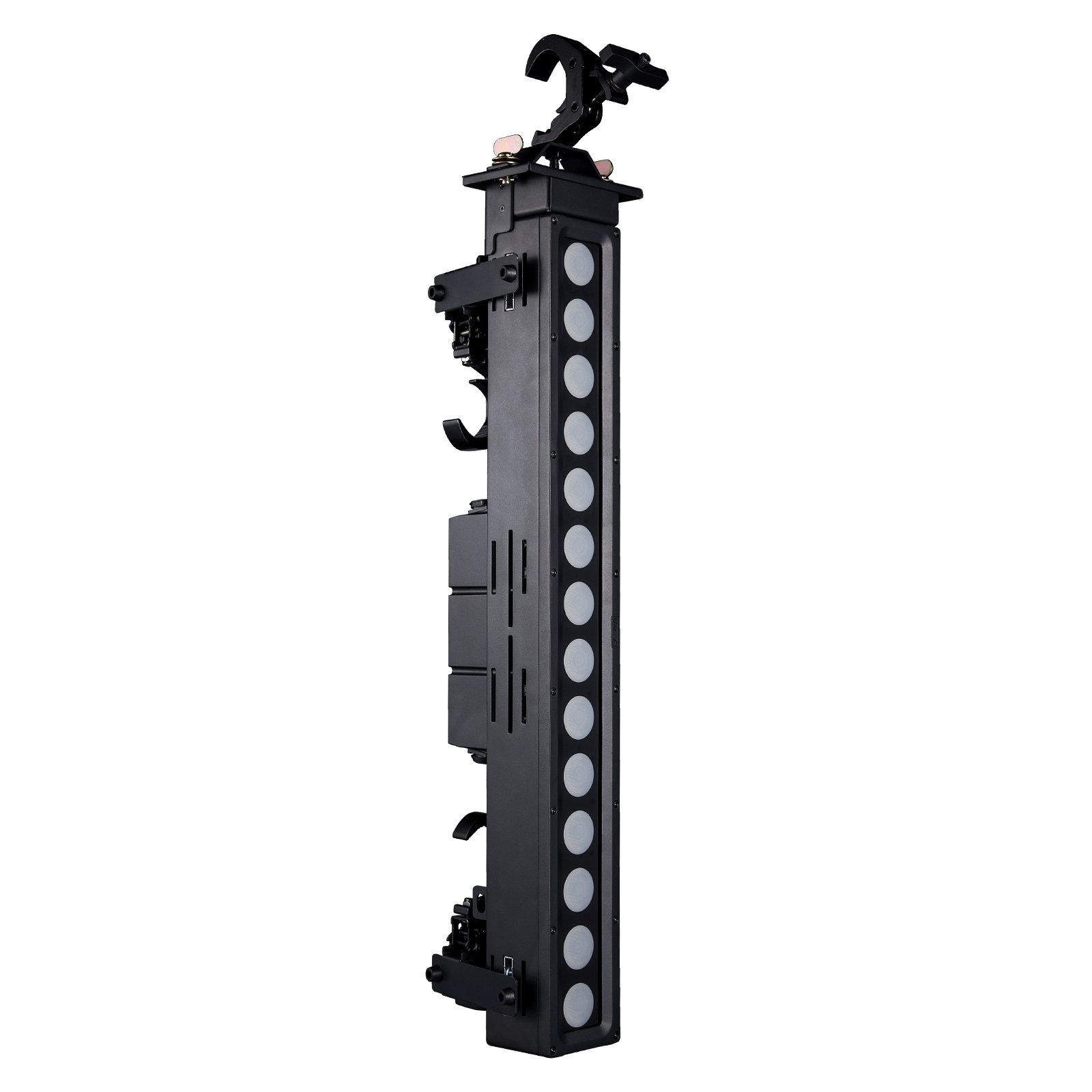

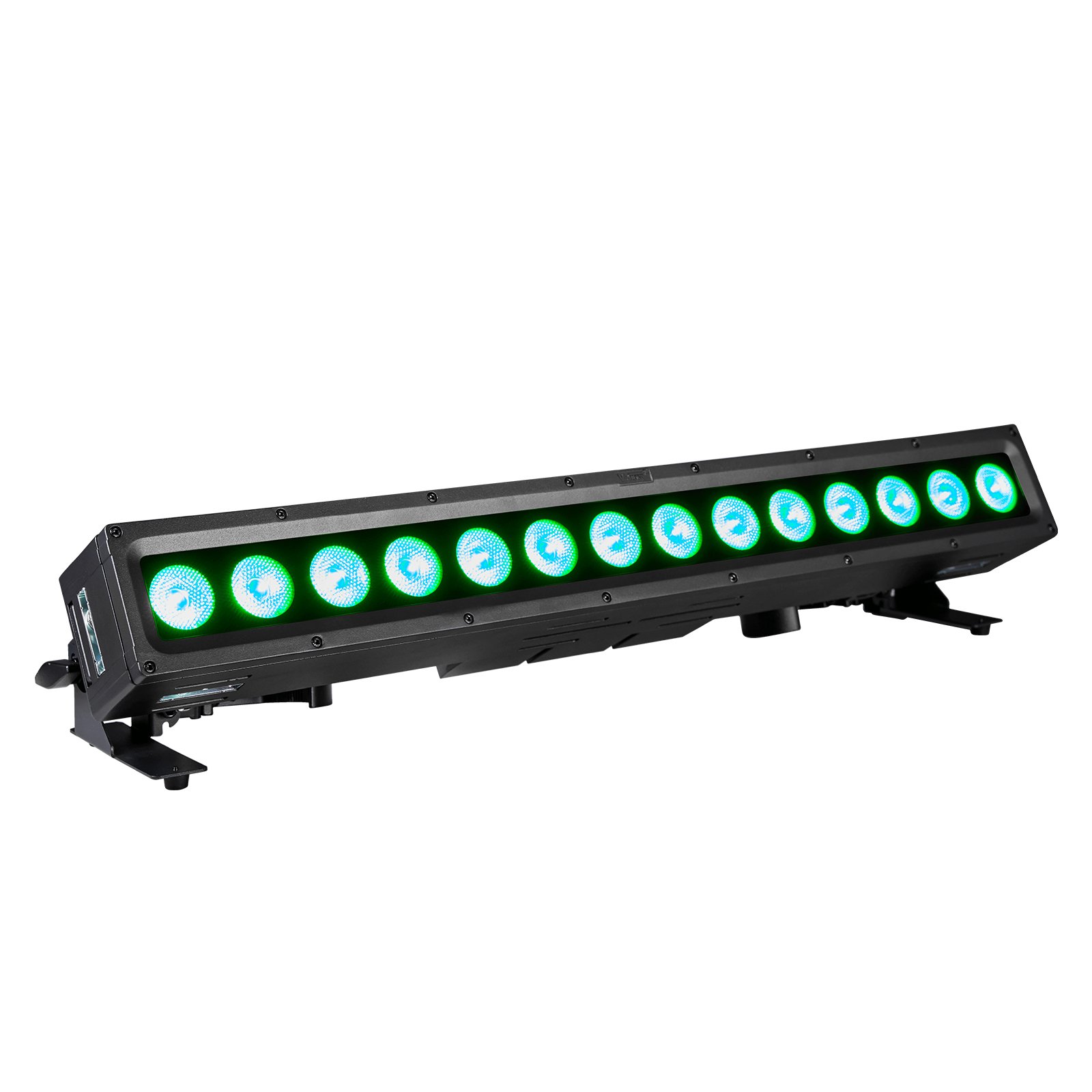

<p>14 x 25W RGBWYL+UV LEDs, each independently controllable for rich dynamic effects and infinite creative combinations. Features independent electronic atomization for outstanding fog effects, easily creating soft light to enhance expressive lighting and a stronger atmosphere. Can be floor/stand mounted, fixed installed, or horizontally vertically stitched</p>
Parameters
| Input voltage | 100-240V, 50/60Hz | Dimmer | 0-100% smooth linear dimming |
| Power consumption | 300W | Dimming curves | linear, square law, inverse square law, S-curve |
| Power supply | 400W | Dimming speed | fast, slow |
| Light source | 14PCSx25W RGBWYLP7IN1 LED | Strobe | 1-25HZ strong output flicker effect |

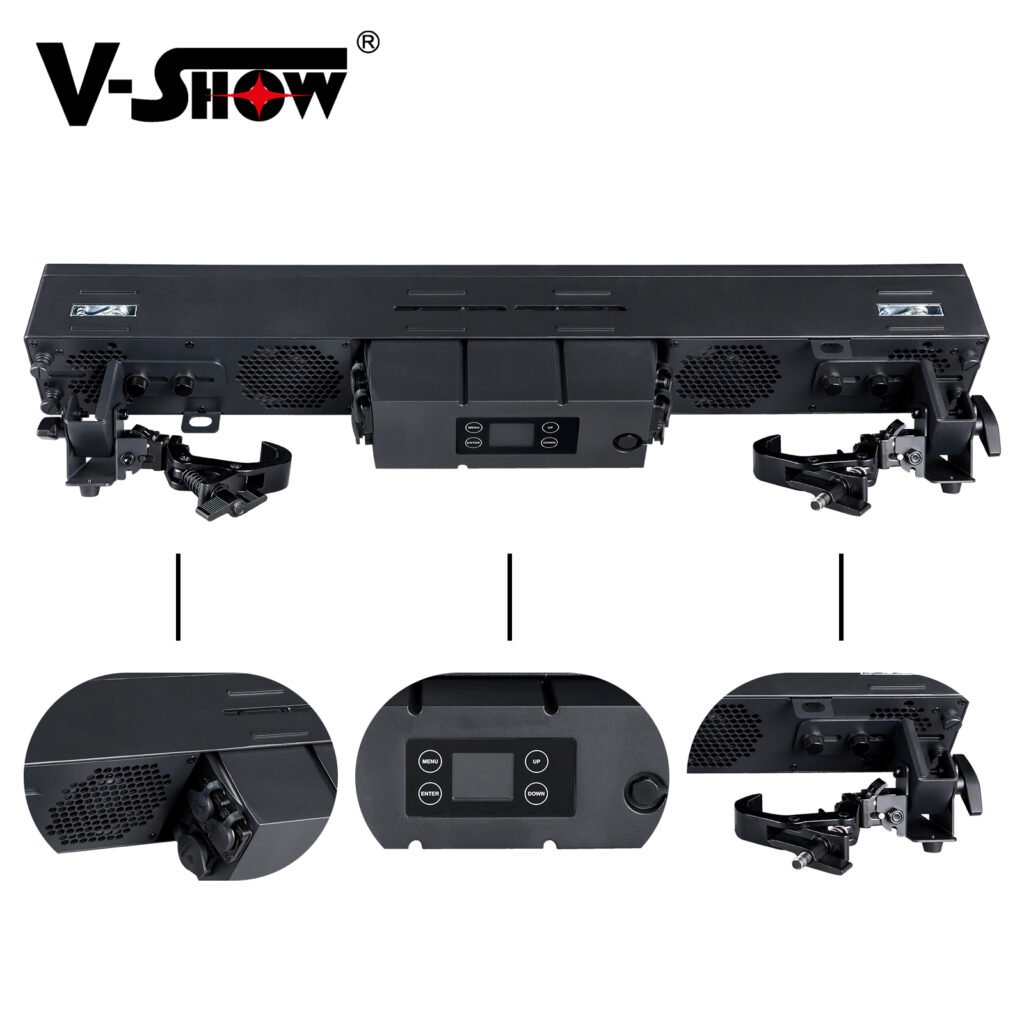

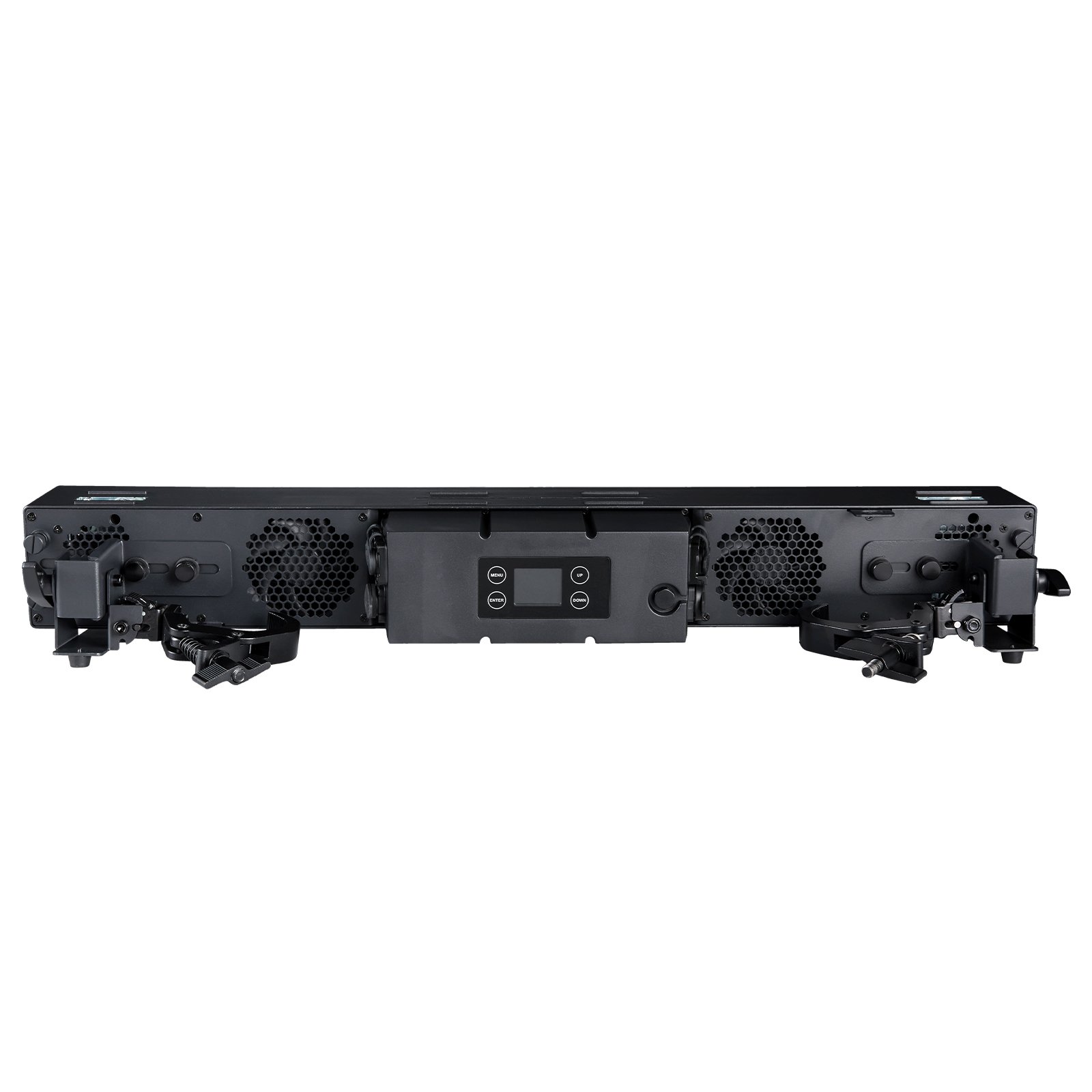

| Color System | Excellent Color Macro Effects | Display | OLED display |
| Pixel matrix | 14 LED beads can be controlled at a single point | Signal input/output | 3-pin and 5-pin waterproof XLR sockets (optional ARE-NET) |
| LED lifespan | >20000 hours | Power socket | Waterproof power connector input/output |
| Lens Angle | 25 ° | Protection level | IP66 |
| DMX channel | 5/8/18/57/74/99/116 channels | Size | 820x102x169mm |
| Operation mode | DMX512、 Automatic, master-slave/ RDM | Net weight | 9.5kg |

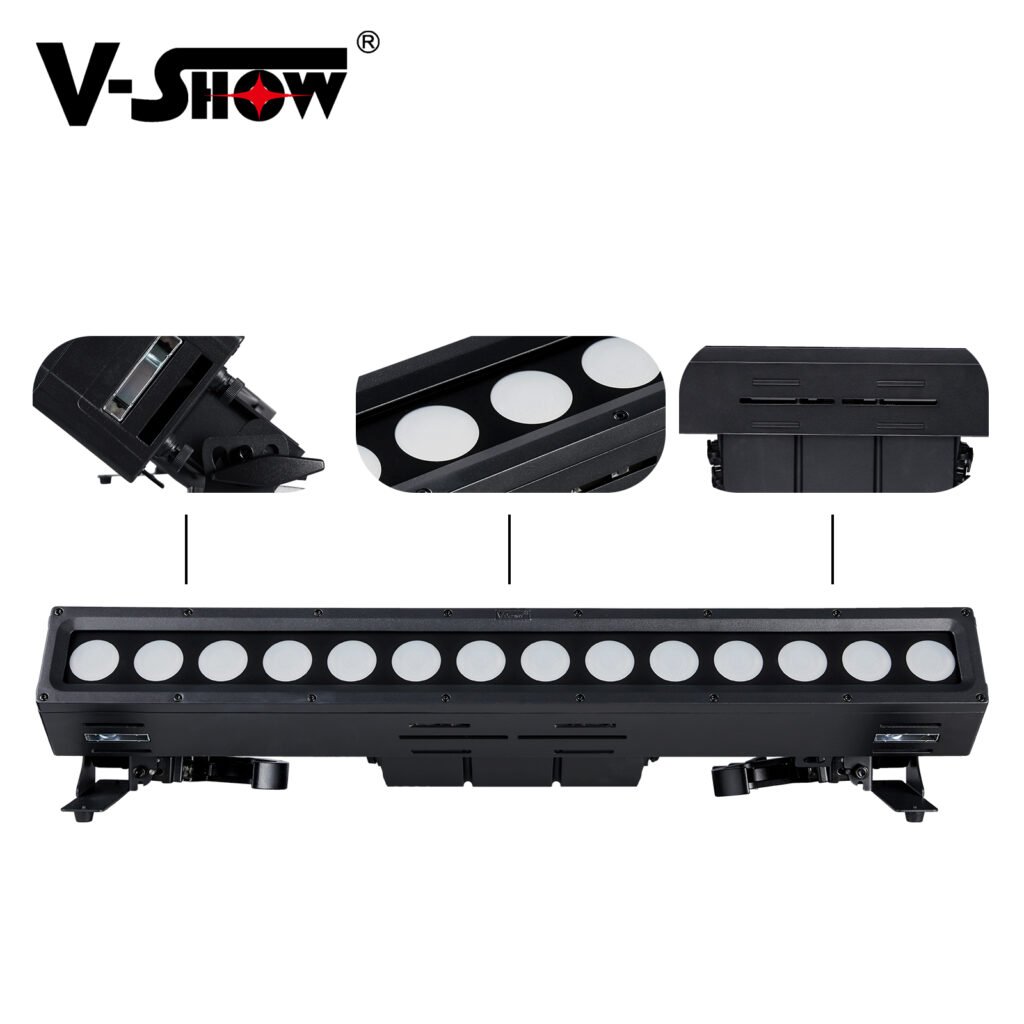

Details & Features

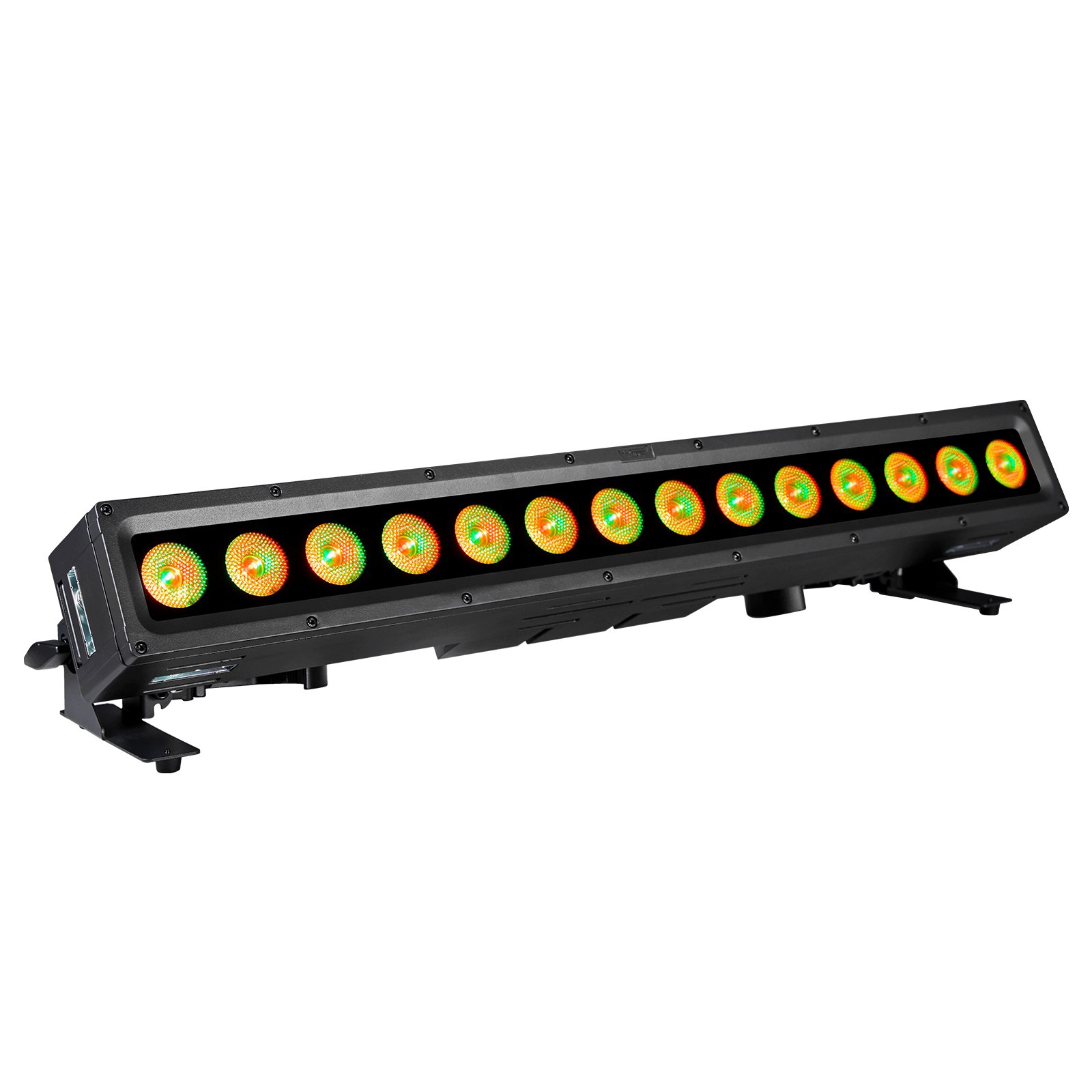

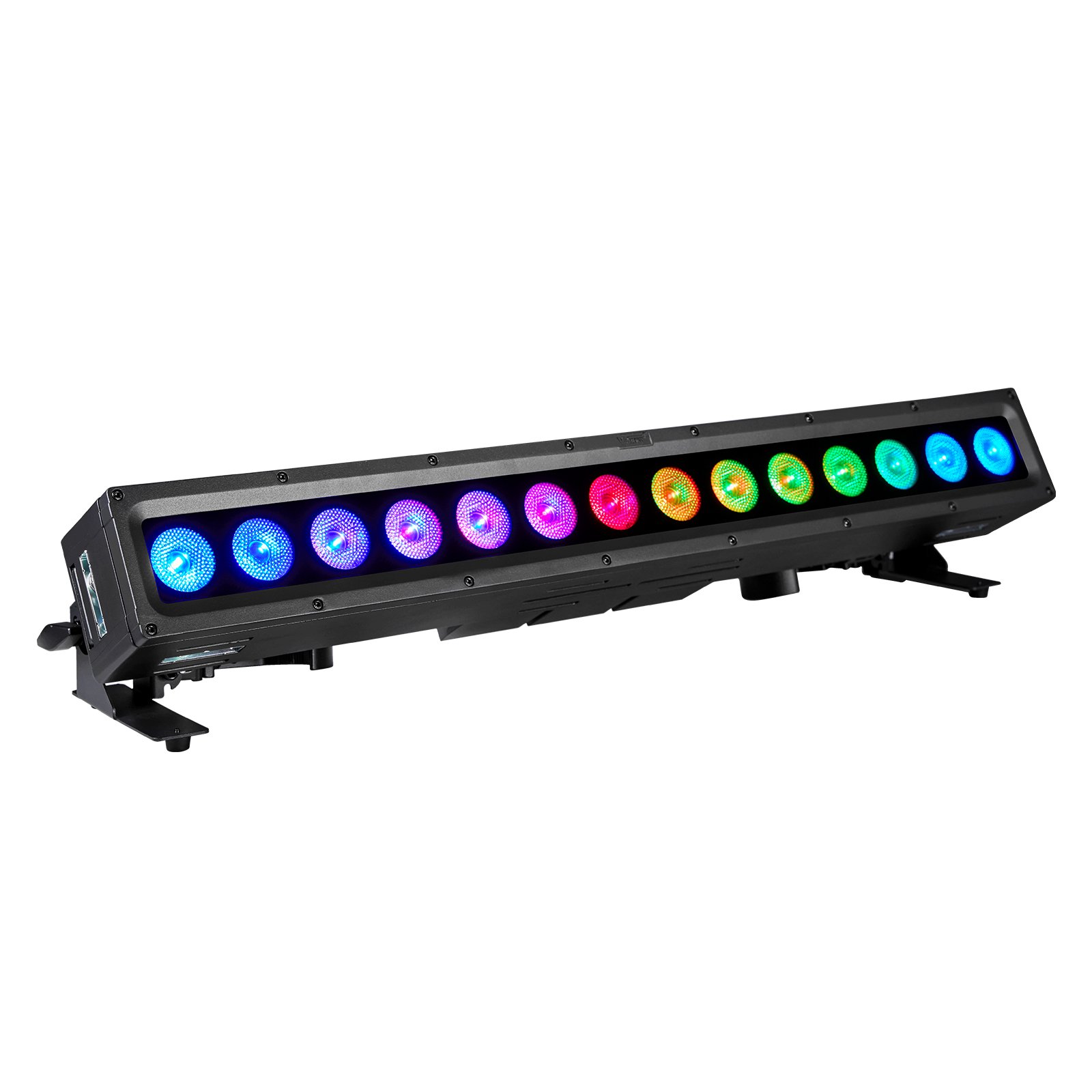

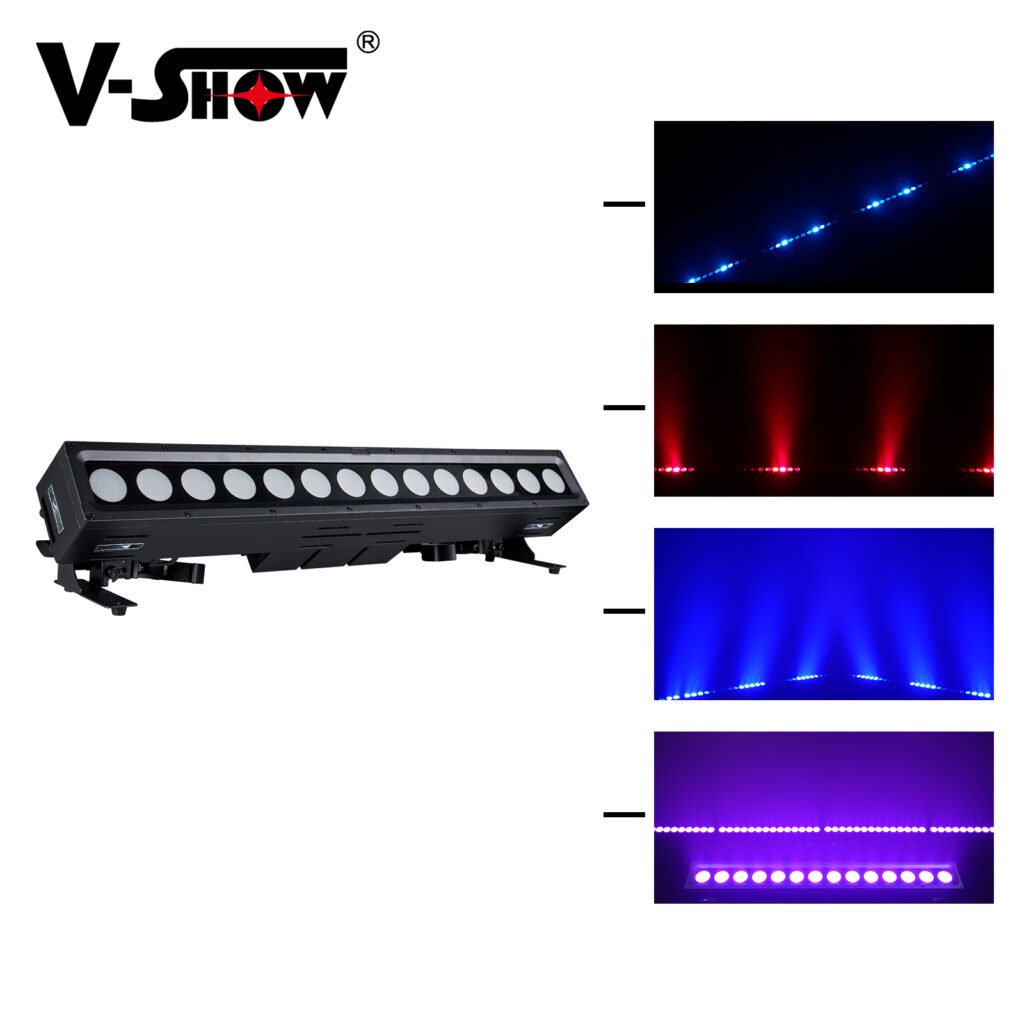

Excellent color mixing effect
• With electronic atomization, it can achieve a soft light effect.
• Adjustable Color Temperature
•Multiple dimming frequency settings

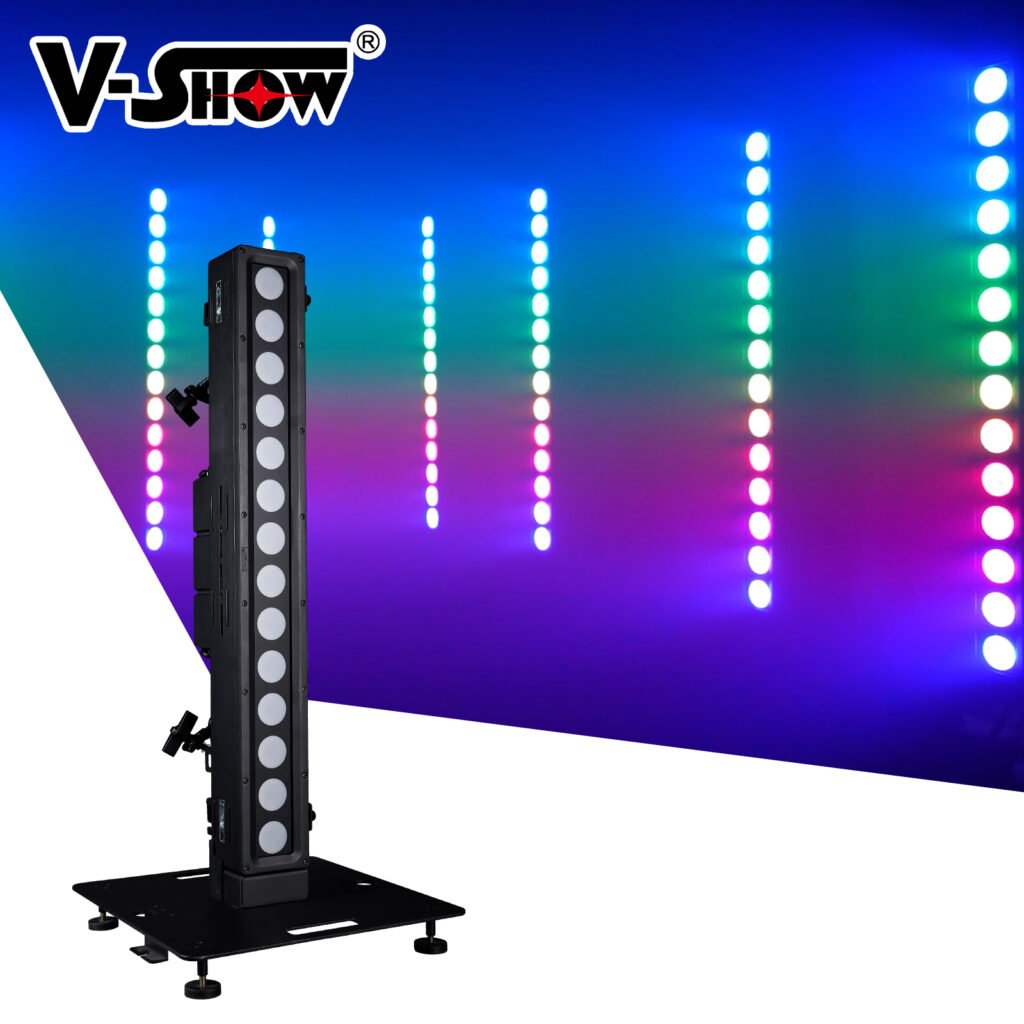

•Built in splicing buckle for quick splicing and alignment
Download
