Function description

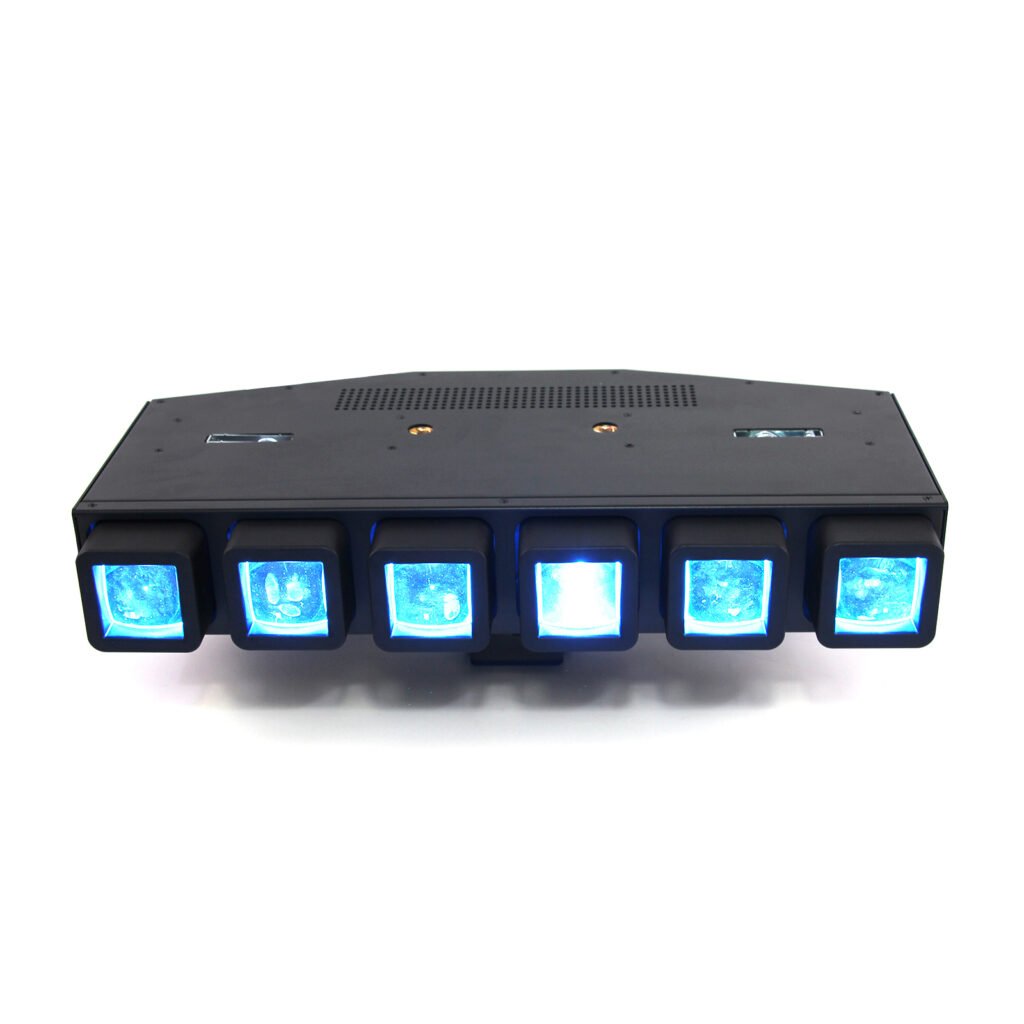

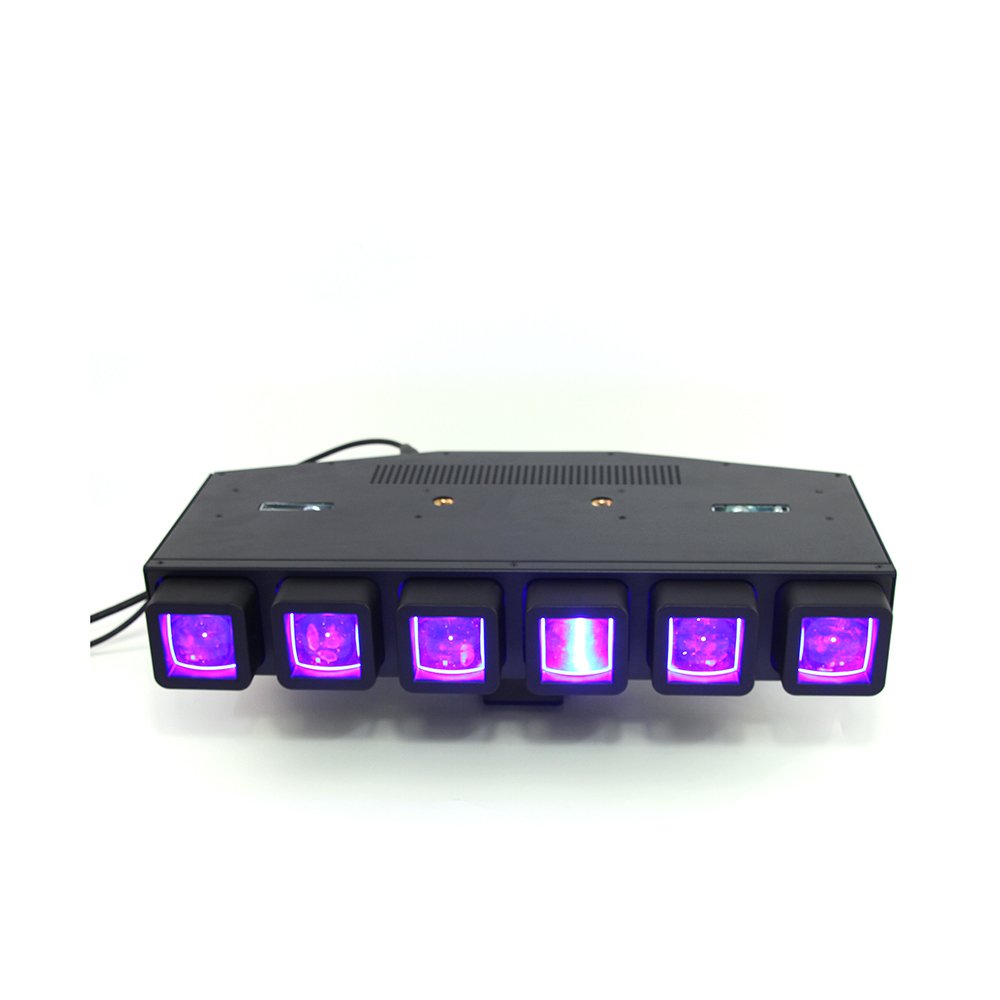

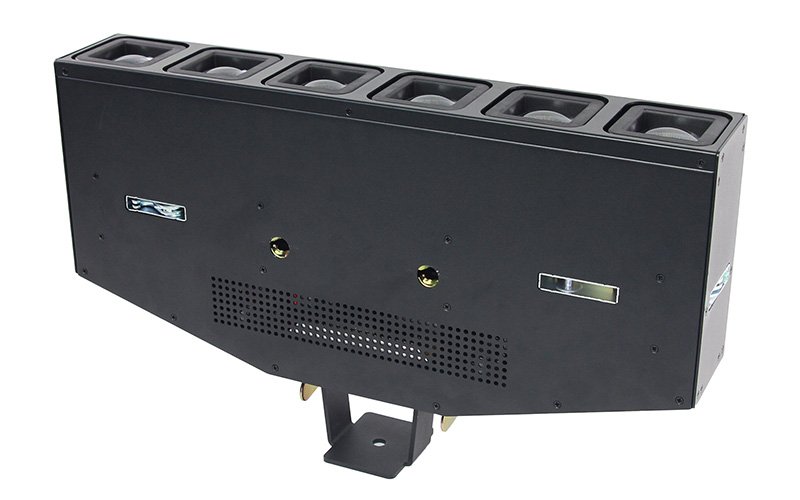

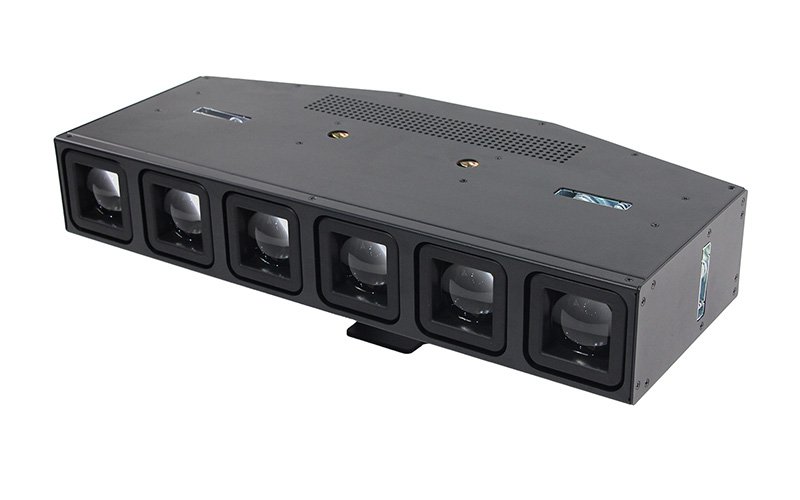

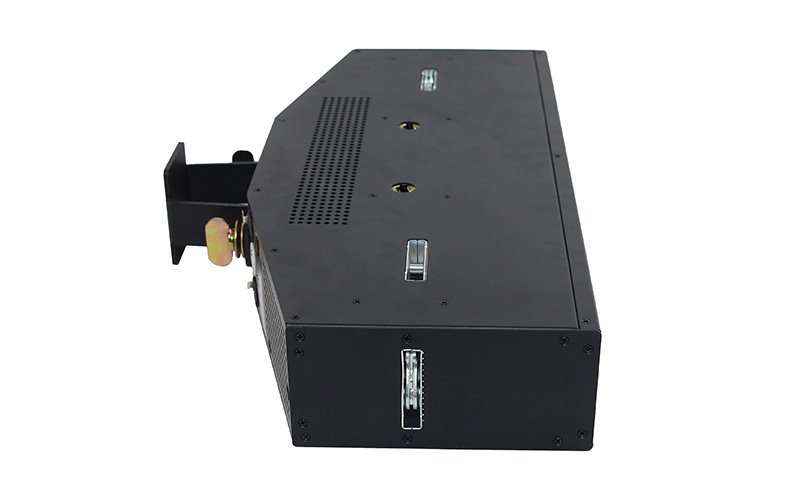

<p>The GT640 integrates beam, coloring, pixel control, and independent focusing of a single lens. It can achieve full coverage of the stage by lighting. </p>
<p> </p>

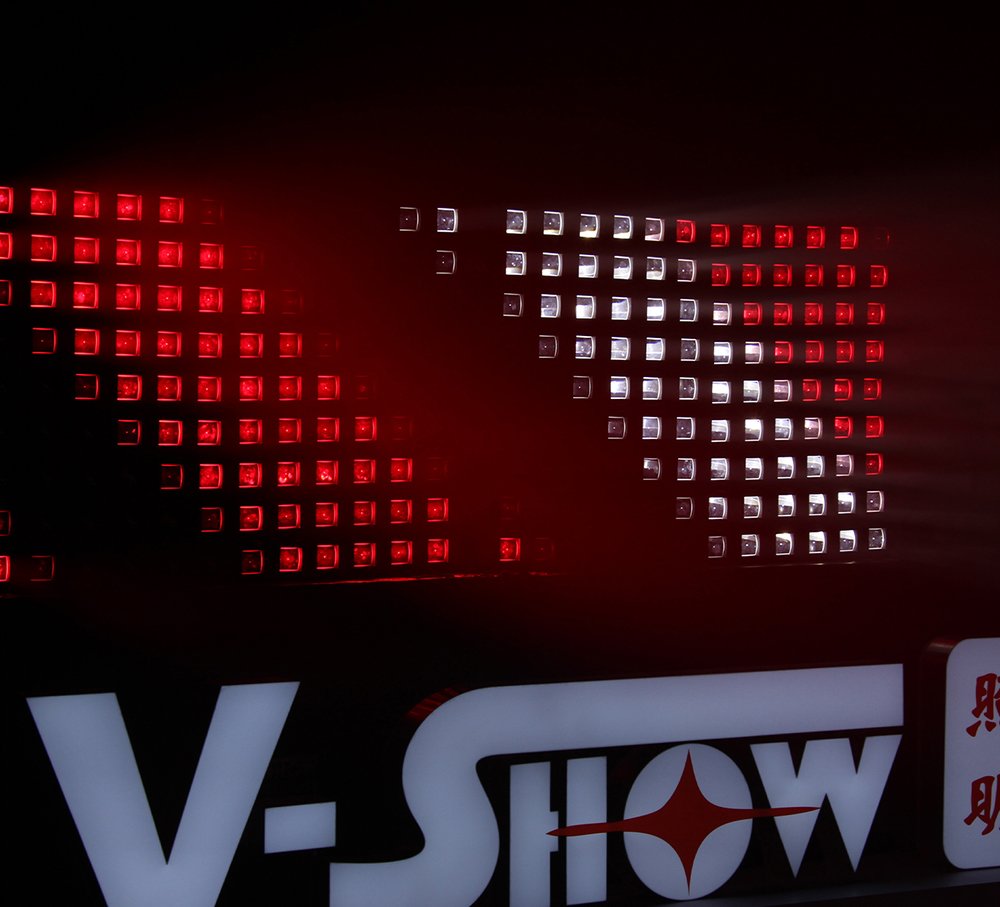

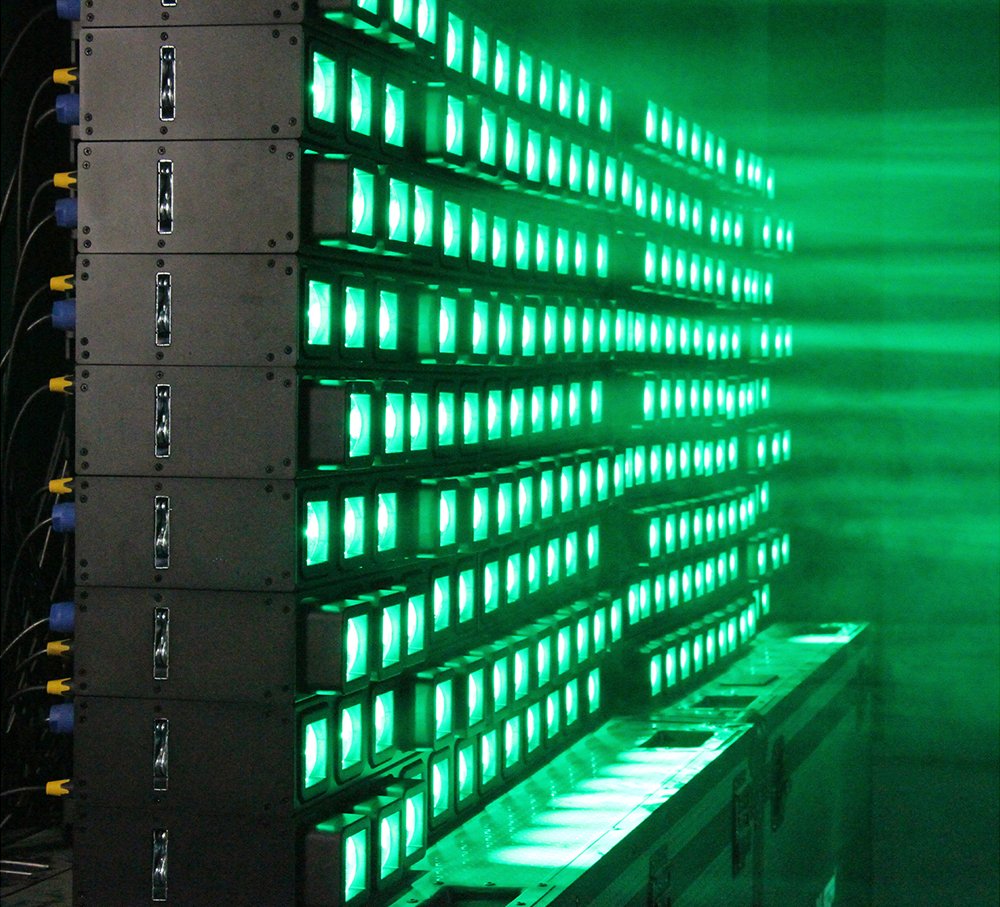

<p>6*40W RGBW/CMY (two LED color modes, can be switched by simply setting on the display screen) LED and single lens independent focusing design, can create vivid colors and excellent 3D dynamic effects, presenting dynamic screen walls and crowd walls. </p>
<p> </p>
<p>The beam angle can be freely scaled, and the smaller the angle, the stronger the sharpness. </p>
<p> </p>
<p>GT640 is very suitable as the main effect light for TV programs and the side front stage back effect light for large-scale events such as concerts and bars.</p>
<p> </p>
<p>6*40W RGBW/CMY (two LED color modes, can be switched by simply setting on the display screen) LED and single lens independent focusing design, can create vivid colors and excellent 3D dynamic effects, presenting dynamic screen walls and crowd walls. </p>
<p> </p>
<p>The beam angle can be freely scaled, and the smaller the angle, the stronger the sharpness. </p>
<p> </p>
<p>GT640 is very suitable as the main effect light for TV programs and the side front stage back effect light for large-scale events such as concerts and bars.</p>
Parameters
|
Input Voltage |
100-240V, 50/60Hz |
Output Voltage |
V1:36V(Motor board+LED driver)V2:12V(cooling fan+Display) |
Power consumption |
220W |
|
Power supply |
300W |
Light source |
6x40W RGBW 4IN1 LED |
Light source life |
20000+ hours |
|
Dimmer |
0-100%(16bit)Smooth dimming |
Strobe |
1-30Hz/S outstanding strobe effect with variable speed |
Zoom angle |
2-45° |
|
Operate mode |
Master/Slave,Auto,DMX512,RDM |
DMX Channel |
17/23/38CH |
Four dimming modes |
Linear, Square Law，Inv SQ Law，S Curve |
|
Color mode |
RGBW/CMY switching usage |
Display |
LCD display,Touch buttons |

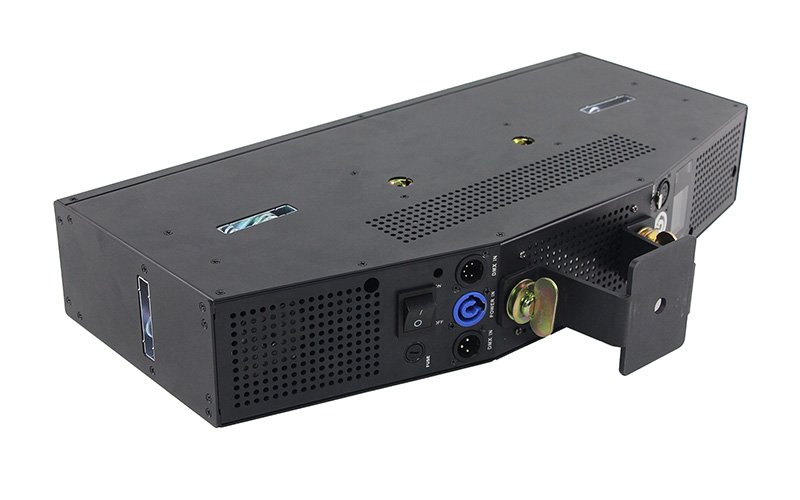

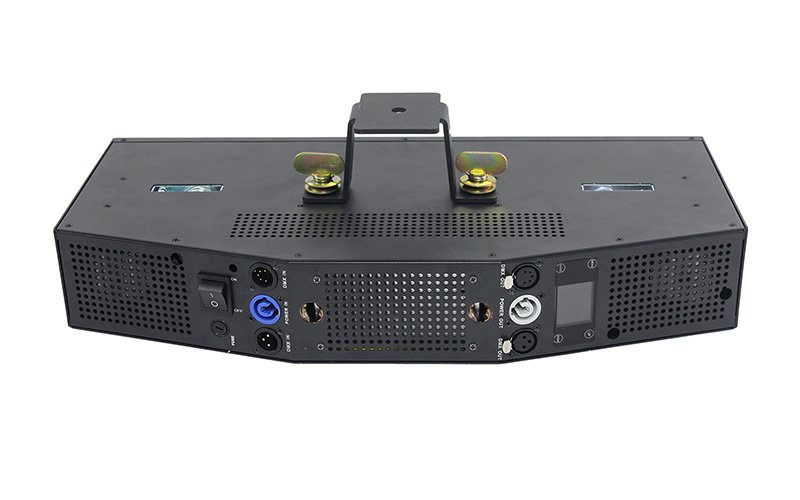

3-pin/5-pin512signal In/Out Power in/out | |
|
Fixture size |
510.6*85*302mm |
N. W |
7KG |
G. W |
9KG |
Details&Features

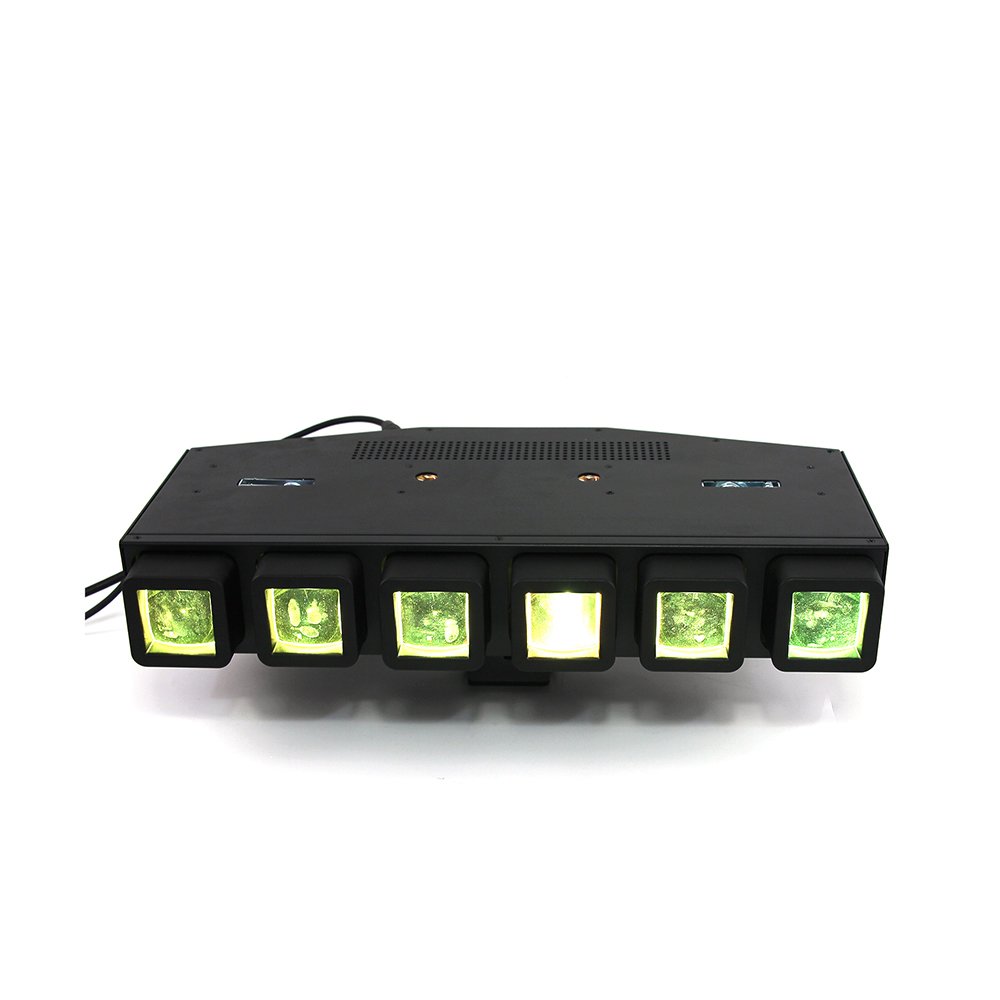

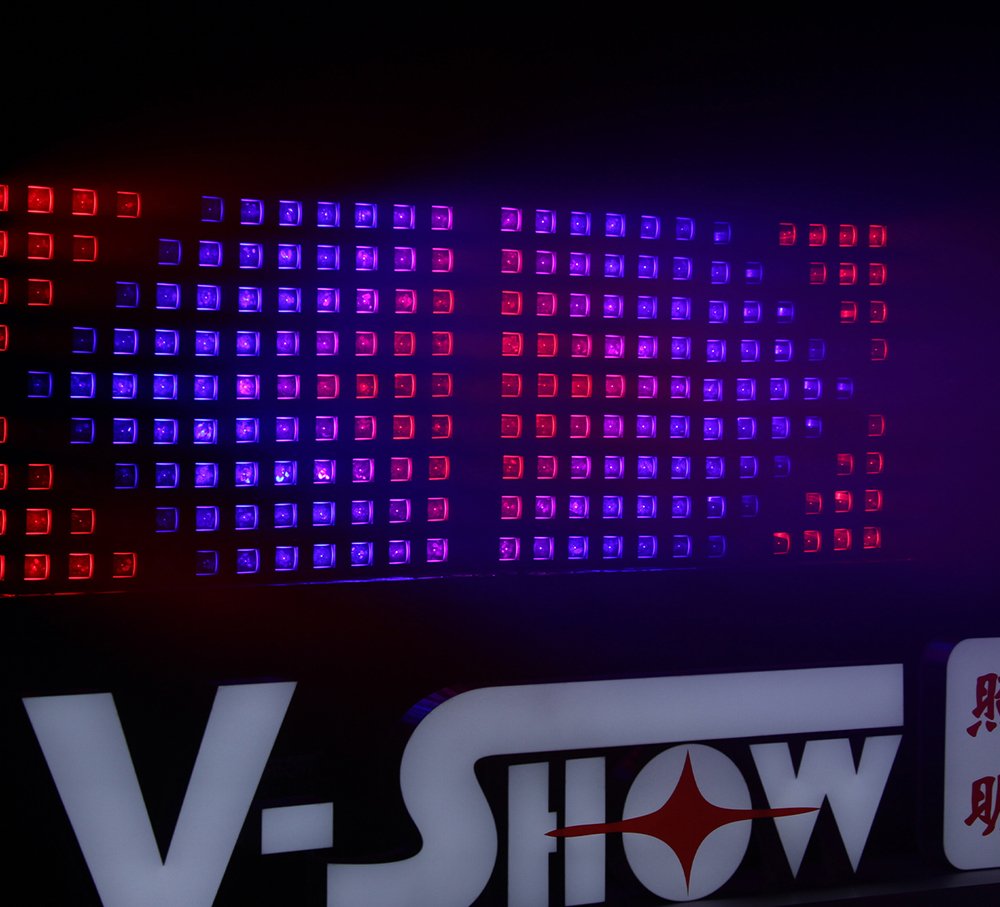

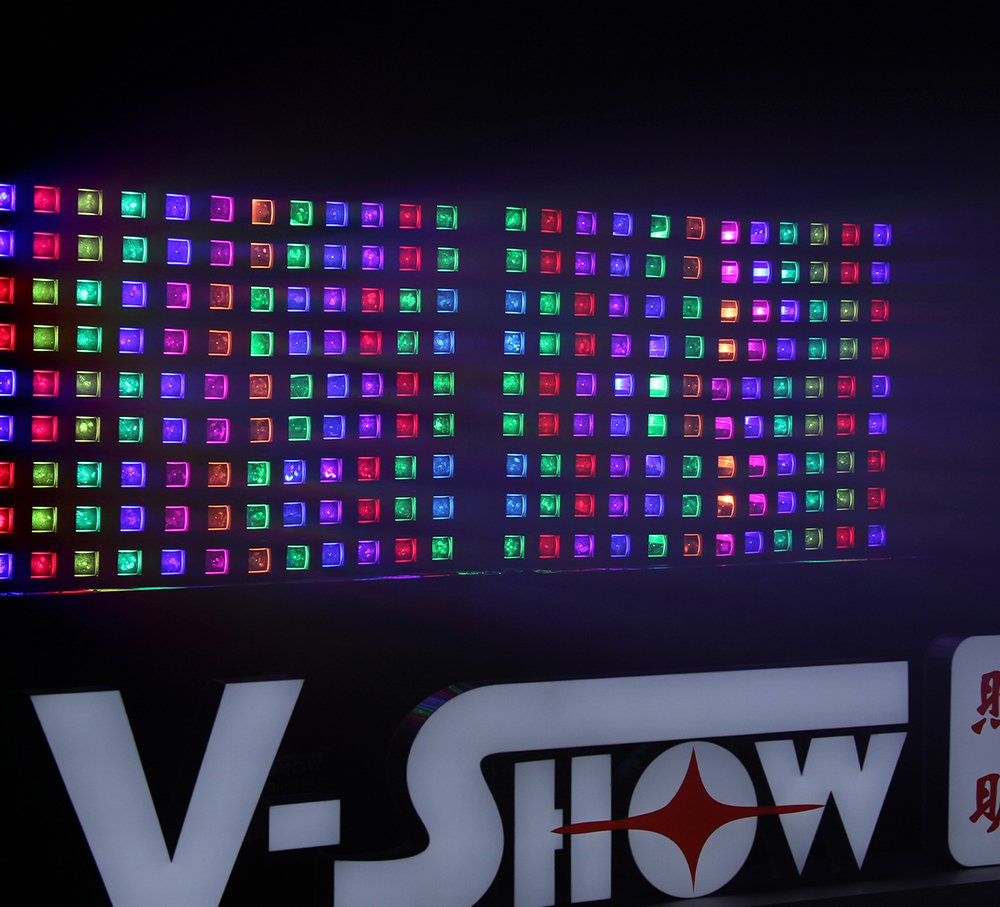

Excellent color mixing effect
