Function description

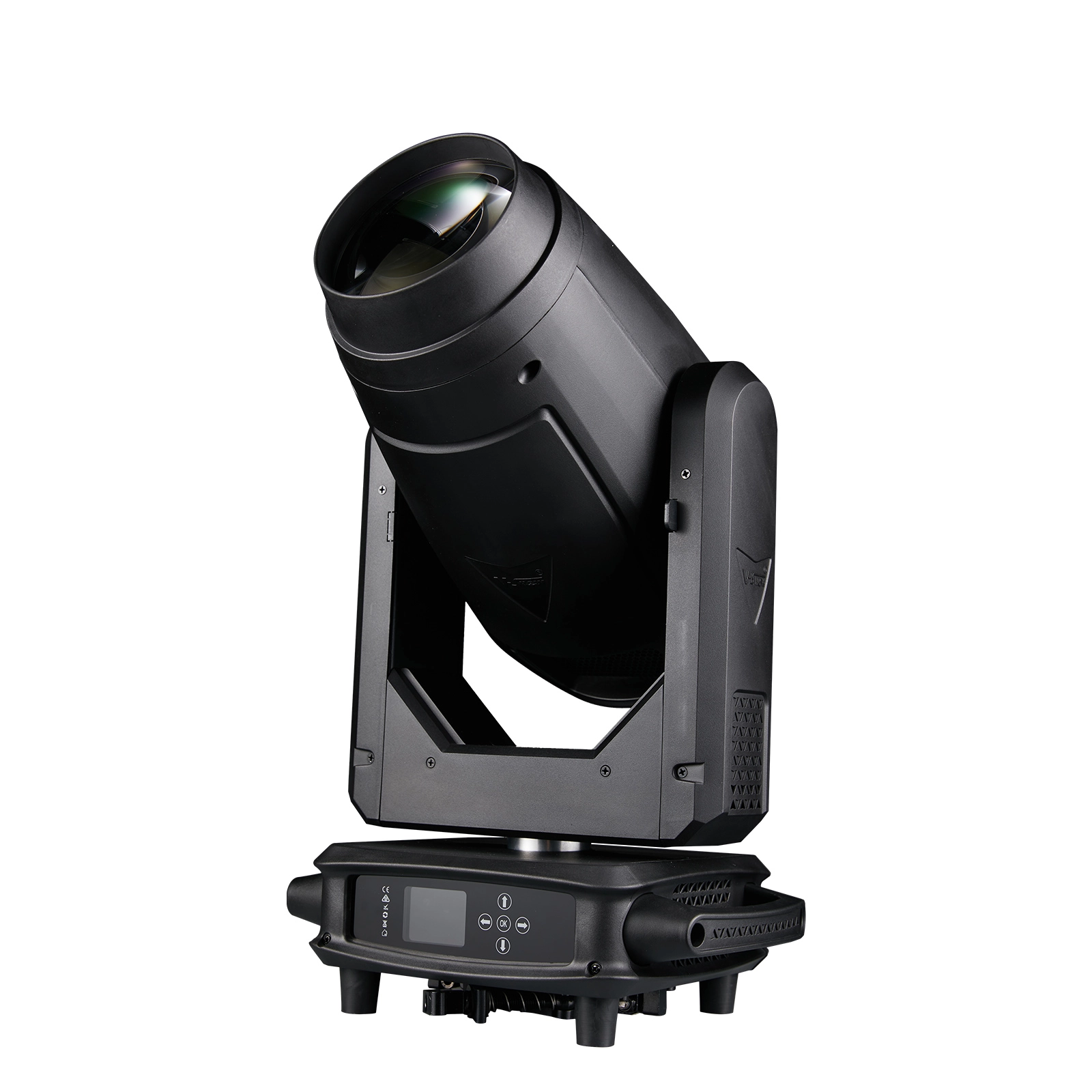

The fixed and rotating pattern discs, under the zoom lens, can project pattern effects from multiple angles. The beam angle can be adjusted through the zoom lens for enhanced flexibility. With the addition of a bi-directional rotating eight-prism, a six-row prism, double prism stacking, independent atomization effects, and electric focus, coupled with a linear CMY color mixing system, it provides rich and saturated light colors.

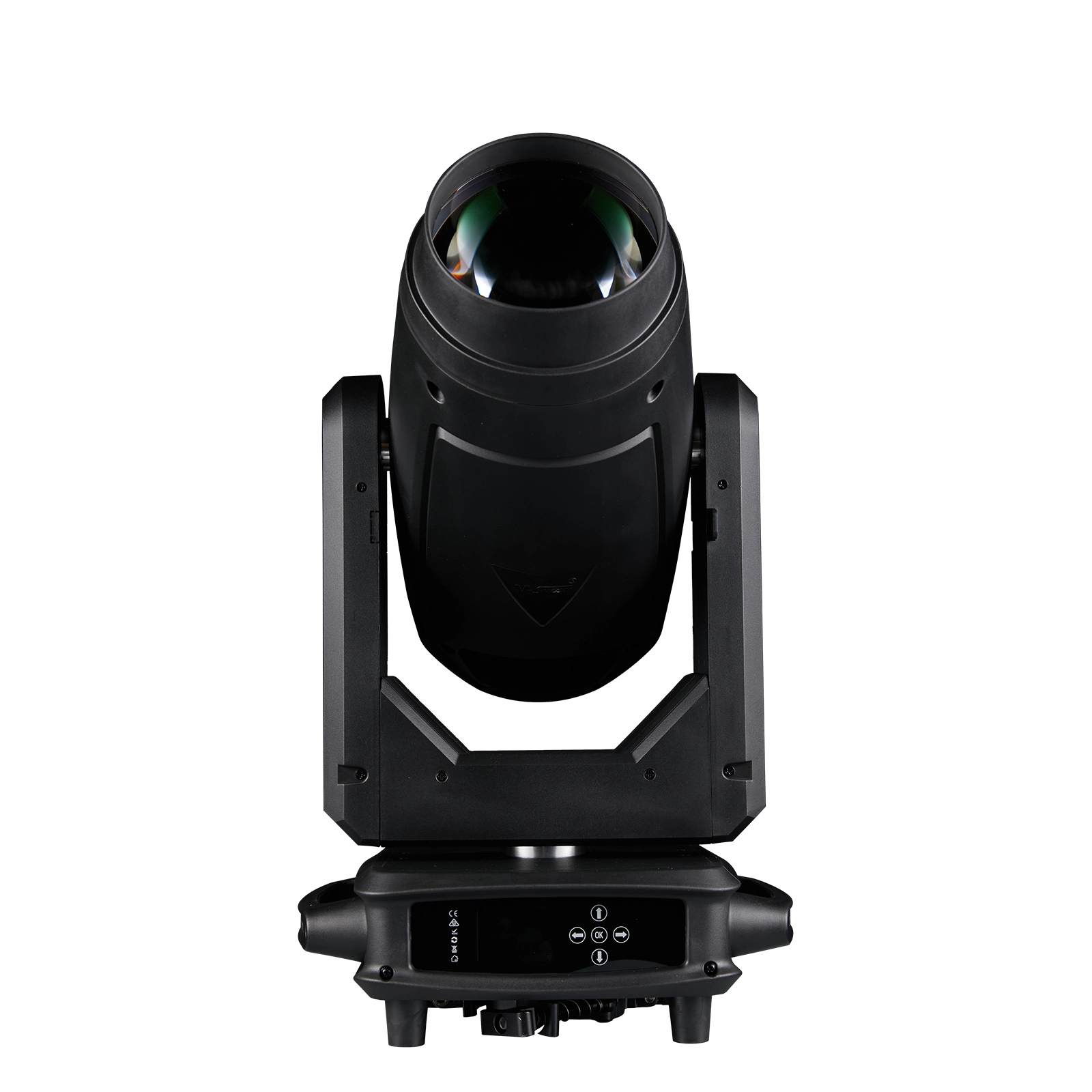

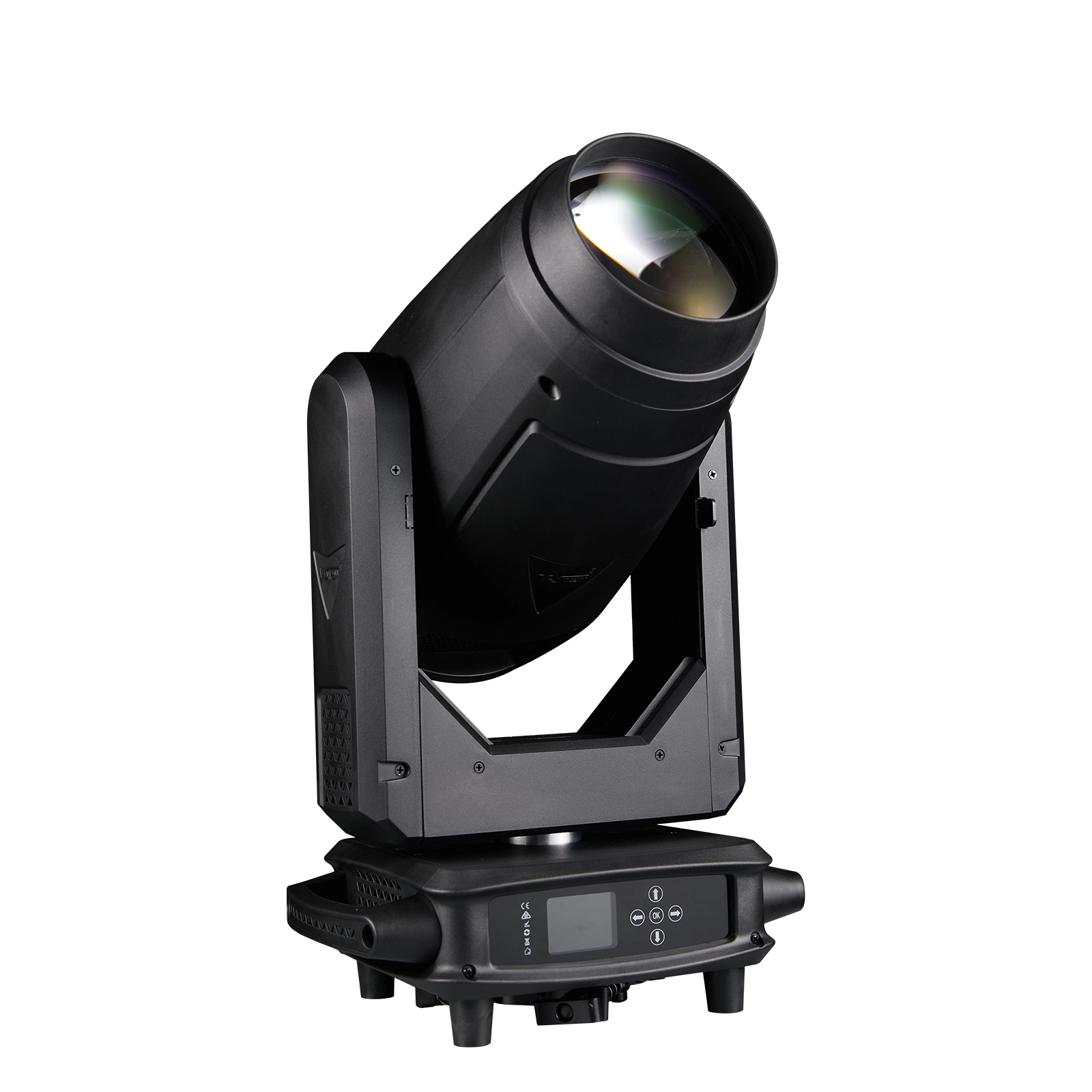

This is a high-performance moving head pattern light, meeting various coloring needs for different occasions. It is well-suited for entertainment venues such as bars, dance halls, nightclubs, and performances.
Parameters
Input Voltage | 100-240V, 50/60Hz | Color temperature | 8500K | High | 90CRI |
Power supply | 600W | Diameter of optic lens | 148mm | DMX Channel | 29CH |
Power consumption | 480W | Beam angle | 3-50° | Four dimming curves | Linear,Square law,Inverse squared law,S curve |
Light source | 450W module LED engine | Standard | 70CRI | Operate mode | DMX512, Auto, master/slave, RDM |
Color wheel | 1 color wheel, 7fixed colors, plus white | Static gobo | 12 gobos plus 1 white circle | Rotation Gobo | 7 Gobo plus 1 white circle |

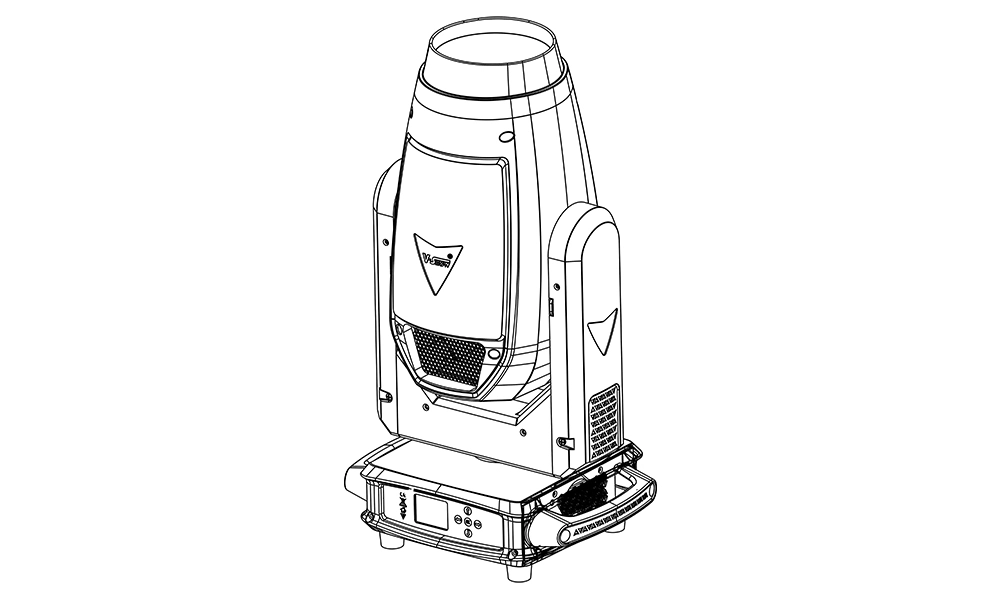

Prism | Equipped with 8 prisms and 6 rows of prisms, the two prisms | High brightness frost sheet | With smooth wash effect | Fixture size | 338*254*621mm |
Net weight | 20.5KG | Linear CTO color temperature adjustment | 8500K–2800K
| ||
Details & Features
Excellent color mixing effect
• can be stacked and rotated in both
• CMY color macro function
• Linear CMY color mixing
