Buyer Protection: We Keep Buyer Information Completely Confidential!Function description

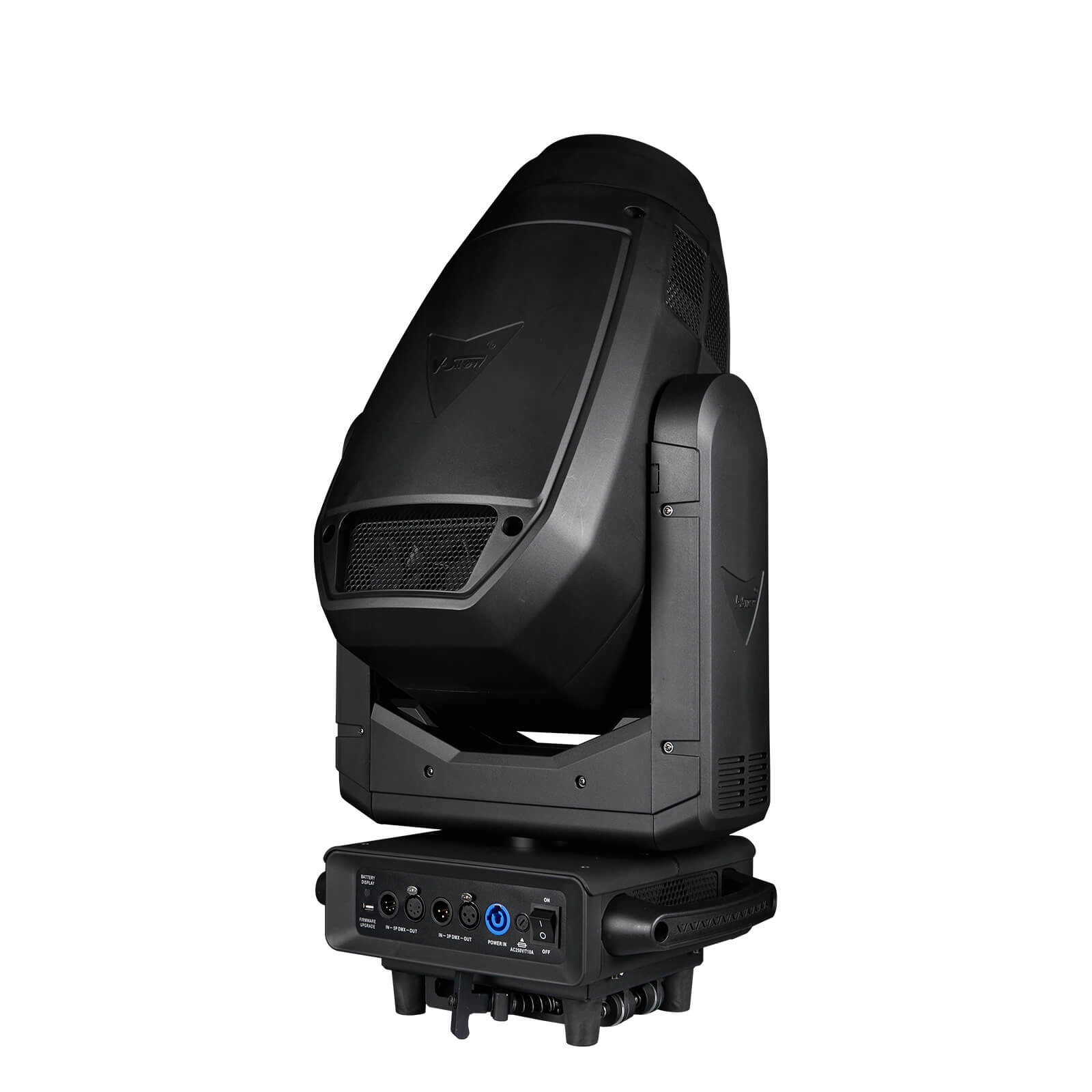

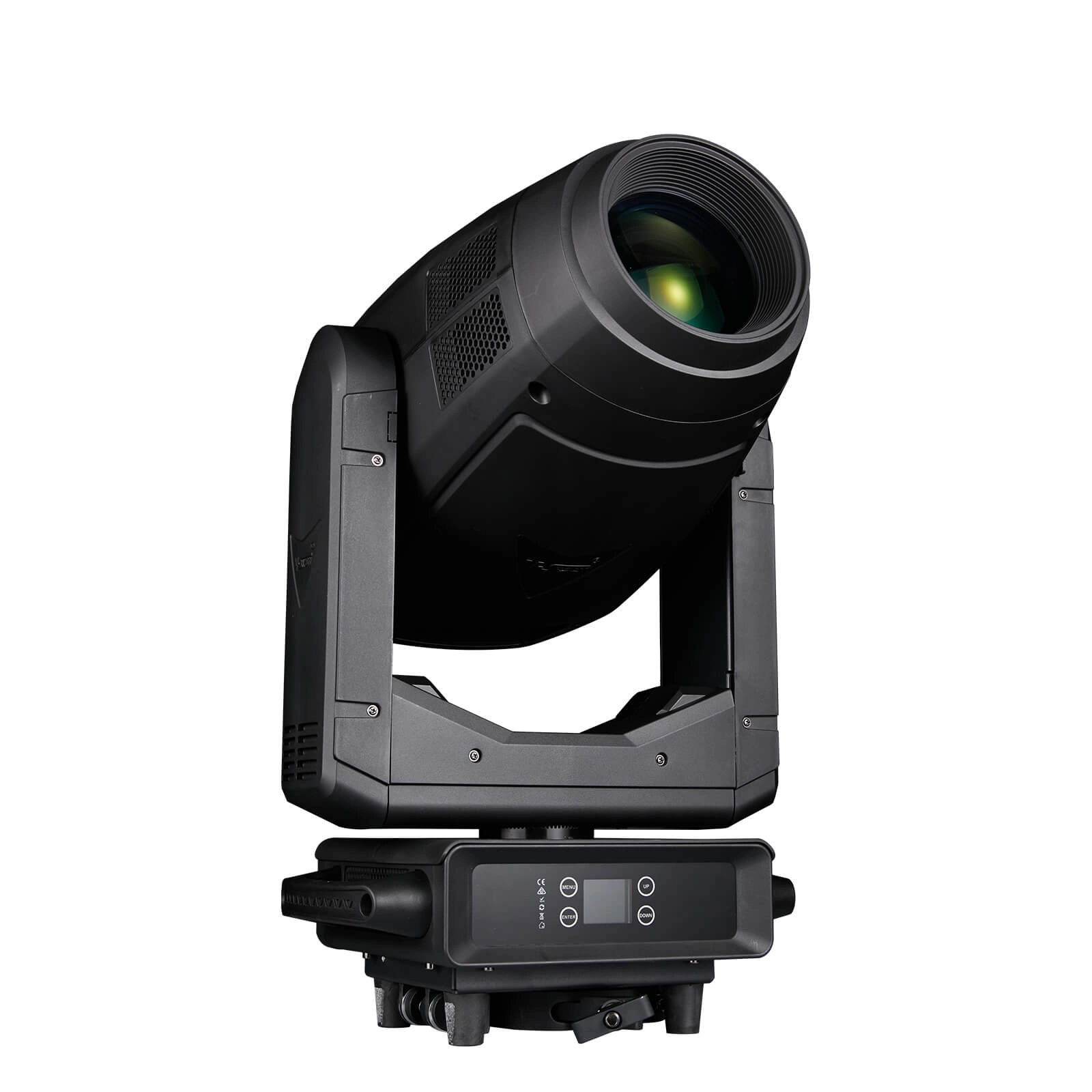

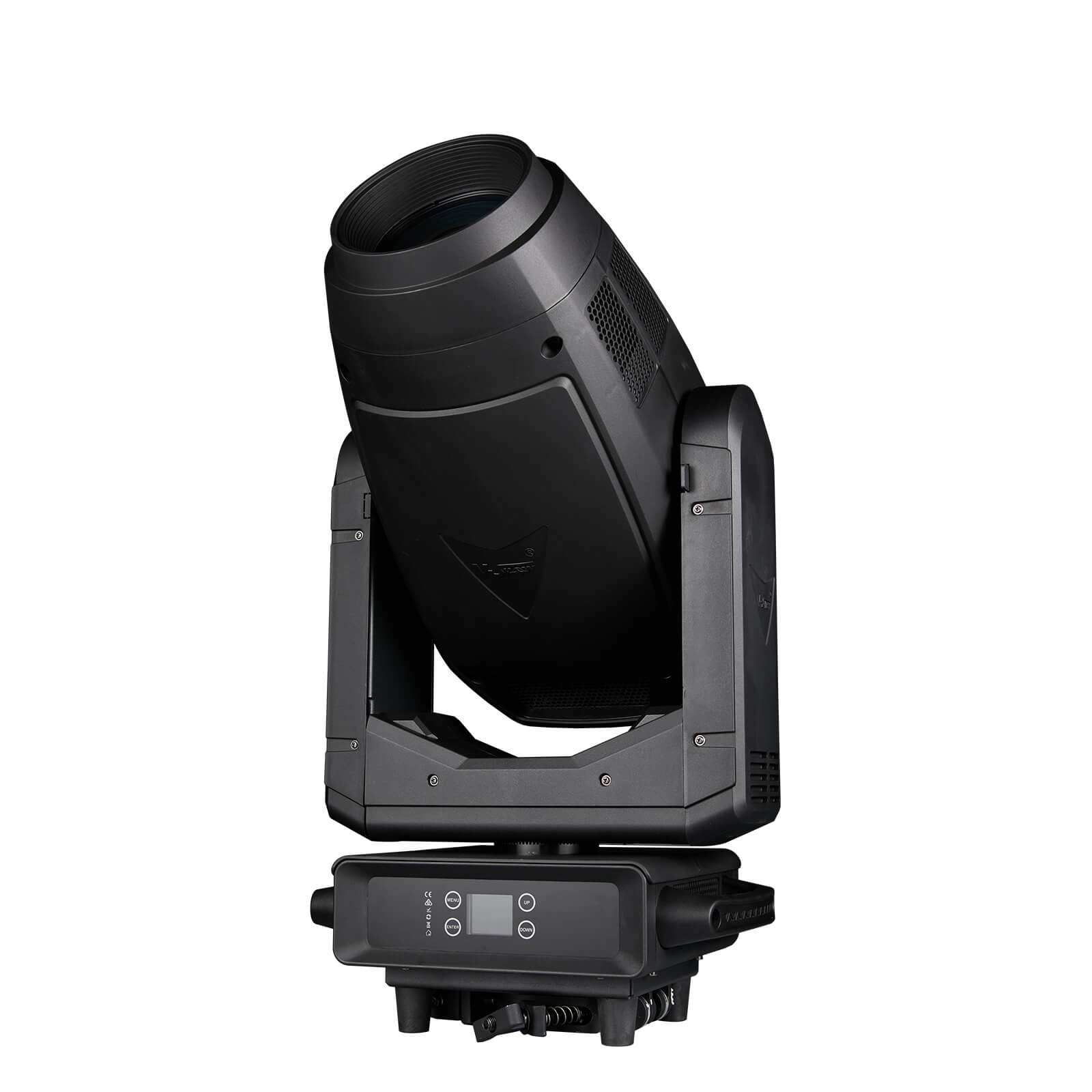

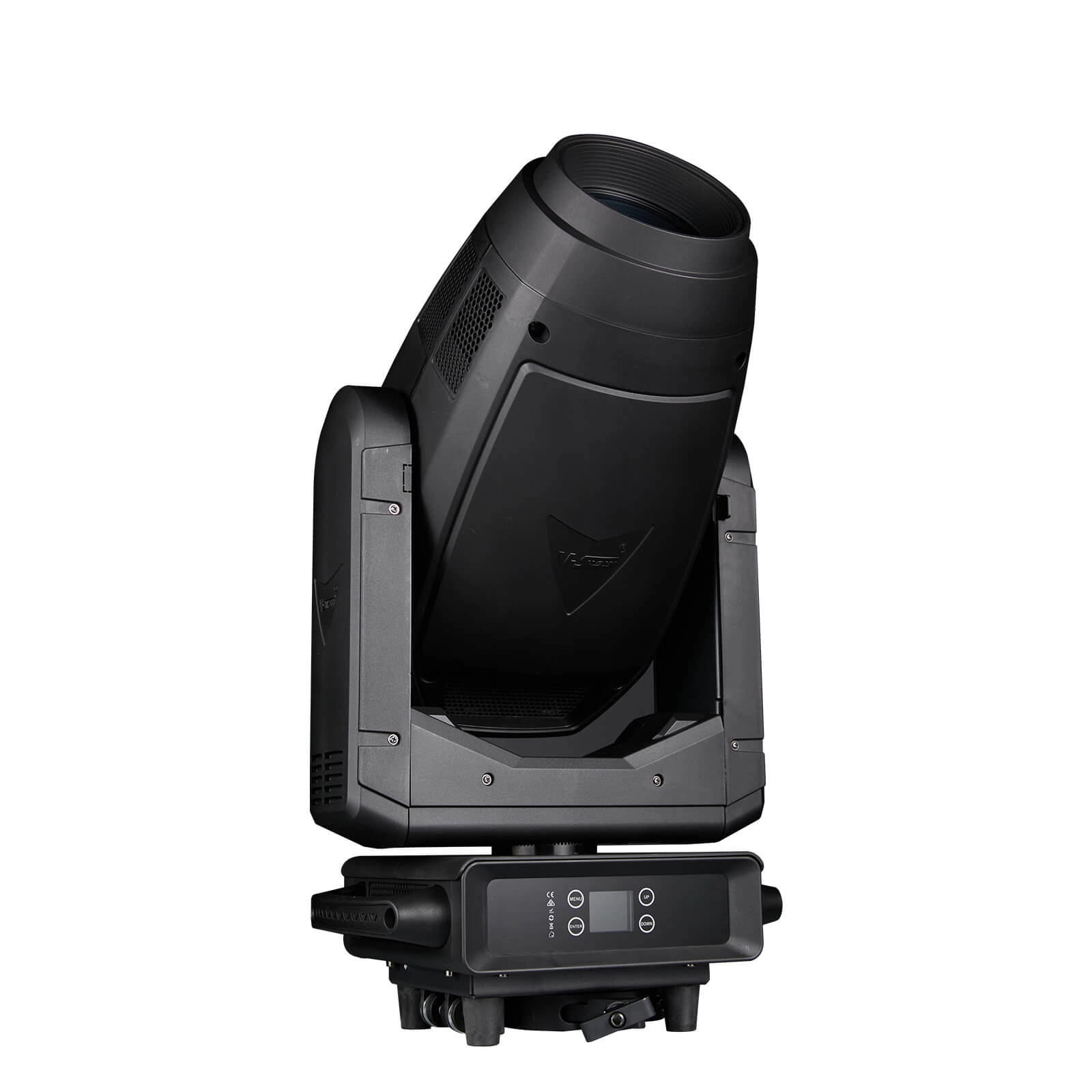

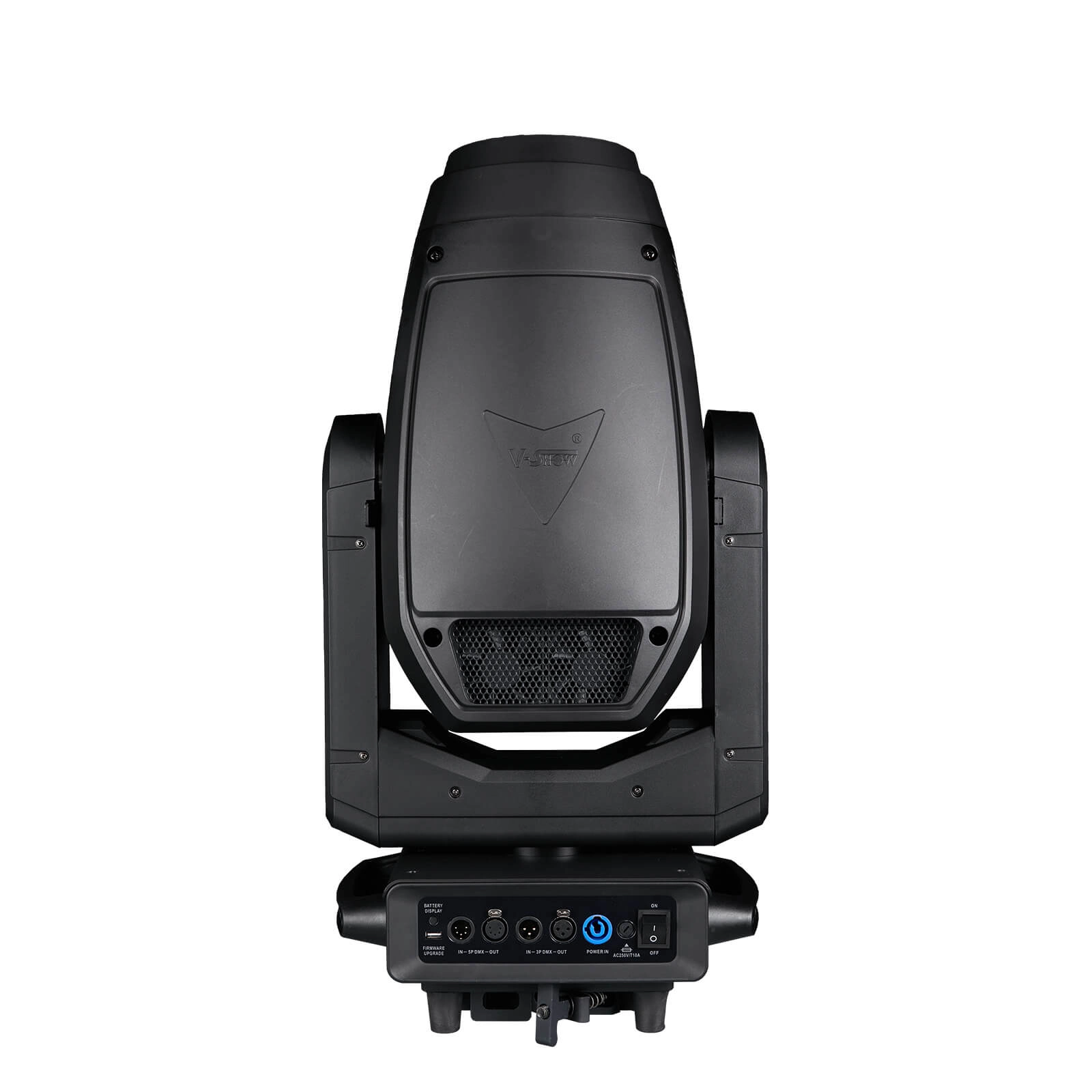

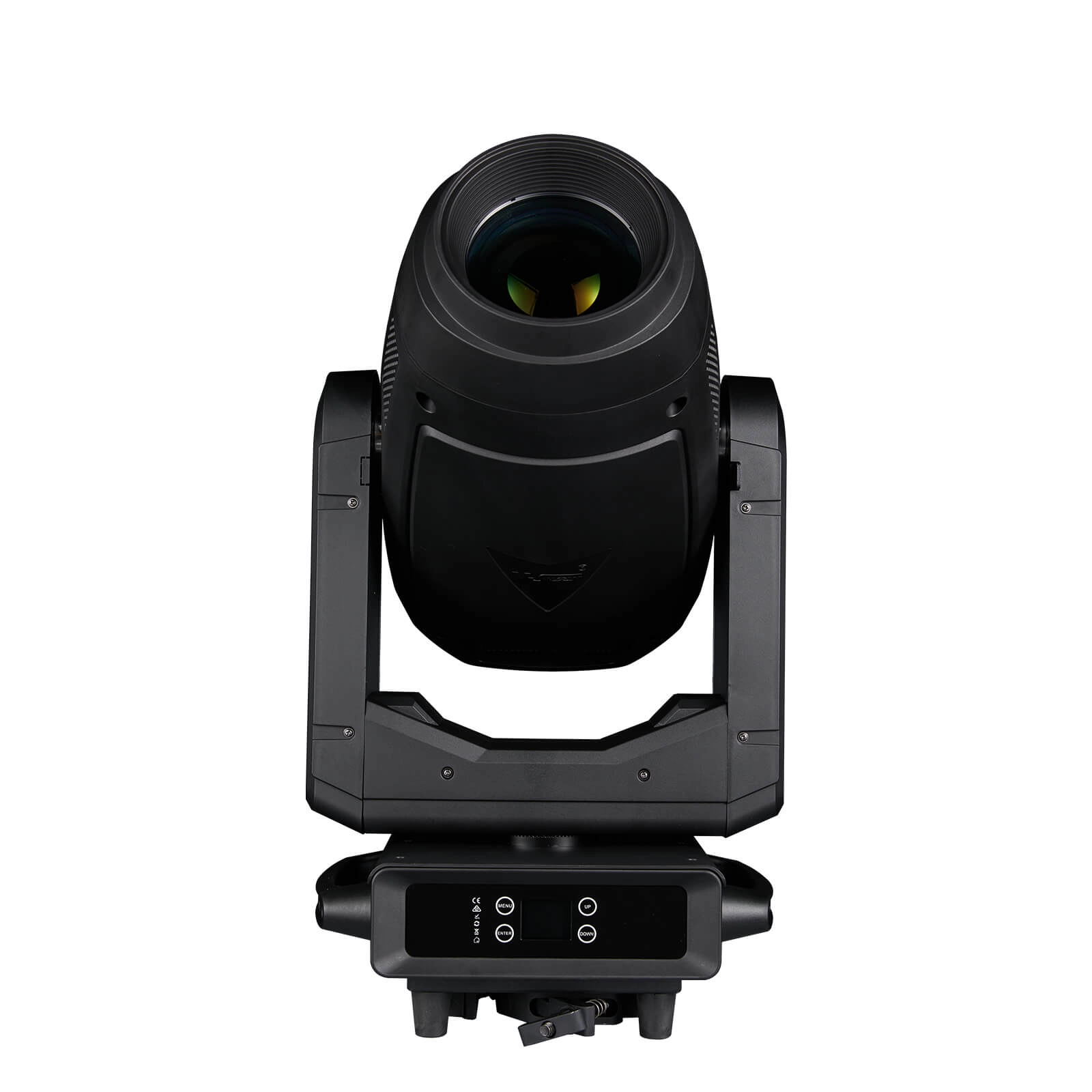

S711 set light beam, spot, wash and cutting functions in one, pure color, uniform spot,color plate, glass gobo plate,CTO,CRI plate are schott materiall, small appearance, light weight, its base is small and delicate, help reduce the weight of the lamp, linear CMY color mixing system, Provides rich color saturation and clear seamless color transitions. LED adopt senergy-saving and environment-friendly 600W monochrome LED light engine,which can produce extremely high light output white light, color temperature of 8000K, light fluxof light source up to 34,000lm.
Parameters
Input Voltage | 100-240V, 50/60Hz | Output Voltage | V1: 48V,12.5A(Master board+LED driver)，V2: 24V,7.0A(cooling fan+Display) |
Power supply | 800W | Light source | Powerful 600W LED module engine(21-24V,8A) |
Focus | Motorized focus | Color temperature | 8500K, standard mode Ra＞70, High CRI mode Ra＞90 |
Diamter of optic lens | 120mm | Zoom angle | 3-55° |
Static gobo wheel | 1 static gobo wheel with 8 gobos | Rotating gobo wheel | 1 rotating gobo wheel with 7 gobos,convenient replacement |
CMY | Linear CMY color mixing | CTO | Variable CTO 2700K-8500K |
Frost | Frost filters to create and improve the wash effect,they can be used independently and overlayed | Combined Optic lens | 120mm diameter advanced optical system to ensure image quality ,clear and sharp |
DMX Channel | 25/29/34CH | Operate mode | DMX512, RDM,self-propelled, master/slave |
Details & Features
Excellent color mixing effect
