Function description
<div>

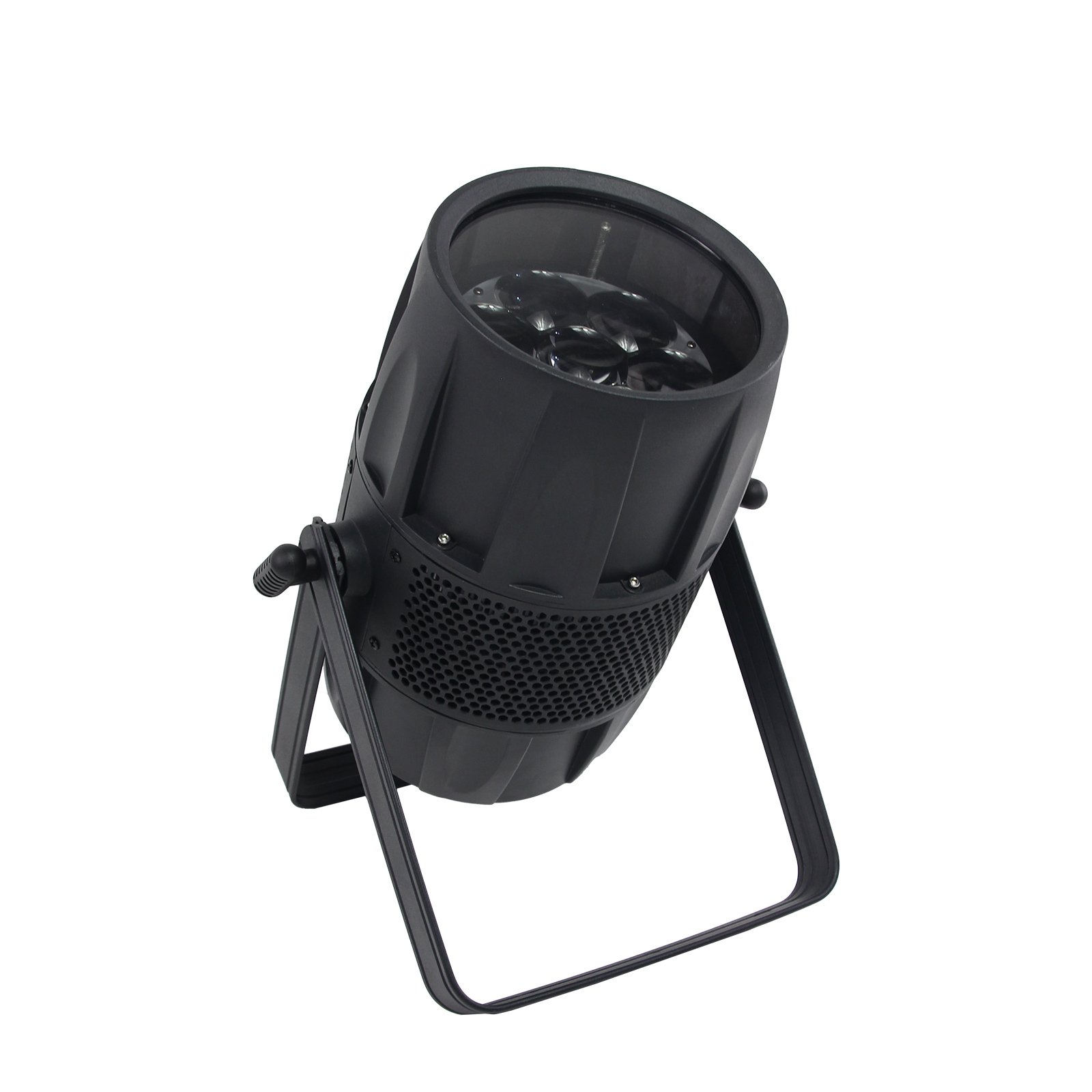

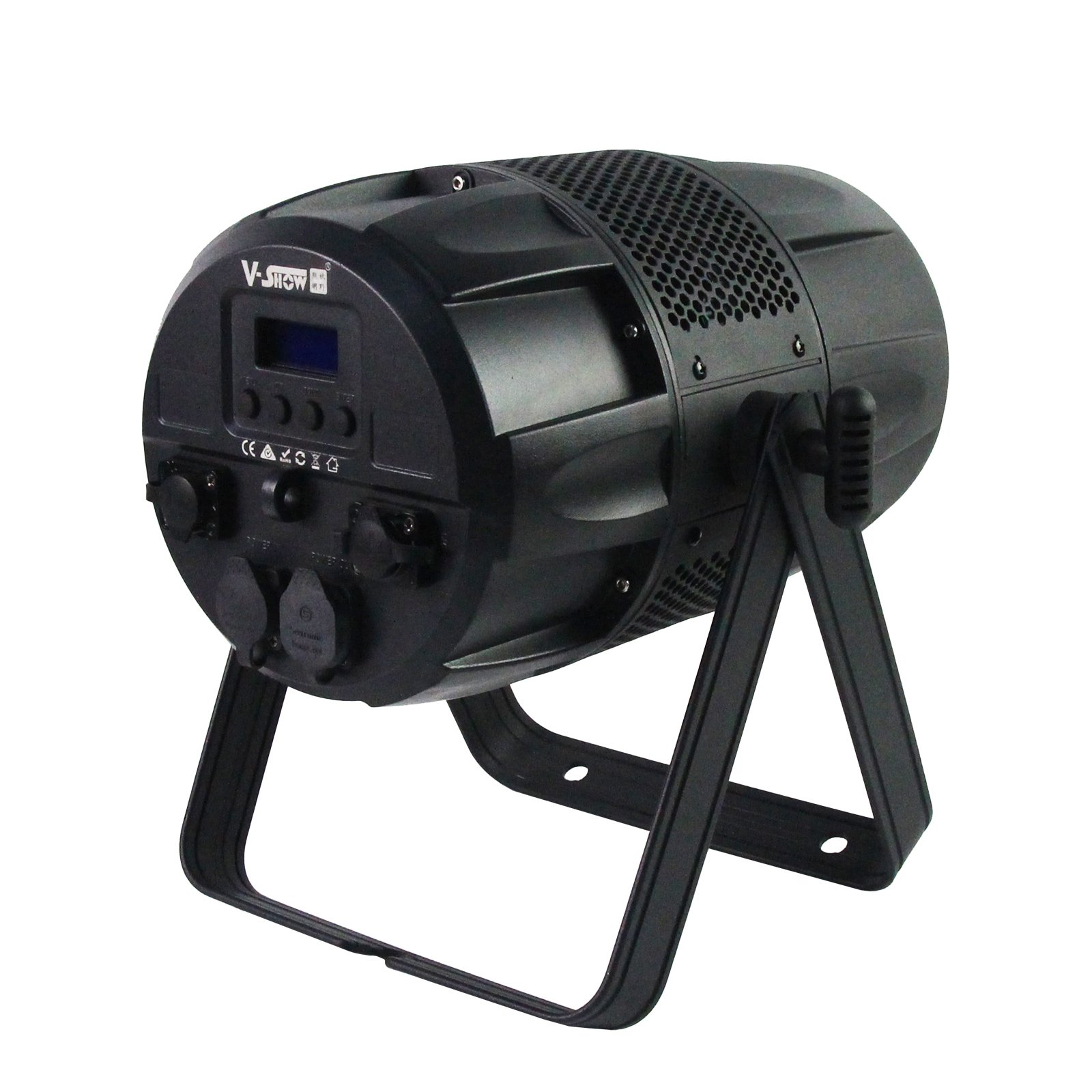

<div>The lamp adopts LED 40W RGBW beads, with pure light color, uniform color mixing, high light efficiency, exquisite and beautiful appearance. The beads are separated from the power supply body, and the axial flow fan has good heat dissipation effect.</div>
</div>
<p> </p>
<div>The lamp adopts LED 40W RGBW beads, with pure light color, uniform color mixing, high light efficiency, exquisite and beautiful appearance. The beads are separated from the power supply body, and the axial flow fan has good heat dissipation effect.</div>
</div>
<p> </p>
Parameters
|
Input Voltage |
100-240V, 50/60Hz |
Output Voltage |
V1:28V(Master board+LED driver), V2:12V(cooling fan+Display+motor) |
Operate mode |
DMX512, Auto, master/slave, voice mode RDM |
|
Data In/Out |
3-pin IP XLR |
 Waterproof grade |
IP65 |
 Fixture size |
328.5x287x340mm |
|
Power consumption |
220W |
Power supply |
 400W |
Light source |

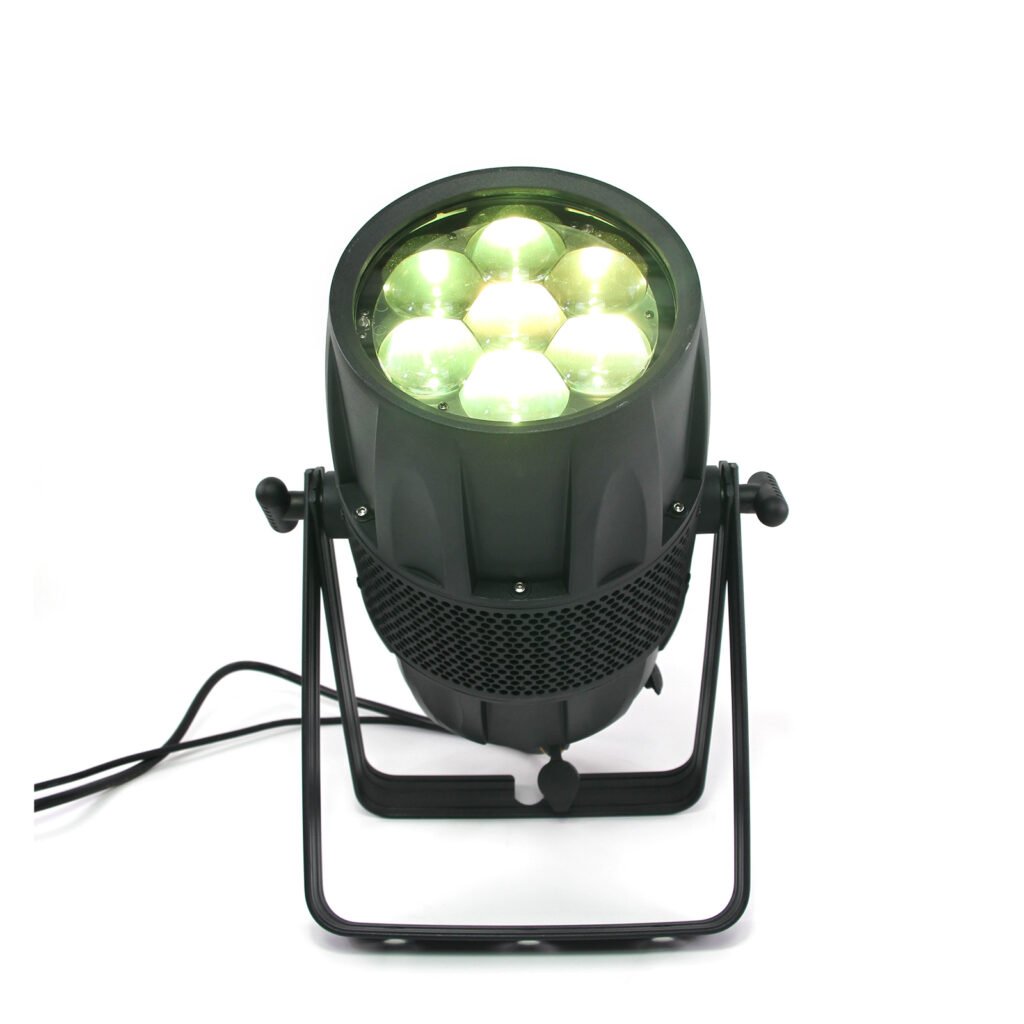

7×40W RGBW 4IN1 LED |
|
|
 7000K |
Zoom angle |
 4-38° |
DMX Channel |
 5/9CH |
|
Dimming |
0-100% linear dimming |

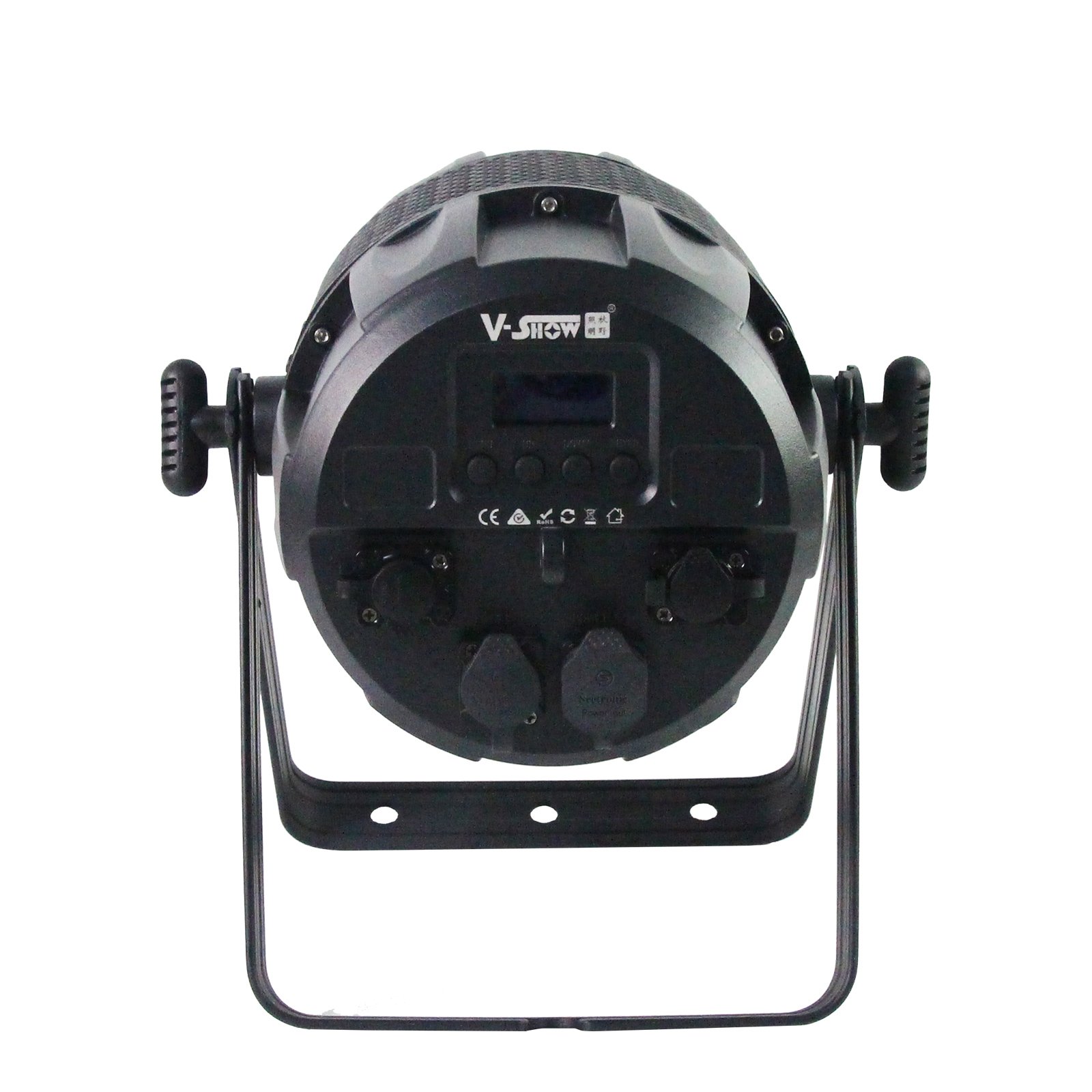

 Display |
LCD display |
 Power In/Out |
IP connector |
Details&Features
Excellent color mixing effect
