Buyer Protection: We Keep Buyer Information Completely Confidential!Function description

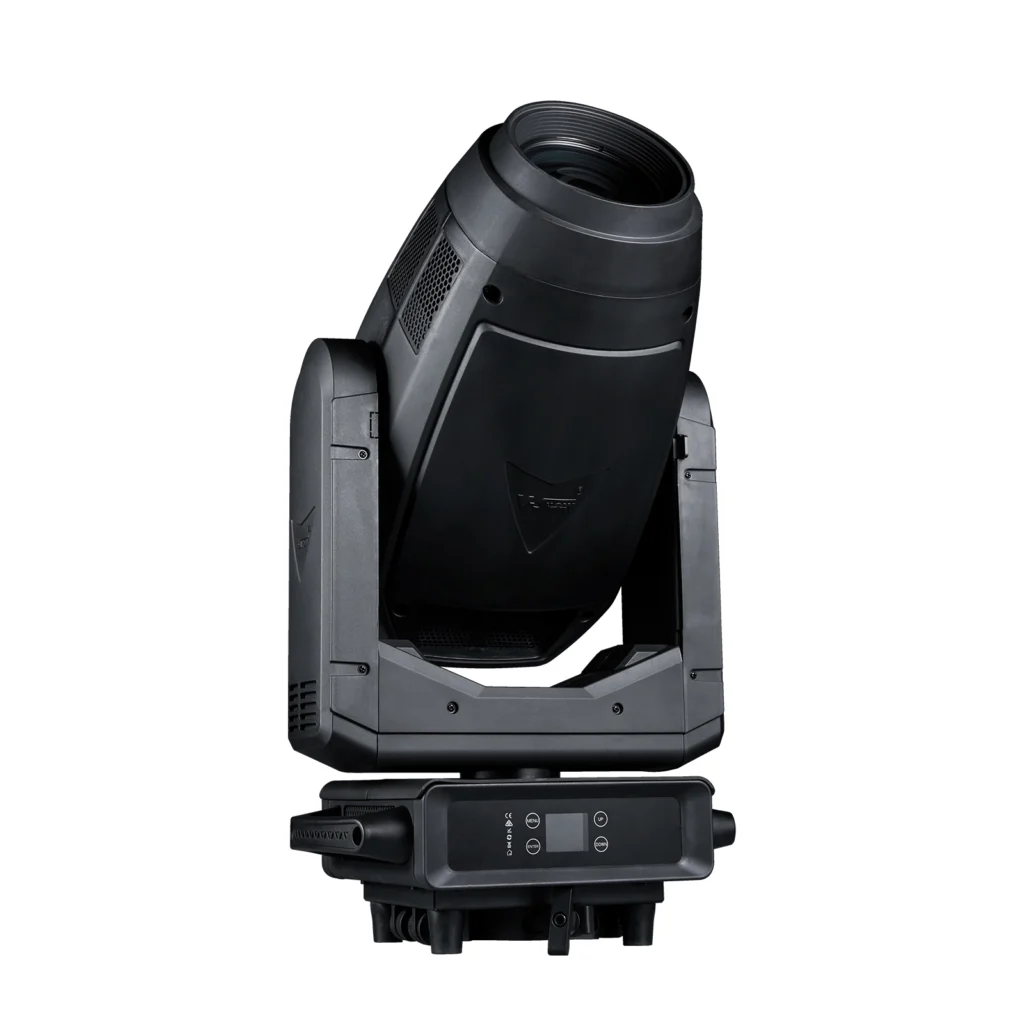

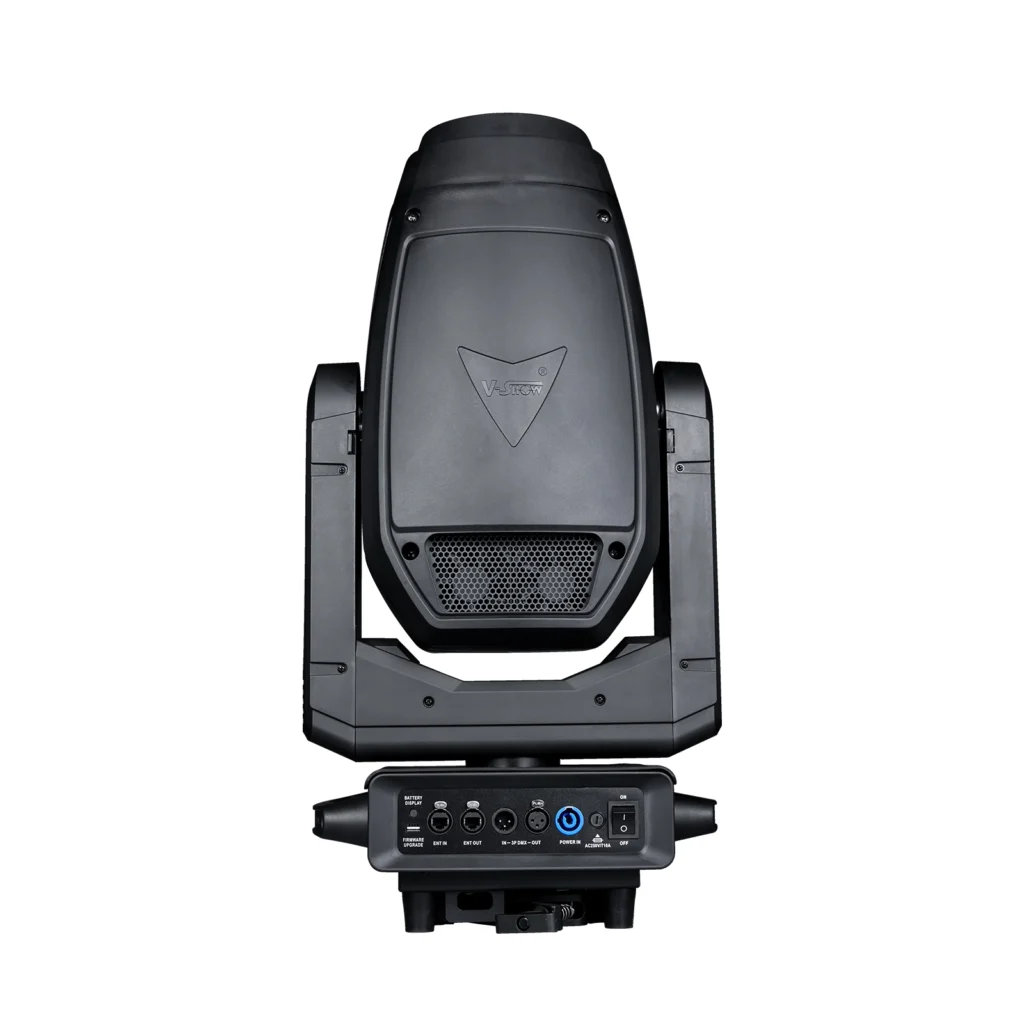

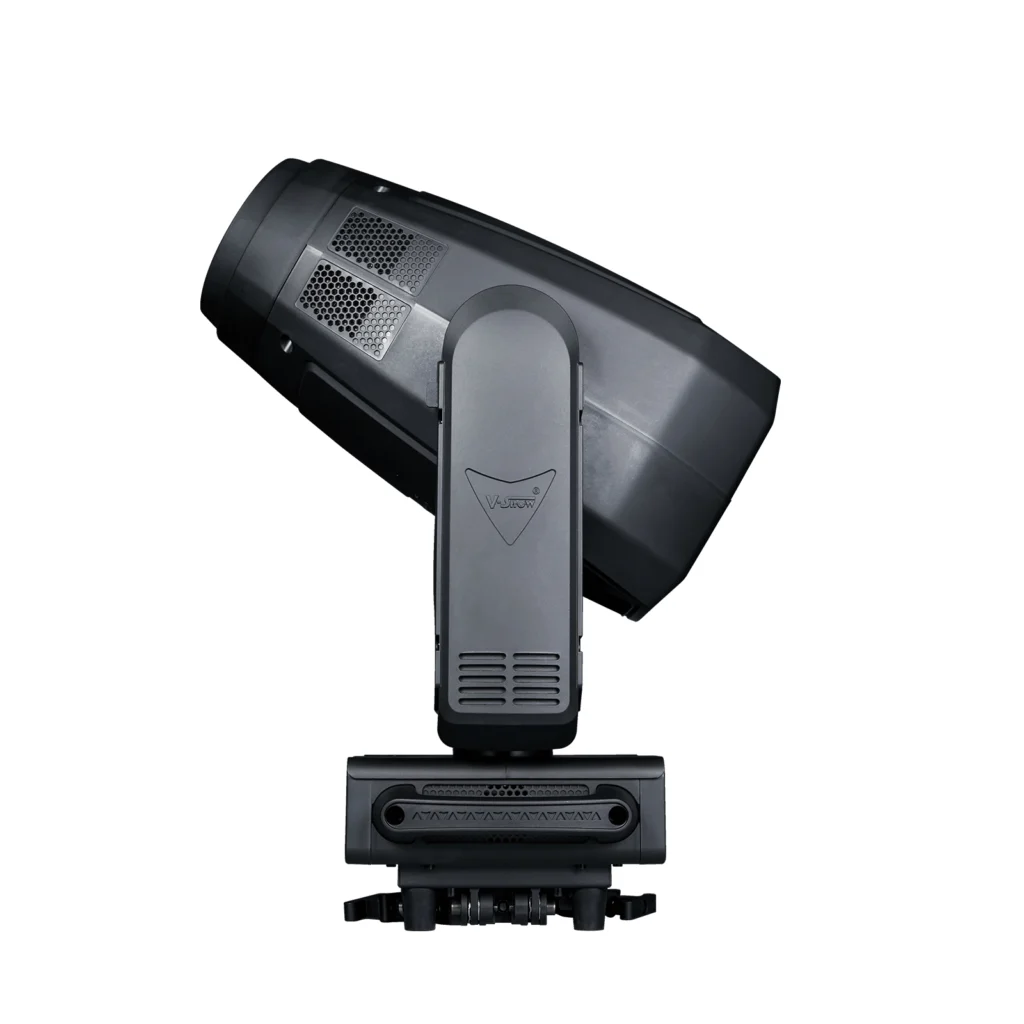

fixture set light beam, spot, wash and cutting functions in one, pure color, uniform spot, color plate, glass gobo plate, CTO, CRI plate are schott materiall, small appearance, light weight, its base is small and delicate, help reduce the weight of the lamp, linear CMY color mixing system, Provides rich color saturation and clear seamless color transitions. LED adopts energy-saving and environment-friendly 800W monochrome LED light engine, which can produce extremely high light output white light, color temperature of 7500K, The 120mm diameter high quality optical lens produces a very uniform spot, CRIRA≥90, and zoom range 3°- 55,The cutting system consists of 4 gratings, which can be rotated ± 60°, giving designers unlimited spot creativity. Two high brightness atomizing pieces of new materials can be respectively inserted and superimposed. With 14° prism, achieve rich prism effect, standard 3-pin XLR or 5-pin XLR socket and RJ45 with fast loading and unloading fast lock light hook, 16BIT dimming, a variety of dimming mode switching options,High refresh rate, no flicker under high-definition camera, intelligent fan temperature control, switching to multi fan mode
Parameters
Input Voltage | 100-240V, 50/60Hz | Output Voltage | V1:48V 18.75A(light source), V2:24V4.2A(a main board) |
Power supply | 1000W | Light source | 800W Module LED Engine |
Power consumption | 820W | Color temperature | 7500K Linear CTO color temperature adjustment (3000K-7000K) Standard color rendering index Ra ≥ 70 High color rendering index Ra ≥ 90 |
Diamter of optic lens | 120mm | Zoom angle | 3-55° |
Lifetime | ≥20,000Hours | Rotation Gobo | 1 rotating gobo , 7 Rotation Gobo, patterns can be replaced Animation gobo, imitating water patterns and flame effects, dynamic disc rotatable |
Control panel | LCD touch screen with backlight | Signal socket | standard 3-pin XLR or 5-pin XLR socket and RJ45 Standard with 50MM folding fixture |
Fixture size | 376x265x722.5mm | Net weight | 28KG |
DMX Channel | 27/29/36CH | Operate mode | DMX512, master/slave, RDM,Art-Net ,SACN Electronic autofocus |
