Function description

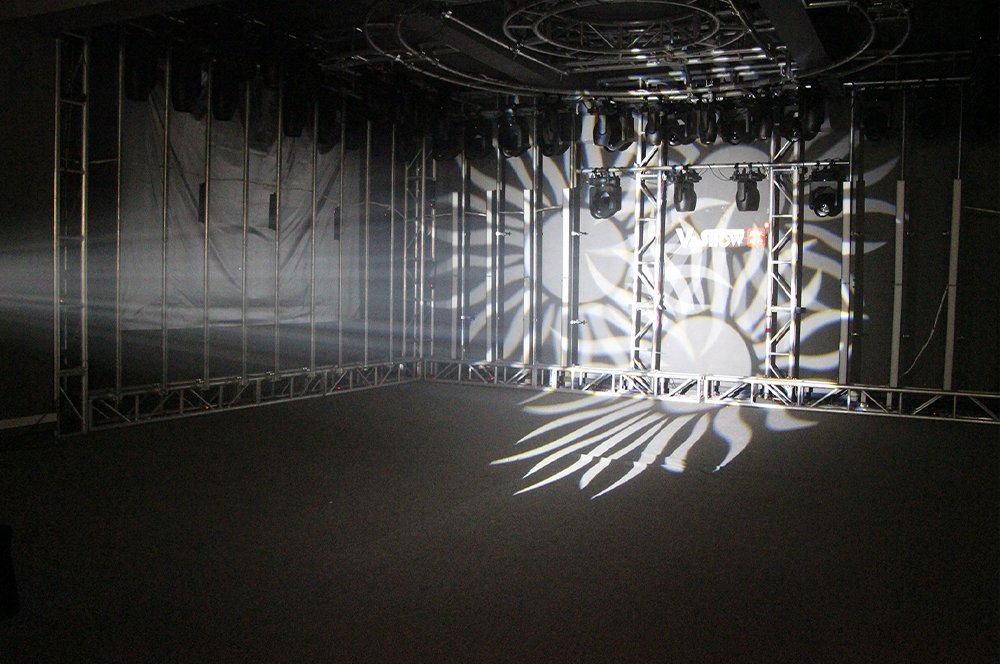

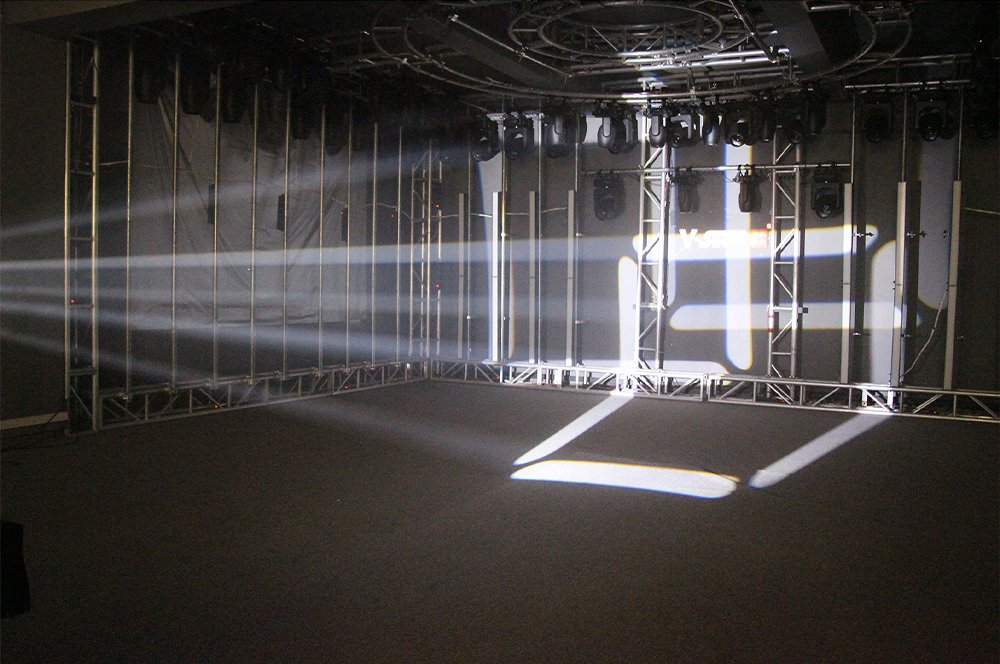

<p>The fixed and rotating pattern discs, under the zoom lens, project pattern effects from multiple angles. The beam angle can be adjusted through the zoom lens, and with the addition of a bi-directional rotating three-prism, the beam becomes even more flexible and versatile. Energy-efficient, with an extended lifespan, rapid heat dissipation, powerful functionality, and easy control, it significantly improves the performance environment, reducing maintenance and operational costs. It comprehensively meets various performance requirements, providing a versatile solution for a wide range of shows.</p>
Parameters
|
Input Voltage |
100-240V, 50/60Hz |
Output Voltage |
V1:36V (LED driver), V2:12V(cooling fan+Display) |
Power consumption |
220W |
|
Power supply |
300W |
Light source |
200W Osram Luxury LED chip (21-24V, 8A) |
Color temperature |
8000K |
|
Diamter of optic lens |
97mm |
Zoom angle |
3-45° |
Color wheel |
 7 colors plus white |
|
Static gobo |
8 gobos plus 1 white circle |
Rotation Gobo |
7 Gobo plus 1 white circle |
Prism |
 3 prisms,can be rotated in both directions |
|
Frost filter |
with smooth wash effect |
Focus |
Electric focusing system |
DMX Channel |
20CH |
|
Operate mode |
DMX512, self-propelled, master/slave, RDM |
||||
Details&Features

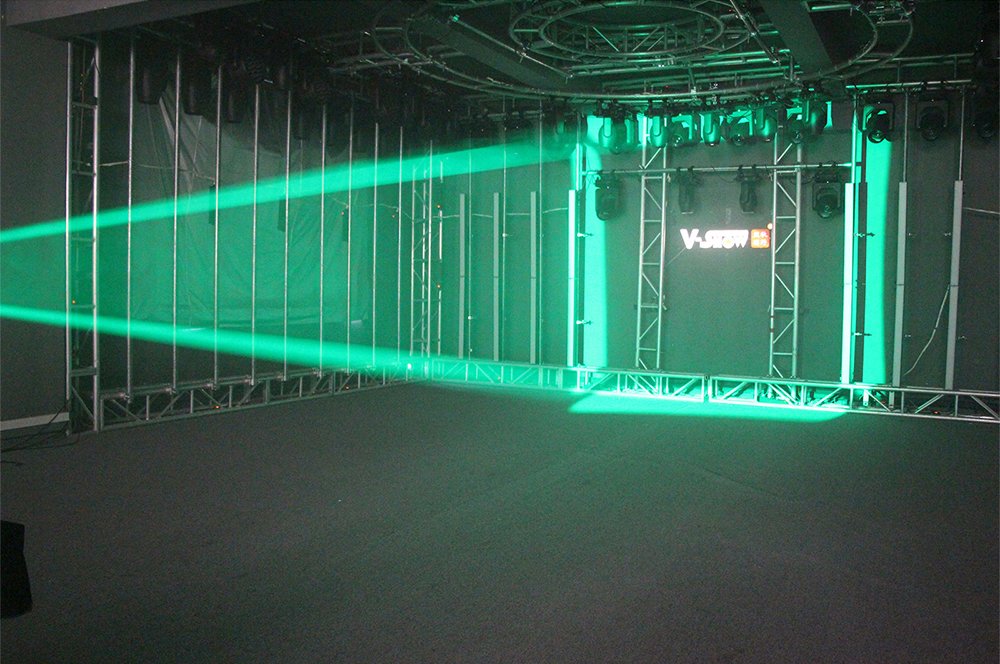

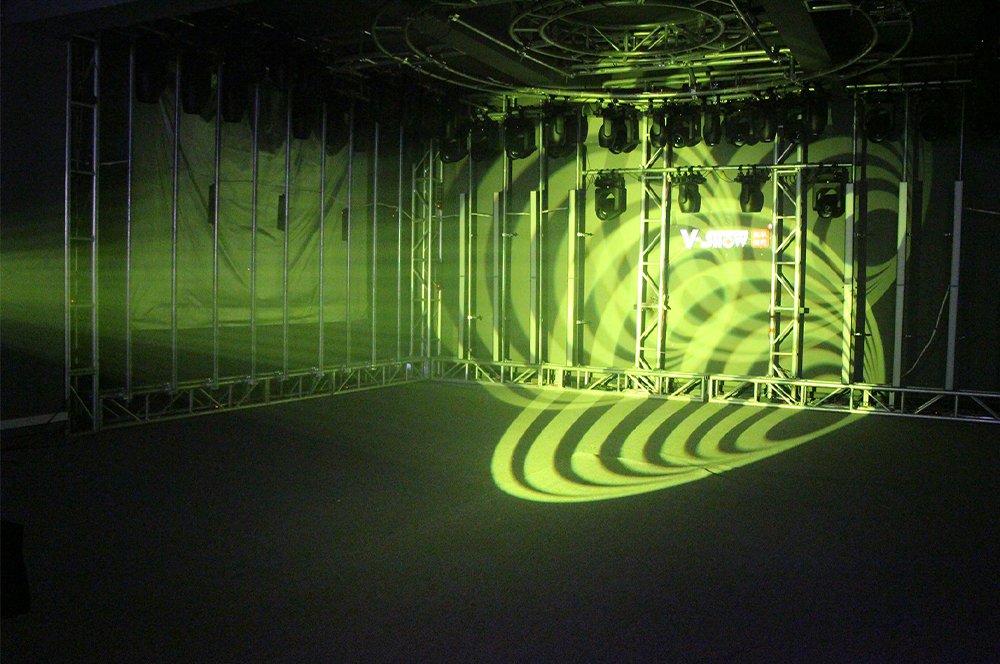

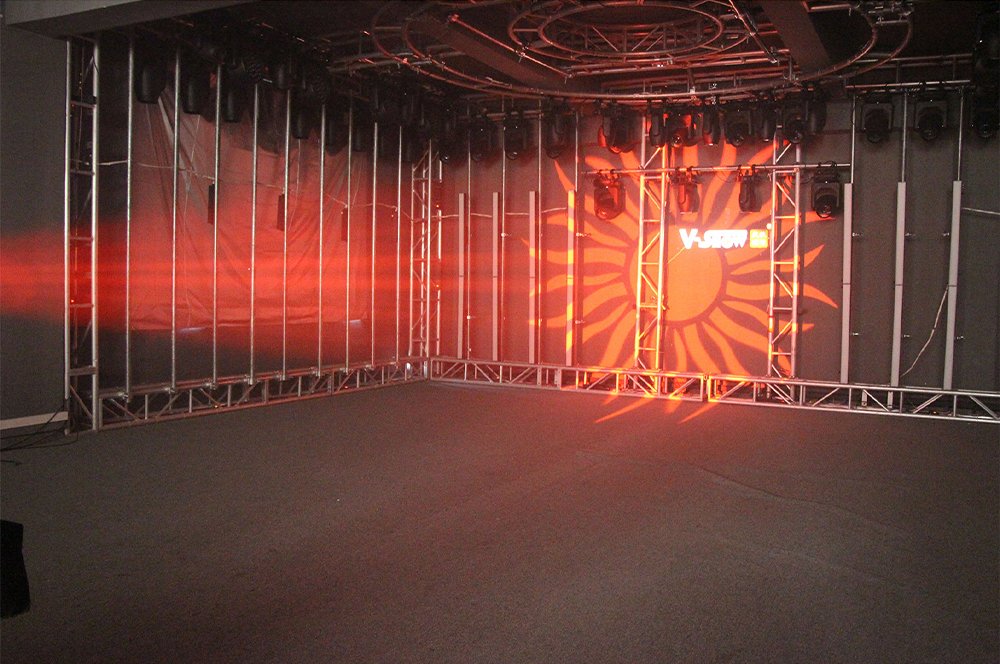

Excellent color mixing effect
