Function description

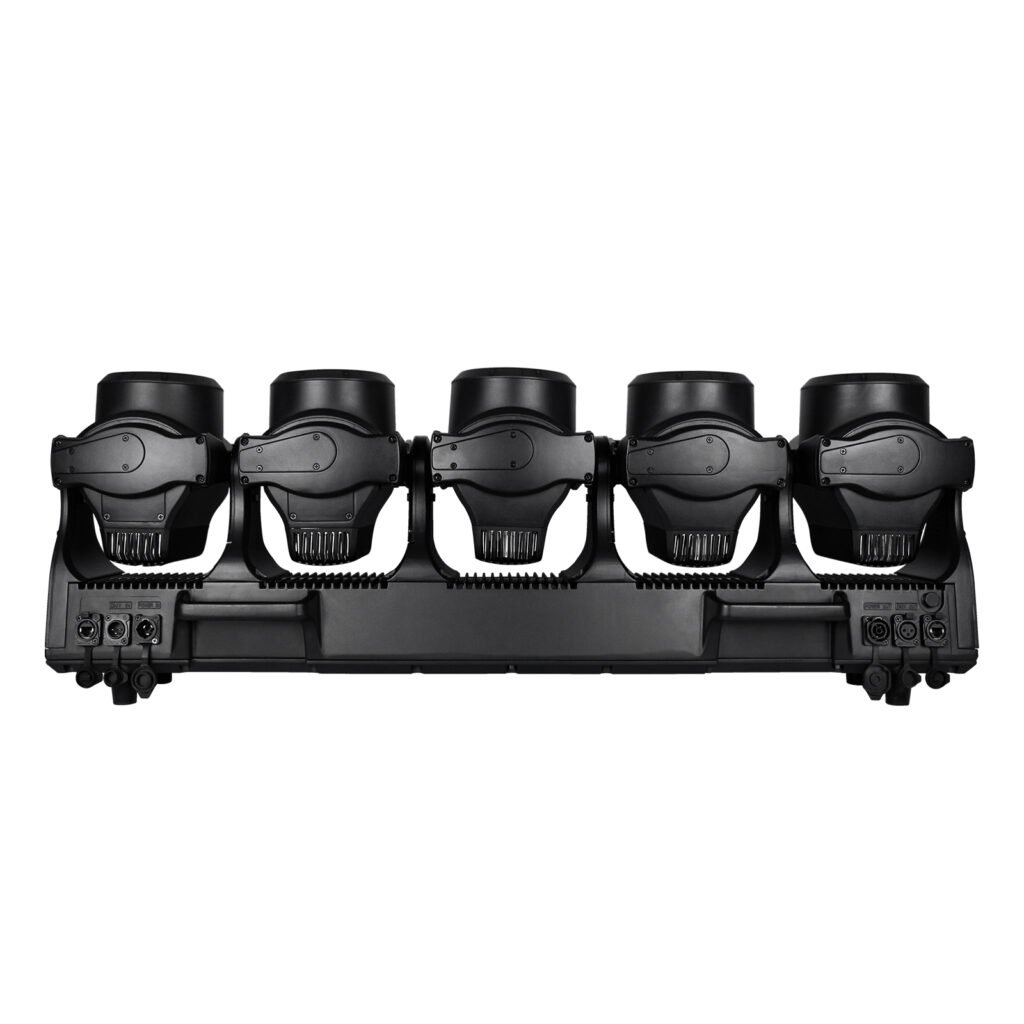

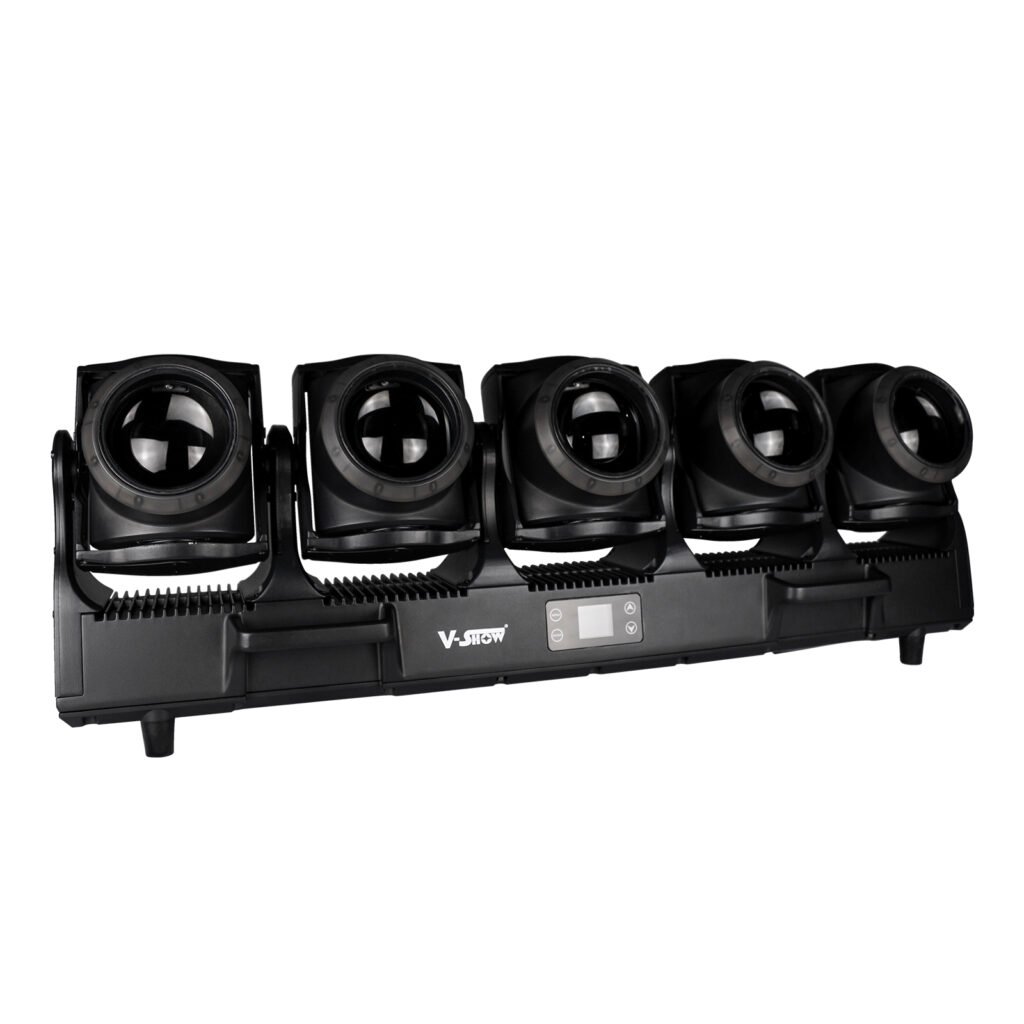

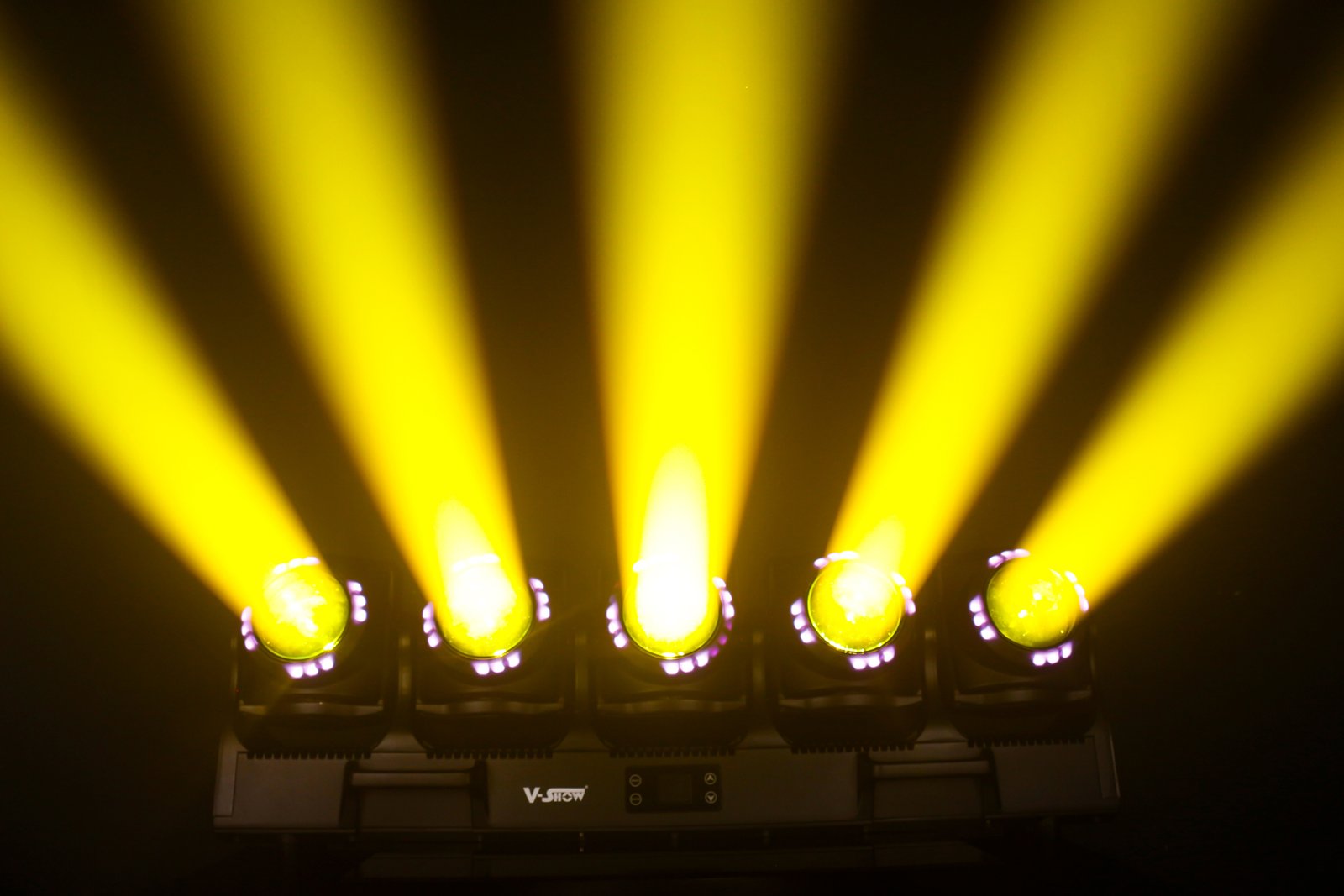

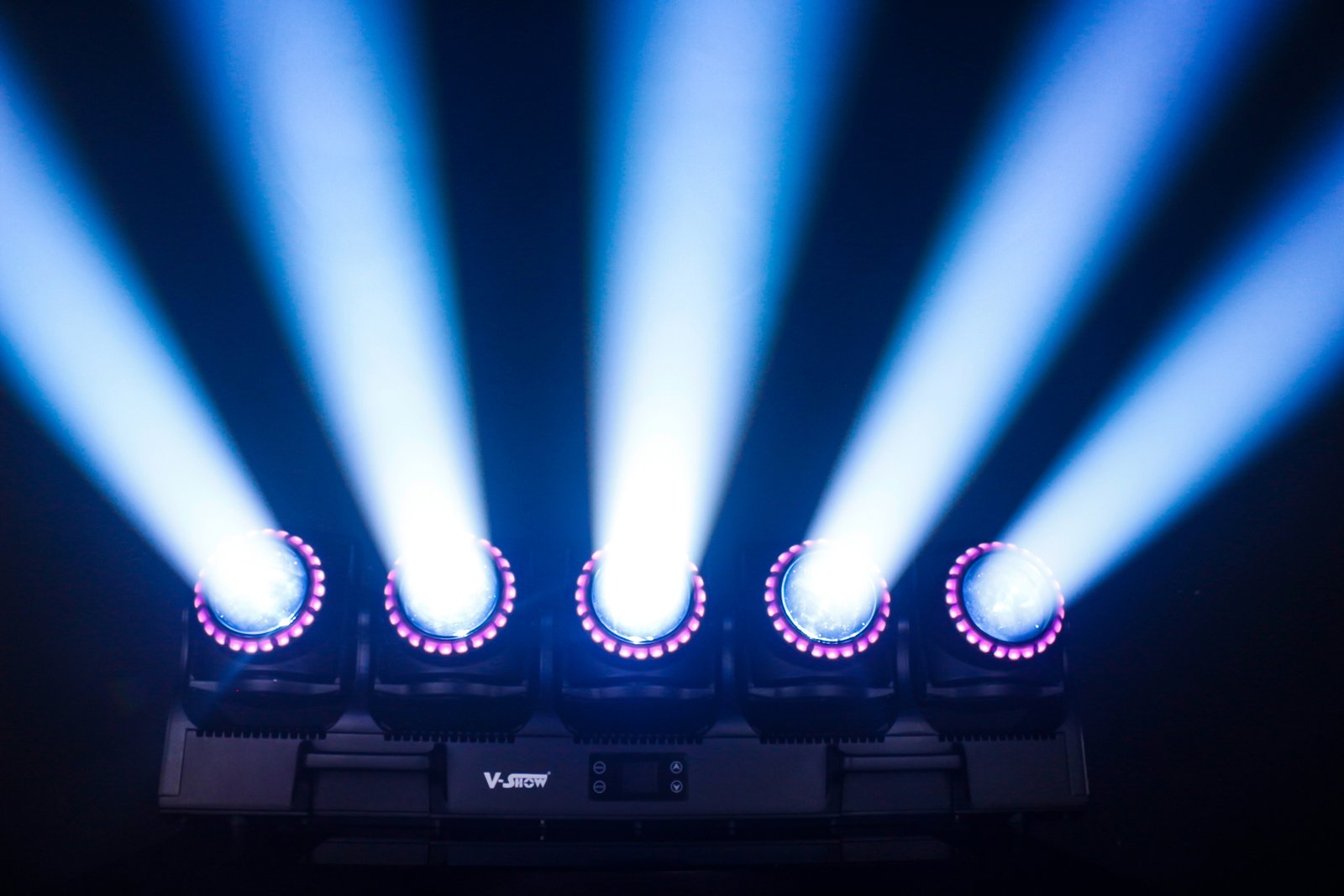

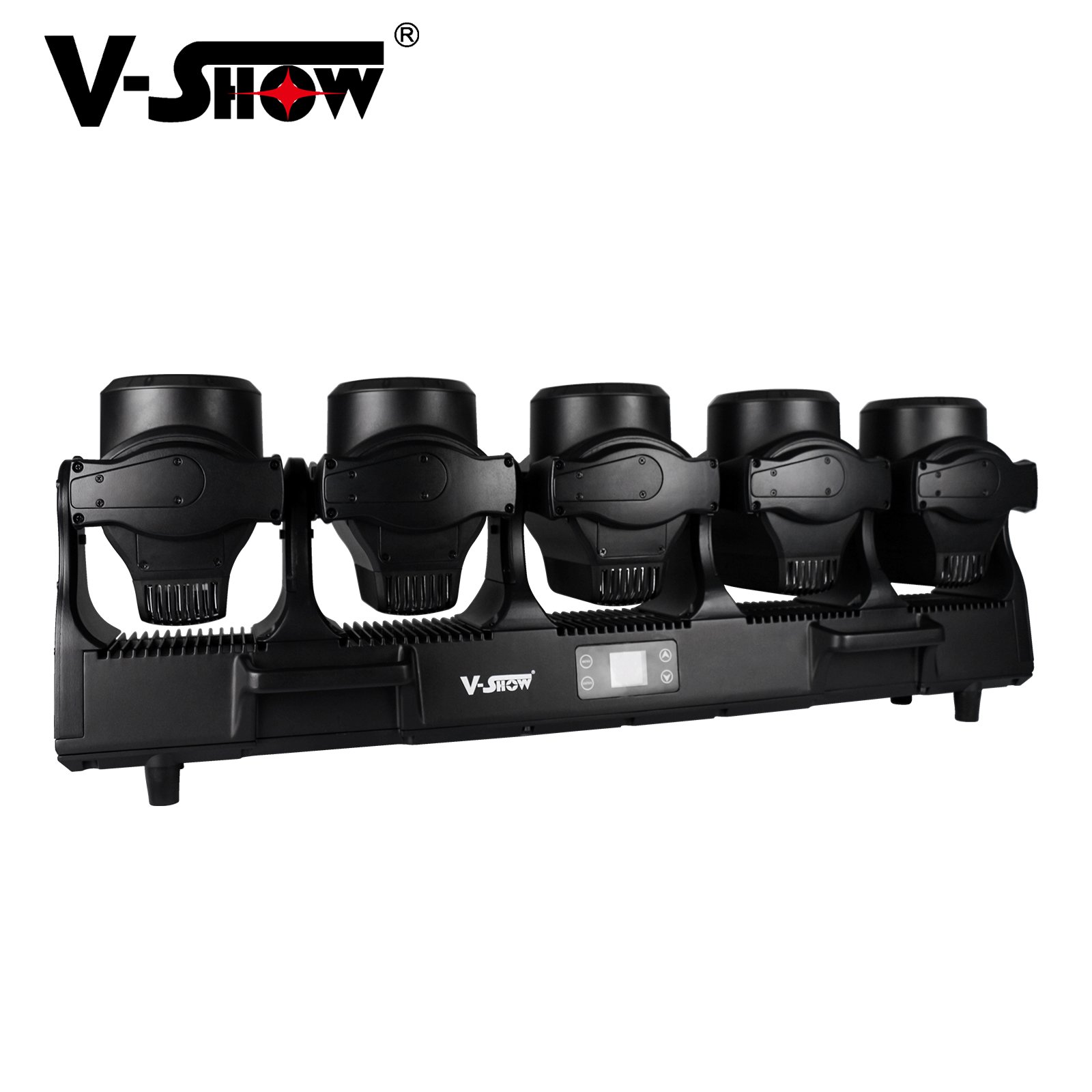

The fixture is equipped with 5 120W RGBL LEDs as its main light source, supplemented by an outer ring of 120 0.5W RGB LEDs. The fixture is equipped with five independently controlled LED heads, which independently control the XY axis and focusing of each LED, providing unlimited possibilities for artistic creation on stage. Quick focusing produces a sharp and saturated beam effect in beam mode, and a uniform and soft dyeing effect in dyeing mode Excellent color mixing function and color macro effect, multiple speed strobe effects, rich dynamic built-in effects of auxiliary lighting, 0-100% smooth dimming, multiple dimming curves and refresh rates, can be quickly spliced horizontally, ensuring consistent and equidistant spacing for each.
Parameters
Input Voltage | 100-240V, 50/60Hz | Light source | 5*120W RGBL |
Power supply | 840W | Auxiliary light | 120X0.5W RGB LED |
Color System | RGBL | Color temperature | 2500-8000K |
Pixel matrix | Five independently controlled LED heads | Dimming | 0-100%16bit linear dimming |
Lifetime | ≥20,000Hours | Dimming modes | Quick dimming and standard dimming can be set |
CRI | 80 | Strobe | Multiple strobe speed effects |
Field angle | 4-35° | Beam angle | 3-30° |

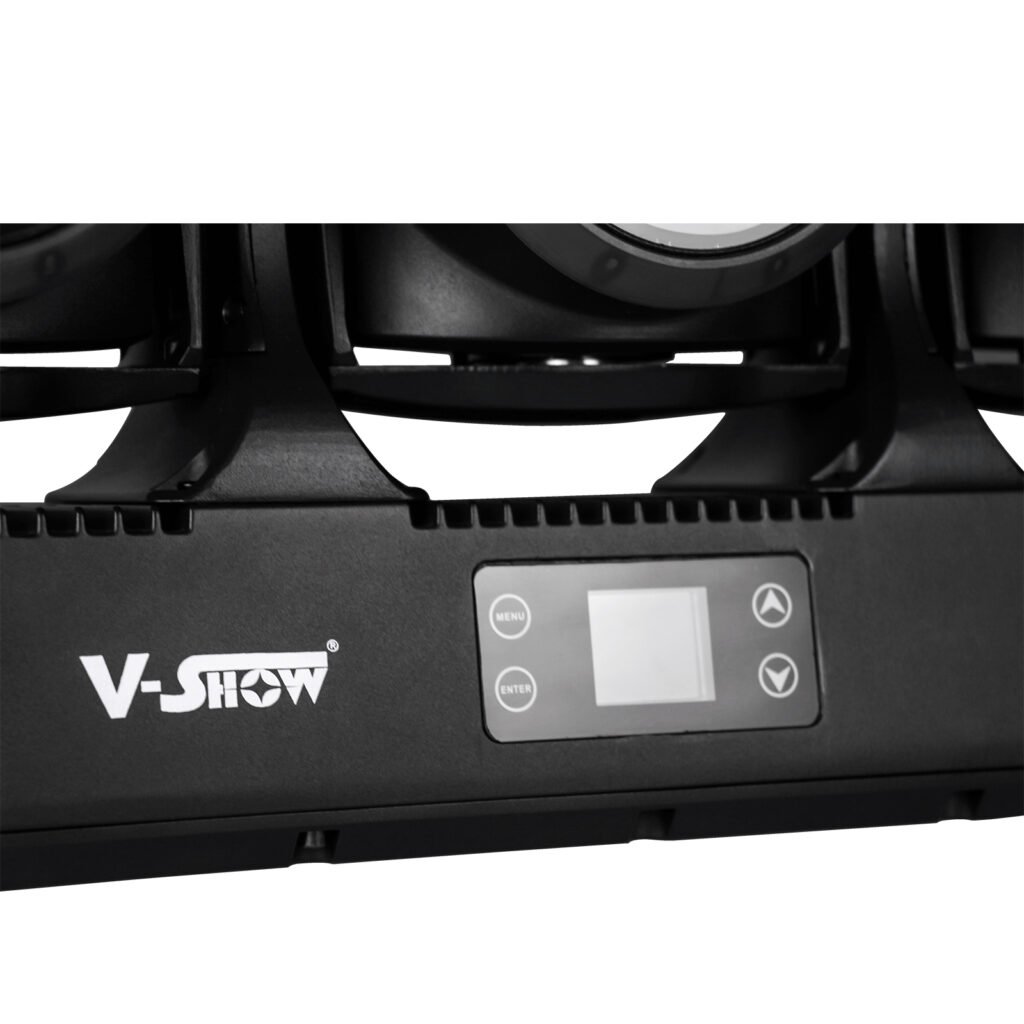

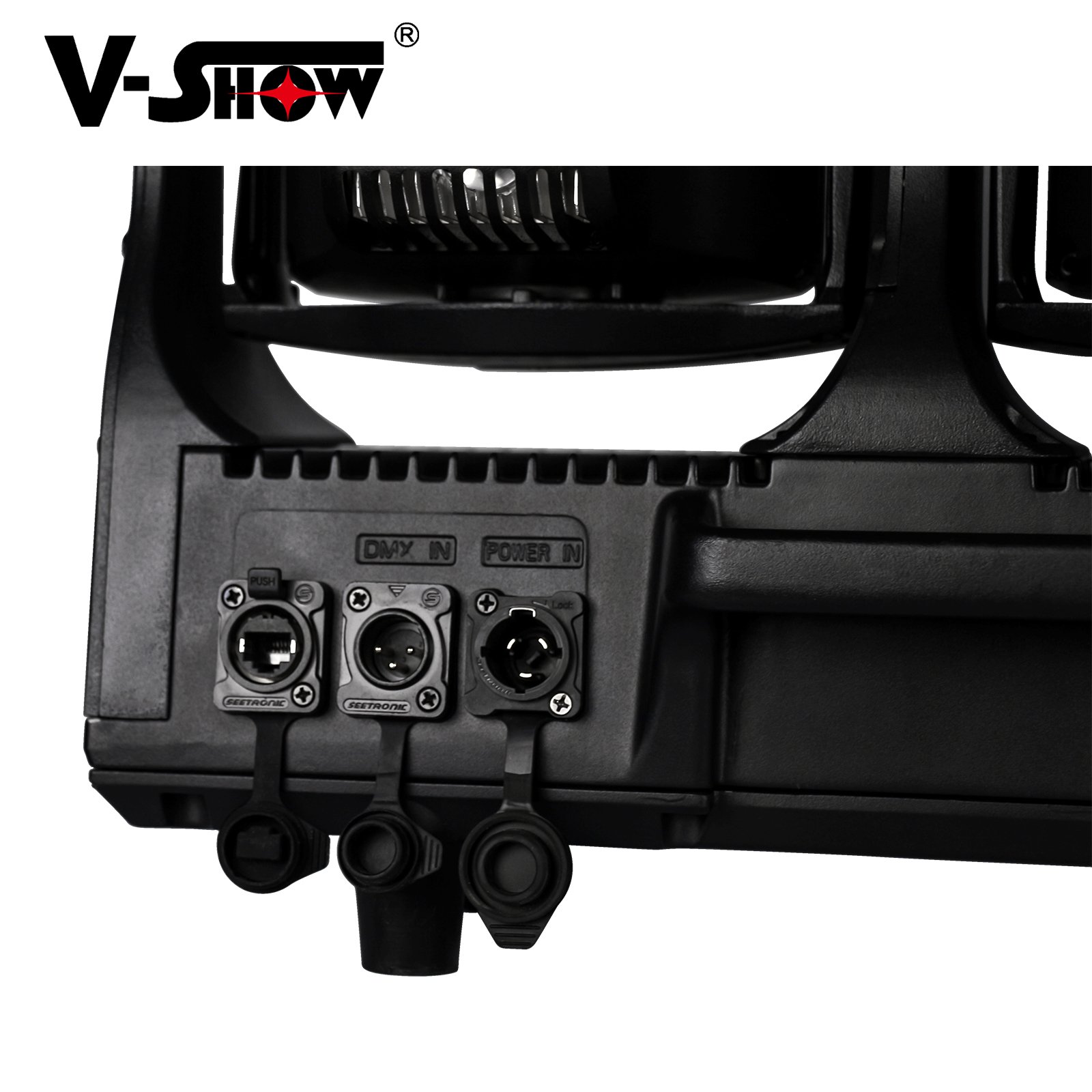

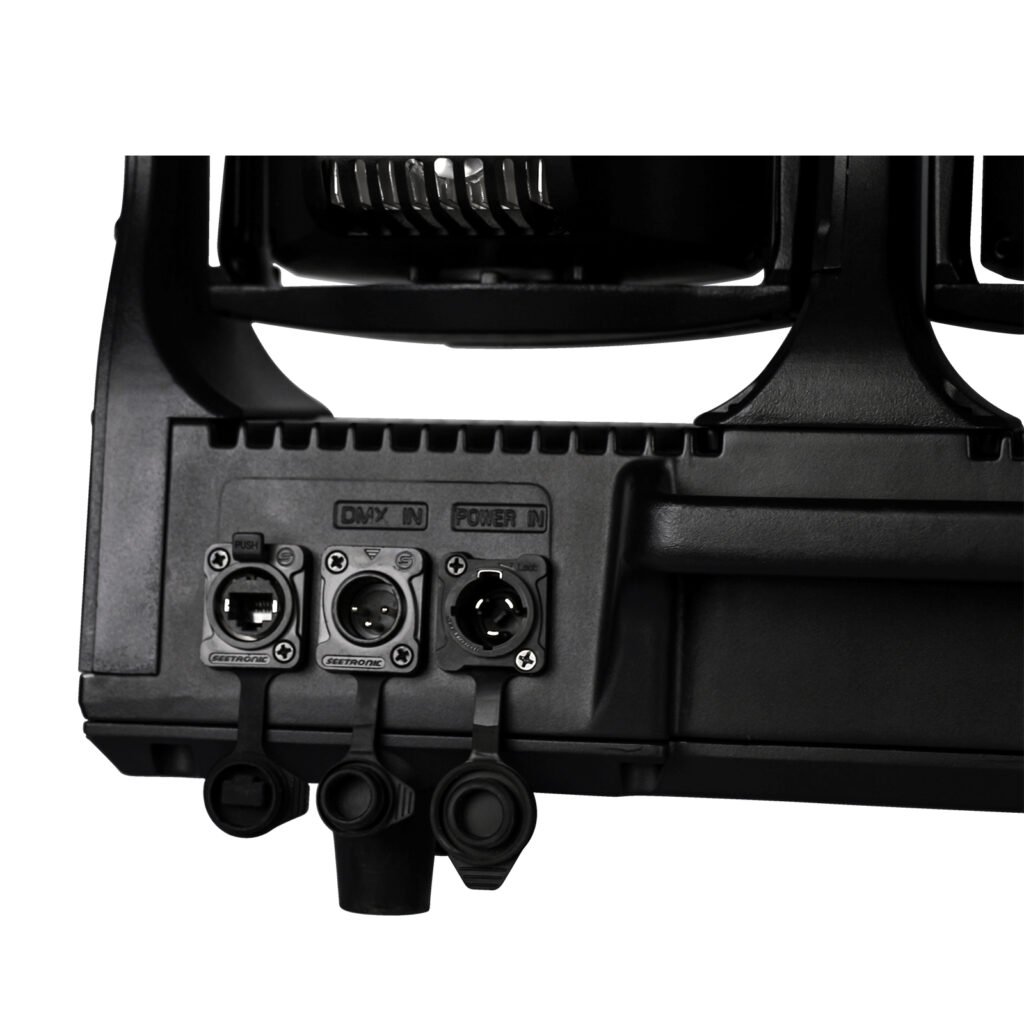

Control panel | LCD display | Signal socket | Waterproof 3 PIN XLR /5PIN XLR socket |
Protection Grade | IP65 | Working enviroment | -40°-45° |
DMX Channel | 41/71/75/85/170CH | Operate mode | DMX512, Auto,Sound, Master/Slave,RDM/Art-net/SACN |
Net Weight | 27.5kg | Gross Weight | 33kg |
Fixture size | 1002x196x334mm | Package size | 109*47*36cm/ 33kg (Carton) |
Details & Features

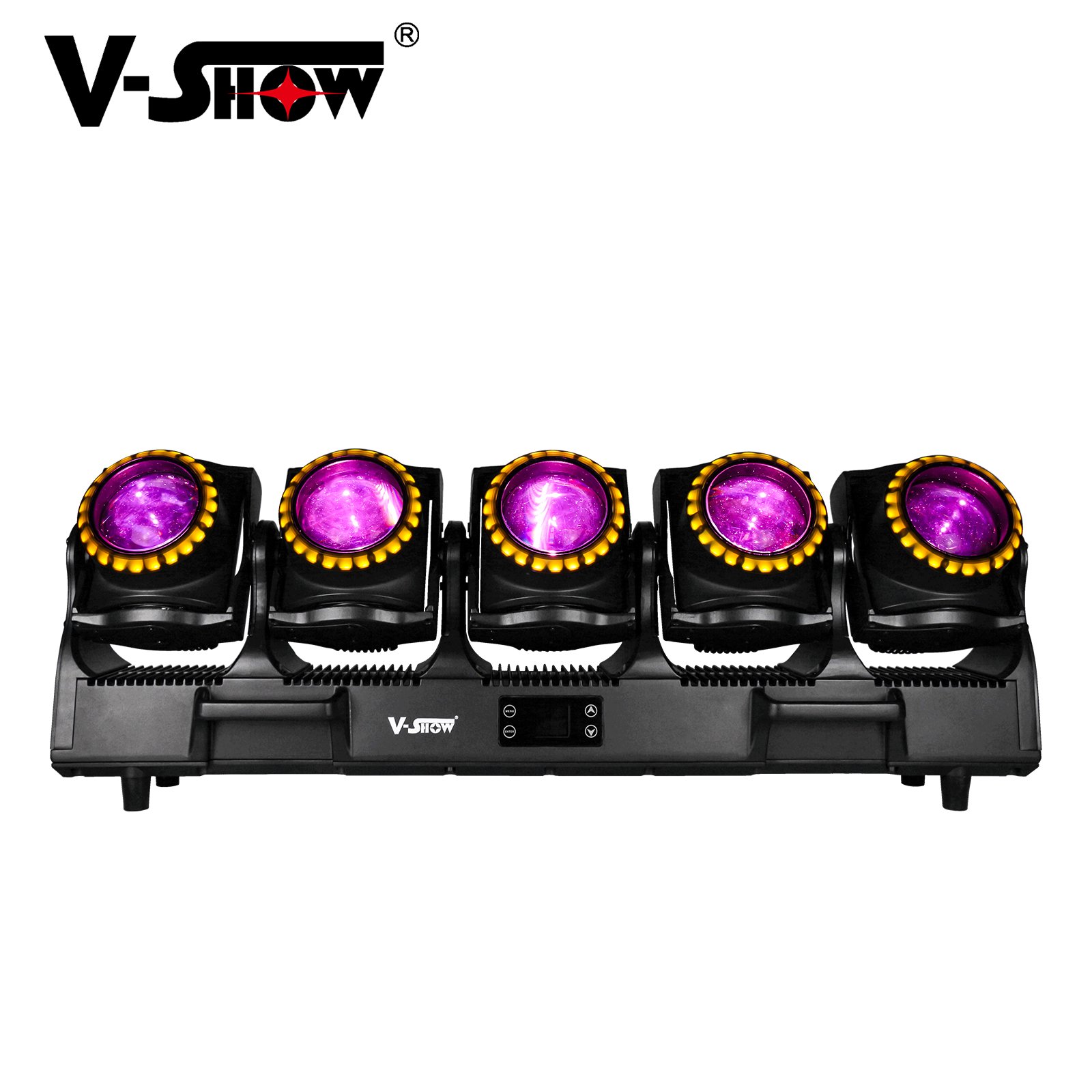

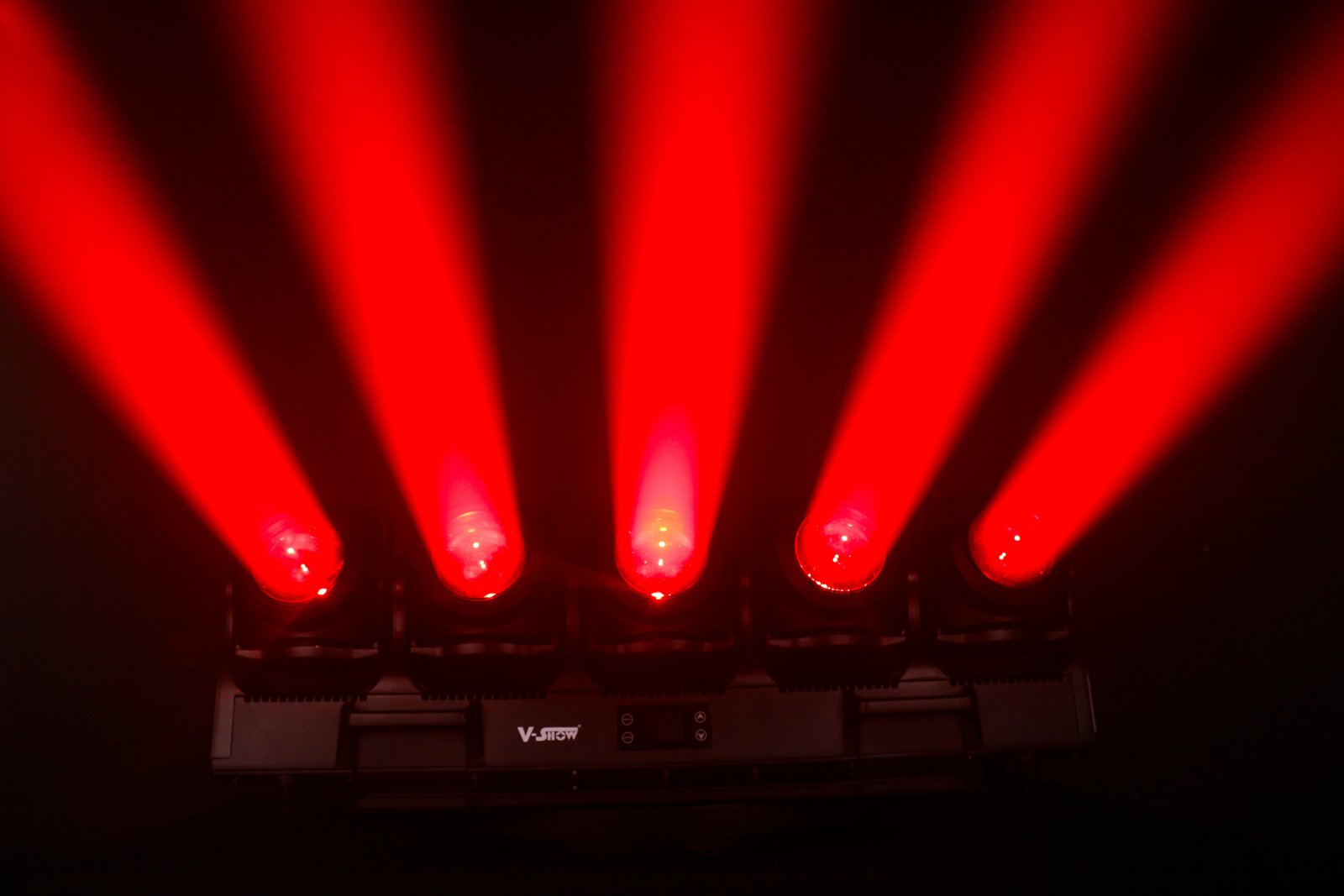

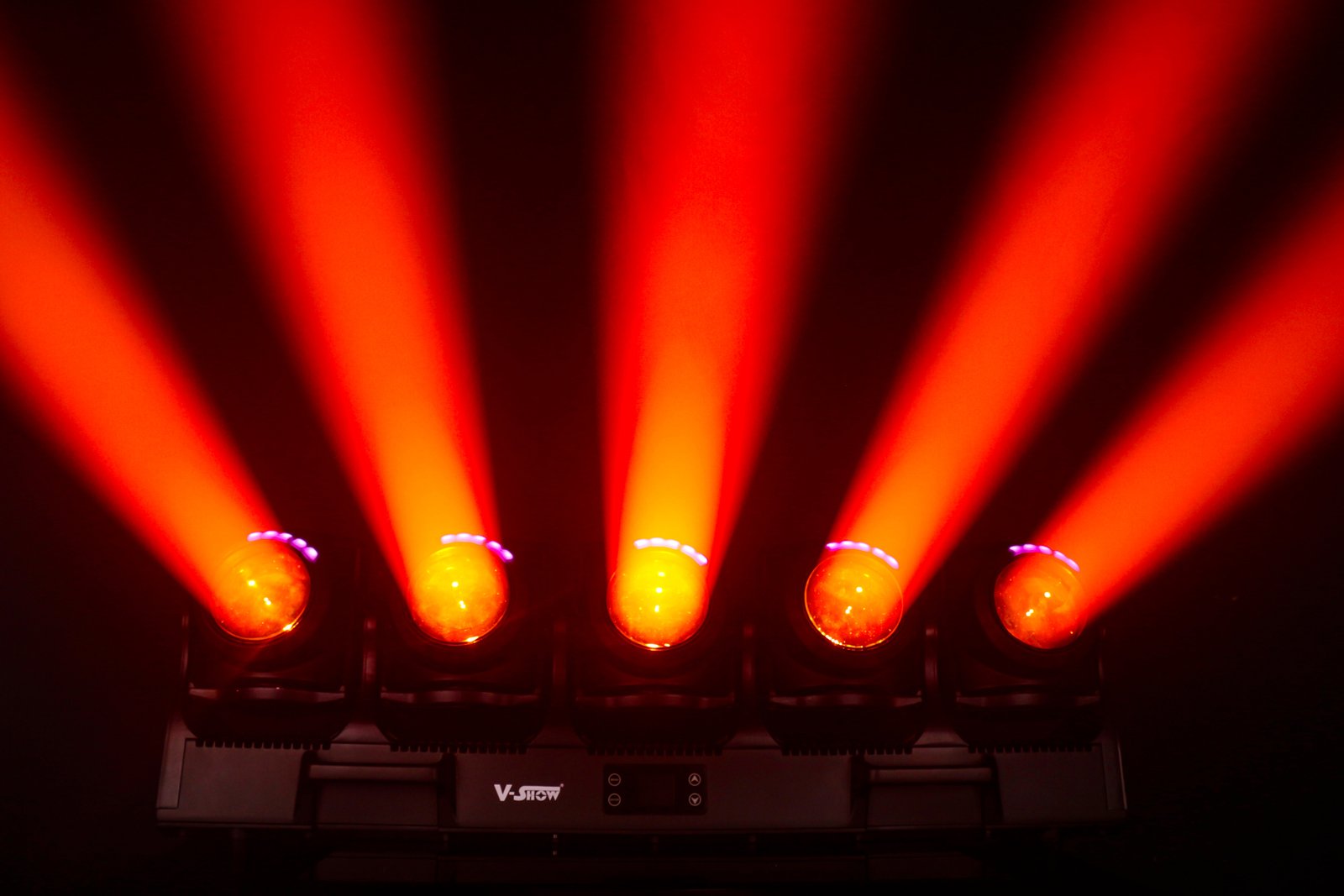

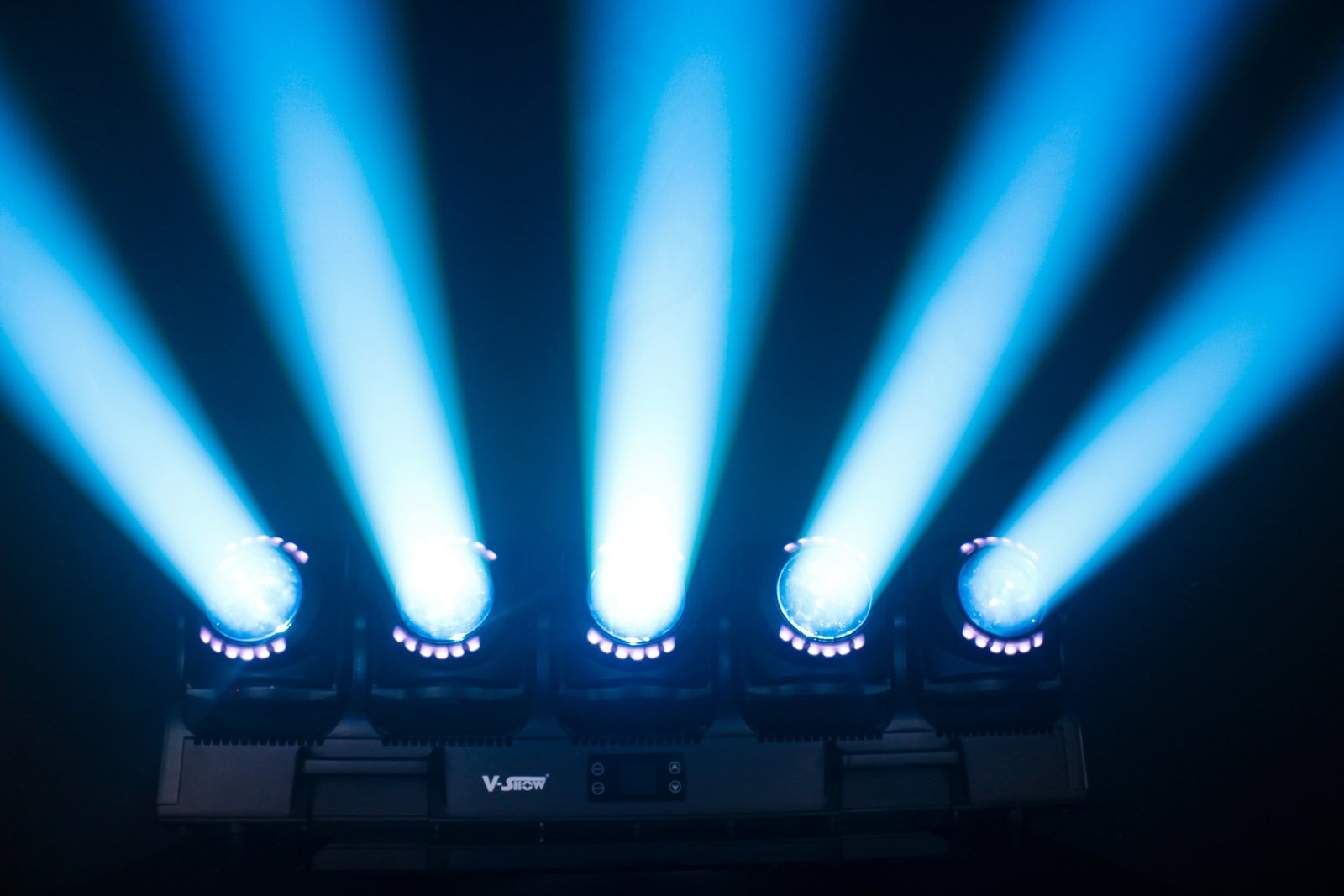

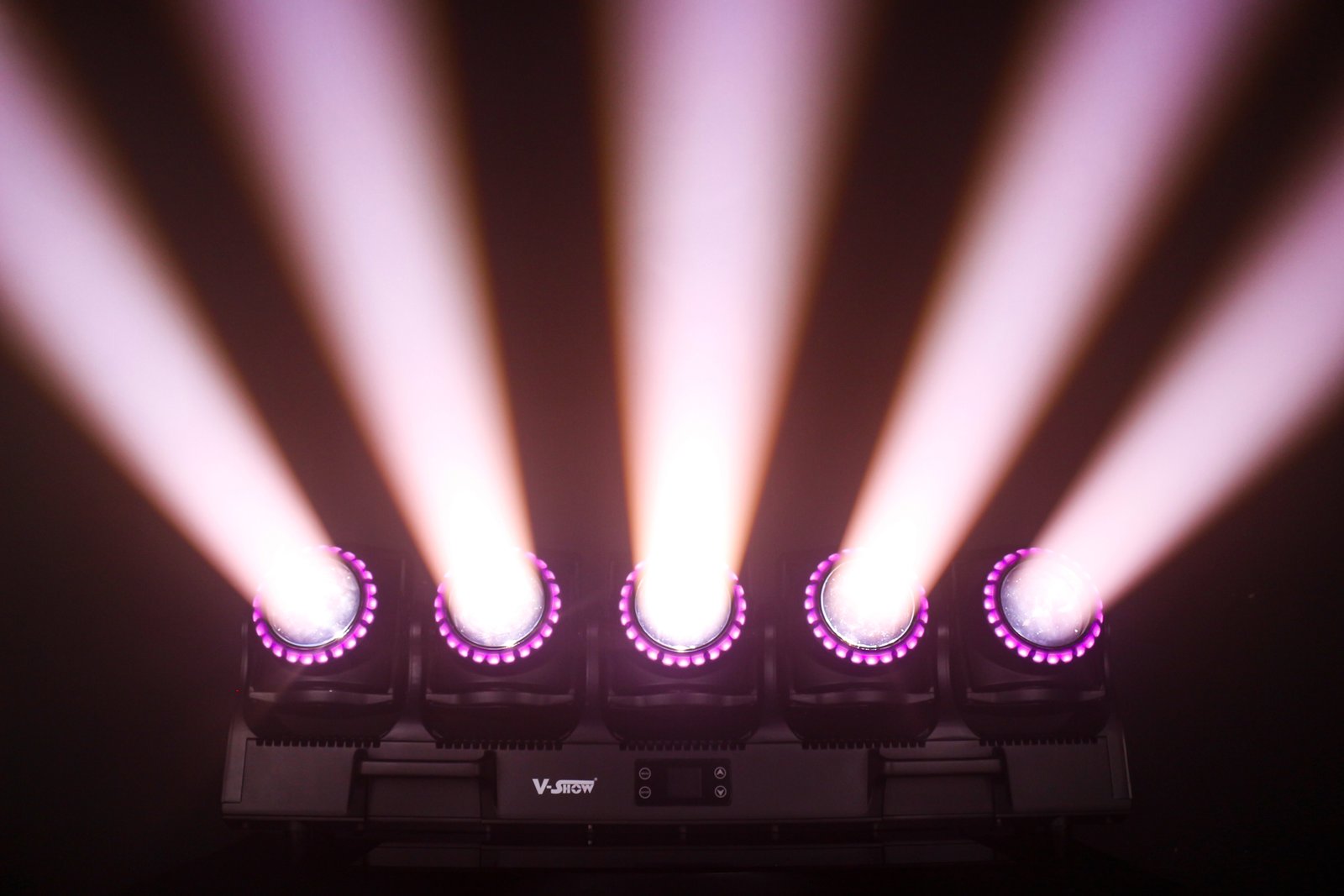

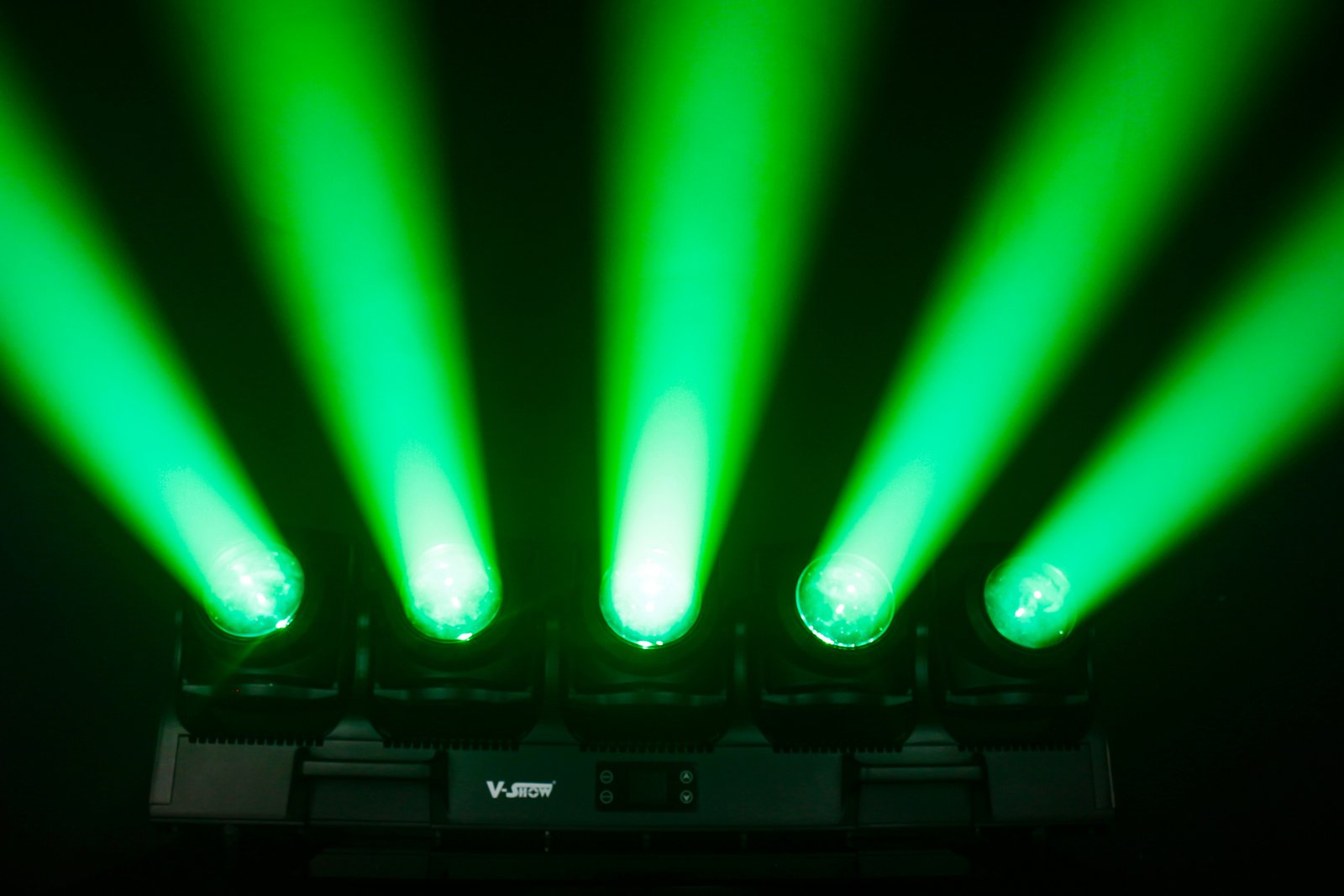

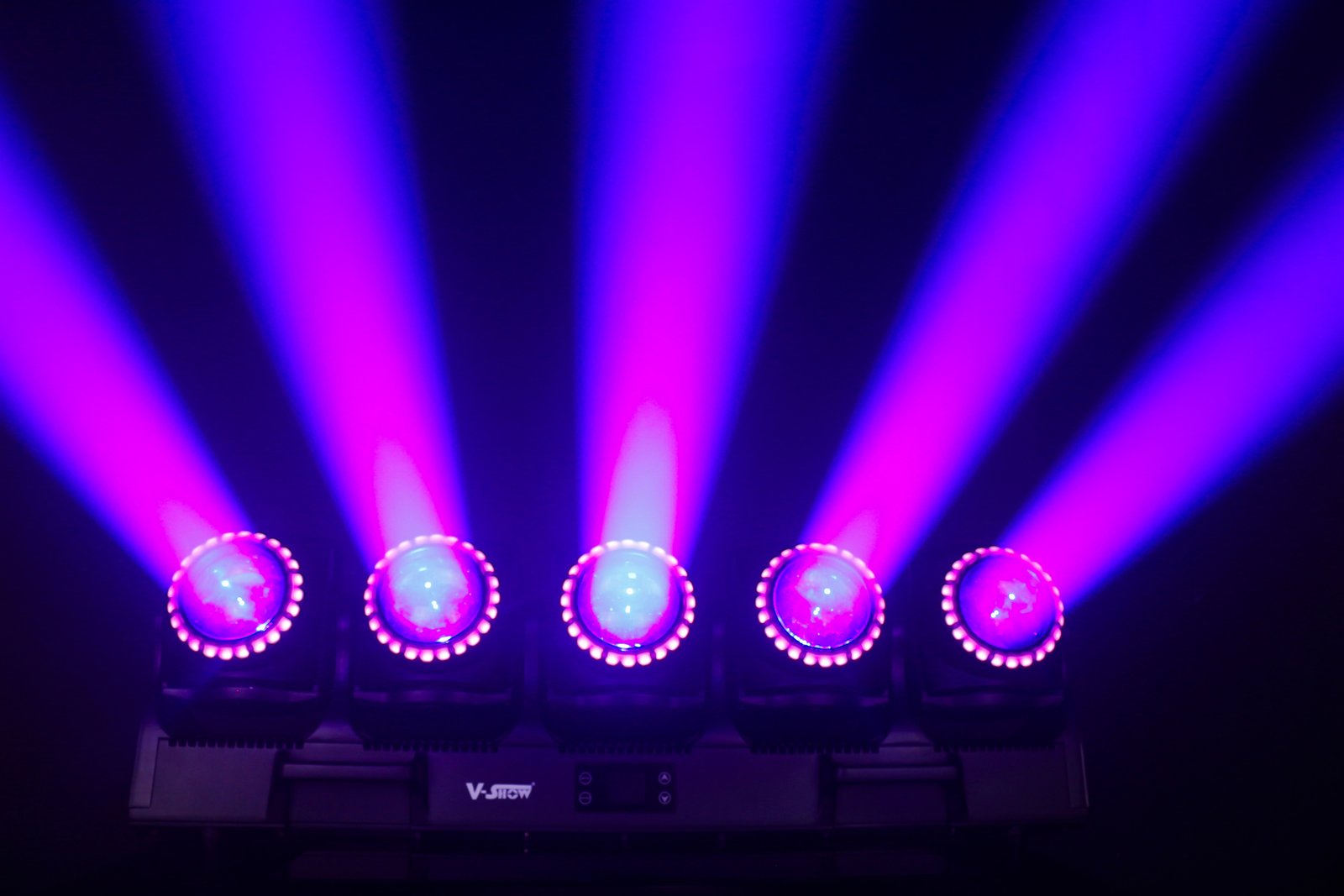

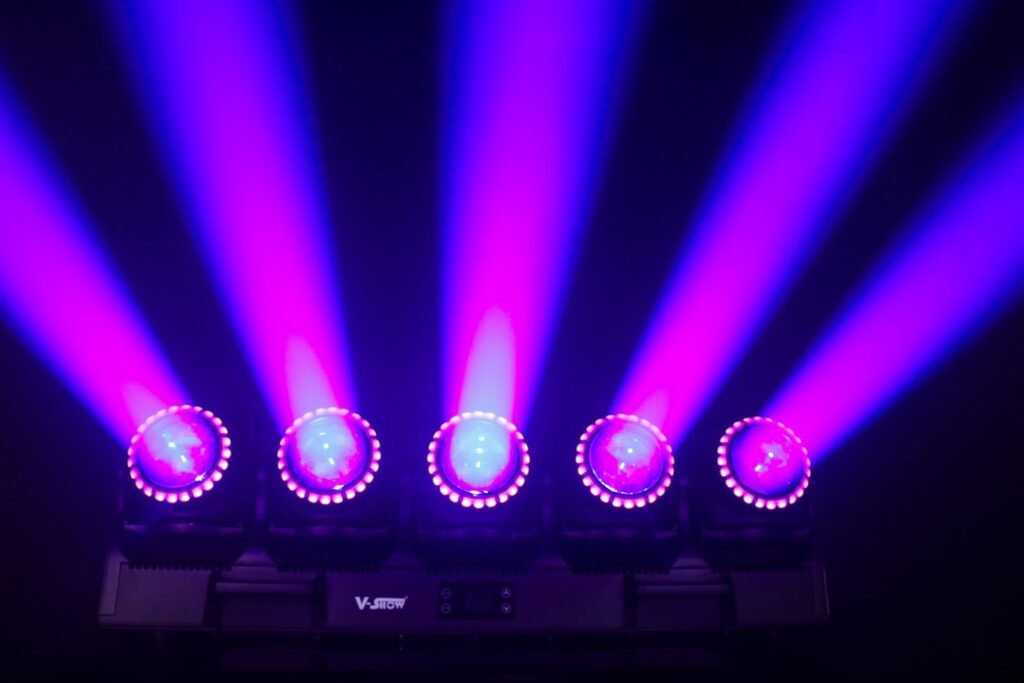

Excellent color mixing effect
