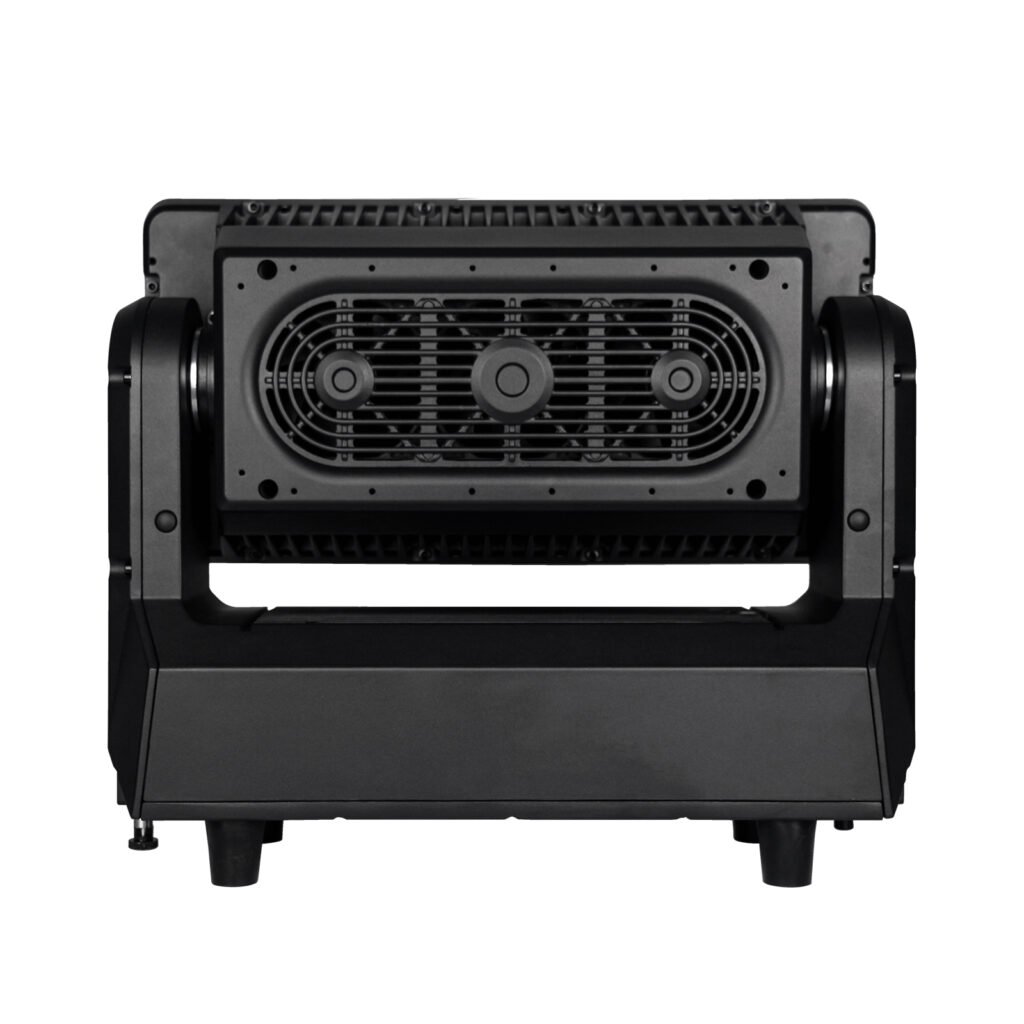

VSHOW V12 Outdoor Waterproof Moving Head LED Strobe Light IP65

The lighting fixture includes two zone controls, Zone 1: using 784 1.5W RGB LEDs, 14 zones can be individually controlled, and each block contains 56 RGB LEDs. Zone 2: Using 392 2W CW LEDs, 28 zones can be individually controlled. The excellent and powerful strobe function can create a colorful and vibrant strobe rendering effect, and when the main LED and auxiliary LED work together, they do not affect each other. Built in splicing pins for quick machine splicing, , quickly create various dynamic colors and flicker effects, strong flickering colors covering vast areas and other powerful functions, greatly meeting user needs

Brand Name VSHOW
Input Voltage 100-240V,50/60Hz

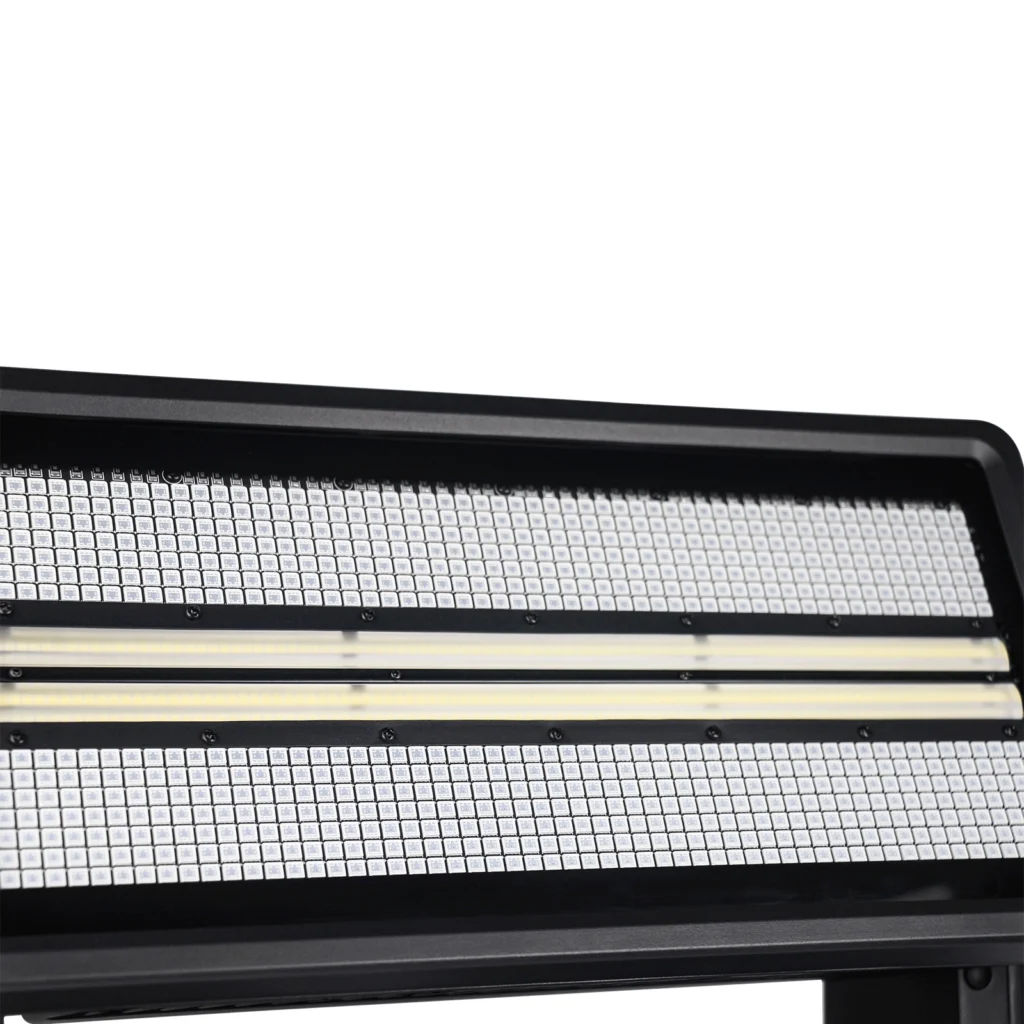

Light source 768pcs 0.5W 5050 RGB LED, 240pcs 2W 3030CW LED
Main LED 392PCSx2W LED
Backlight LED 784PCSx1.5W RGB 3IN1
Place of Original Guangdong,China
DMX outputs 3pin waterproof XLR socket (optional with 5pin)
Control Mode DMX512, Auto,Sound control, master-slave/ RDM, ART-NET,SACN
Net Weight 11.5kg
LED life >20000Hour
DMX Channels 8/11/24/30/47/74/97 channels
Dimming mode 0-100% smooth linear dimming
Strobe 1-25HZ strong output flicker effect
Dimming 0-100% smooth dimming
Main light 16pcs WW/CW LED zones can be controlled individually
Display LCD display

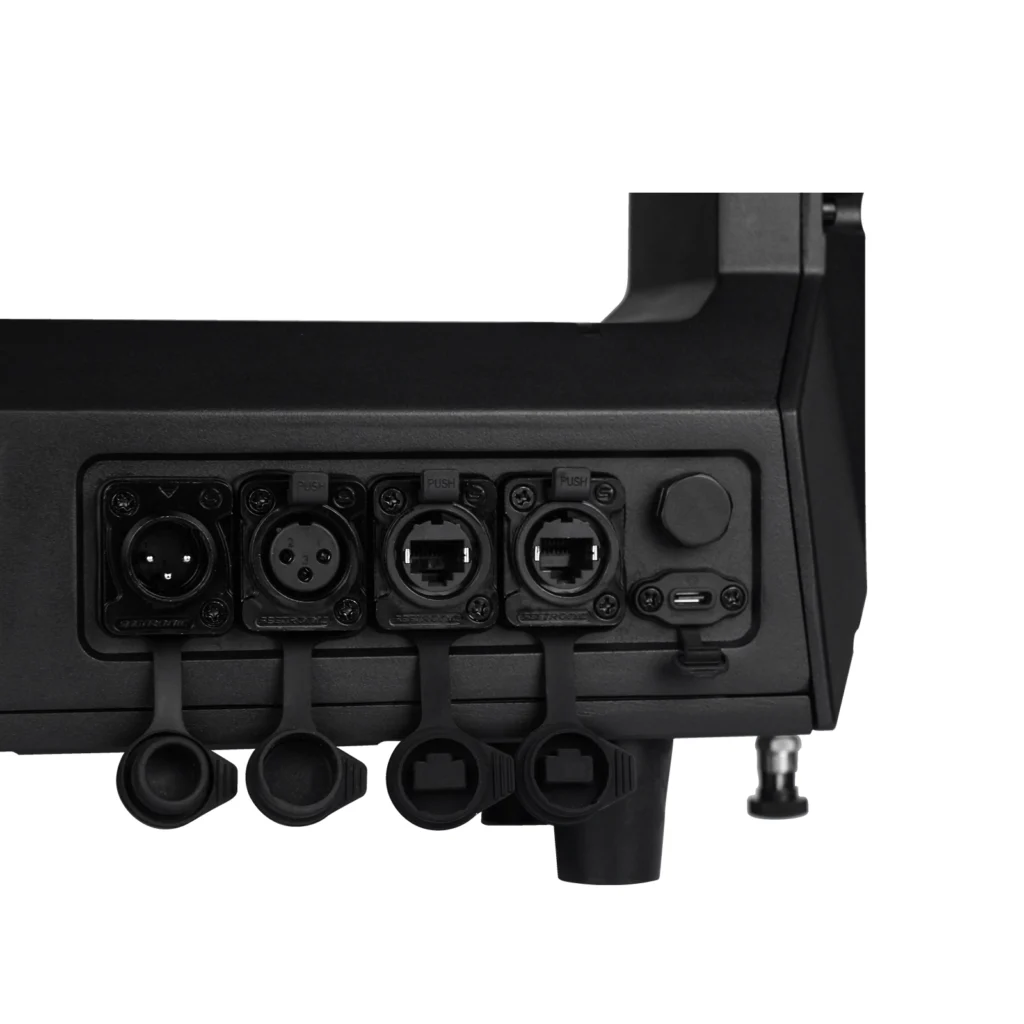

Signal input/output 3-pin OR 5-pin waterproof XLR sockets, And RJ45Ethernet
Power socket Waterproof power connector input
Protection Rating IP65

Return Tips   After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection   Buyer Protection: We Keep Buyer Information Completely Confidential!

Category:

Function description

VShow IP65 Move color Outdoor Moving Head strobe LED light SOURCE:768pcs 0.5W 5050 RGB LED 240pcs 2W 3030CW LED
This type of light can flash at high speed, producing an effect similar to a “flash”. By controlling the frequency of the flash and the intensity of the flash, the moving head strobe light can achieve a variety of flashing and explosive light effects to enhance the atmosphere of the stage.
Moving head strobe lights are usually equipped with high-power LED bulbs, which can provide strong brightness and adapt to the lighting needs of large areas. At the same time, they often support color changes, equipped with multiple color filters or adjustable RGB functions, and can adjust the light color to match the atmosphere in different performances.

Parameters

Input Voltage

100-240V, 50/60Hz

Clod white light source

392PCSx2W LED

RGB light source

784PCSX1.5W RGB 3IN1

Static

400W

Strobe peak



1800W



Color System

Excellent Color Macro Effects

Powerful color mixing effect

Rich built-in macro effects

Strobe



1-25HZ strong output flicker effect

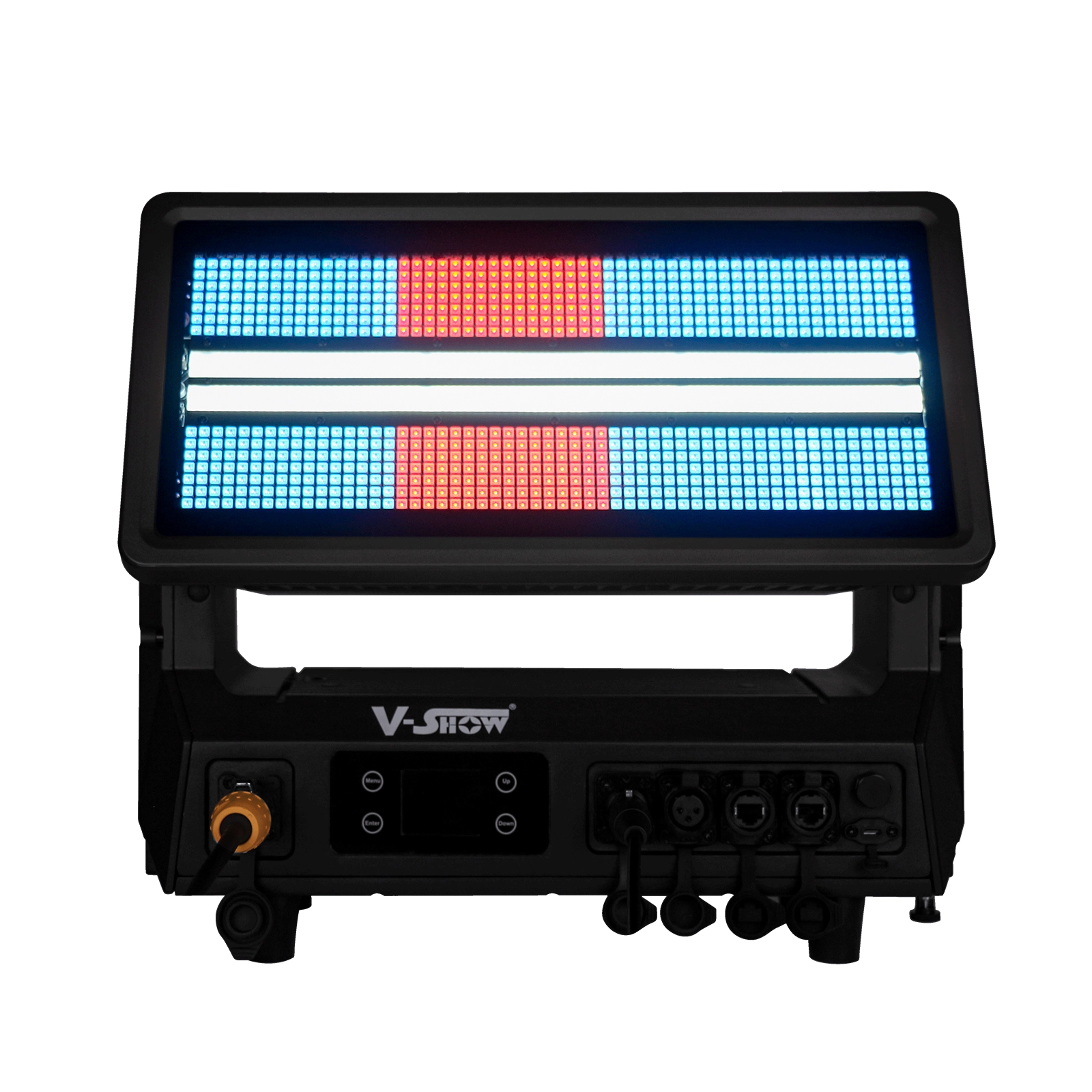

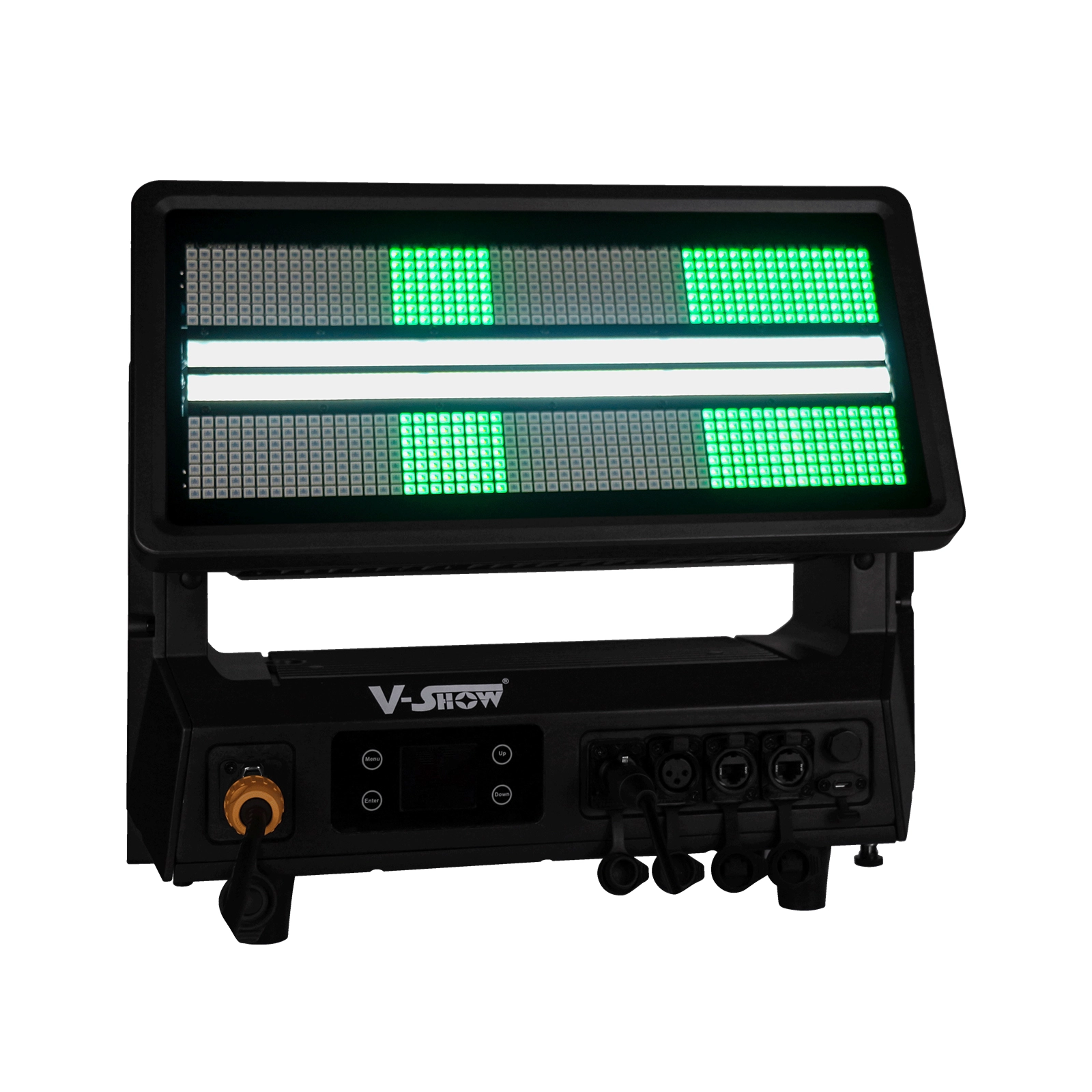

Pixel matrix

RGB is divided into 14 segments and controlled separately (each

segment contains 56 RGB LEDs)

CW is controlled separately in 28 segments (each segment contains 14 CW

LEDs)

LED lifespan

>20000 hours

DMX channel

8/11/24/30/47/74/97 channels

Operation mode

DMX512、 Auto,Sound control, master-slave/ RDM,

ART-NET,SACN

Dimmer

0-100% smooth linear dimming

Dimming curves

linear, square law, inverse square law, S-curve

Dimming speed

fast, Medium , slow , ultra slow

LED Dimming frequency

8K/12K/16K/20K/24K/32K

Support USB update and upgrade

Display

LCD display

 Signal input/output

3-pin OR 5-pin waterproof XLR sockets ,And

RJ45Ethernet

 Power socket

Waterproof power connector input

Protection level

IP65

 Size

406x202x335mm

 Net weight

11.5kg

Details & Features

Excellent color mixing effect

• Color temperature adjustable 2500-10000K
• Fan speed can be controlled on the console
vshow v12 outdoor waterproof moving head led strobe light ip65
vshow v12 outdoor waterproof moving head led strobe light ip65
vshow v12 outdoor waterproof moving head led strobe light ip65
vshow v12 outdoor waterproof moving head led strobe light ip65

Download

vshow v12 outdoor waterproof moving head led strobe light ip65

V12 USER MANUAL

vshow s710 800w image profile bswf 4 in 1 moving head stage lighting

V12 DWG

vshow s710 800w image profile bswf 4 in 1 moving head stage lighting

V12 MA

vshow s710 800w image profile bswf 4 in 1 moving head stage lighting

V12 D4
