Function description

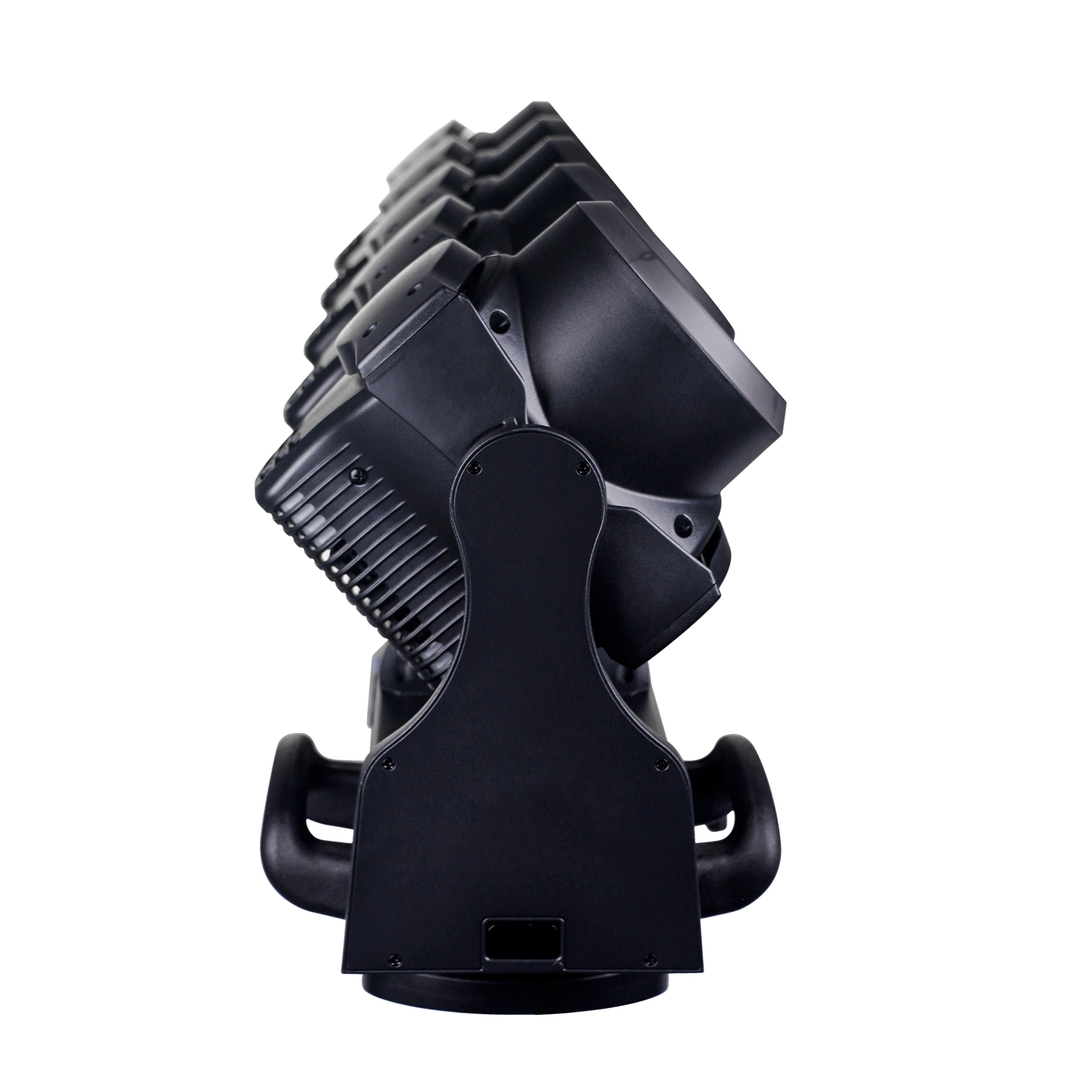

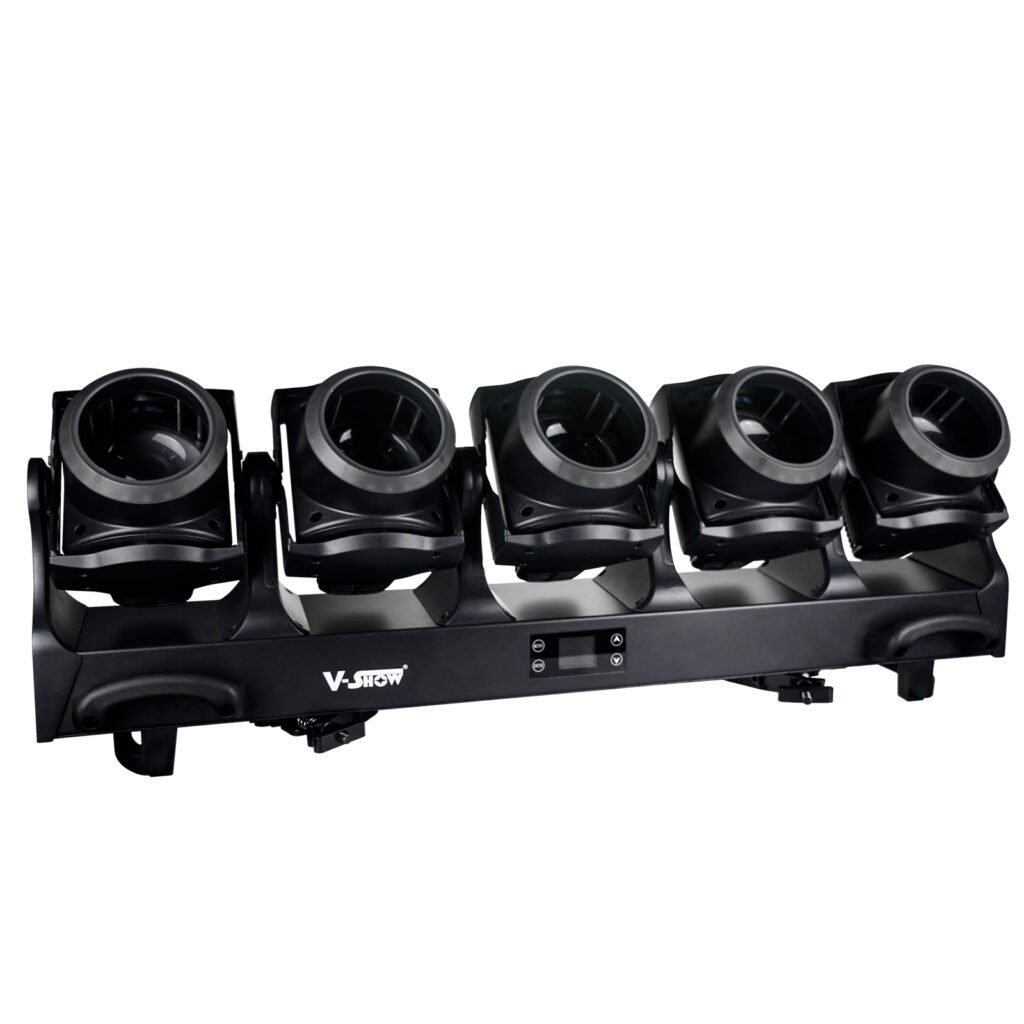

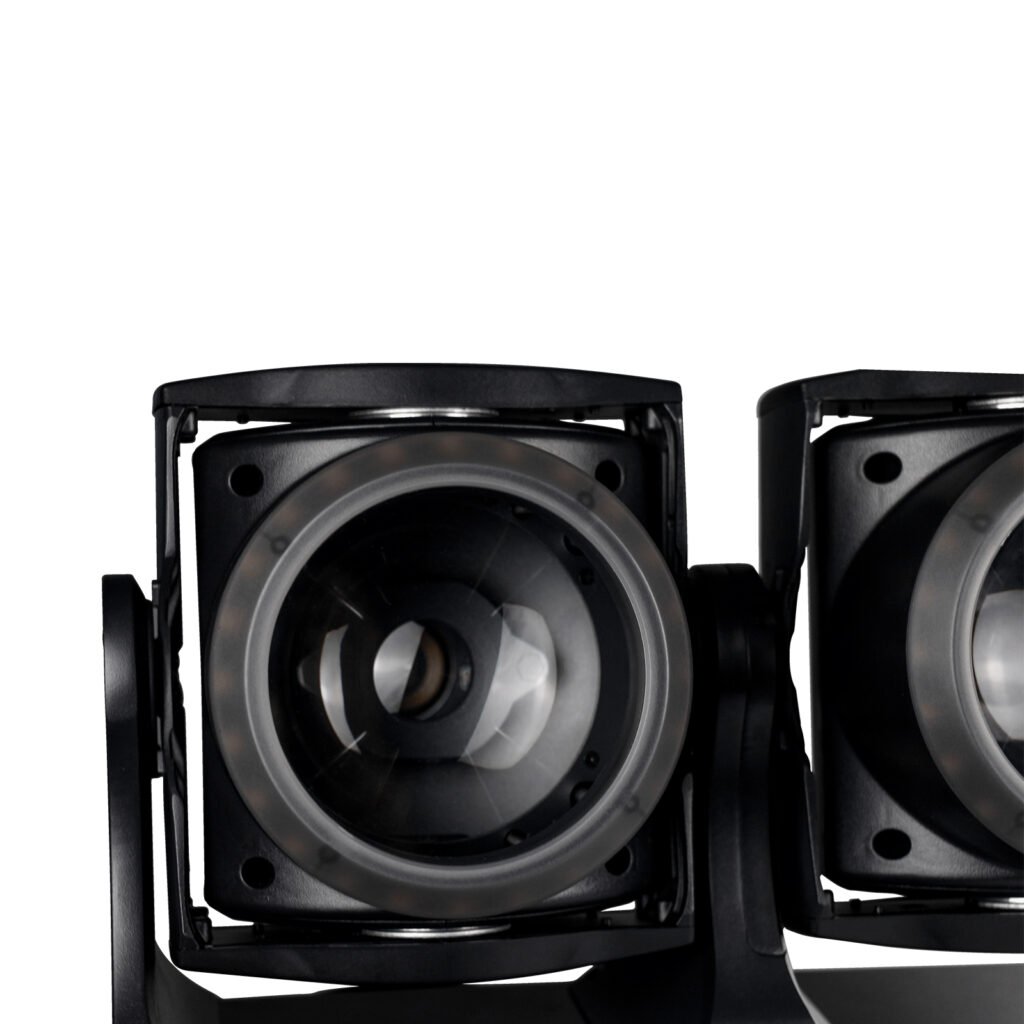

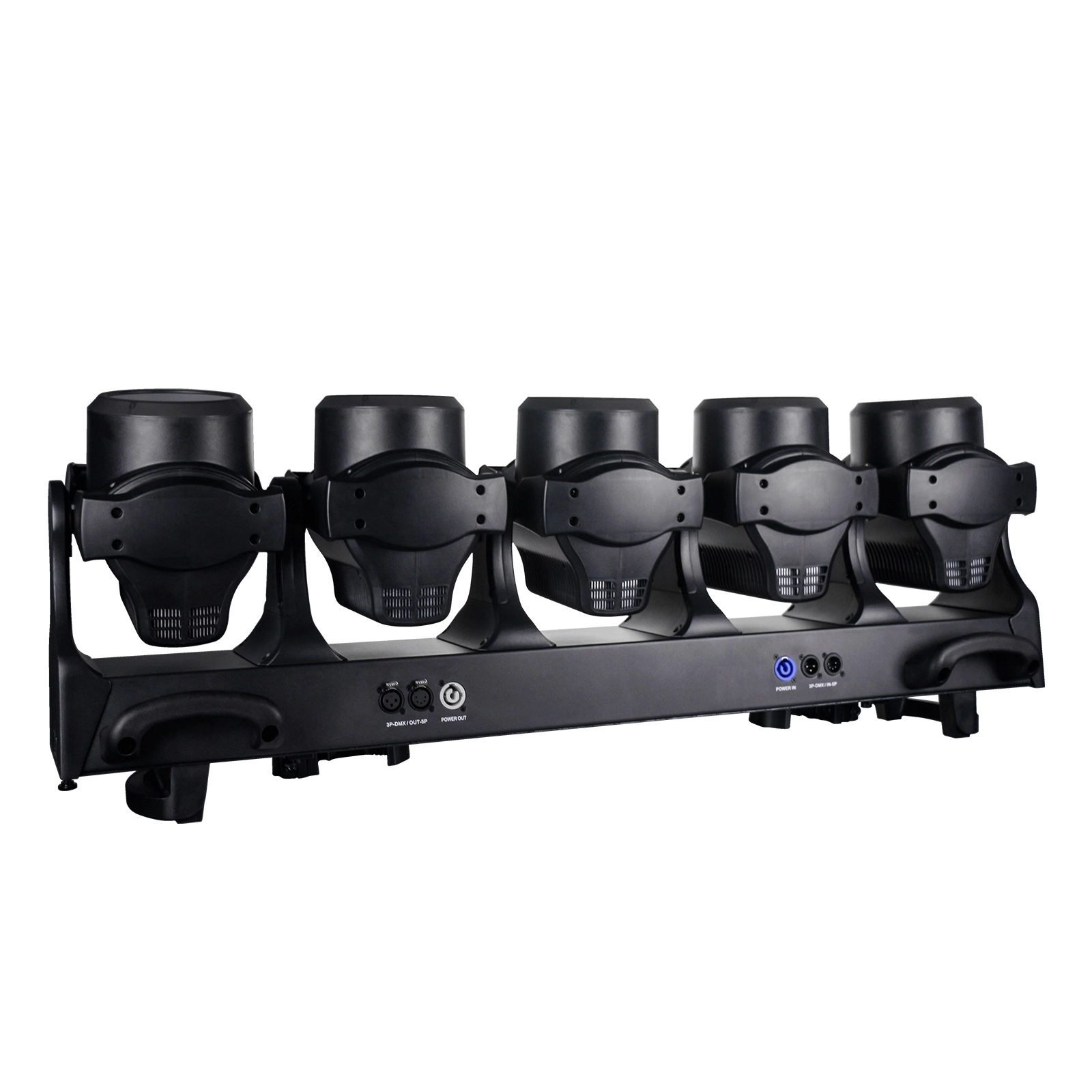

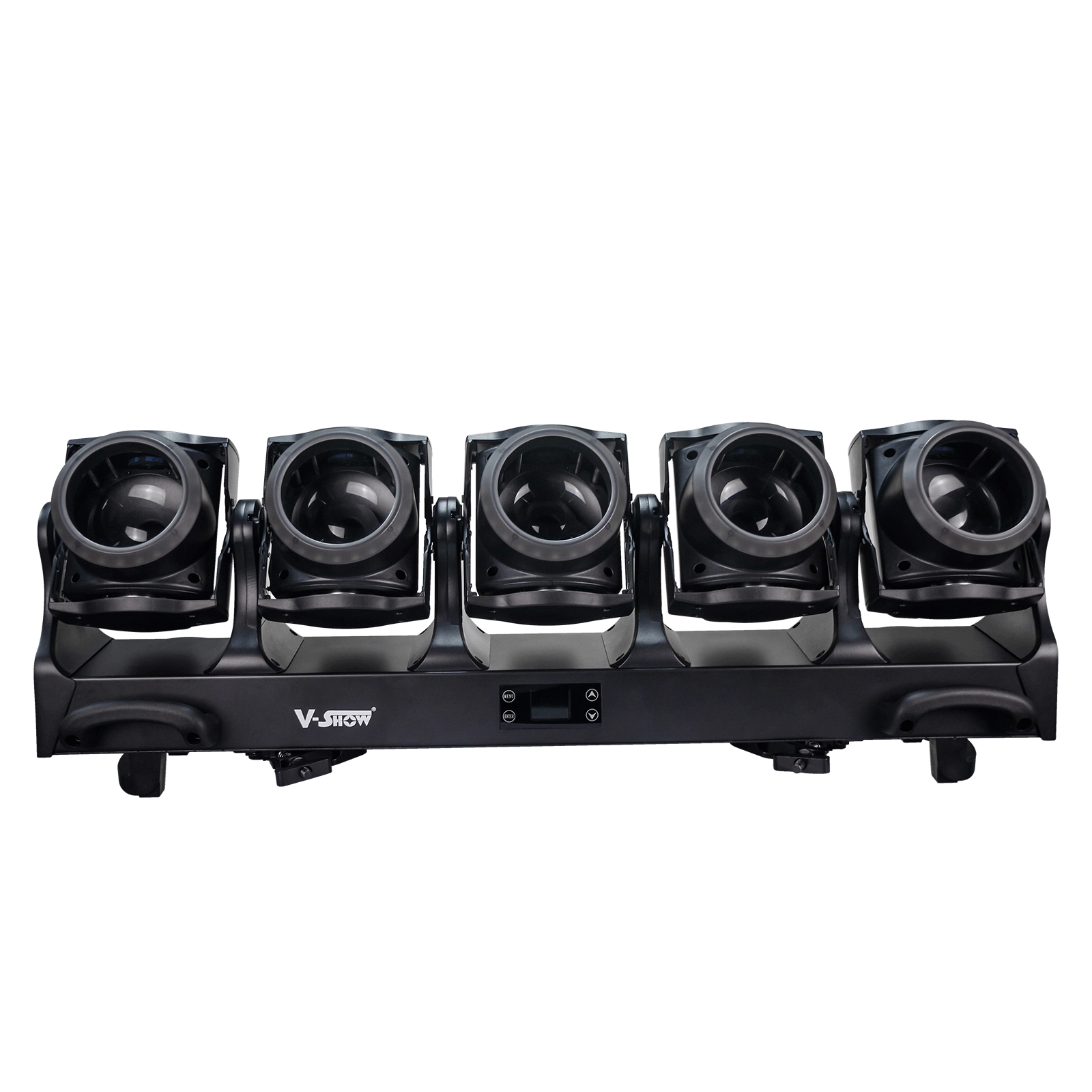

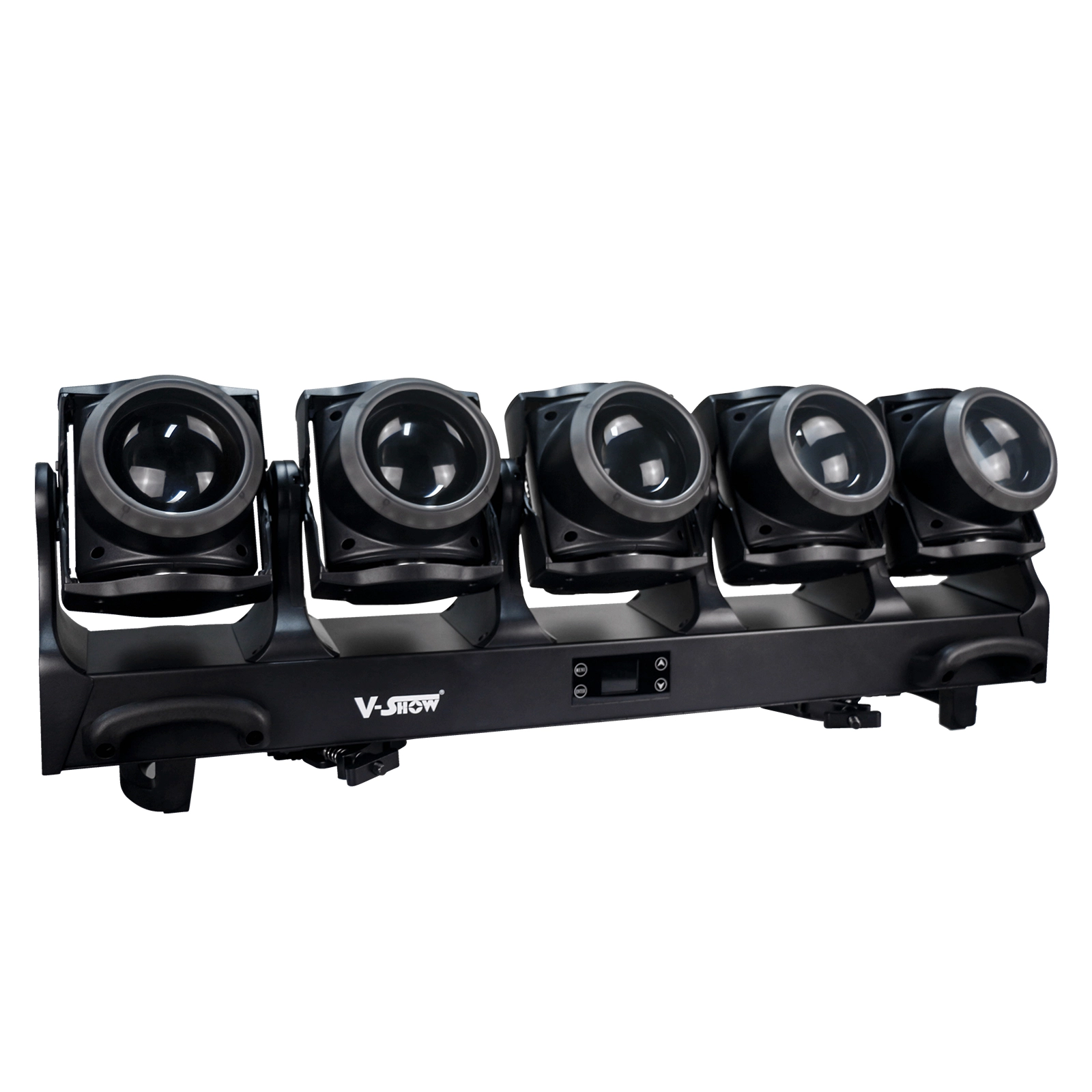

<p>The fixture is equipped with 5 120W RGBL LEDs as its main light source, supplemented by an outer ring of 120 0.5W RGB LEDs. The fixture is equipped with five independently controlled LED heads, which independently control the XY axis and focusing of each LED, providing unlimited possibilities for artistic creation on stage. Quick focusing produces a sharp and saturated beam effect in beam mode, and a uniform and soft dyeing effect in dyeing mode Excellent color mixing function and color macro effect, multiple speed strobe effects, rich dynamic built-in effects of auxiliary lighting, 0-100% smooth dimming, multiple dimming curves and refresh rates, can be quickly spliced horizontally, ensuring consistent and equidistant spacing for each.</p>
Parameters
Input Voltage | AC100-240V, 50 / 60Hz | Light Source | 5*120W RGBL | LIGHT SOURCE LIFESPAN | ＞20000 Hours |
Auxiliary light | 120X0.5W RGB LED | Zoom angle | 3-30° | Dimming MODE | 0-100%16bit linear dimming |
Total power | 840W | DMX Channels | 41/71CH | Power socket | power connector input/output |

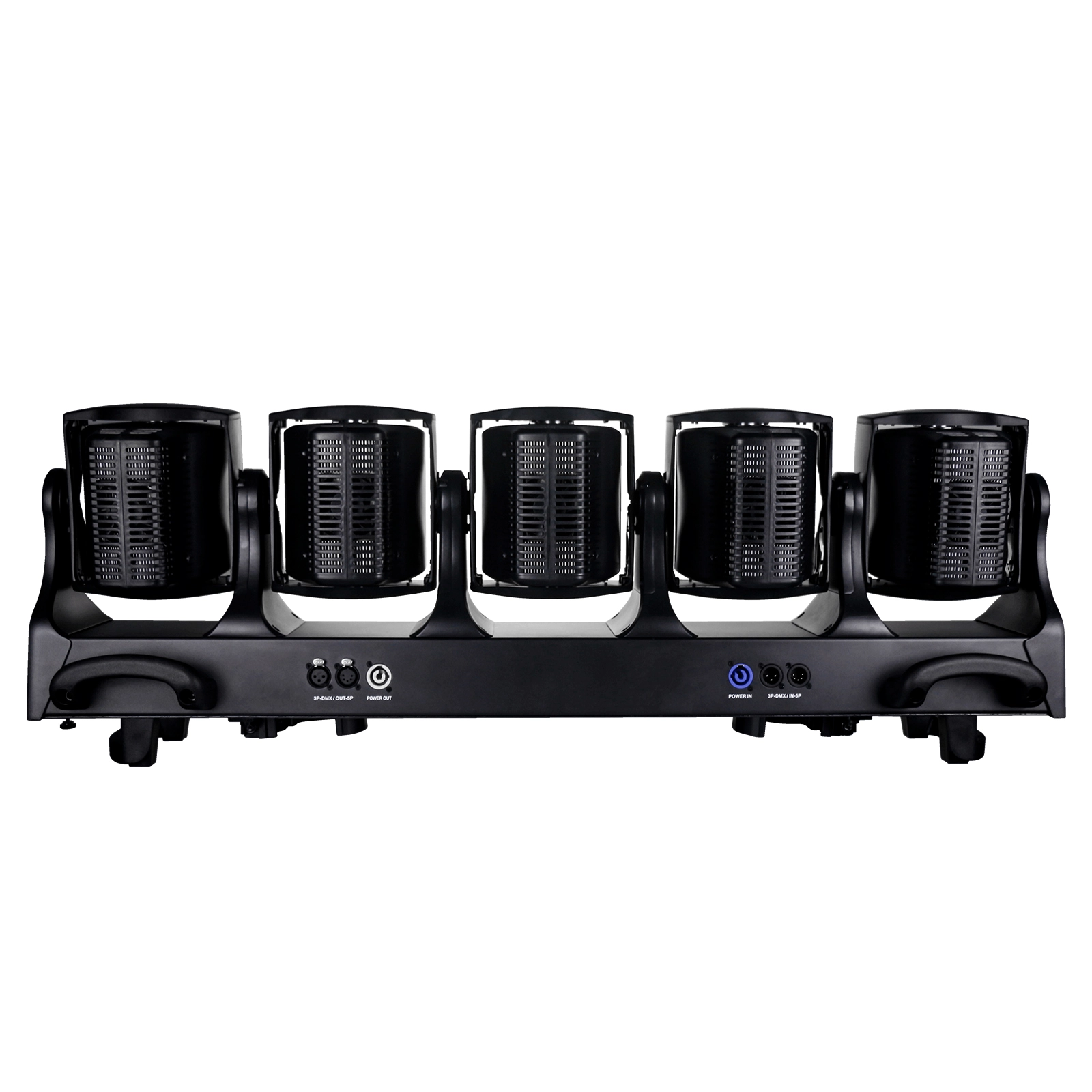

| Light size | 1002x196x334mm | NET WEIGHT | 27.5KG | Signal input/output | Three core or five core XLR head |
Details & Features

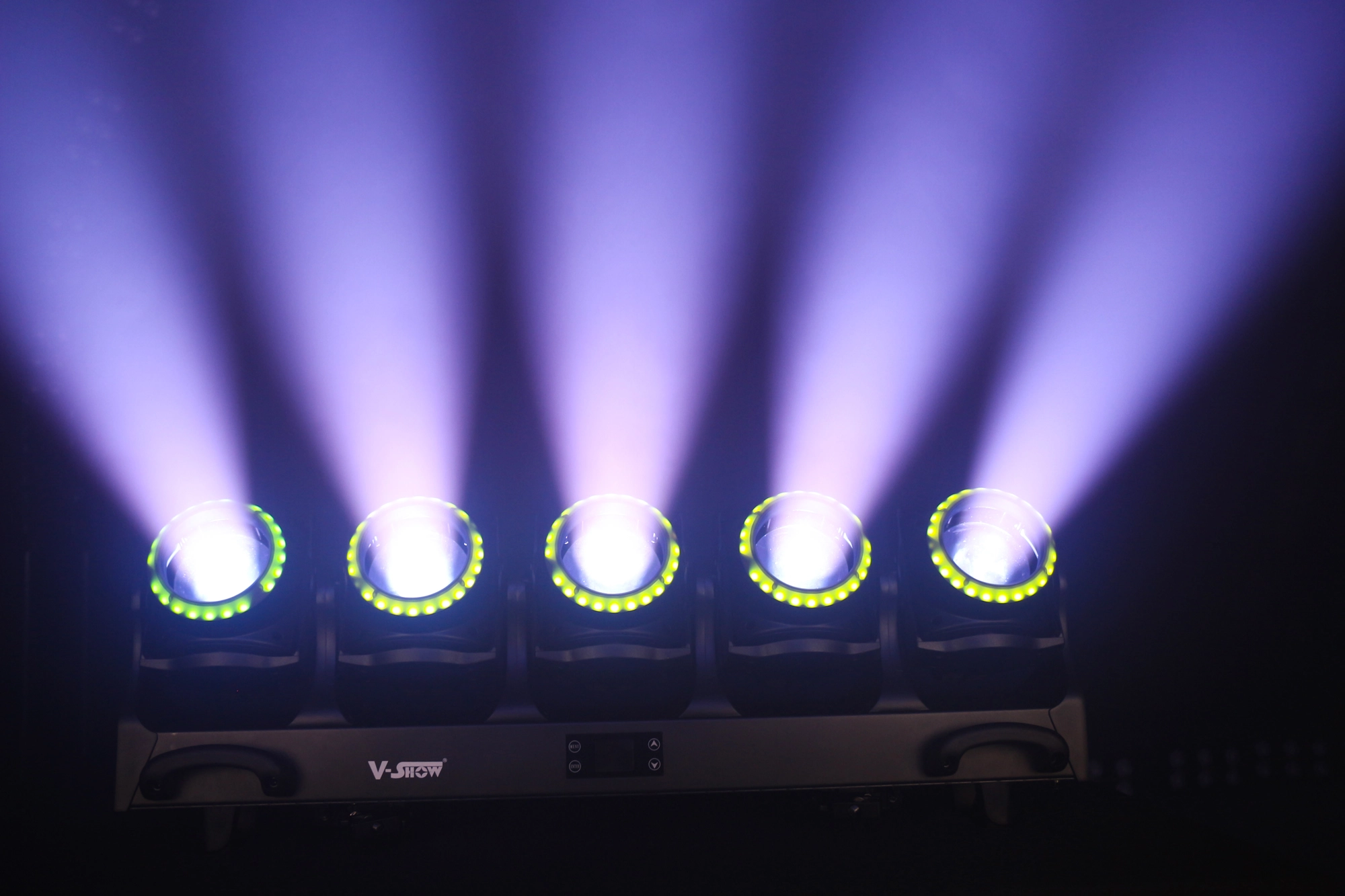

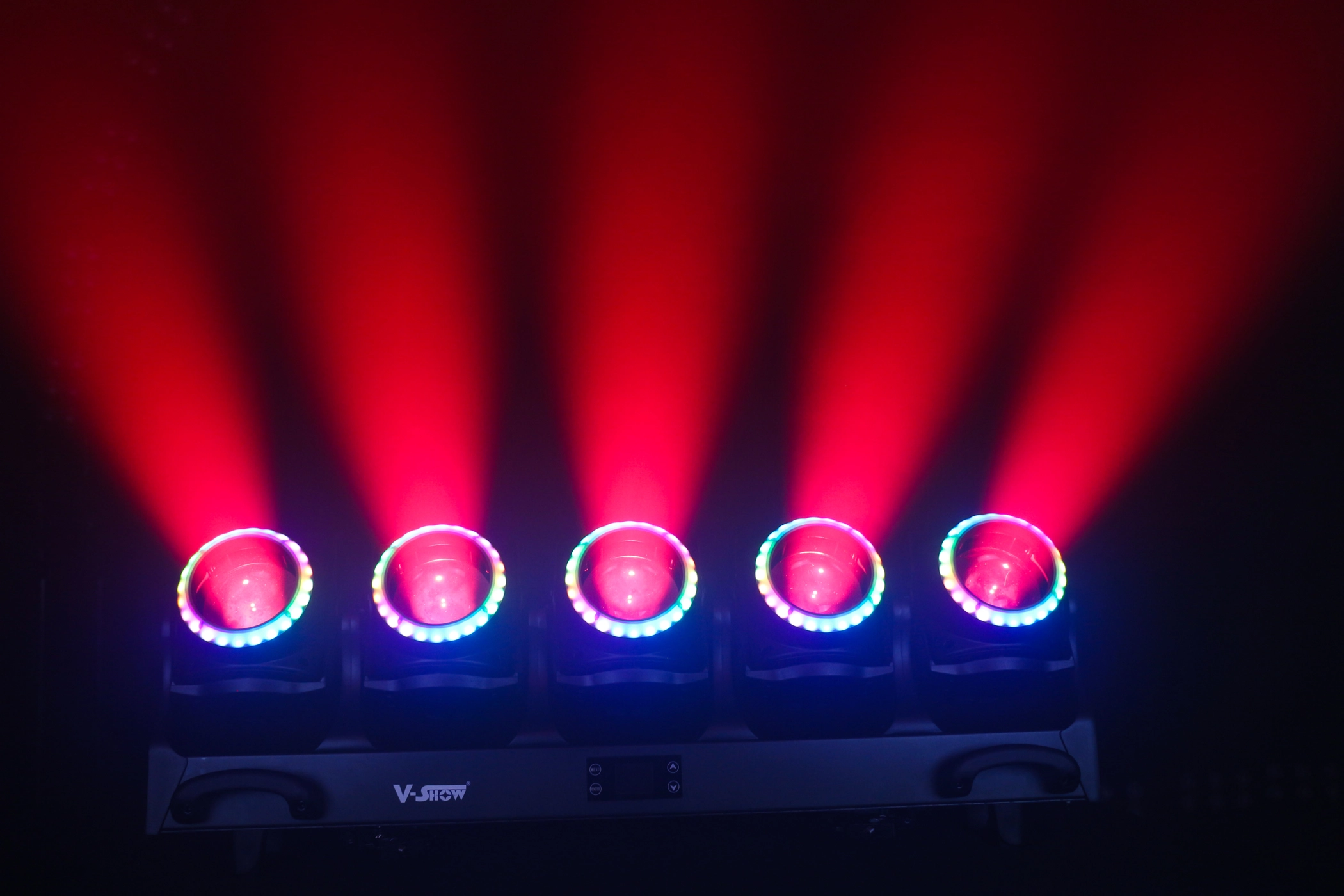

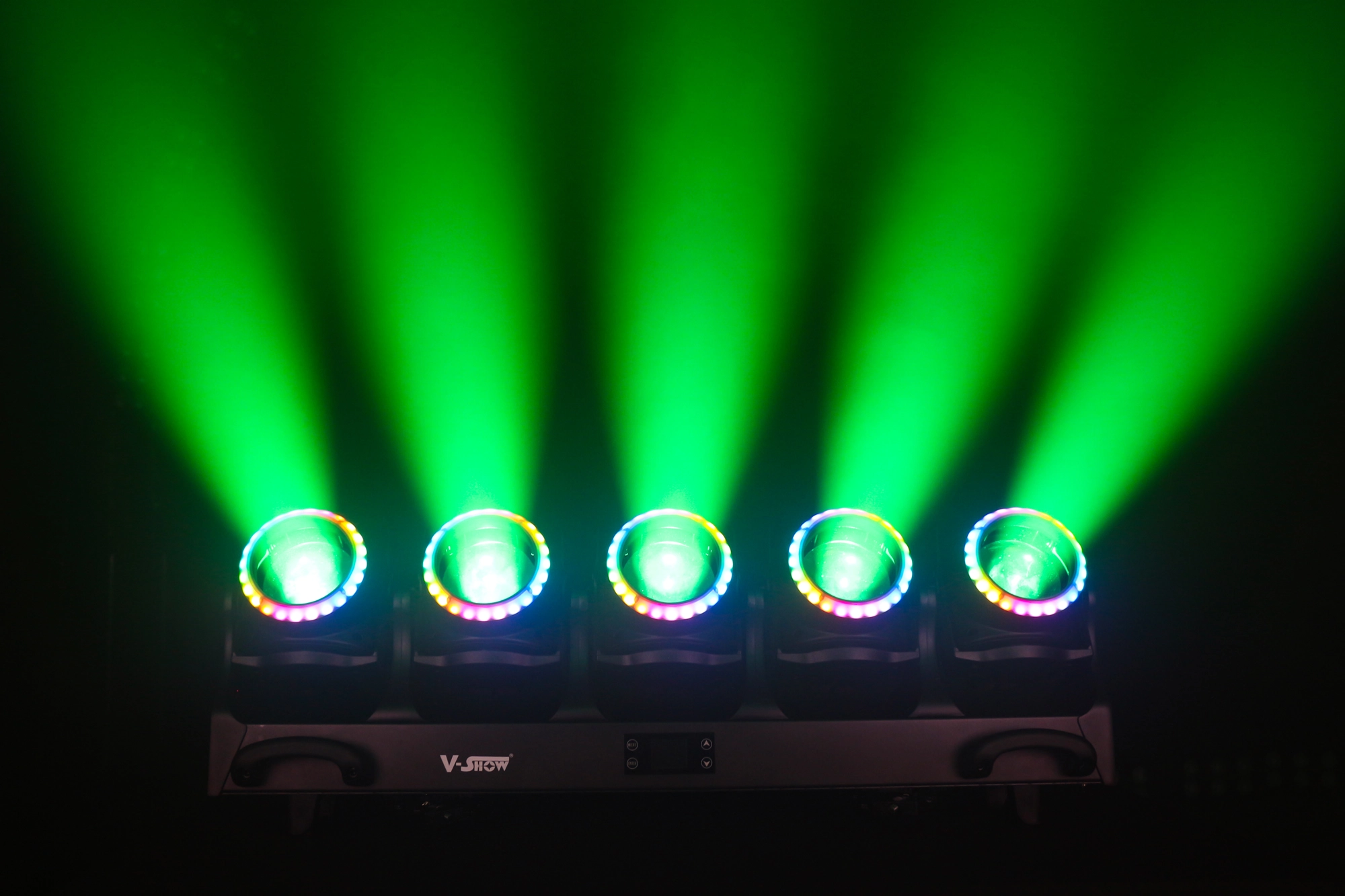

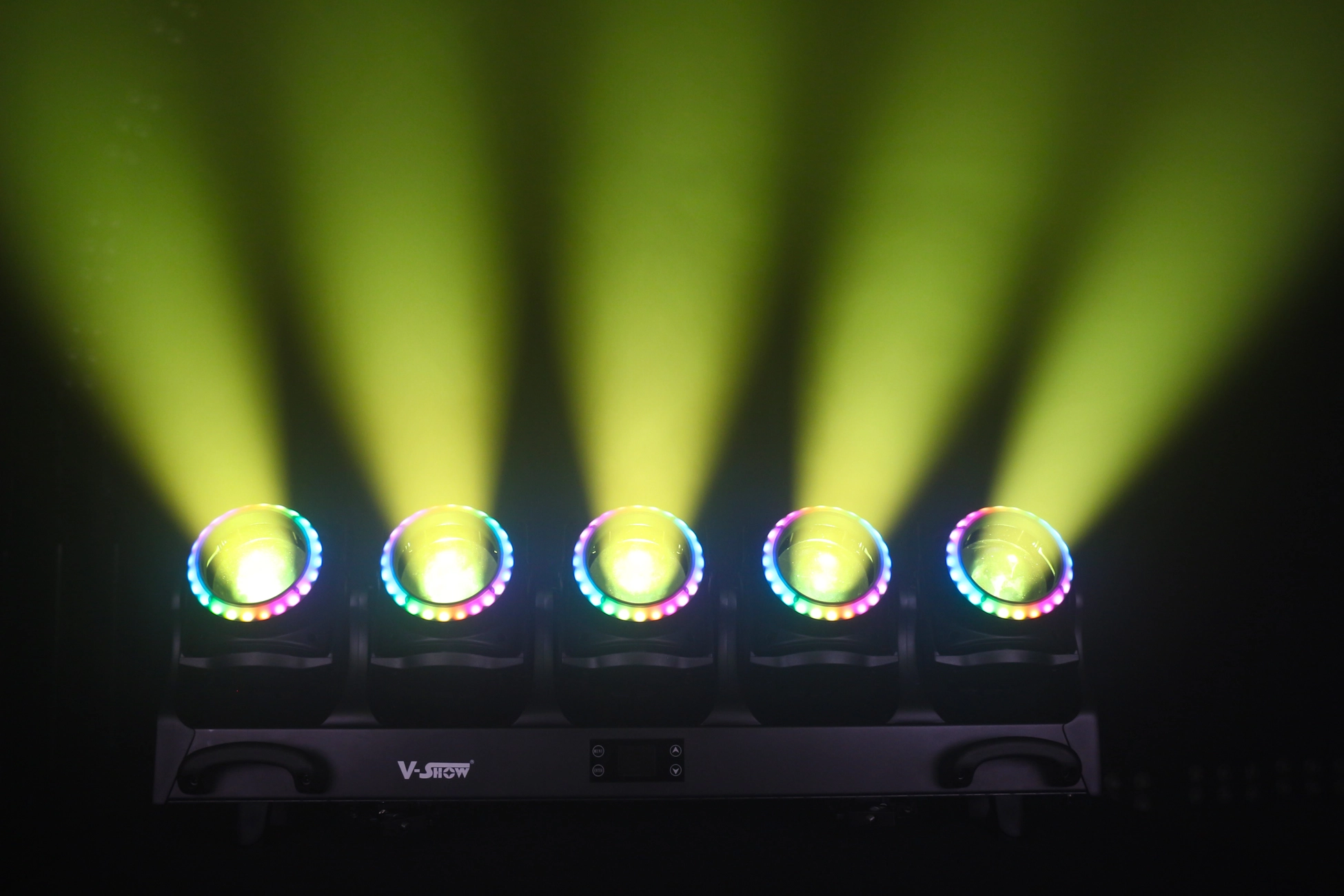

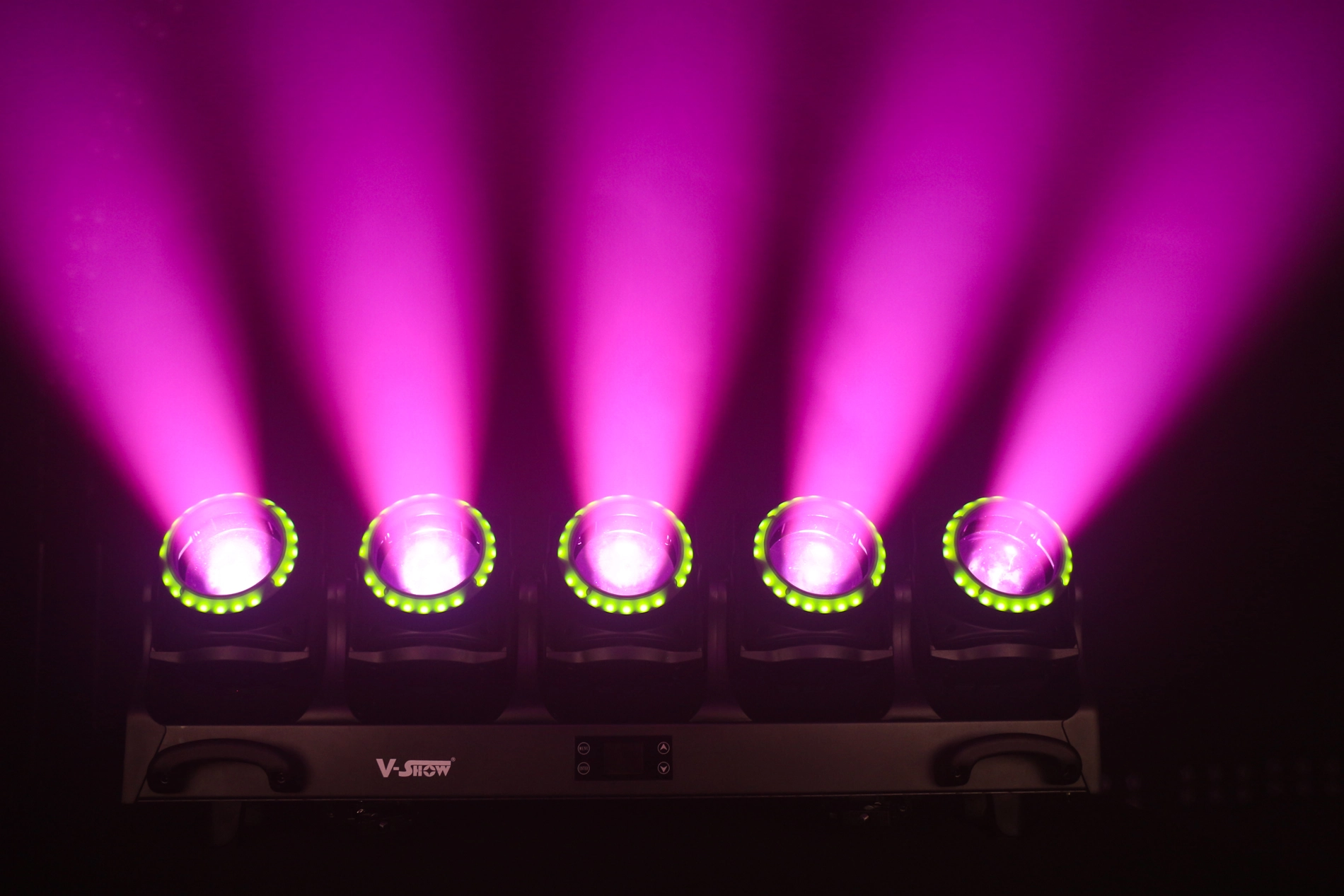

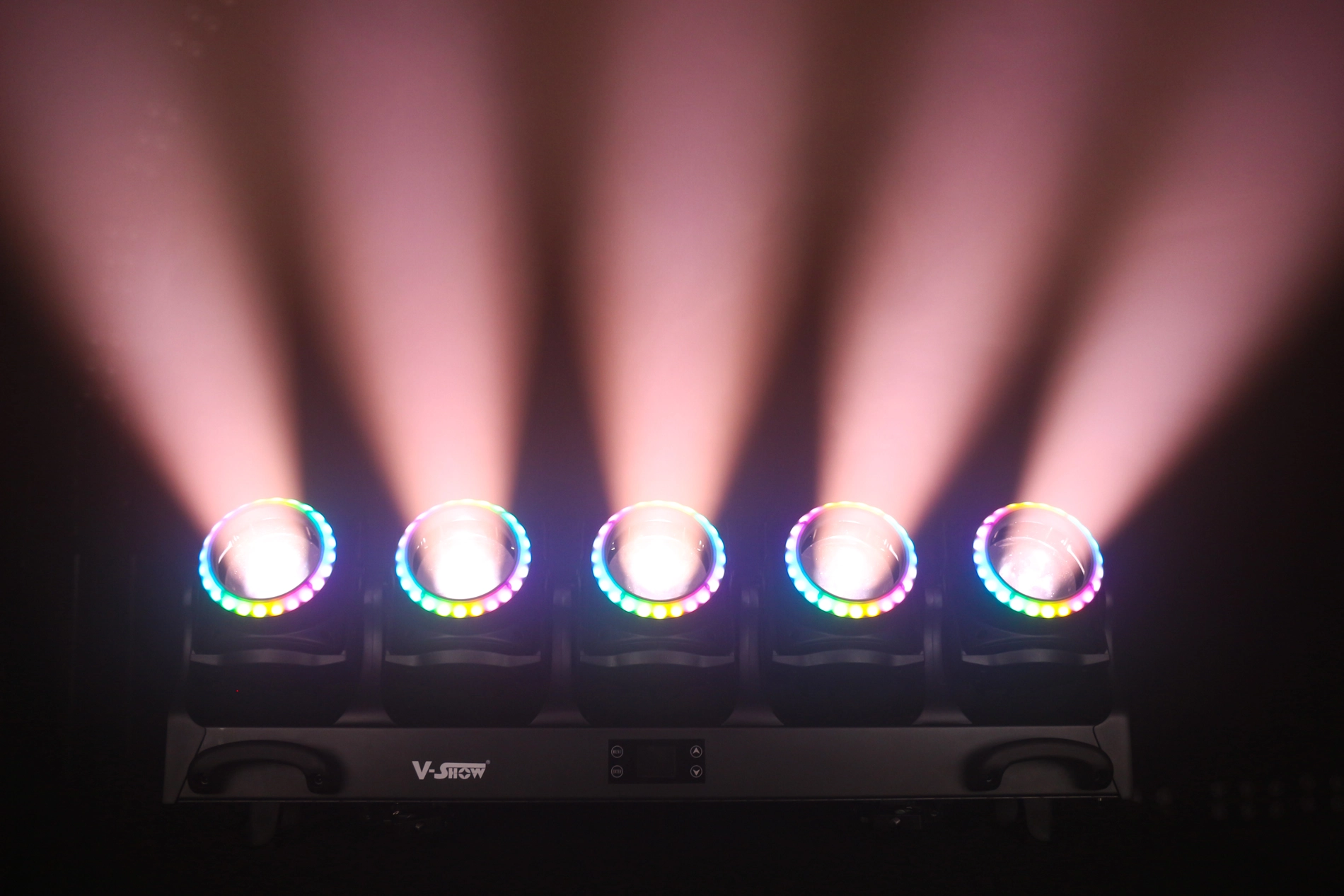

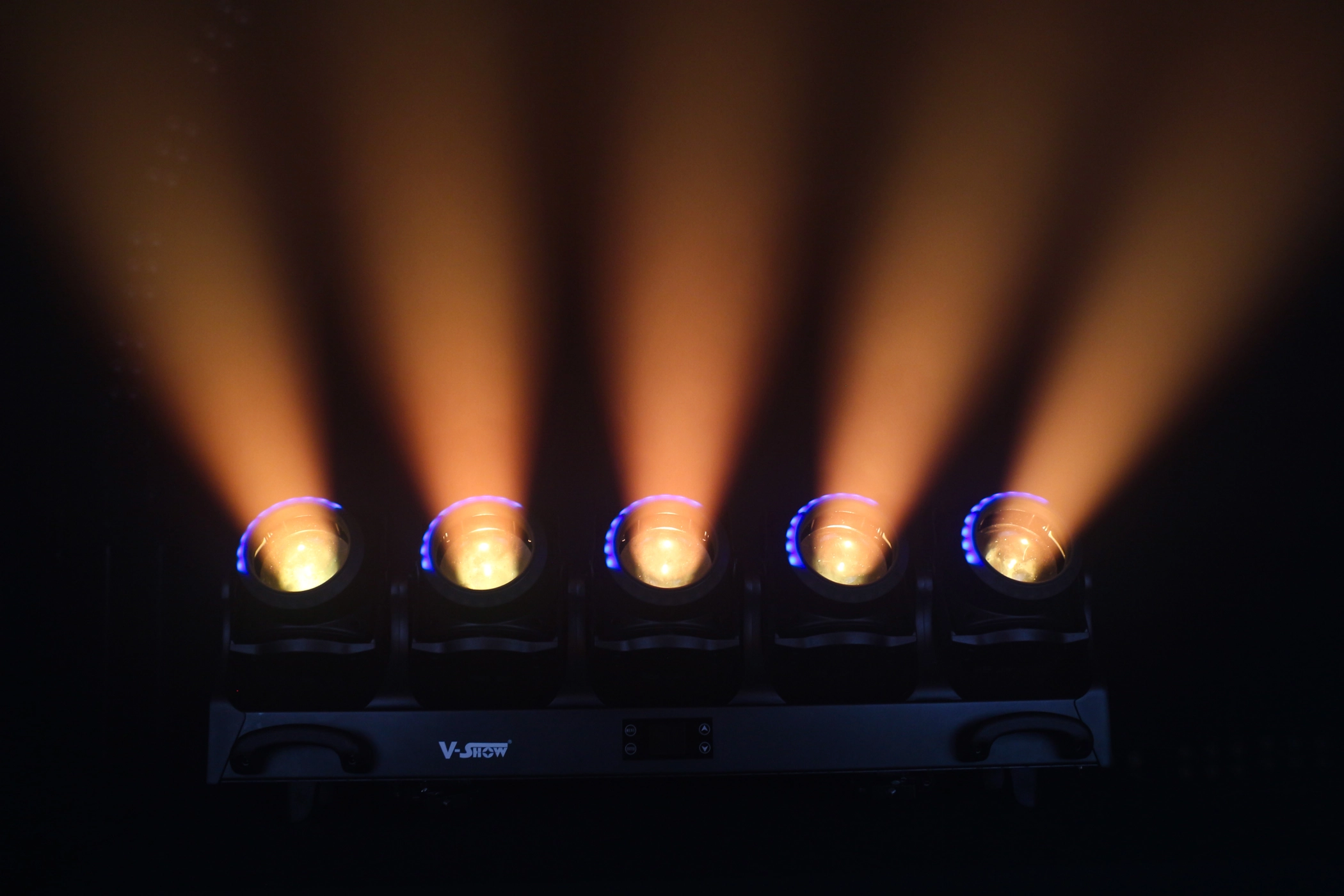

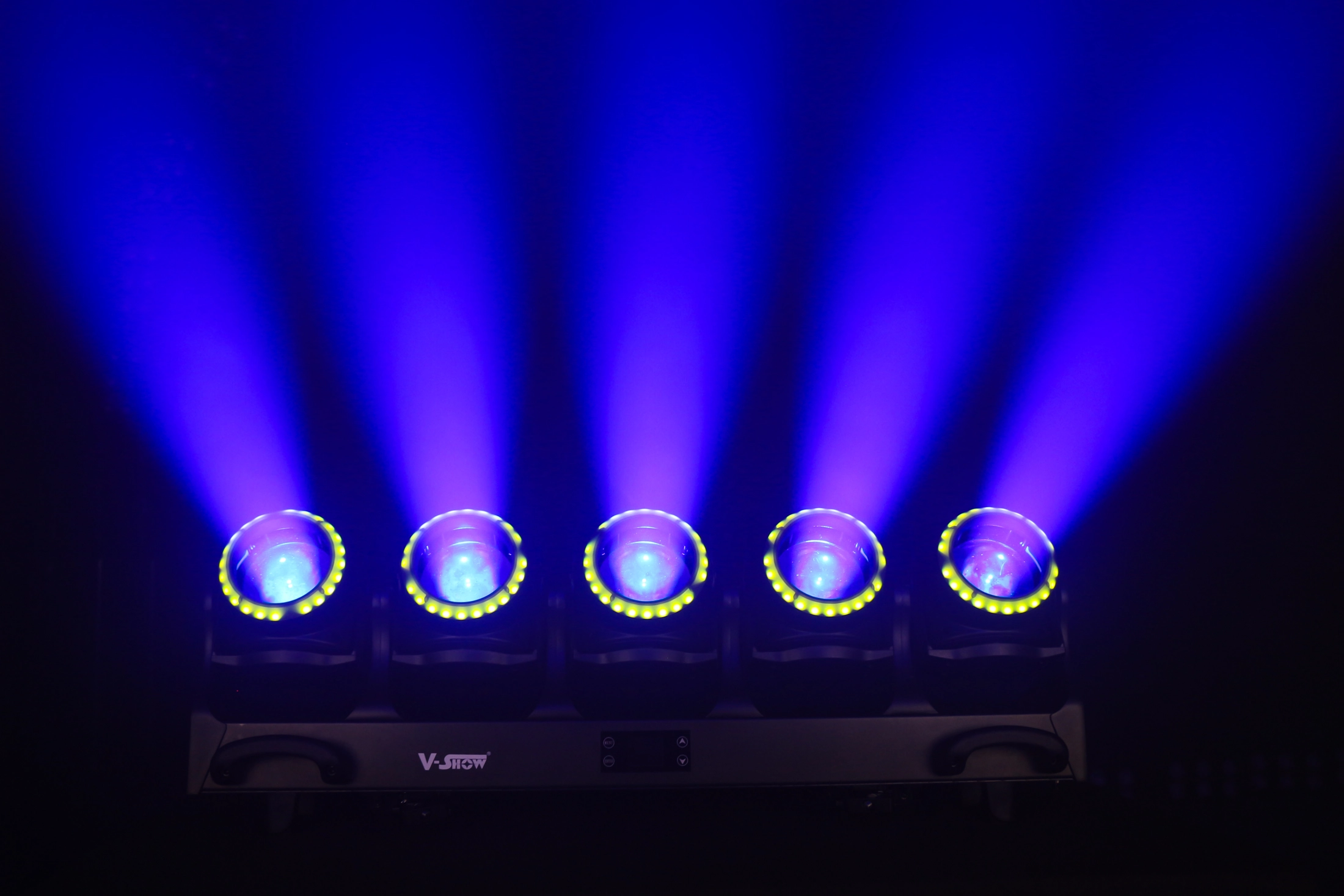

Excellent color mixing effect
• 10 main lights can be controlled by a single point
• Auxiliary light CW/WW/RGB is independently controlled by 24 segments
• Full and sharp beam with rich built-in effects
