Function description

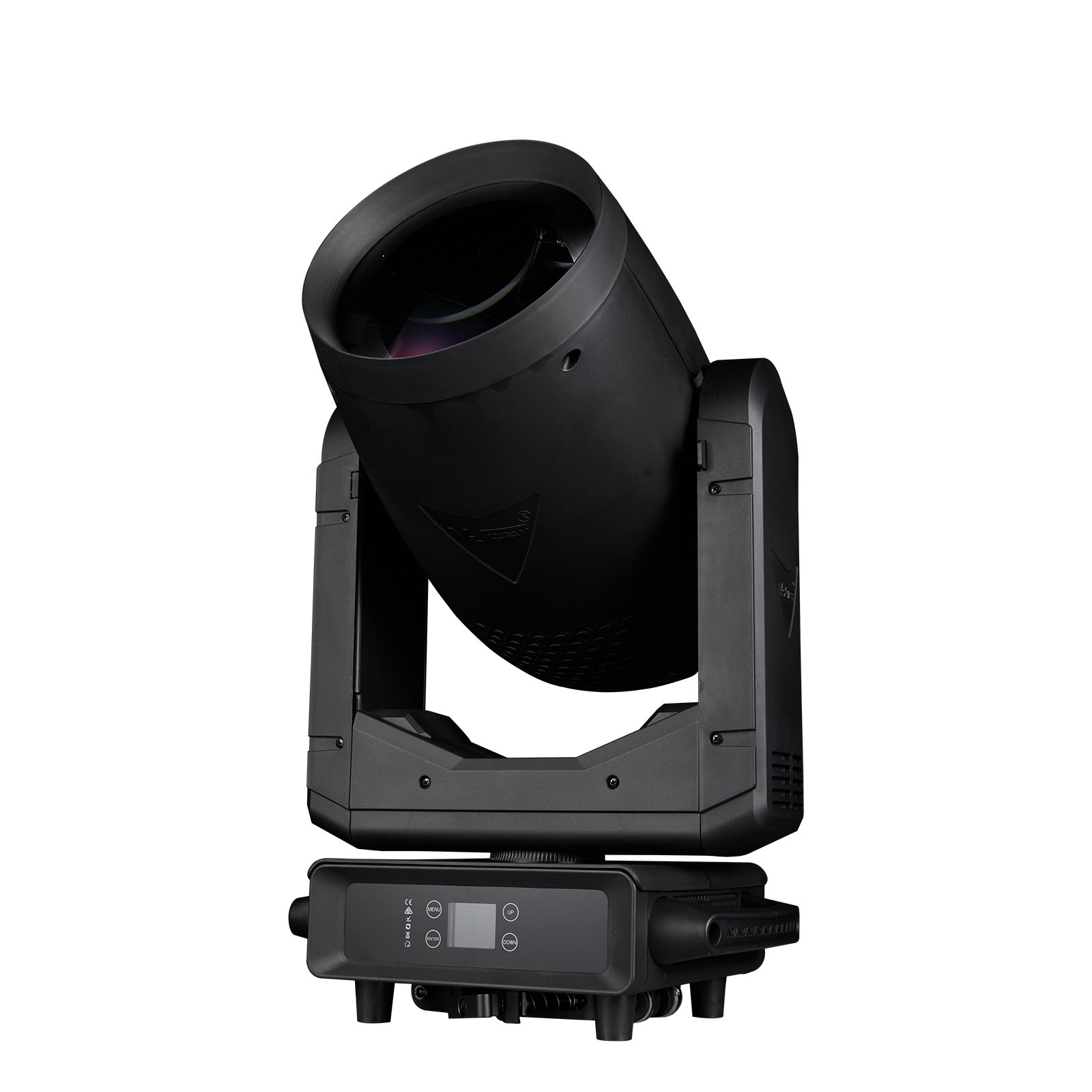

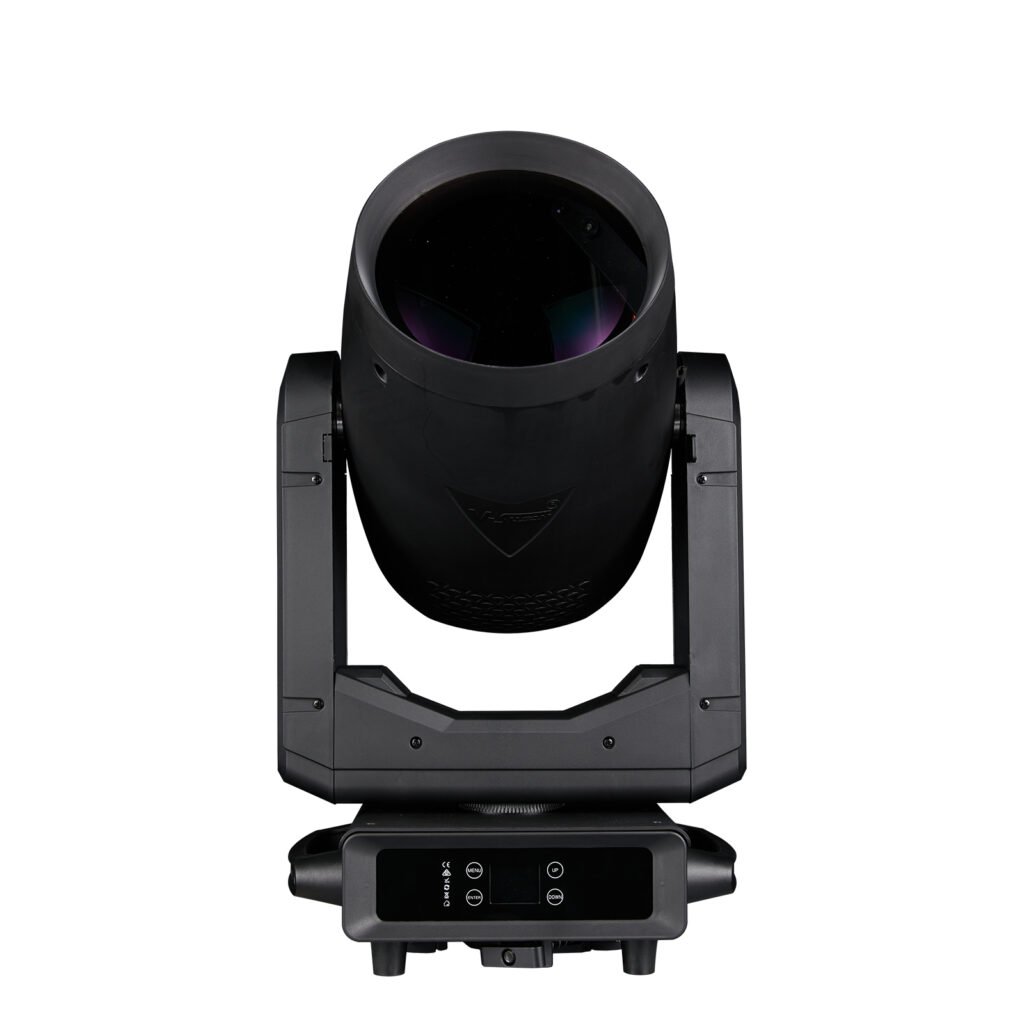

<p>The T913 utilizes a 420W bulb from Japan’s Niushi, with a light-emitting lens diameter of 200mm, delivering a high-intensity beam through high-precision optical components. It allows for the independent switching of atomization and uniformization effects.</p>
<p> </p>
<p>With a perfect fusion of light source and optical technology, the T913 stands as a high-performance luminaire with a beam angle as narrow as 1.4°, creating sharp beams. It offers 13 colors + 4 colored glass filters, producing dazzling rainbow effects. The fixture features 8-facet prism, 16-facet prism, 48-facet prism, and a 6-sided linear prism, offering 8 different combinations. With 18 patterns + white circle, it provides various display options for patterns. The combination of prisms and patterns allows for the overlay of multiple built-in dynamic effects, showcasing a stunning visual impact that goes beyond the sum of its parts. The fixture can stack hundreds of custom effects, embodying its “creative warrior” characteristics, providing ample material for lighting designers.</p>
<p> </p>
<p>The T913 integrates beam, rich colors, patterns, and prism effects, making it highly suitable for large-scale performances, commercial events, music festivals, and exhibitions. It creates a vibrant and dynamic stage, serving as another professional choice for lighting designers!</p>
<p> </p>
<p>With a perfect fusion of light source and optical technology, the T913 stands as a high-performance luminaire with a beam angle as narrow as 1.4°, creating sharp beams. It offers 13 colors + 4 colored glass filters, producing dazzling rainbow effects. The fixture features 8-facet prism, 16-facet prism, 48-facet prism, and a 6-sided linear prism, offering 8 different combinations. With 18 patterns + white circle, it provides various display options for patterns. The combination of prisms and patterns allows for the overlay of multiple built-in dynamic effects, showcasing a stunning visual impact that goes beyond the sum of its parts. The fixture can stack hundreds of custom effects, embodying its “creative warrior” characteristics, providing ample material for lighting designers.</p>
<p> </p>
<p>The T913 integrates beam, rich colors, patterns, and prism effects, making it highly suitable for large-scale performances, commercial events, music festivals, and exhibitions. It creates a vibrant and dynamic stage, serving as another professional choice for lighting designers!</p>
Parameters
|
Input Voltage |
100-240V, 50/60Hz |
Light source |
USHIO NSL420S (4000 hours) |
Power consumption |
560 W |
|
Power supply |
600W |
Fixture size | 424.2×282.2×733.3mm |
Light source |
USHIO NSL420S (4000 hours) |
|
Color temperature |
7600K |
Diamter of optic lens |
200mm |
Beam angle |
1.2° |
|
Color wheel |
1 color wheel, 13 fixed colors+4 color effects+white, two-way rainbow effect |
Static gobo |
18 gobos plus 1 white circle |
Prisms |
equipped with 8 prisms, 6 rows of prisms, 16 prisms, 48 prisms, and achieving 8 combination effects |
|
Control panel |
LCD Touch screen |

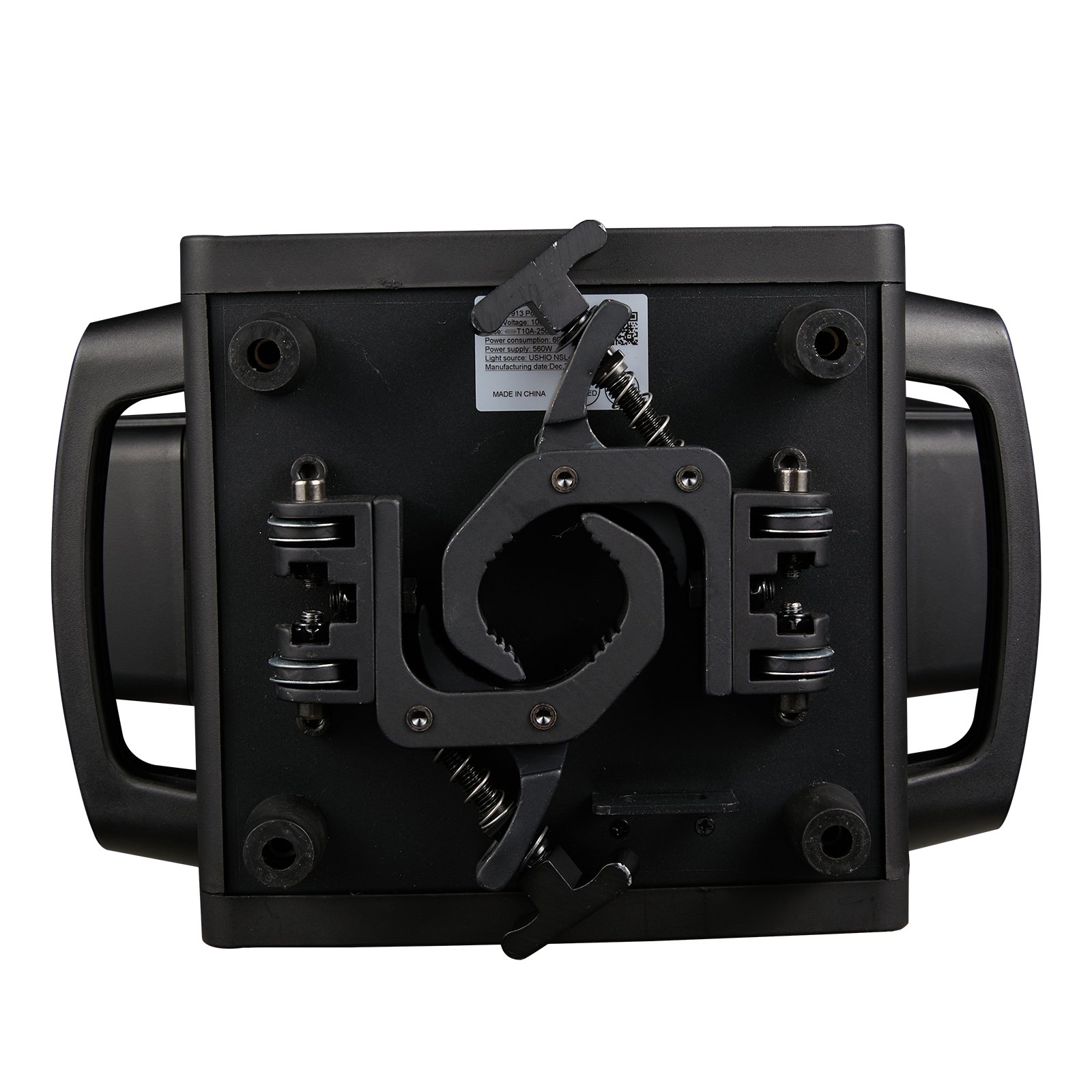

Installation |
2x fast lock folding clamp |
DMX Channel |
16/21CH |
|
Operate mode |
DMX512, Auto, master/slave, RDM |
 |  |
 |
 |
Details&Features
Excellent color mixing effect
