Buyer Protection: Function description

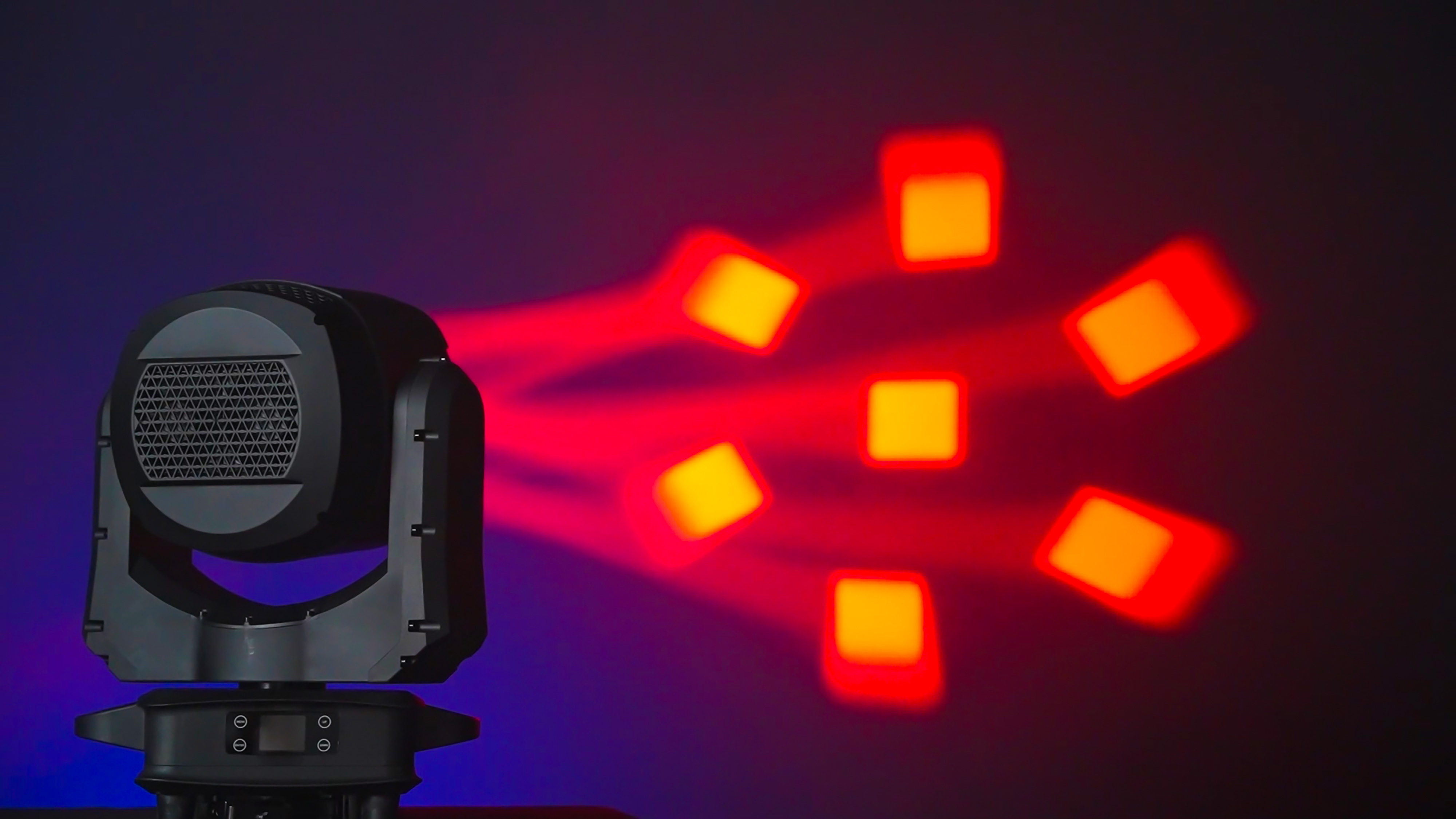

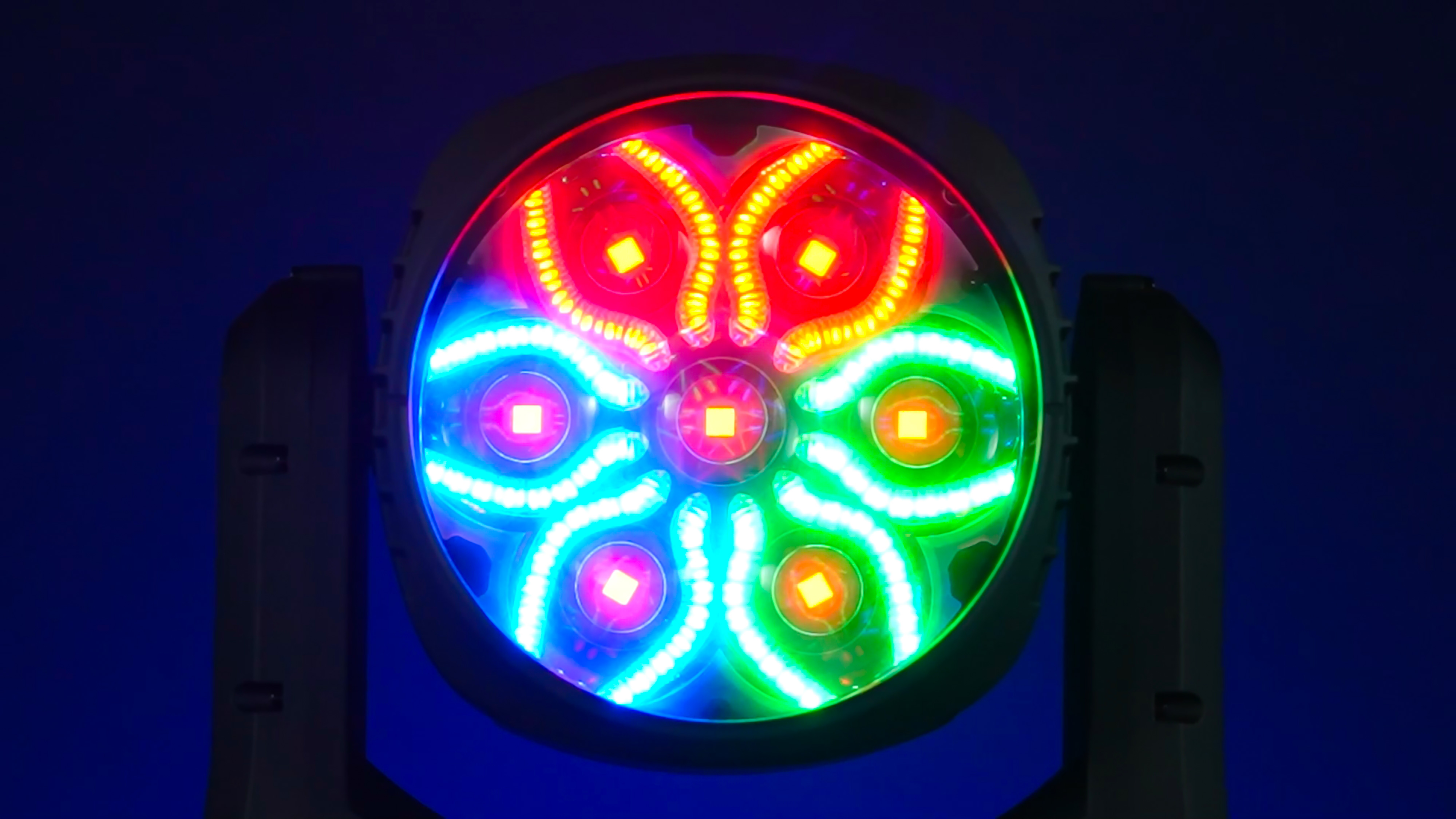

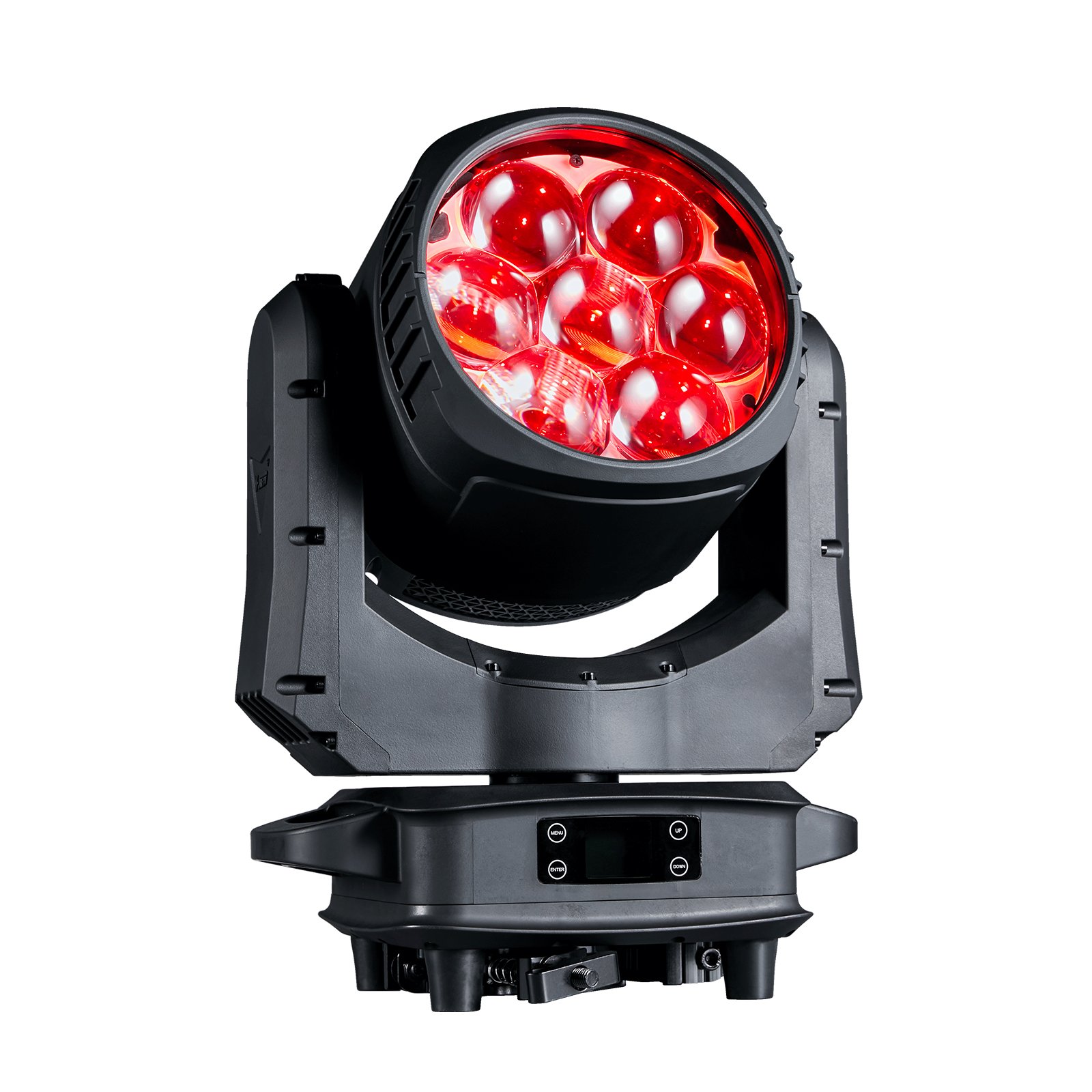

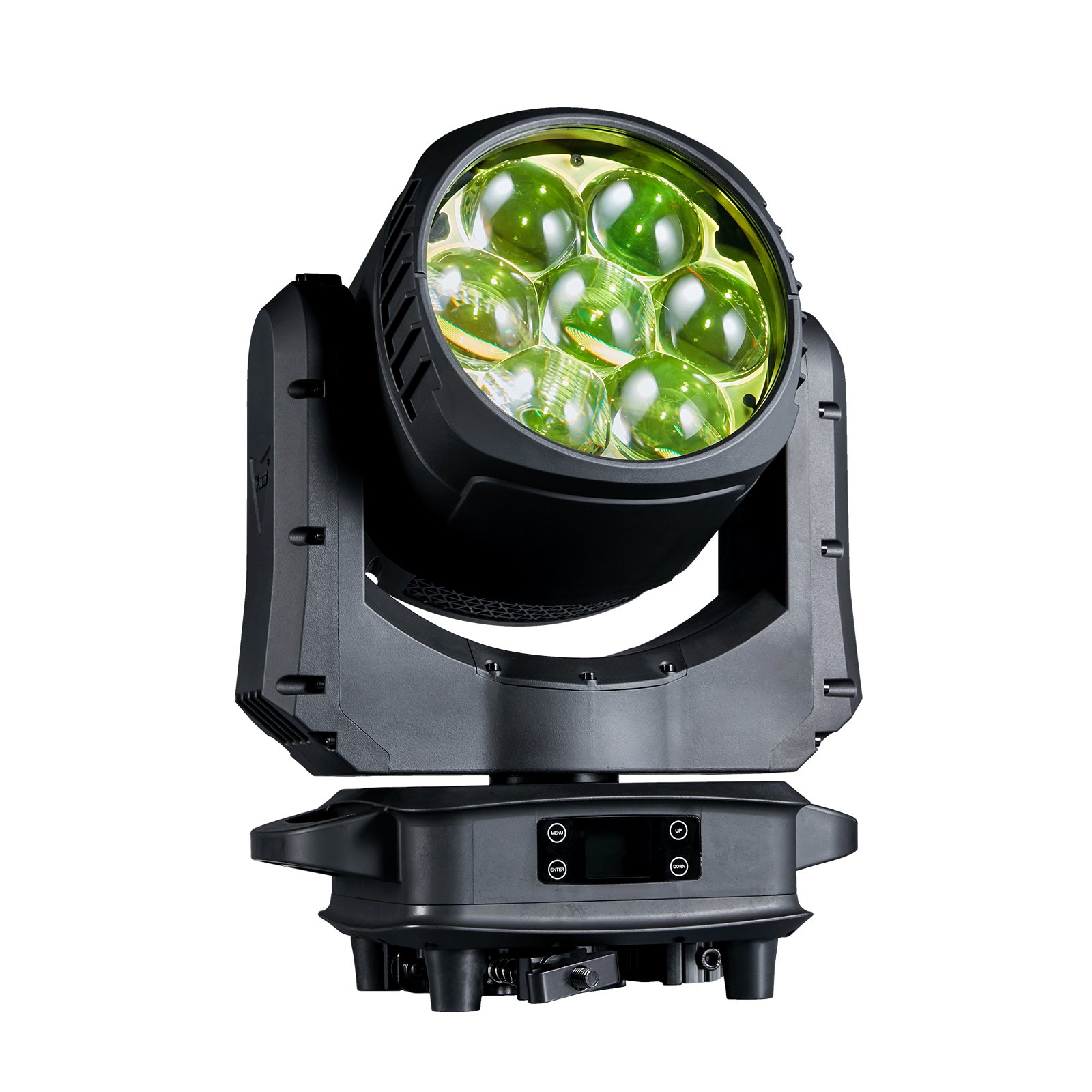

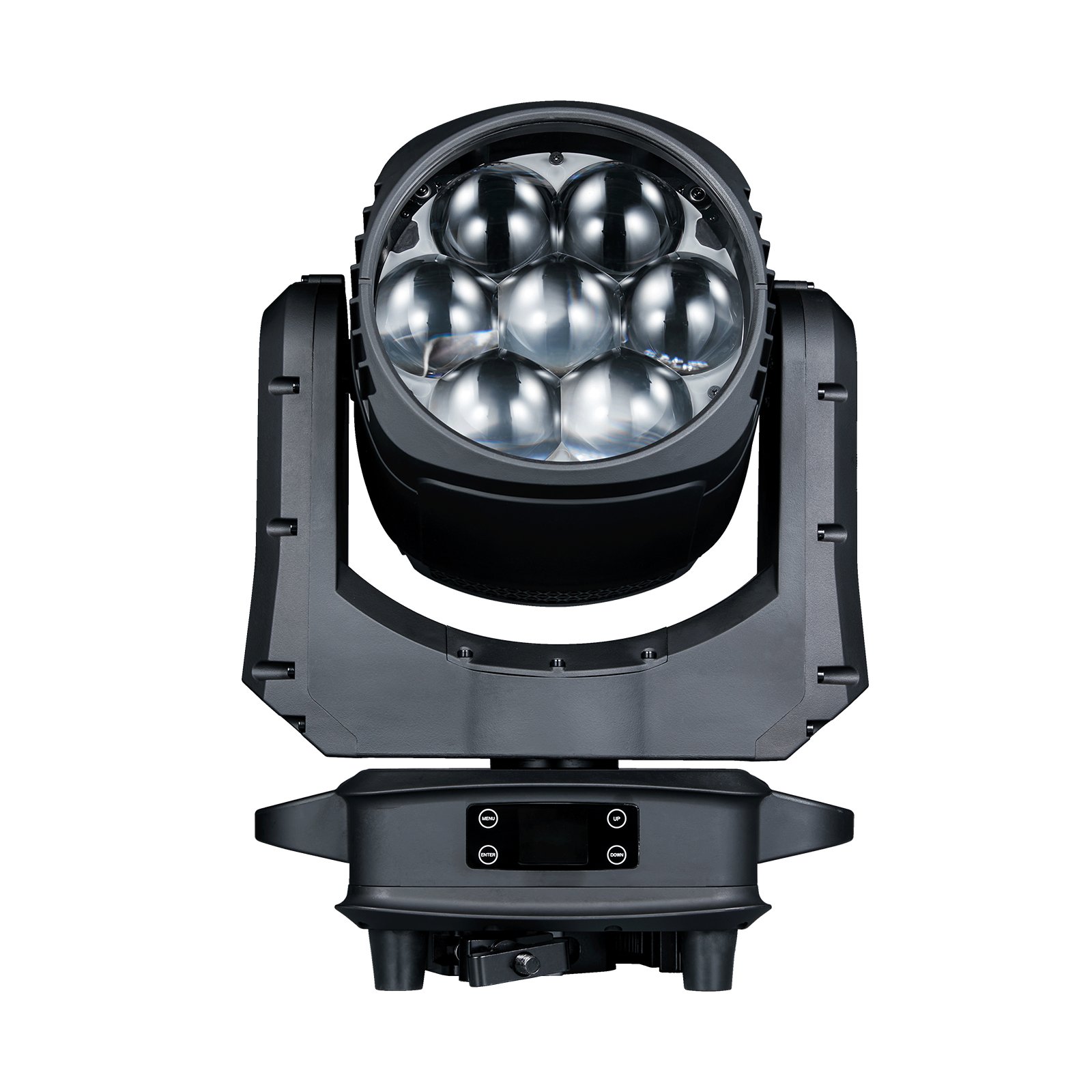

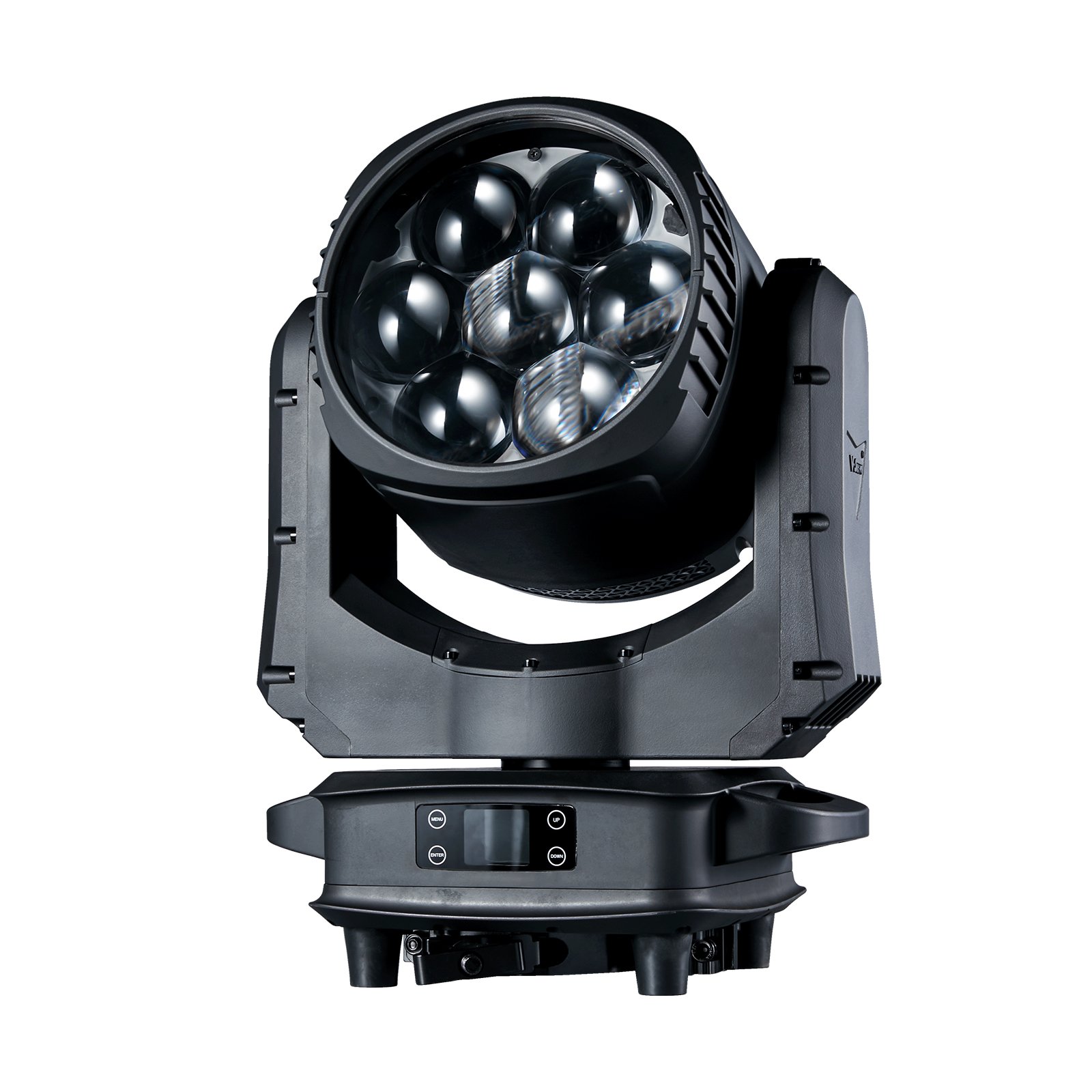

The fixture is composed of 7 60W RGBW four-color LED as the light source, with excellent color macro effects, making it easy to create powerful beams. Multiple channel modes are available and the LED can be controlled point by point, allowing for flexible color switching. A linear focusing system with a zoom angle of 4 ° – 60 °,Forward and reverse wireless rotation bee eye effect multiple speed strobe effects, and smooth dimming function from 0 to 100%. Adjustable refresh rate from 1K-64KHz，The backlight is composed of 180 0.2W 3535RGB LEDs, which can create a variety of dynamic lighting effects. The LED can be controlled point by point or divided into 12 stages, fully adapting to different stage application needs..Not only is it compact and lightweight,but it’s X and Y axis also operate with exceptional smoothness and minimal noise
Parameters
Input Voltage | 100-240V, 50/60Hz | Power consumption | 520W | Power supply | 600W |
Main light source | 7PCSx60W RGBW 4IN 1 Auxiliary light 180PCSX0.2W 3535RGB 3IN1 | Color System | Excellent Color Macro Effects Powerful color mixing effect Rich dynamic color effects | Pixel matrix | Main light 7 psc controlled separately Auxiliary light 12 segment independent control
|
LED lifespan | >20000 hours | Zoom angle | 4–60 ° | Color temperature | 2500k-8000k |
DMX channel | 20/36/57/93/102/215 CH | Operation mode | DMX512, Automatic, master-slave/ RDM
| Dimmer | 0-100% smooth linear dimming |
| Â Dimming curves | Linear, square law, inverse square law, S-curve | Dimming speed
| fast, slow | Strobe | 1-25HZ strong output flicker effect |

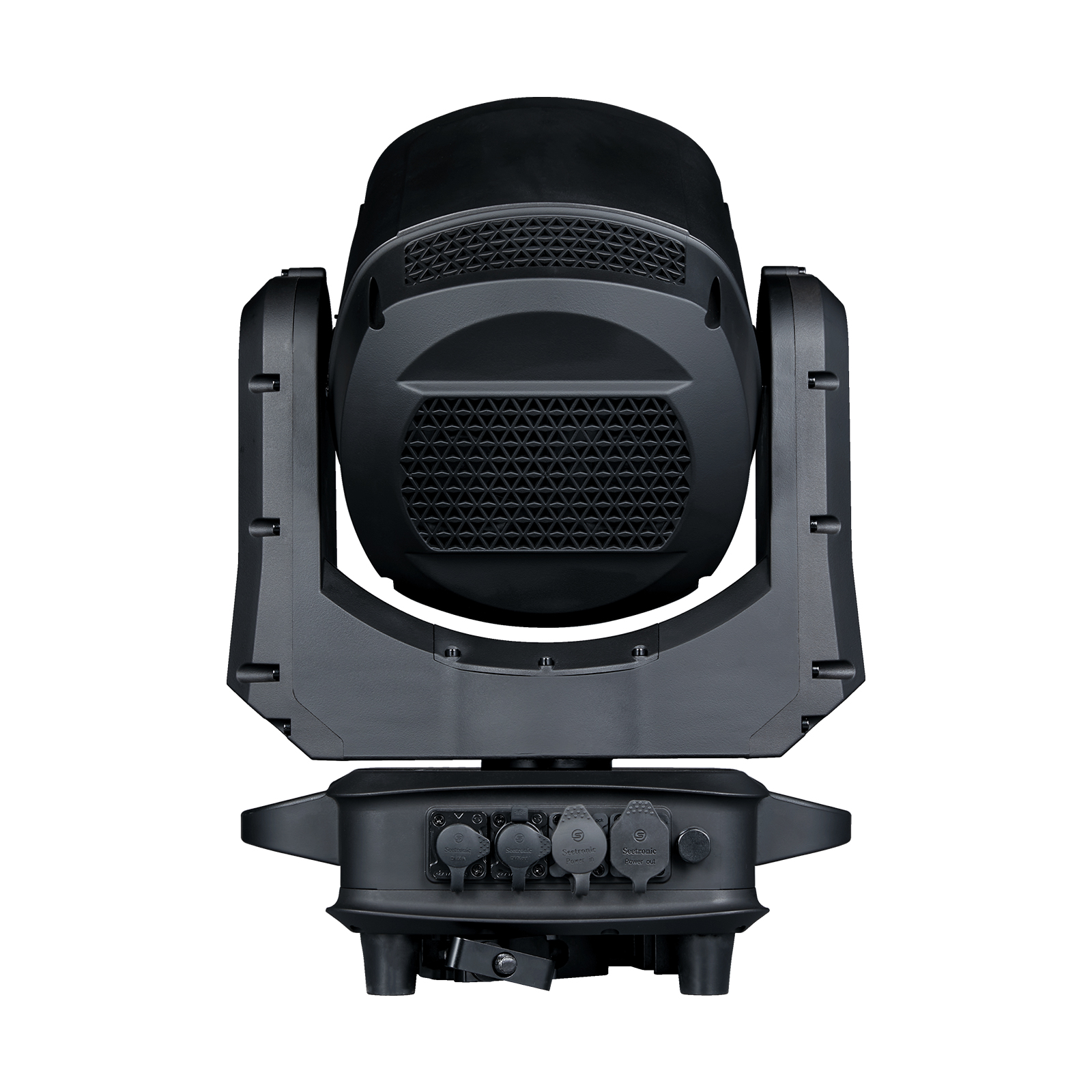

Display | OLED display | Signal input/output | 3-pin and 5-pin waterproof XLR sockets | Power socket | Waterproof power connector input/output |
working enviroment | -40°-160° | Protection level | IP65 | Size | 228x332x435mm |
Net weight | 14kg |
|
|
Excellent color mixing effect
