Function description
<div class=”__element”>
<div class=”__element __list __list–sm”>
<div class=”__list-inner row row-cols-1 row-cols-md-2 row-cols-xl-2″>
<div class=”__element __list_item”>
<div class=”__list_item-inner”>
<div class=”__element __div”>
<div class=”__element __image” style=”–height: 100%; –width: 100%;”>
<div class=”__image-inner”>
<div><img title=”ARDS08 8 Ports” src=”https://vshowlighting.com/wp-content/uploads/2026/01/0429f4f71cdac3016c387d768ff1c754.webp” alt=”ARDS08 8 Ports” width=”433″ height=”953″></div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>

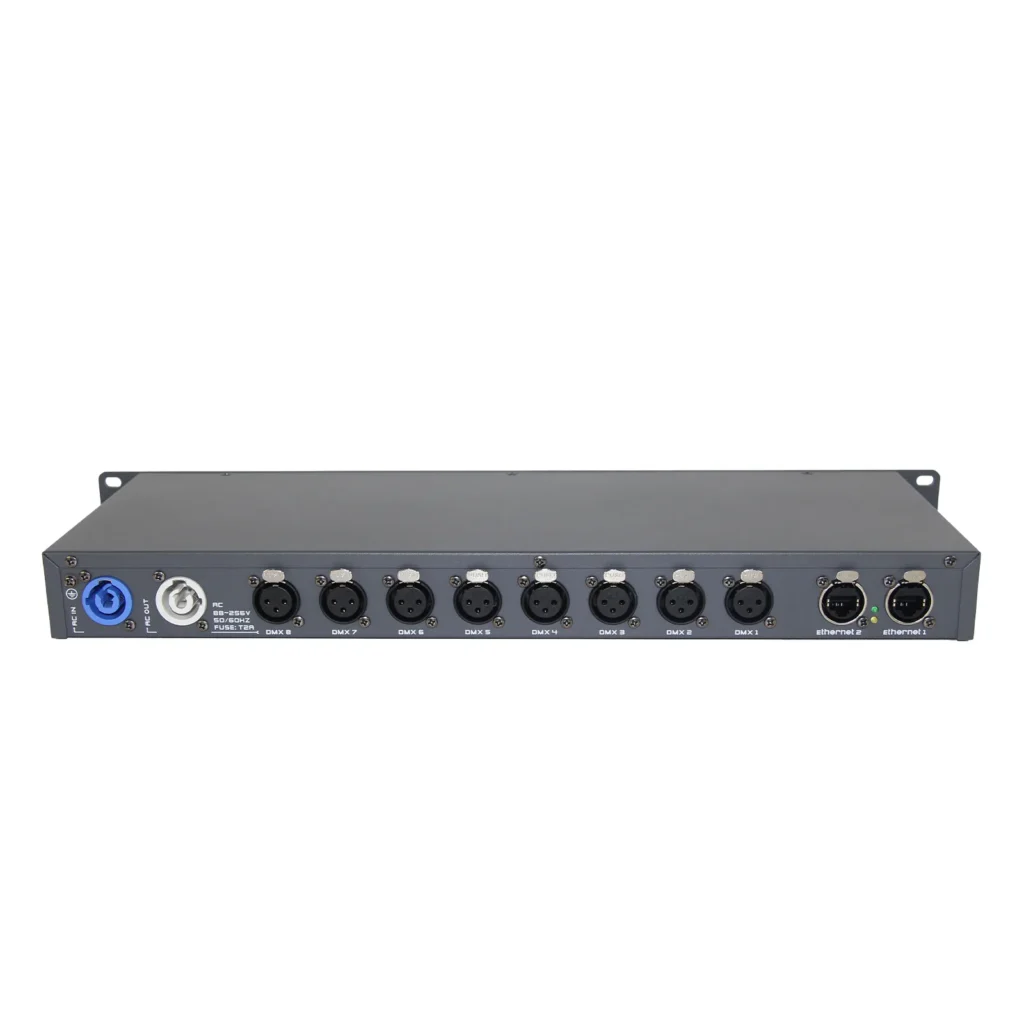

<p>Features:<br>It supports 8 ArtNet universes and a total of 4096 channels.<br>serial connection is possible, which can control 32768 universes, a total of 16777216 channels<br>Ethernet I/O is based on a high-speed switch without linking delay.<br>Supported protocols: Art-Net, sACN, DMX 512, and RDM.<br>It allows to configure parameters through a web browser<br>It is used for extending the DMX output port of the Tiger Touch and MA Console. <br>The 8 DMX ports can all be configured as inputs or outputs.<br>Adjustable DMX frames rate (Up to 40 Hz/sec)<br>DMX output can be set to one of SINGLE, HTP, or LTP modes<br>When there is no signal at the DMX output port, you can choose one of the methods: HOLD, ZERO, or OFF.<br>DMX ports: 3 pins XLR (option: 5 pins XLR).<br>100% electrical isolation between all inputs and outputs: problems on 1 port will not influence the other ports. <br>LED indicators for each input and output.<br>Wide input stable electric power supply, suitable for voltage input from different countries.<br>Input Voltage: AC88～256V 50/60Hz<br>Dimension: 19″ 1U, 482mm×168mm×44mm<br>Net Weight: 1.7 kg</p>
<div class=”__element __list __list–sm”>
<div class=”__list-inner row row-cols-1 row-cols-md-2 row-cols-xl-2″>
<div class=”__element __list_item”>
<div class=”__list_item-inner”>
<div class=”__element __div”>
<div class=”__element __image” style=”–height: 100%; –width: 100%;”>
<div class=”__image-inner”>
<div><img title=”ARDS08 8 Ports” src=”https://vshowlighting.com/wp-content/uploads/2026/01/0429f4f71cdac3016c387d768ff1c754.webp” alt=”ARDS08 8 Ports” width=”433″ height=”953″></div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
</div>
<p>Features:<br>It supports 8 ArtNet universes and a total of 4096 channels.<br>serial connection is possible, which can control 32768 universes, a total of 16777216 channels<br>Ethernet I/O is based on a high-speed switch without linking delay.<br>Supported protocols: Art-Net, sACN, DMX 512, and RDM.<br>It allows to configure parameters through a web browser<br>It is used for extending the DMX output port of the Tiger Touch and MA Console. <br>The 8 DMX ports can all be configured as inputs or outputs.<br>Adjustable DMX frames rate (Up to 40 Hz/sec)<br>DMX output can be set to one of SINGLE, HTP, or LTP modes<br>When there is no signal at the DMX output port, you can choose one of the methods: HOLD, ZERO, or OFF.<br>DMX ports: 3 pins XLR (option: 5 pins XLR).<br>100% electrical isolation between all inputs and outputs: problems on 1 port will not influence the other ports. <br>LED indicators for each input and output.<br>Wide input stable electric power supply, suitable for voltage input from different countries.<br>Input Voltage: AC88～256V 50/60Hz<br>Dimension: 19″ 1U, 482mm×168mm×44mm<br>Net Weight: 1.7 kg</p>
Parameters
Brand Name
VSHOW
Input Voltage
AC88～256V, 50/60Hz
Place of Original
Guangdong, China
Dimension
19″ 1U, 482mm ×168mm ×44mm
Weight
1.7Kg
