Function description

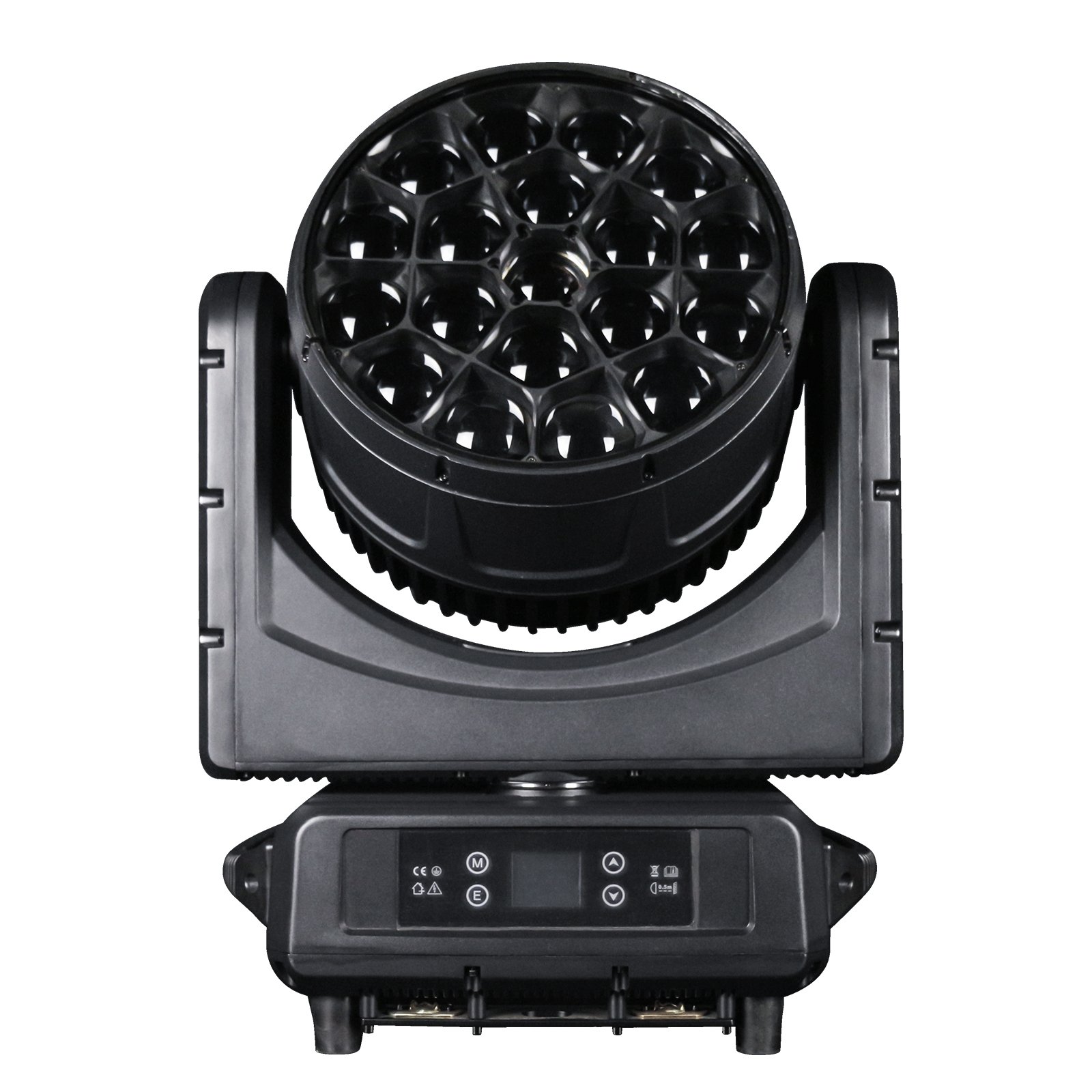

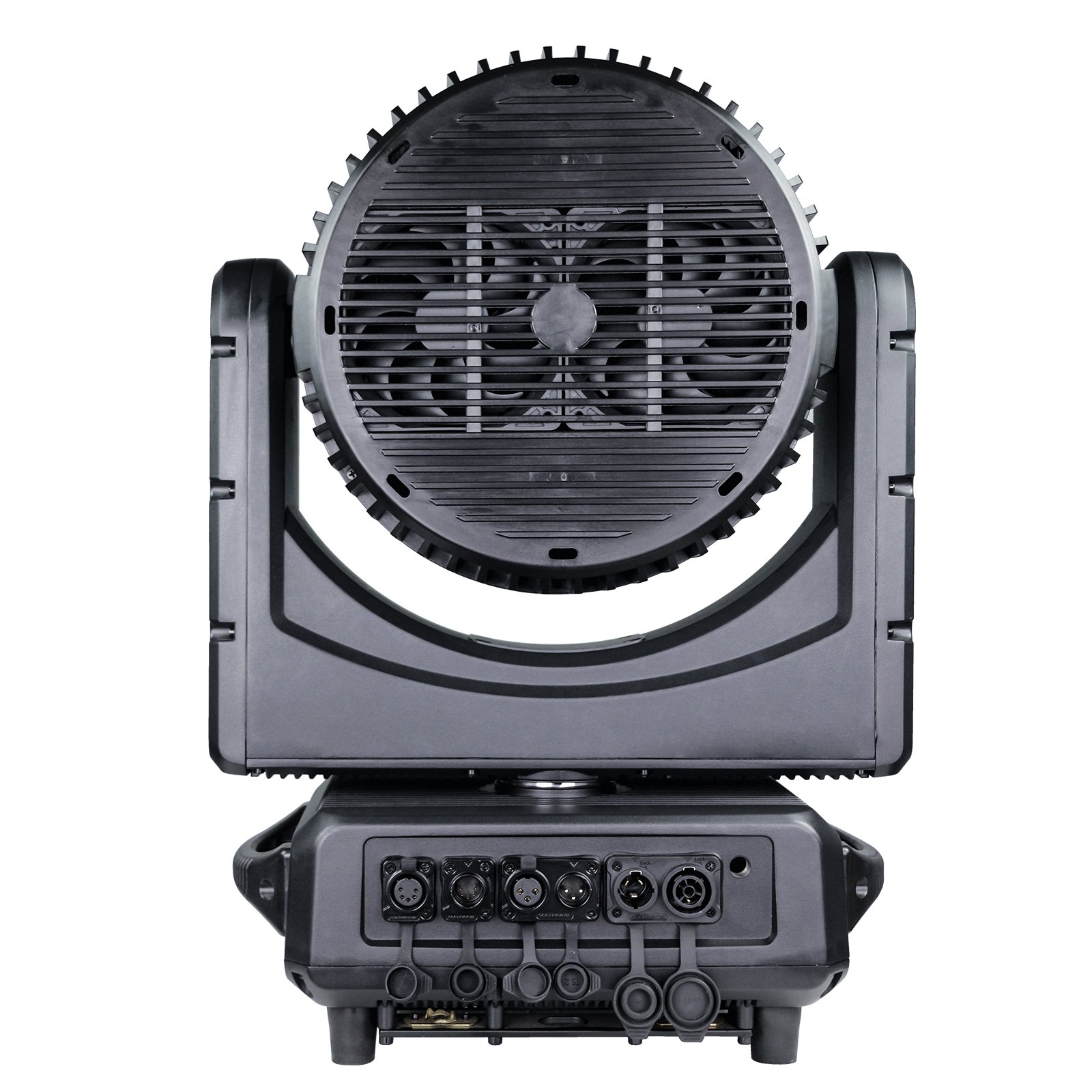

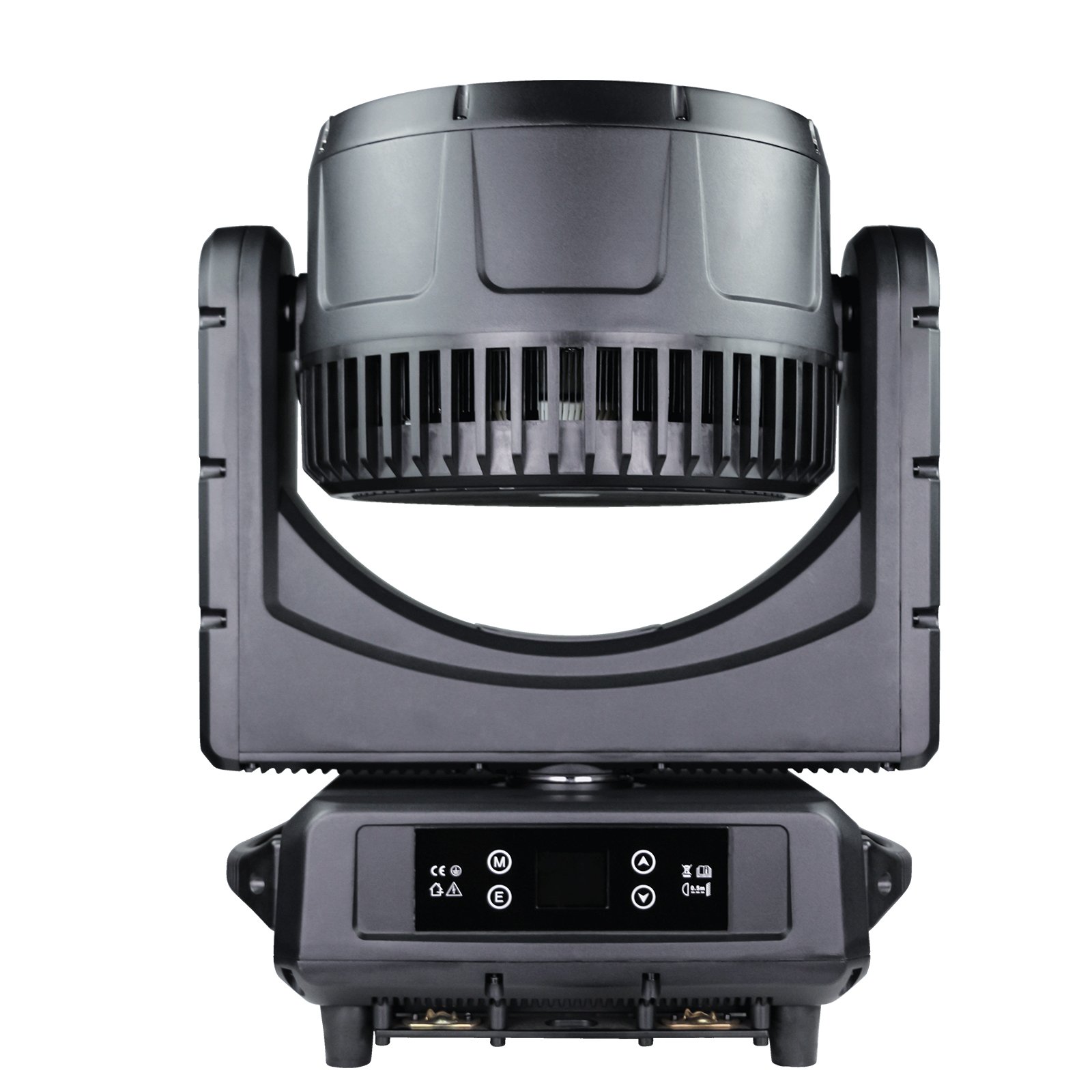

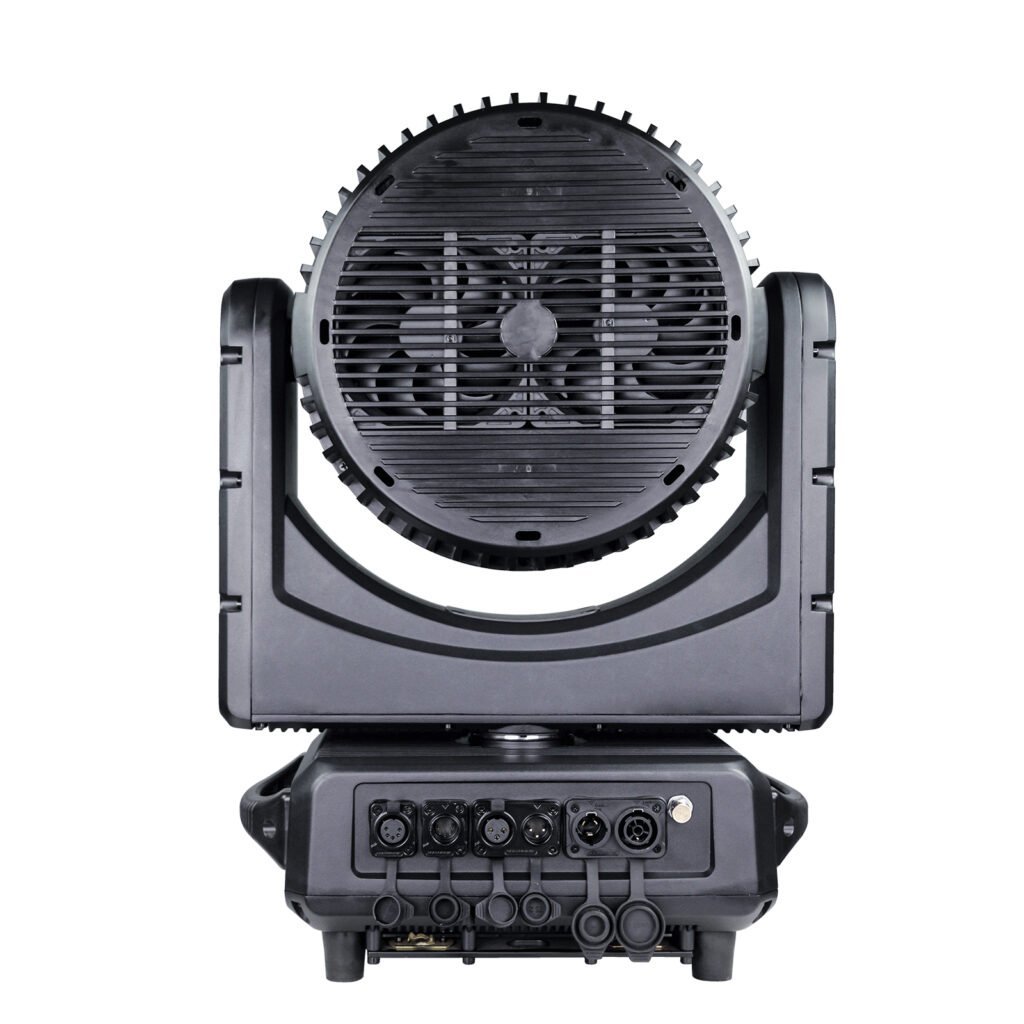

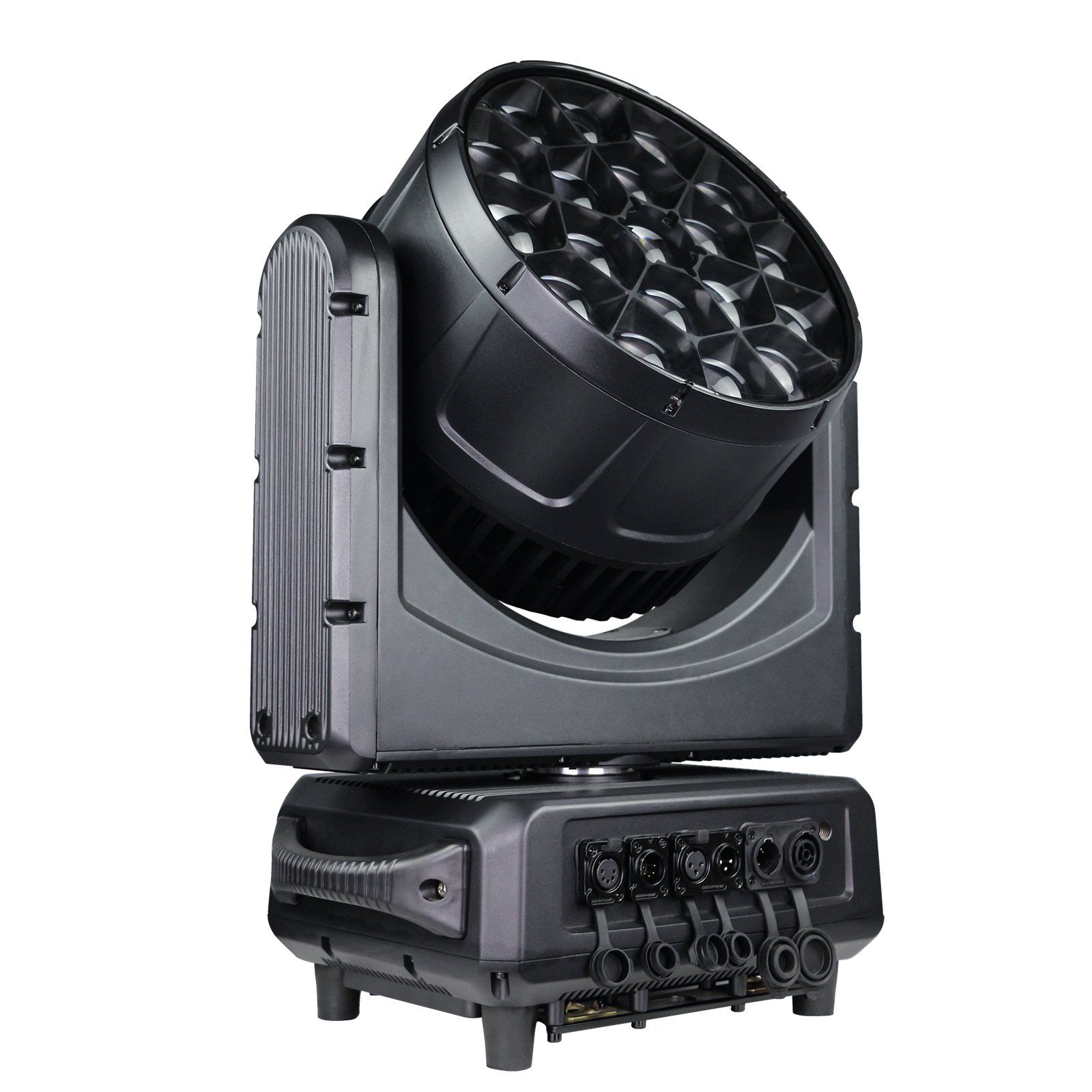

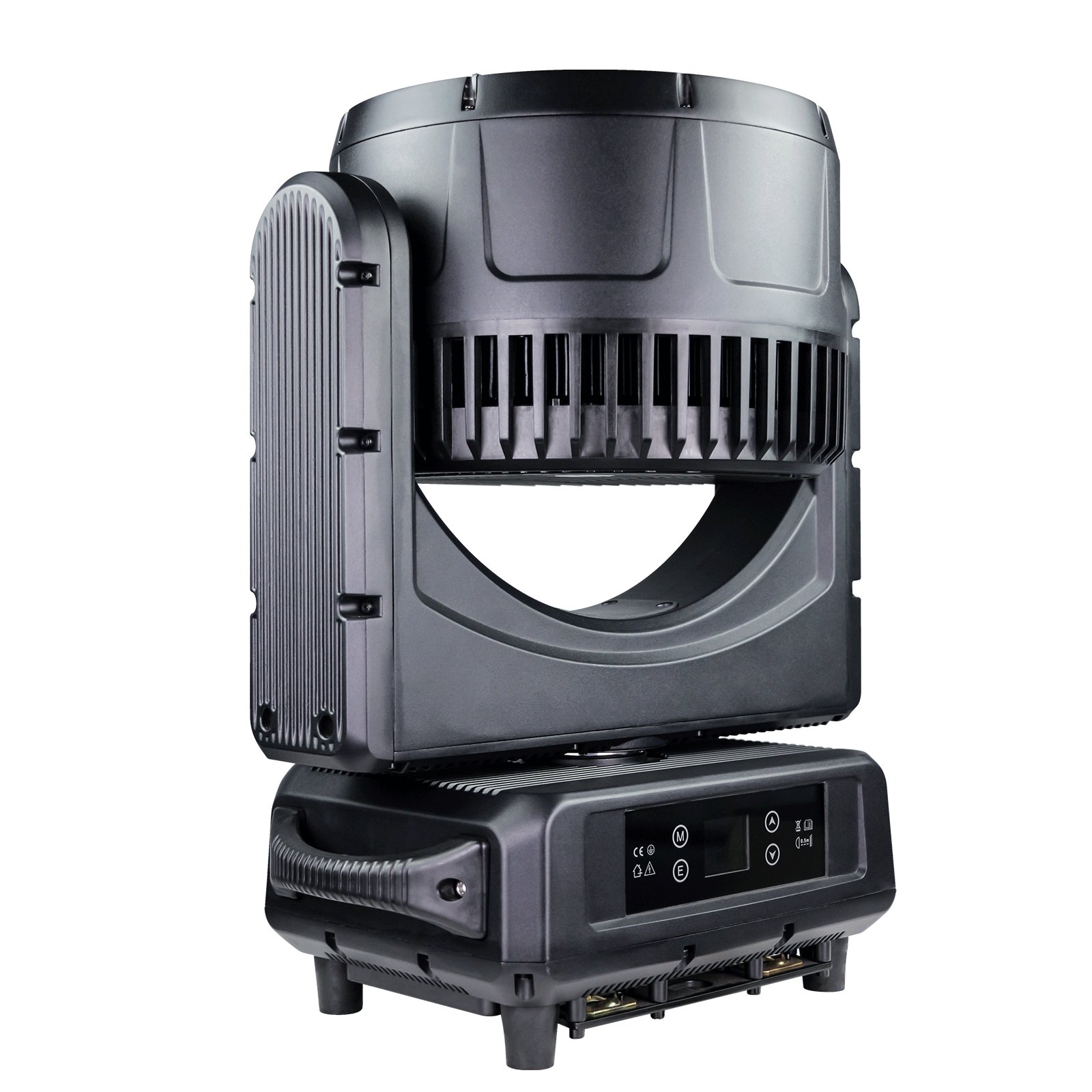

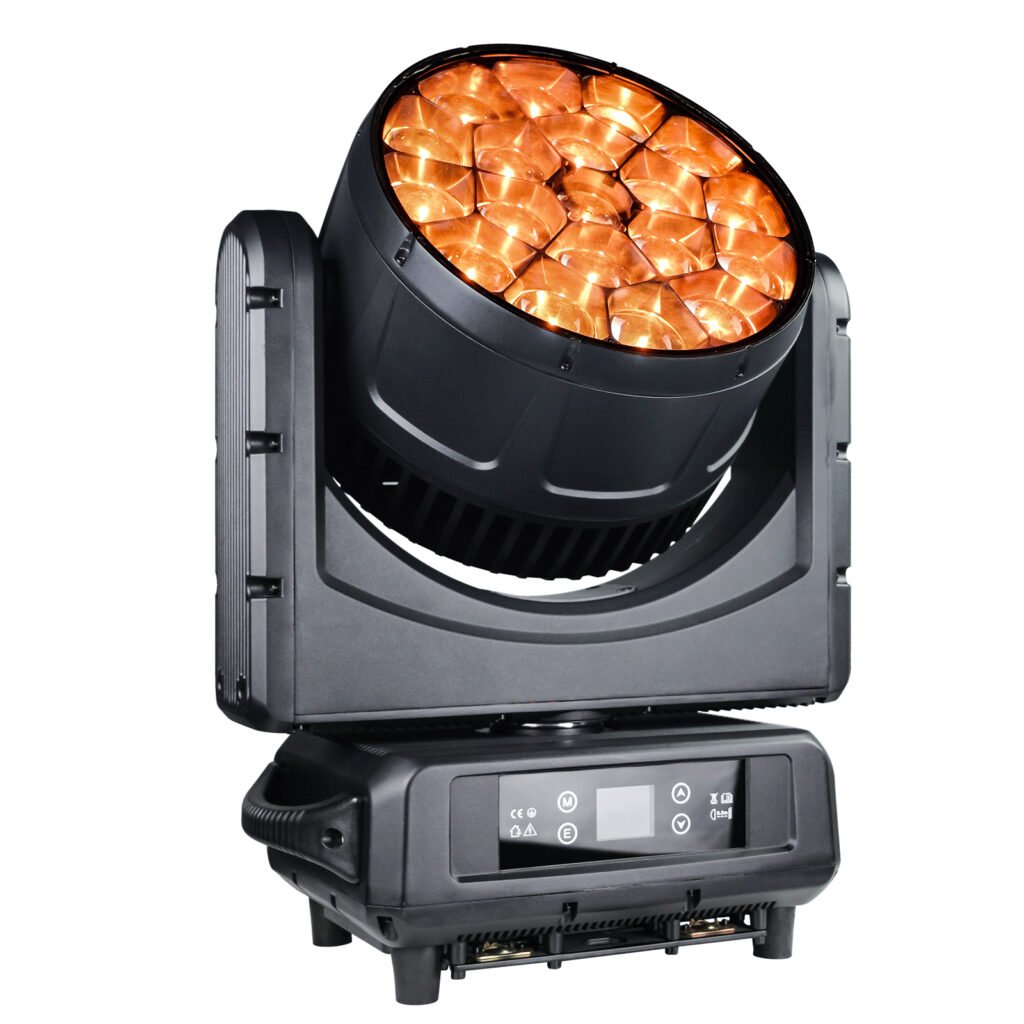

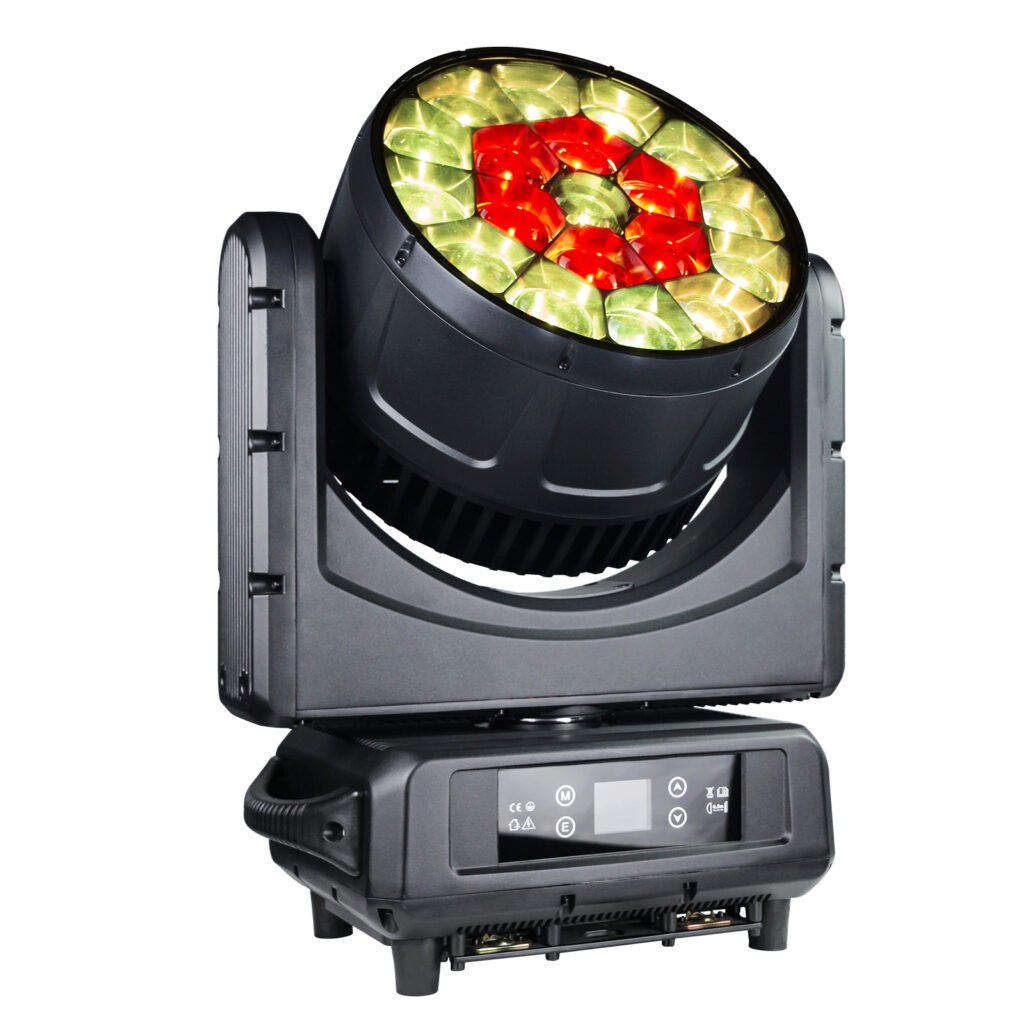

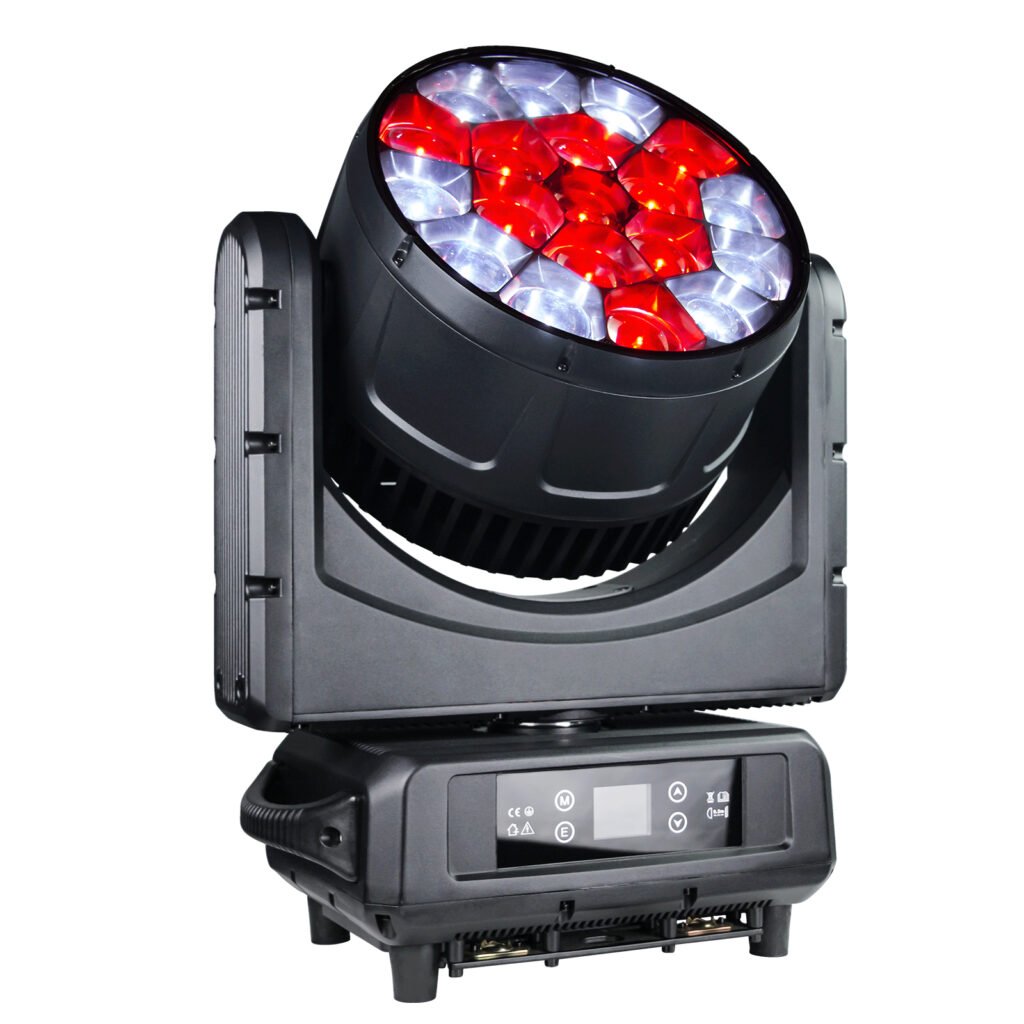

<p class=”MsoNormal”>The R1940L is composed of 19 40W RGBW quad-color LEDs, delivering an outstanding color macro effect and effortlessly creating powerful beams to add dynamism to the stage. With various channel modes to choose from, it allows precise control of each LED bead through DMX and RDM, enabling light synchronization with music. Lighting designers can easily switch colors, angles, and lighting effects on the fly.</p>
<p class=”MsoNormal”> </p>
<p class=”MsoNormal”>Featuring a linear focus system with a zoom angle ranging from 4-60°, along with multiple-speed strobe effects and smooth dimming from 0 to 100%, it can produce a variety of dynamic and mesmerizing lighting effects. The R1940L is a high-performance moving head light that integrates powerful beams, color blending, and peak focus functions. Equipped with a uniform color mixing system and a color correction system, it ensures consistent color output.</p>
<p class=”MsoNormal”> </p>

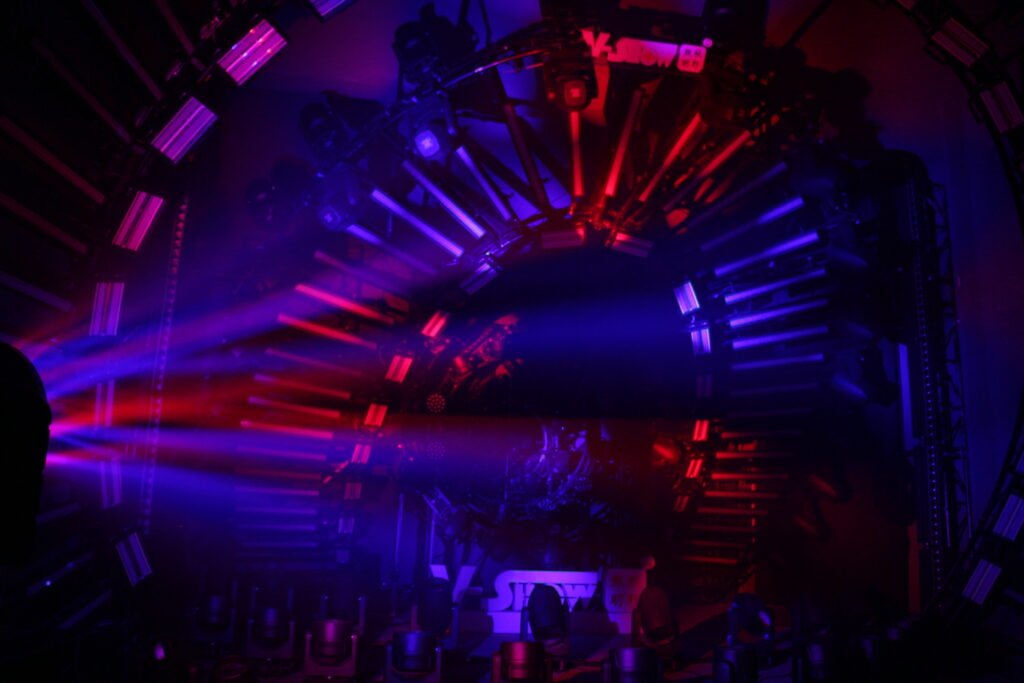

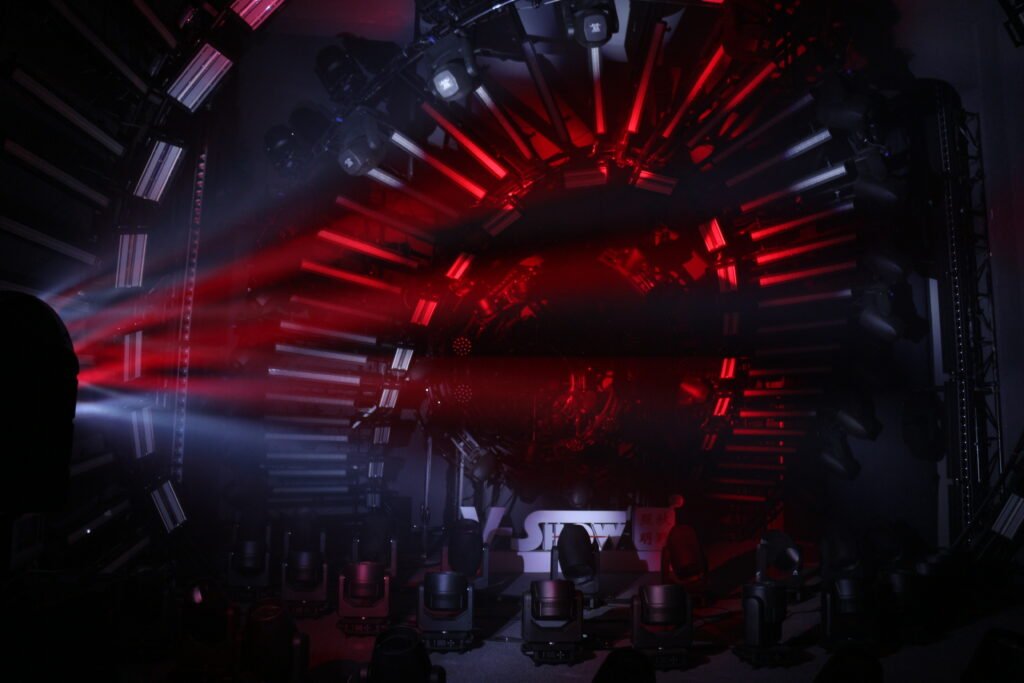

<p class=”MsoNormal”>This versatile fixture is suitable for a wide range of stage applications, including concerts, TV studios, seminars, art exhibitions, and more. Designed specifically for professional lighting performances, the R1940L is a three-in-one moving head light that meets the diverse needs of different venues and applications.</p>
<p class=”MsoNormal”> </p>
<p class=”MsoNormal”>Featuring a linear focus system with a zoom angle ranging from 4-60°, along with multiple-speed strobe effects and smooth dimming from 0 to 100%, it can produce a variety of dynamic and mesmerizing lighting effects. The R1940L is a high-performance moving head light that integrates powerful beams, color blending, and peak focus functions. Equipped with a uniform color mixing system and a color correction system, it ensures consistent color output.</p>
<p class=”MsoNormal”> </p>
<p class=”MsoNormal”>This versatile fixture is suitable for a wide range of stage applications, including concerts, TV studios, seminars, art exhibitions, and more. Designed specifically for professional lighting performances, the R1940L is a three-in-one moving head light that meets the diverse needs of different venues and applications.</p>
Parameters
|
Input Voltage |
100-240V, 50/60Hz |
Output Voltage |
V1:36V(LED driver+ main board) |
Power consumption |
760W |
|
Power supply |
1000W |
Light source |
19*40W RGBW 4in1 LED |
Electronic dimmer |
0～100%16bit linear |
|
Linear CTO color temperature adjustment |
2500-8000K |
Zoom angle |
4-60° |
DMX Channel |
21/23/35/78/92/97/99 CH |
|
Operate mode |
DMX512, Auto, master/slave,Sound active, RDM |
Fixture size |
388*240*555mm
|
Waterproof grade
|
IP65 |
