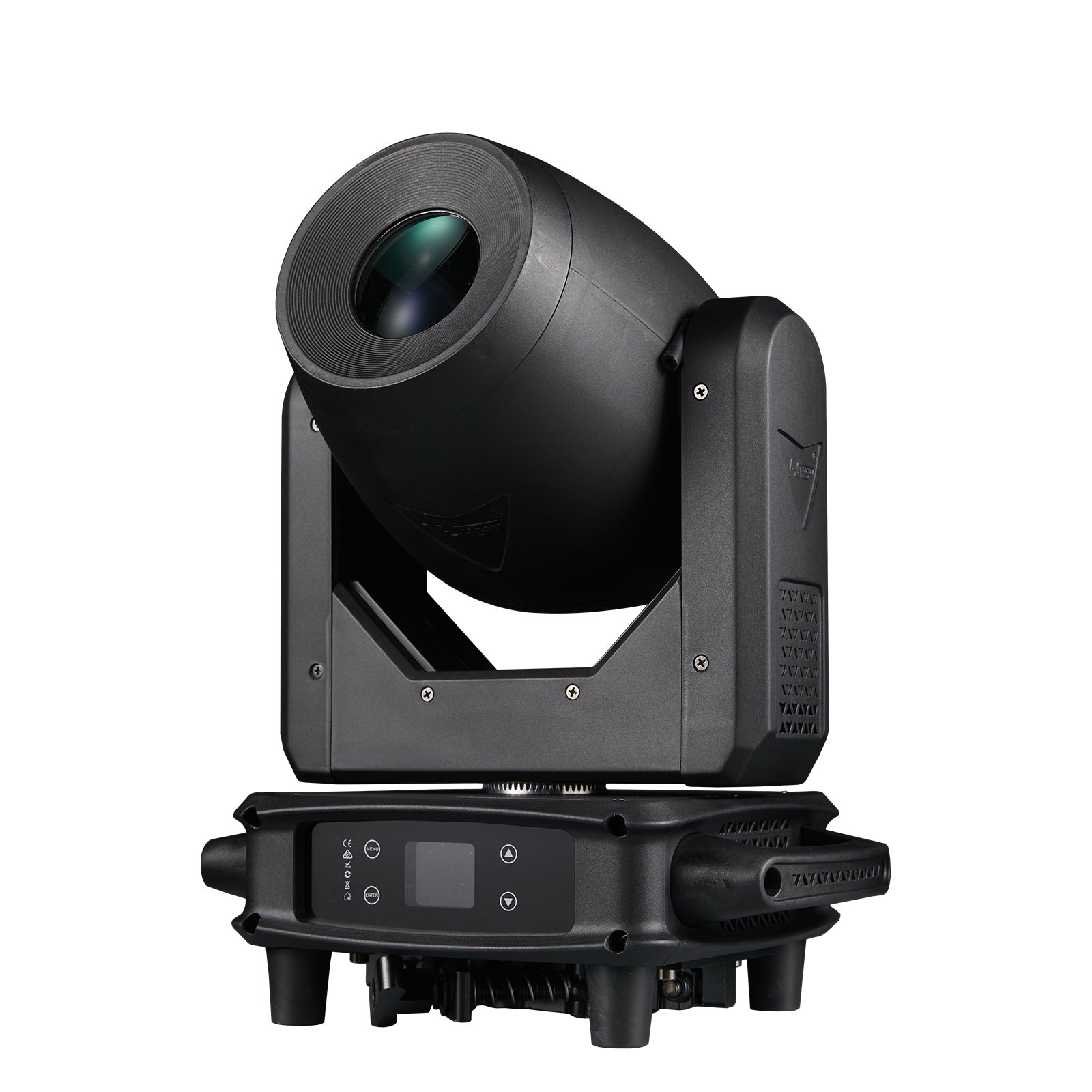

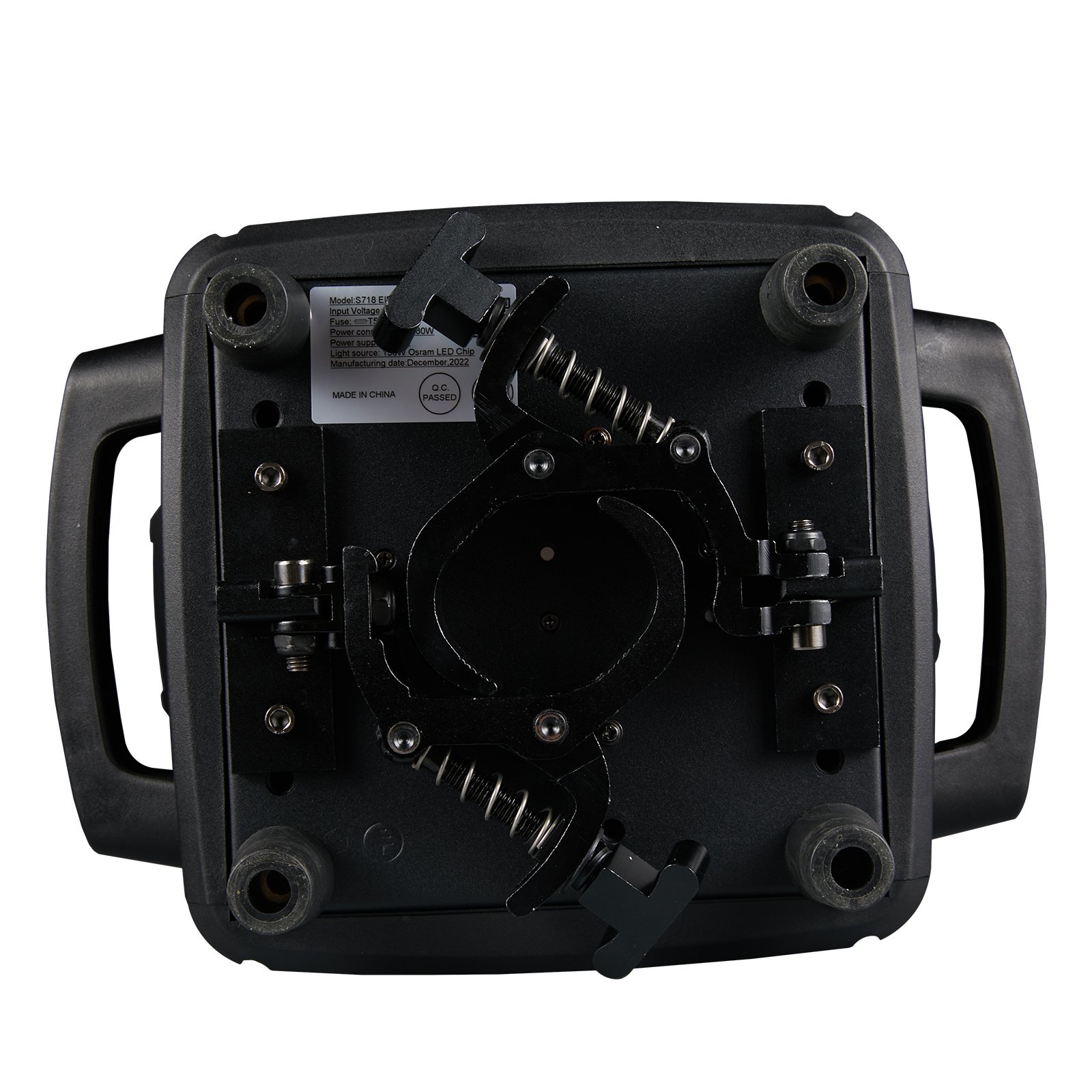

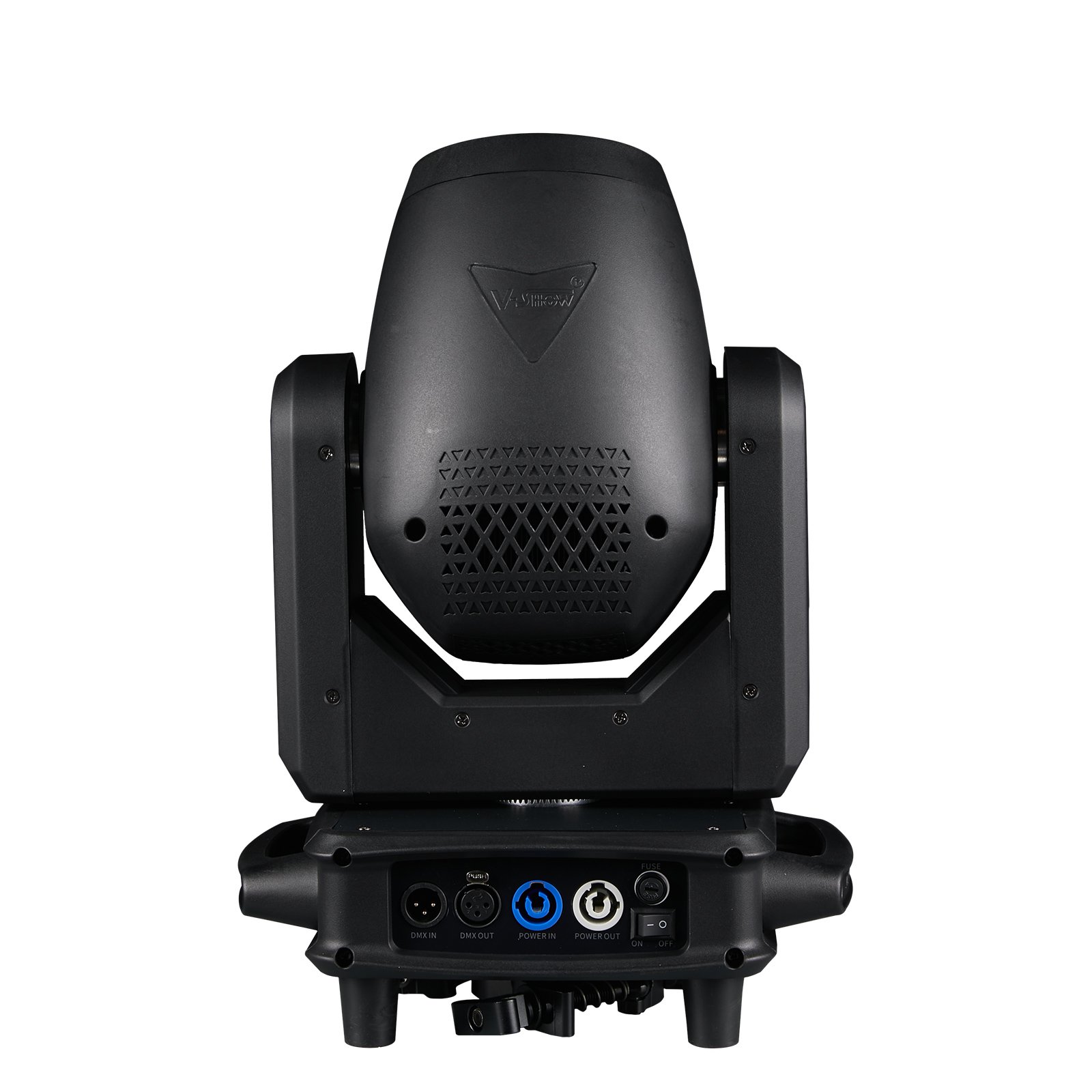

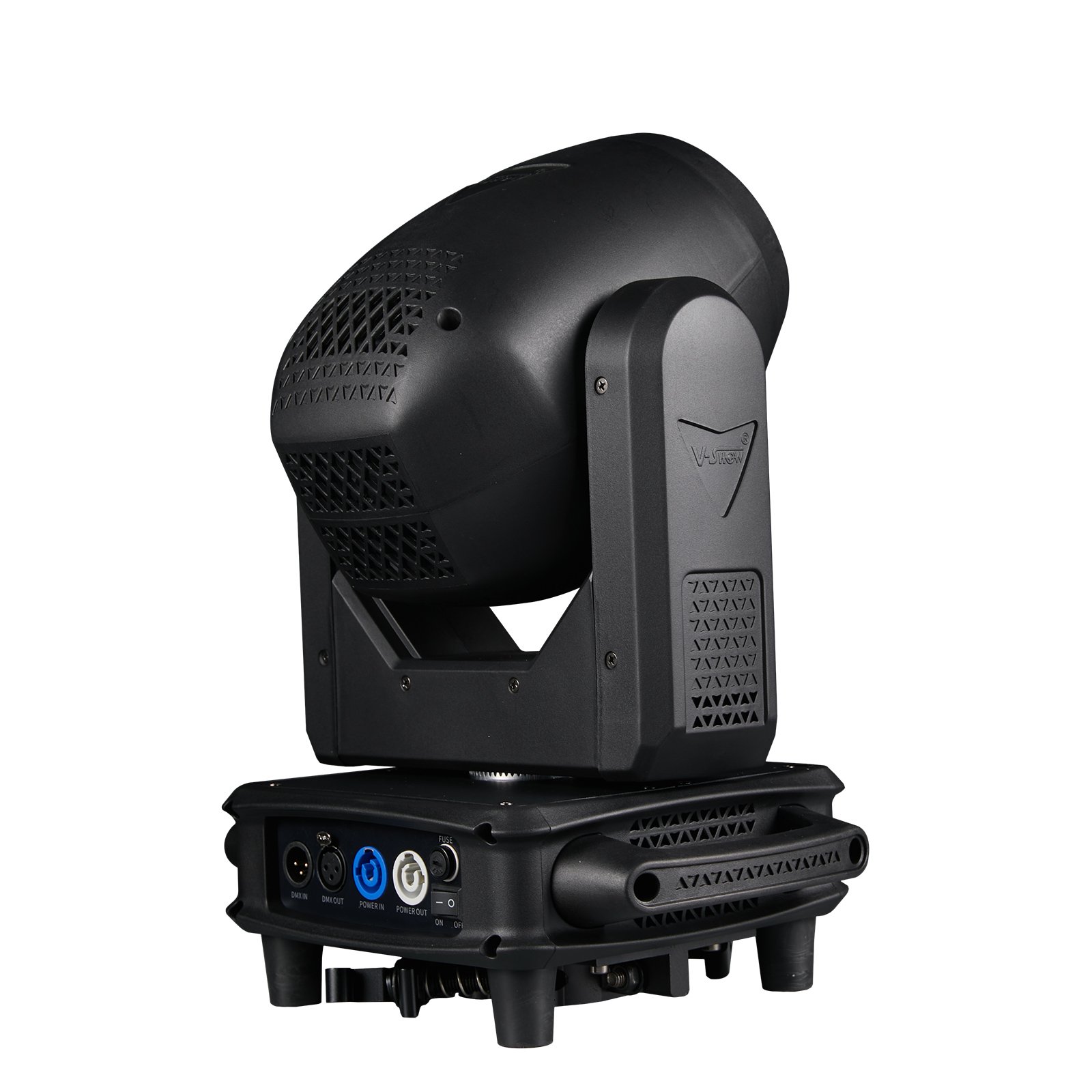

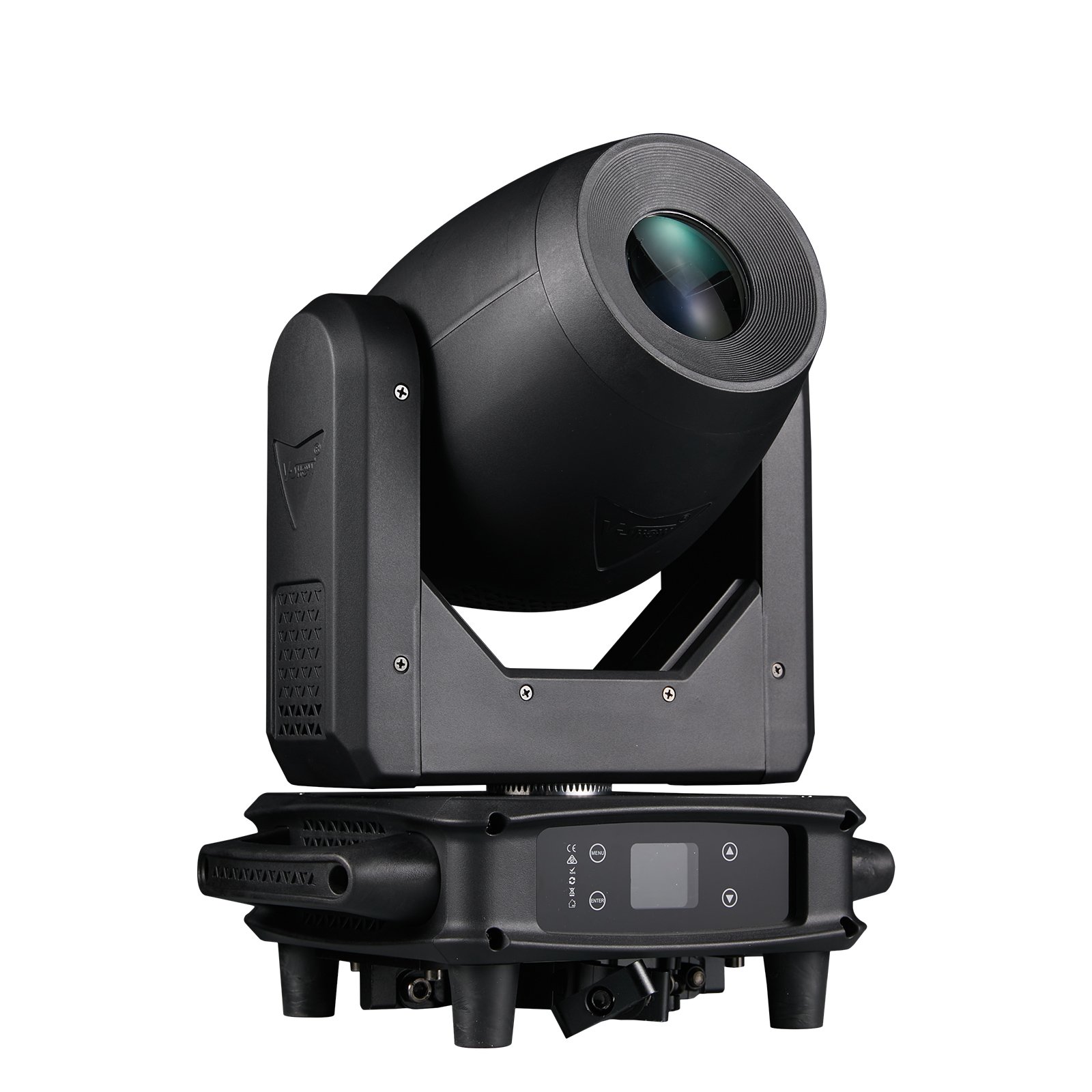

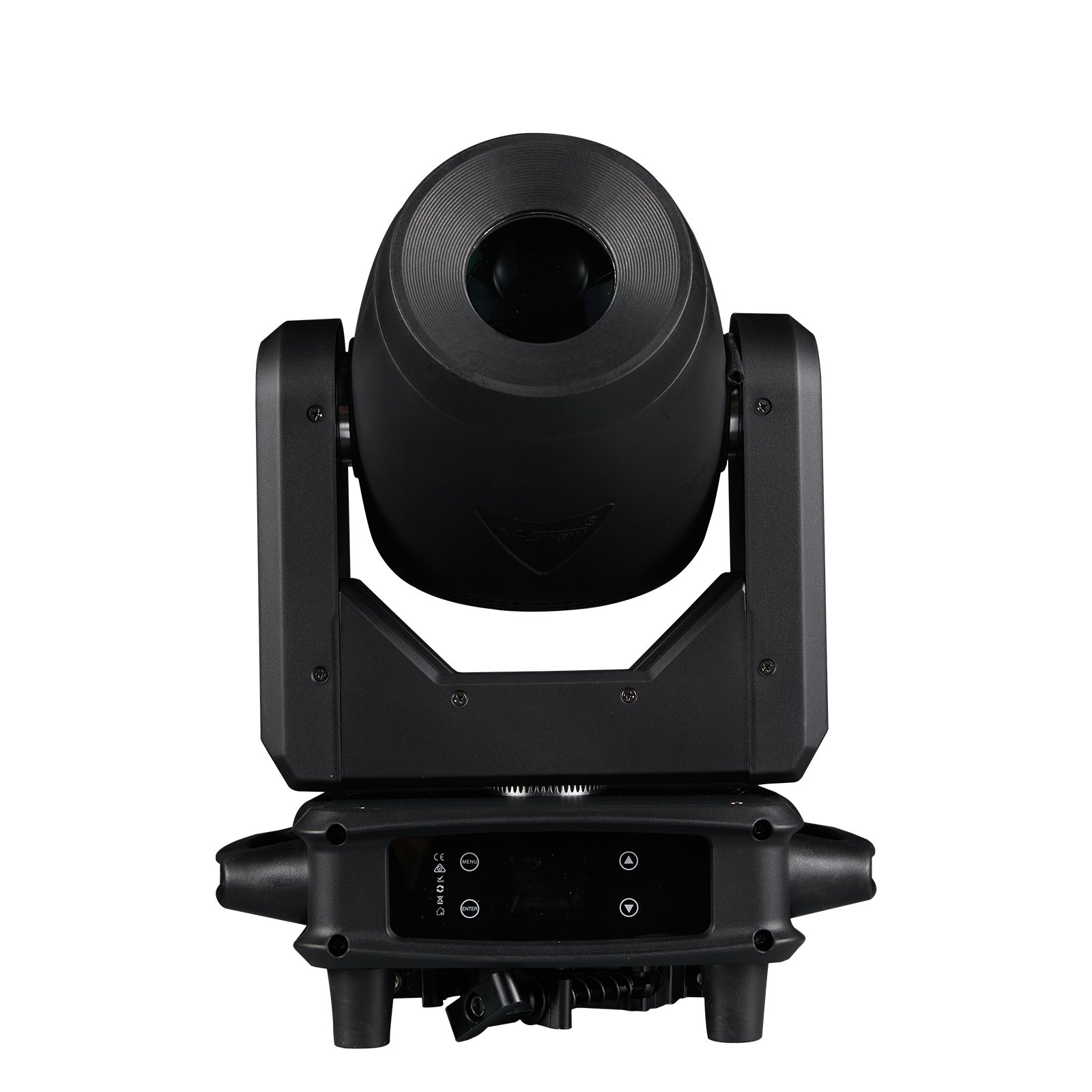

VSHOW Led Moving Head Light S718 150W With Folding Clamp

The VSHOW S718 Elf is a 150W LED moving head light designed for professional DJs, stage performers, and event productions. It features a 15° beam angle for precise light control, a 7-color wheel with white for a variety of hues, and gobo wheels with static and rotating patterns to create unique visual effects.

Input Voltage

100-240V, 50/60Hz

Output Voltage

V1:29V (master board + LED driver), V2:12V (cooling fan + display)

Power consumption

180W

Power supply

250W(PFC)

Light source

150W(24-27V,6A)

Color temperature

8000K

Diameter of optic lens

65mm

Net weight

14 KG

Static gobo

7 gobos plus 1 white circle

Rotation Gobo

6 Gobo plus 1 white circle

Prism

5 prism,can be rotated in both directions

Frost filter

with smooth wash effect

DMX Channel

17CH

Operate mode

DMX512, self-propelled, master/slave,Sound active, RDM

Fixture size

303*226*394mm

Beam angle

15-17° Color wheel: 1 color wheel, 7 fixed colors plus white, two-way rainbow effect

After-Sales Service and Warranty:

We offer comprehensive after-sales services, including installation guidance and technical support. Our products also come with a specified warranty period to ensure a worry-free experience for our customers.

Buyer Protection: We Keep Buyer Information Completely Confidential!

INQUIRY NOW

SKU: S718 Category: Moving Head Light

Description

Function description

S718 Featuring a 150W LED light source, it achieves an impressive lifespan of up to 20,000 hours, significantly reducing the cost of light source replacement. The beam is sharp, providing outstanding light output for a powerful visual impact in performances.

It also allows flexible shaping of uniform and colorful pattern effects, effortlessly displaying a dazzling array of phantom light effects. With uniform color mixing and excellent color reproduction, it can create a stage lighting visual with flowing and vibrant colors, elevating the overall performance level. It offers a high-quality choice for a variety of entertainment venues, such as KTVs, bars, and party rooms.

Parameters

Input Voltage	100-240V, 50/60Hz	Output Voltage	V1:29V(Master board+LED driver) V2:12V(cooling fan+Display)
Power supply	250W	Light source	150W Osram LED Chip
Power consumption	180W	LED temperature	8000K
Lifetime	≥20,000Hours	Dimming	0-100% 16Bit smooth dimming
Diamter of optic lens	65mm	Zoom angle	15-17°
Color Wheel	1 color wheel, 7fixed colors plus white, two-way rainbow effect	Focus	Electric focusing system
Static Gobo	7 gobos plus 1 white circle	Rotation Gobo	6 Gobo plus 1 white circle
Prism	5 prism,can be rotated in both directions	Frost	with smooth wash effect
Control panel	LCD Touch screen	Signal socket	Standard 3 PIN XLR /5PIN XLR socket
DMX Channel	17CH	Operate mode	DMX512, self-propelled, master/slave,Sound active, RDM
Net Weight	14kg	Gross Weight	16kg

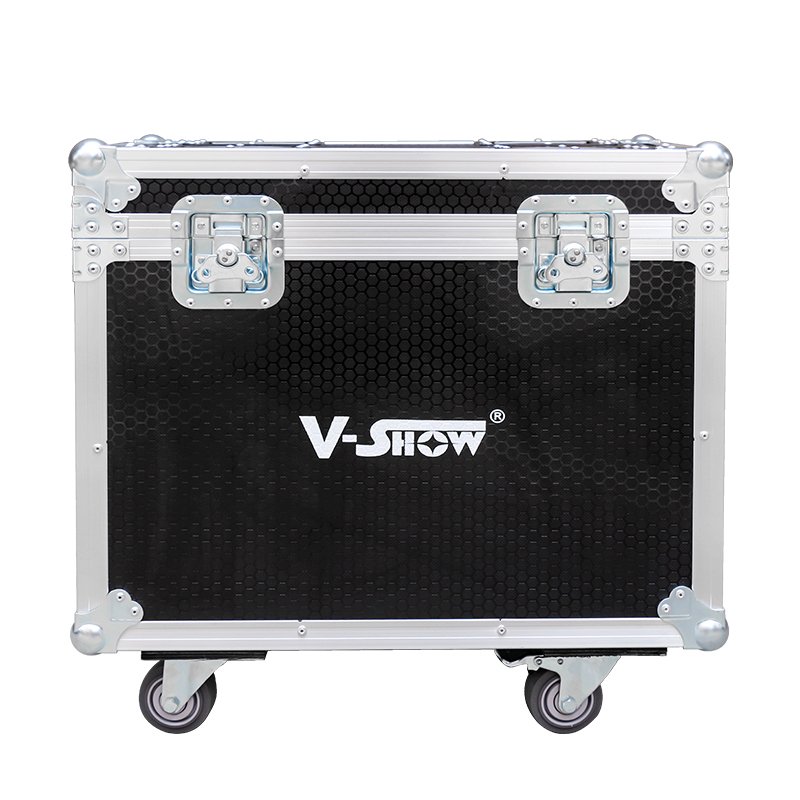

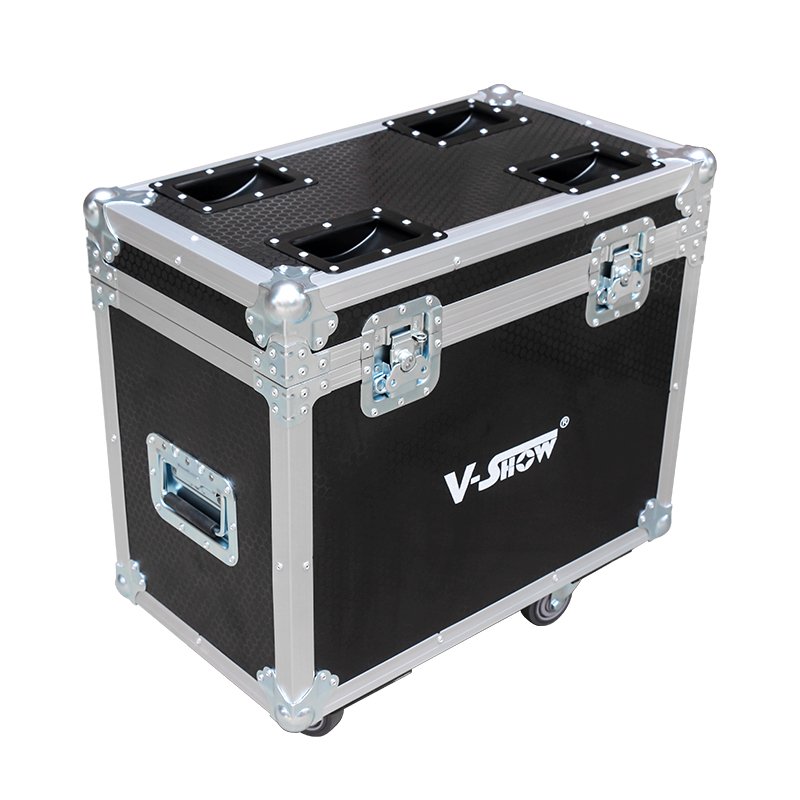

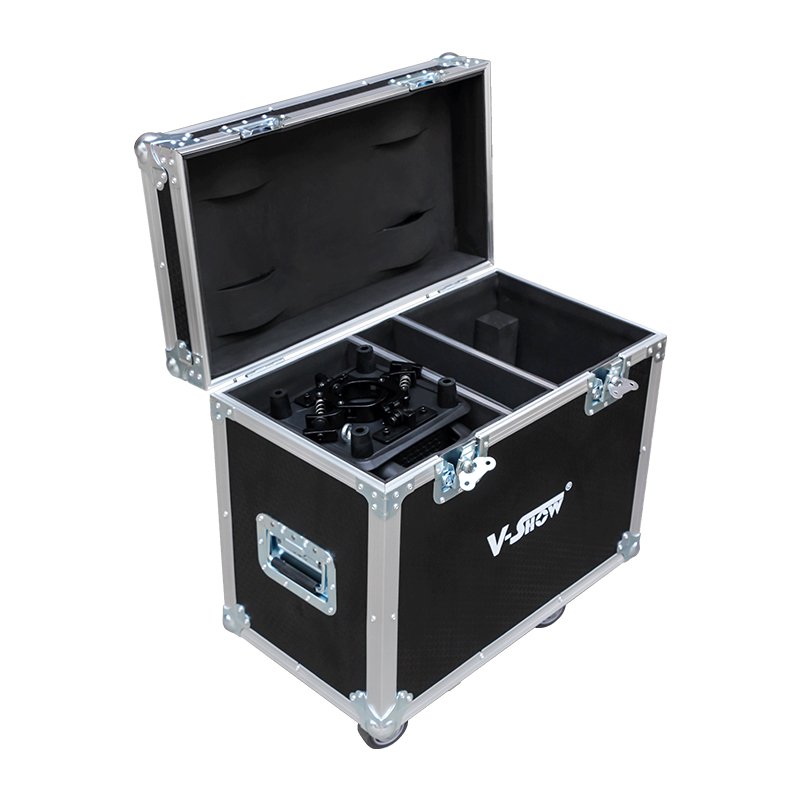

Fixture size	303226394mm	Package size	323153cm/11kg (Carton) 643863cm/ 35kg (Flight case 2 in 1）
