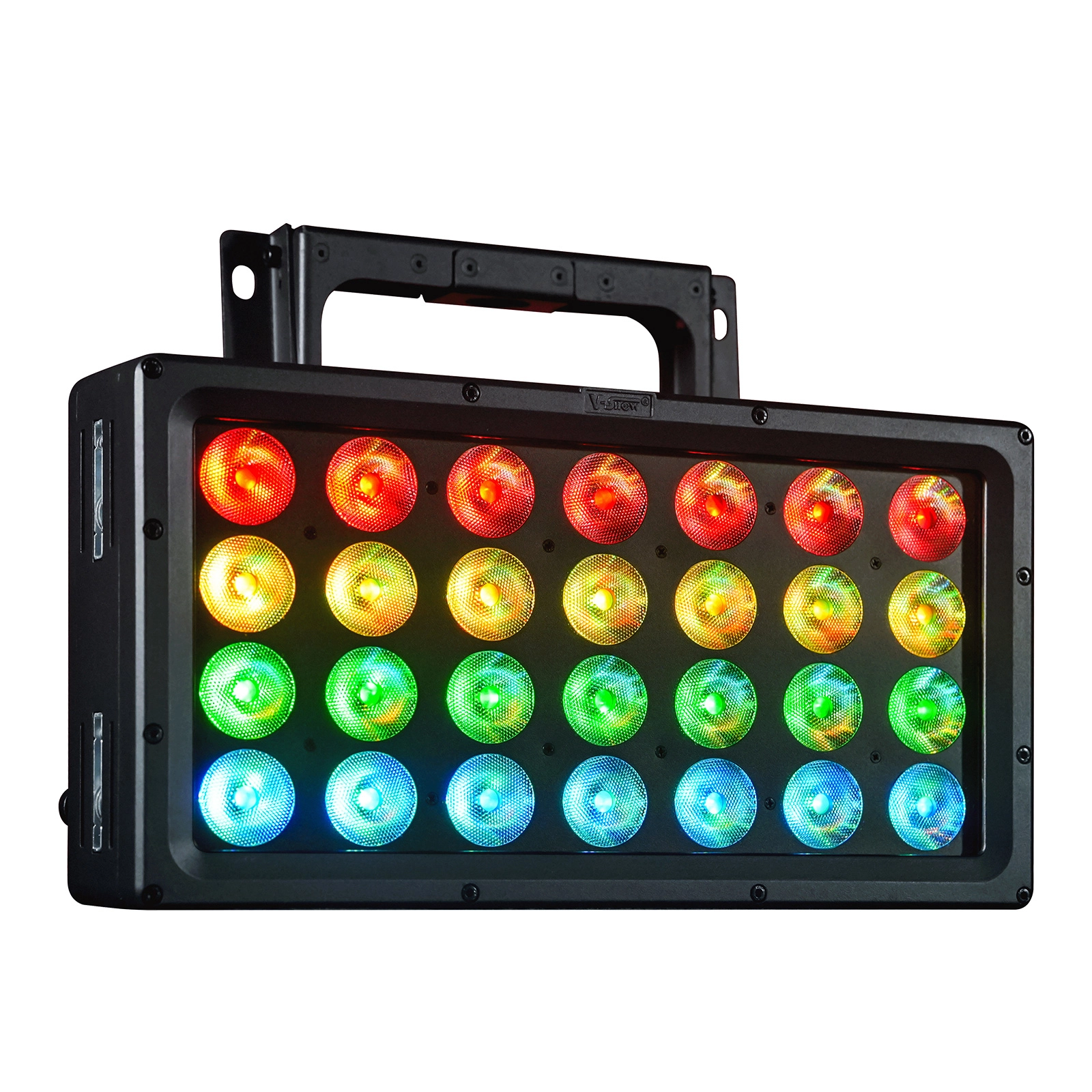

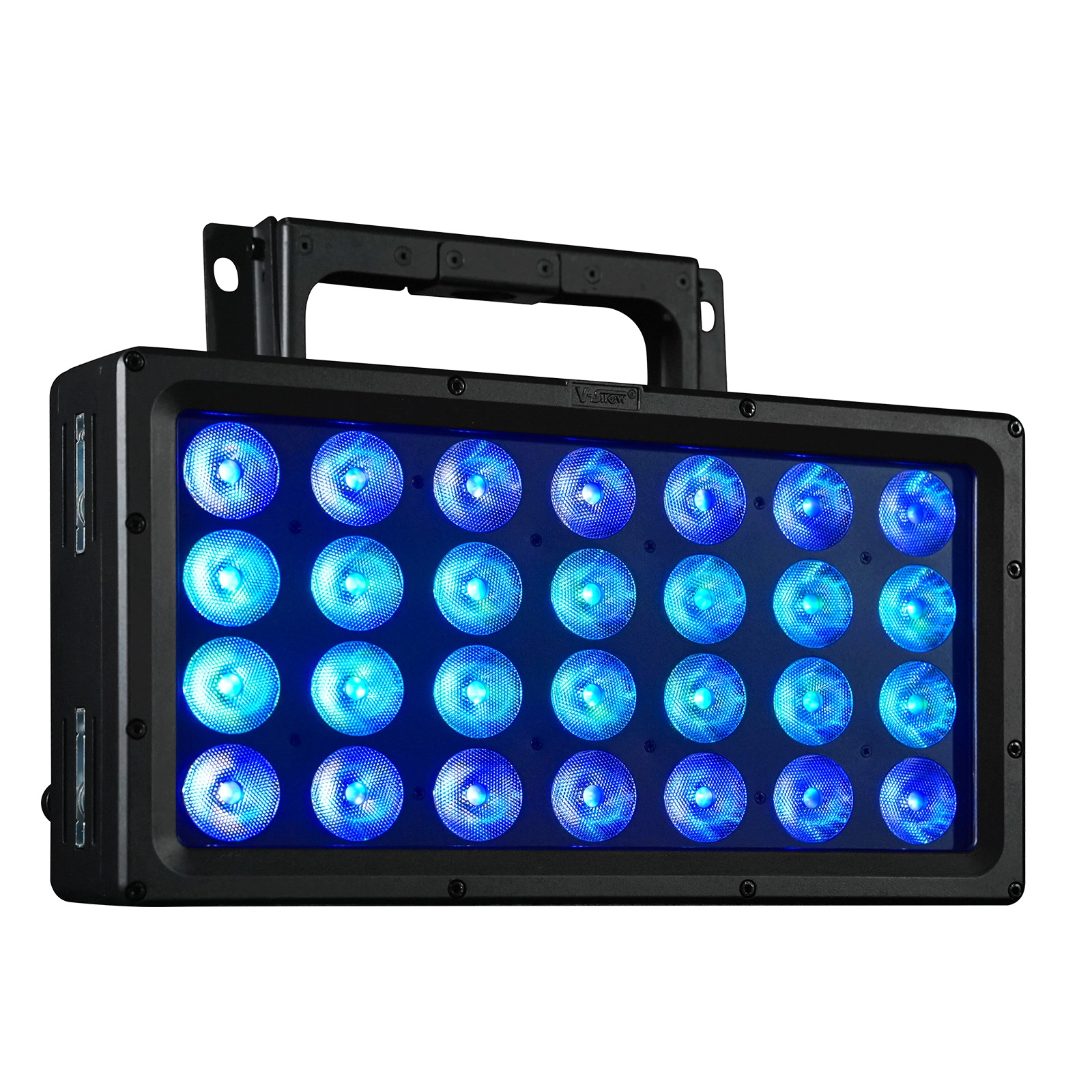

Function description
16BIT 0-100% dimming
High refresh rate, no flicker during shooting
High luminous efficiency, smooth and natural transition of light color
Good color mixing effect, bright and pure colors
4-row dynamic independent control, separate row and color control
High refresh rate, no flicker during shooting
High luminous efficiency, smooth and natural transition of light color
Good color mixing effect, bright and pure colors
4-row dynamic independent control, separate row and color control
Parameters
Input Voltage | 100-240V, 50/60Hz | Power consumption | 570W | Power supply | 700W |
Light source |

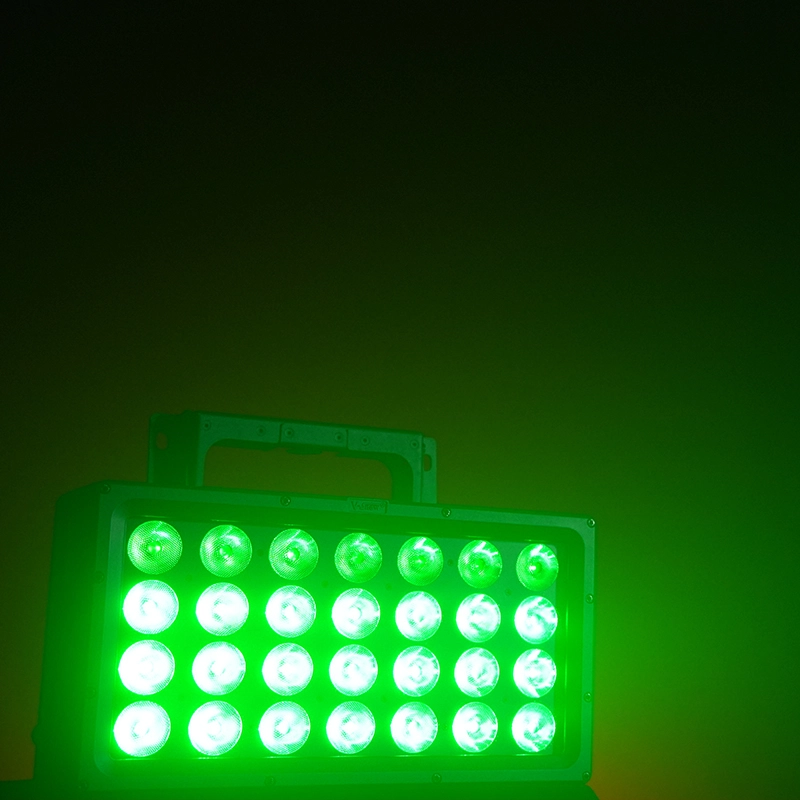

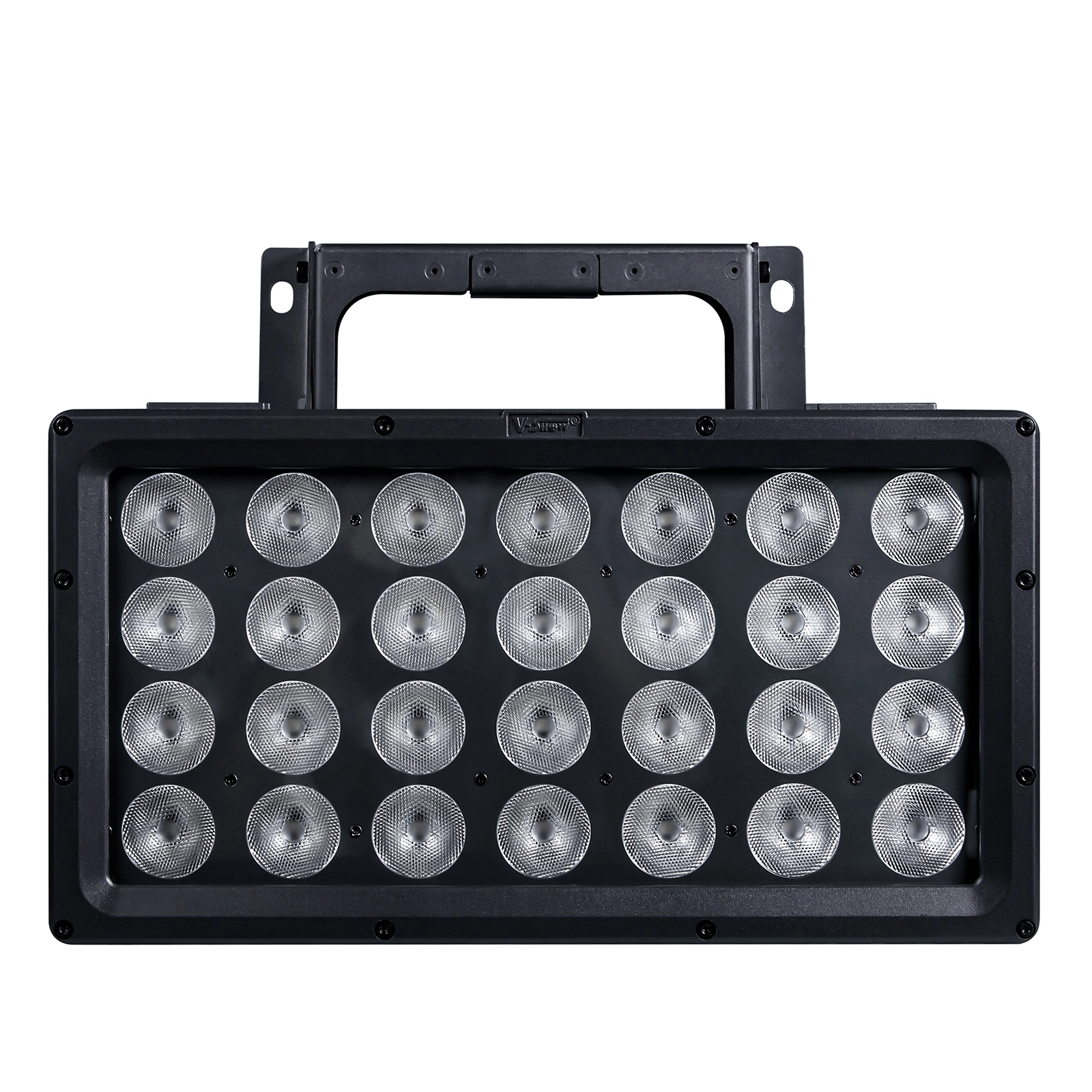

28PCSx20W RGBWAUV6IN1 LED
| LED Life | >20000Hour | DMX Channel | 3/4/6/12/16/24/32CH |
Operate mode | DMX512, Auto,Master/slave, /RDM | Dimmer | 0-100% Linear dimming | Dimming curve | Linear, Square Law, Inv SQ Law ,S Curve Multiple refresh rate settings to choose from |
Dimming speed | fast, slow | Strobe | Strong output strobe effect at 1-20Hz | Fan mode | auto, low speed, high speed |

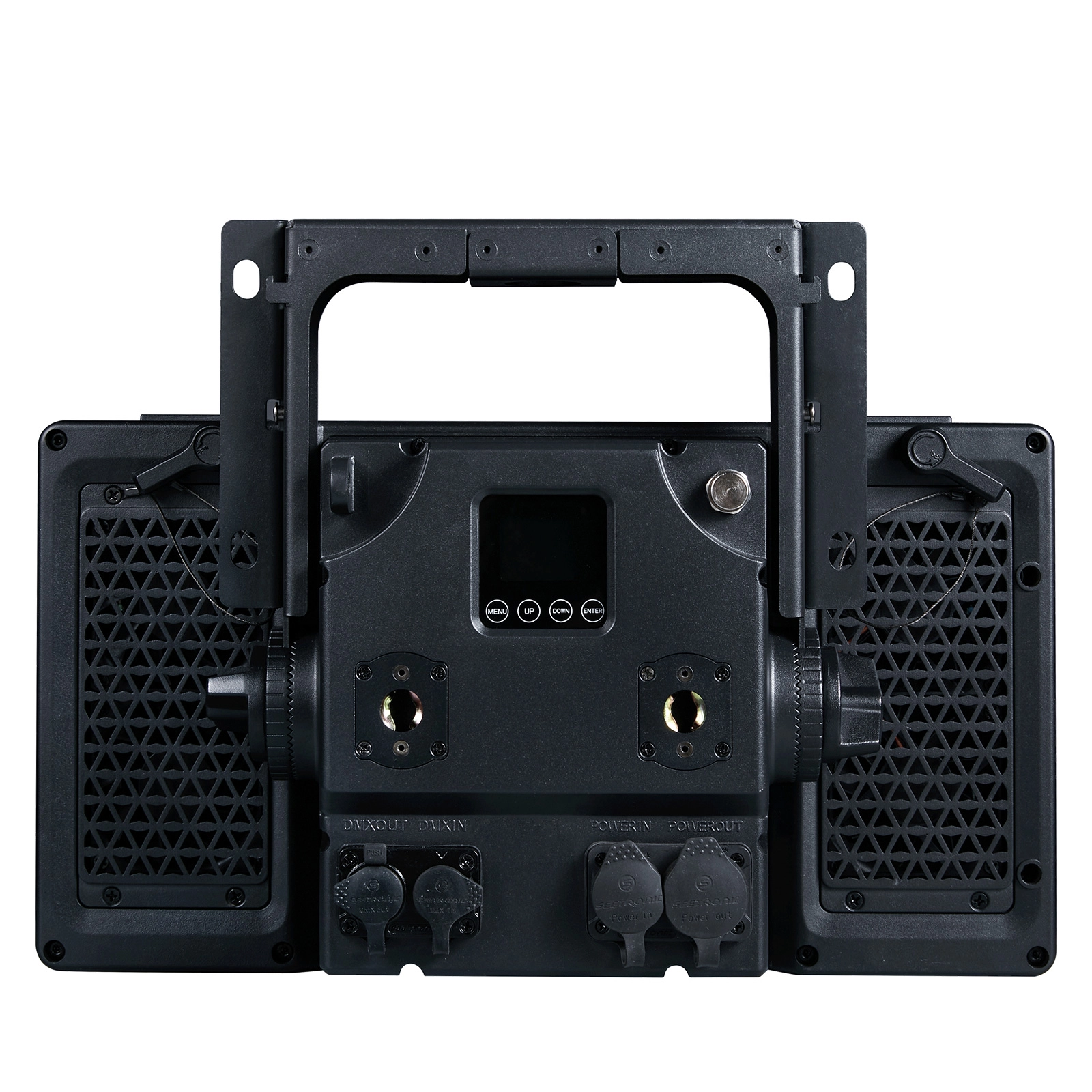

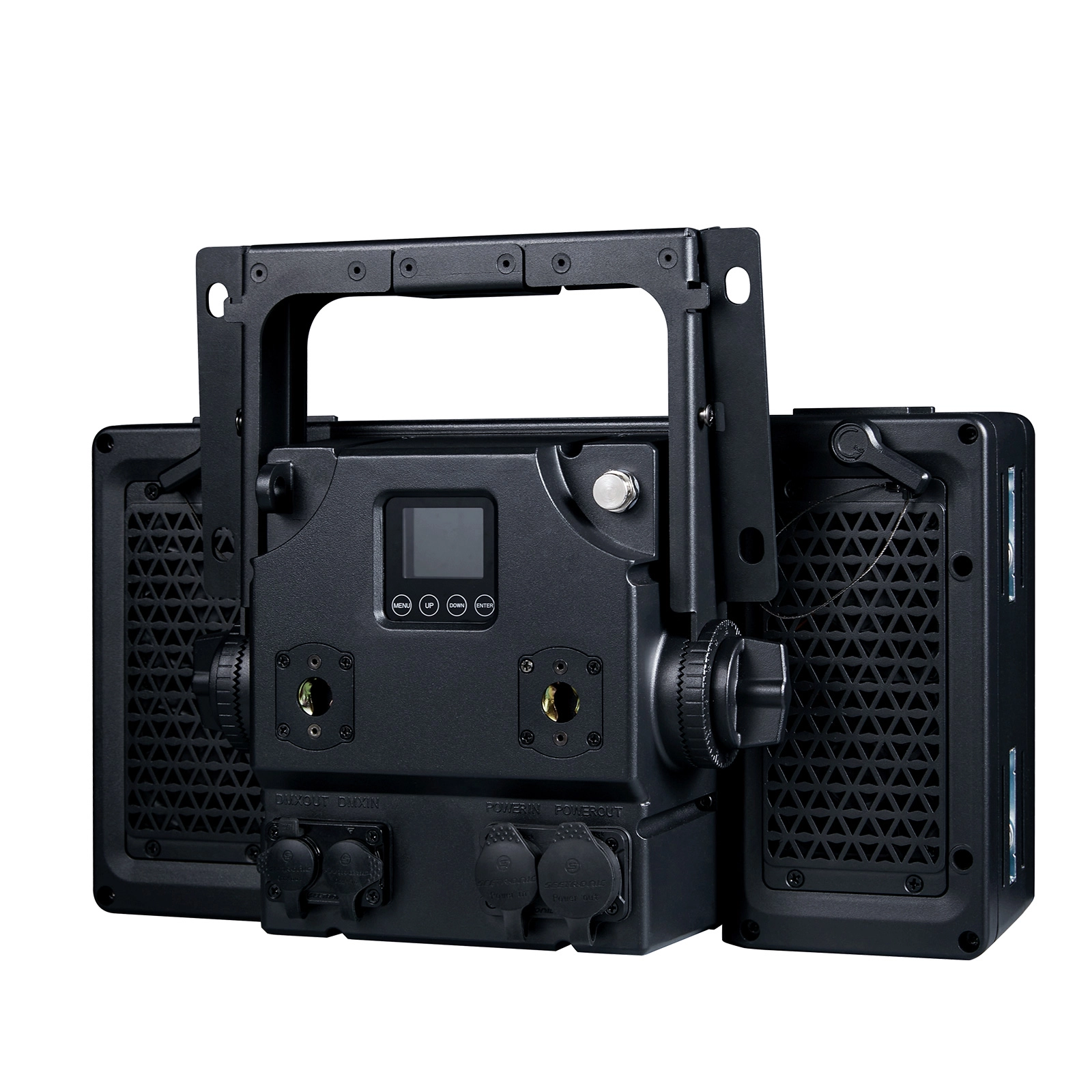

Display | OLED display | Signal input/output | 3pin waterproof XLR socket (optional with 5pin) | Power socket | waterproof power connector input/output |

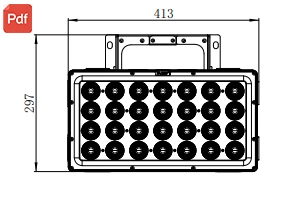

Protection Rating | IP66 | Size | 413x184x300mm | Net weight | 13.2kg |
Lens angle | 25°(Optional 45 °) | LED angle | 120° | CCT | 1800k-7000k |

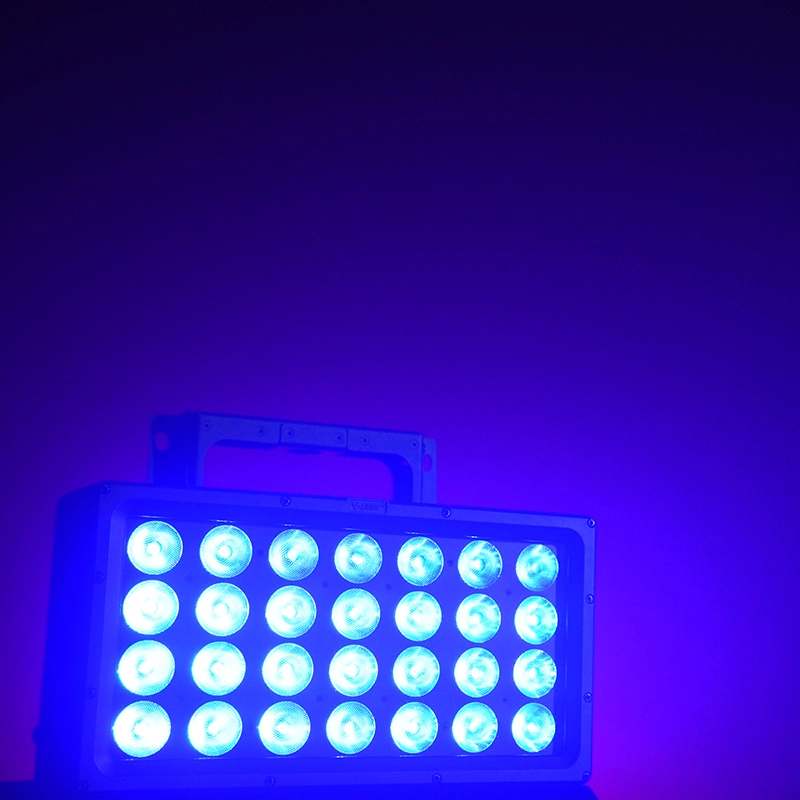

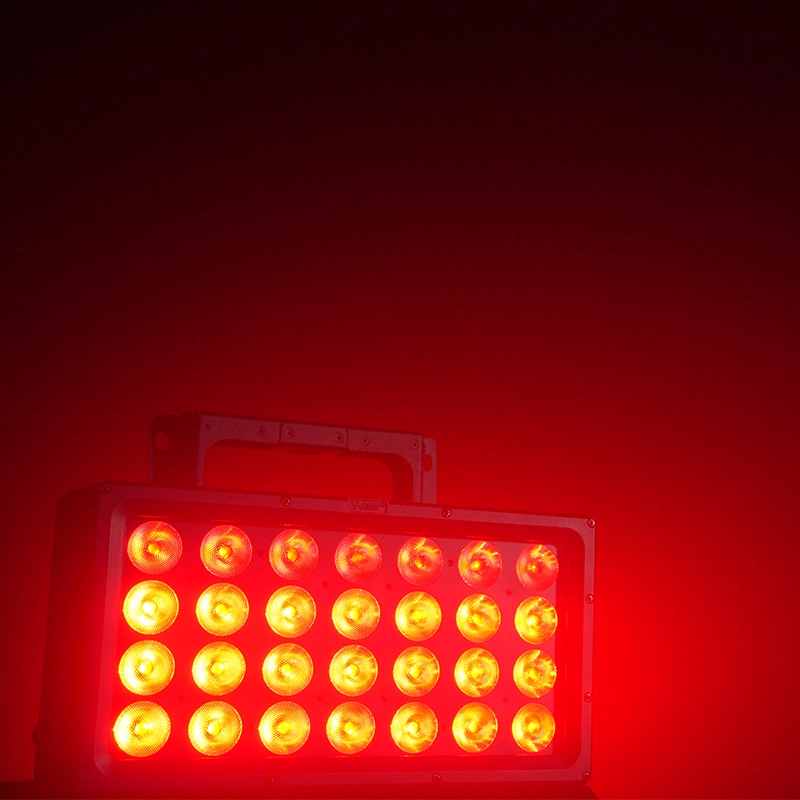

Excellent color mixing effect
