Product Features:

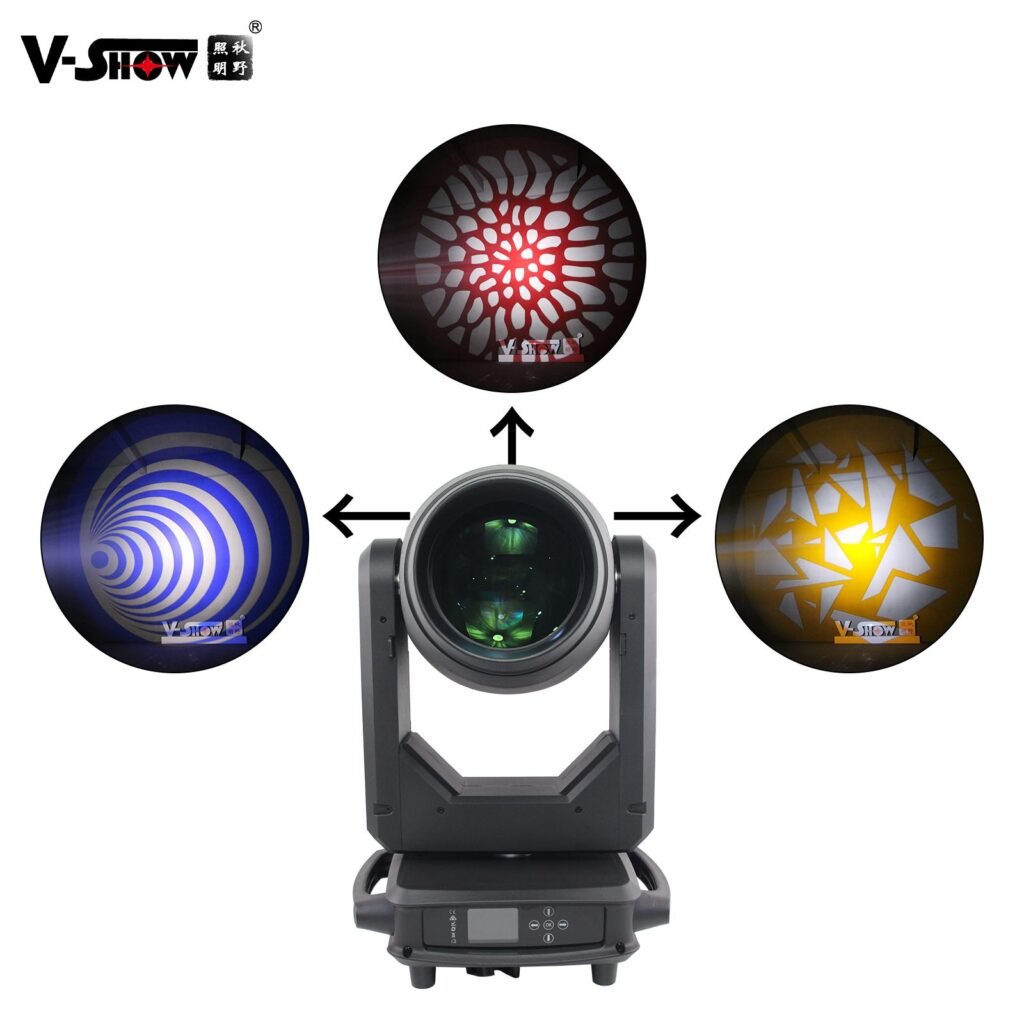

1. 3-in-1 BSW Performance: Integrates beam, gobo, and wash functions in a single fixture. Equipped with a Philips MSD Silver 380W/2 long-life light source (4000hrs), delivering sharp beam impact, clear gobo projection, and soft wash effects.
2. Professional Color Management: Features linear CMY color mixing for infinite and seamless color changes. Boasts a high color temperature of 7800K with CRI80, ensuring accurate and vivid color reproduction for professional stage scenarios.
3.Rich Dynamic Effects Library: Equipped with dual prisms (4+8 rows) for superposition and rotation effects. Combined with 18 static gobos + 9 rotating gobos, it creates diverse and stunning stage visual effects
4.Durable & User-Friendly Design: Constructed with high-temperature resistant & flame-retardant nylon housing. Equipped with an LCD touchscreen, overheating protection, and double strobe motors for variable-speed, outstanding strobe effects. Supports DMX512, RDM, master/slave, and self-propelled modes.
Product Specification:
Input Voltage: 100-240V, 50/60Hz
Output Voltage: V1:36V2A(Master board), V2:12V4A(cooling fan), V3:380V1A(lamp)
Power consumption: 520 W
Power supply: 600W
Light source: PHILIPS MSD Silver 380/2 LL (4000 hours)
Color temperature: 7800K
CRI：80
Diameter of optic lens: 128mm
Beam angle: 2°-50°
Color wheel: 15 colors on 3 wheels 2 CTO Filters
CMY colour mixing
Static gobo: 18 gobos plus 1 white circle
Rotation Gobo: 9 Gobo plus 1 white circle
Frost : with smooth wash effect
Prism: Equipped with 8 prism, and 4 rows prism, the two prisms
DMX Channel: 31CH
Operate mode: DMX512, self-propelled, master/slave, RDM
Linear focusing system
Double strobe motor Outstanding strobe effect with variable speed
0-100% smooth dimming
Control panel: LCD Touchscreen
Overheating self-energy protection bulbs, extending lamp life
X-axis rotation angle: 540°
Y-axis rotation angle: 270°
Three phase motor with SY Brand
XY axis magnetic coding positioning is more accurate
Power Outlet: Power Connector Input/Output
Signal Outlet: standard 3 Pin XLR socket(can customized 5 pin XLR socket) Installation: 2x fast lock (folding clamp can optional)
Fixture size: 338x256x588mm
Net weight: 17KG
