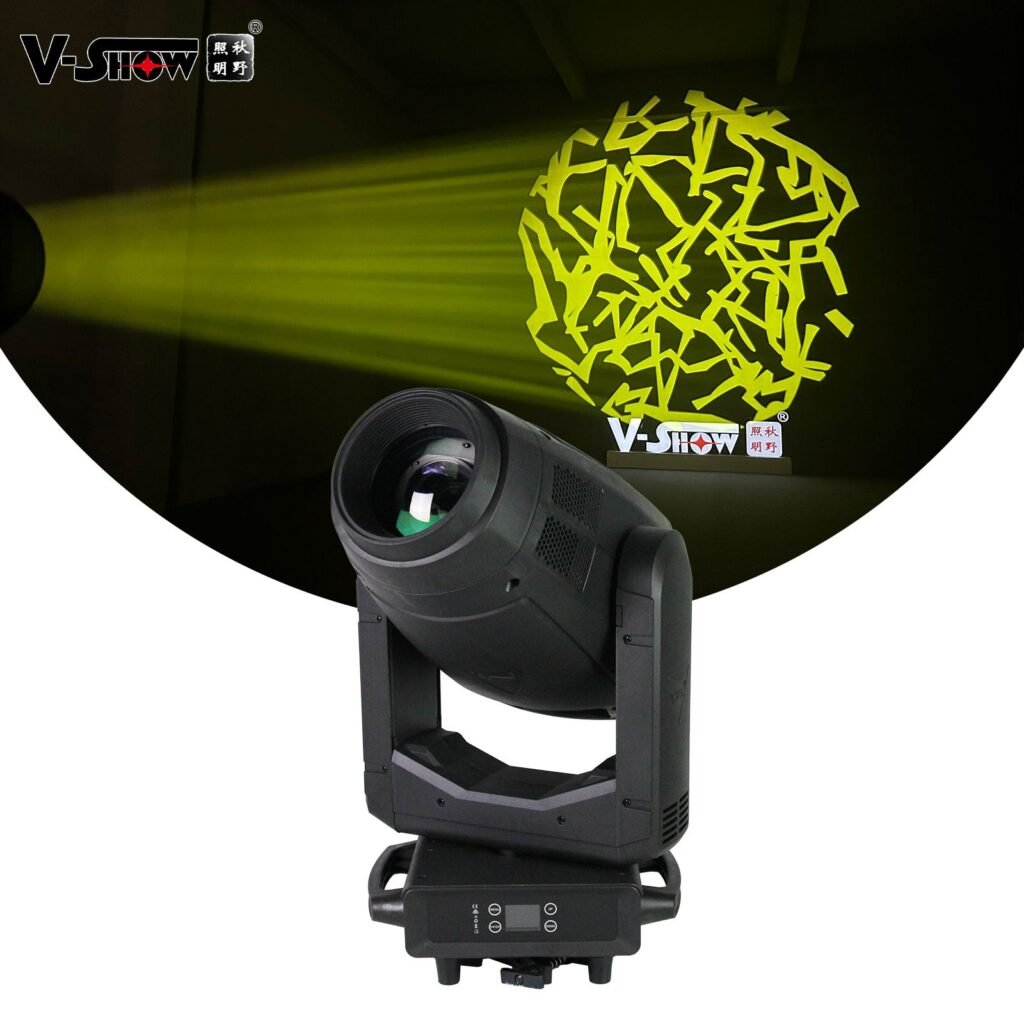

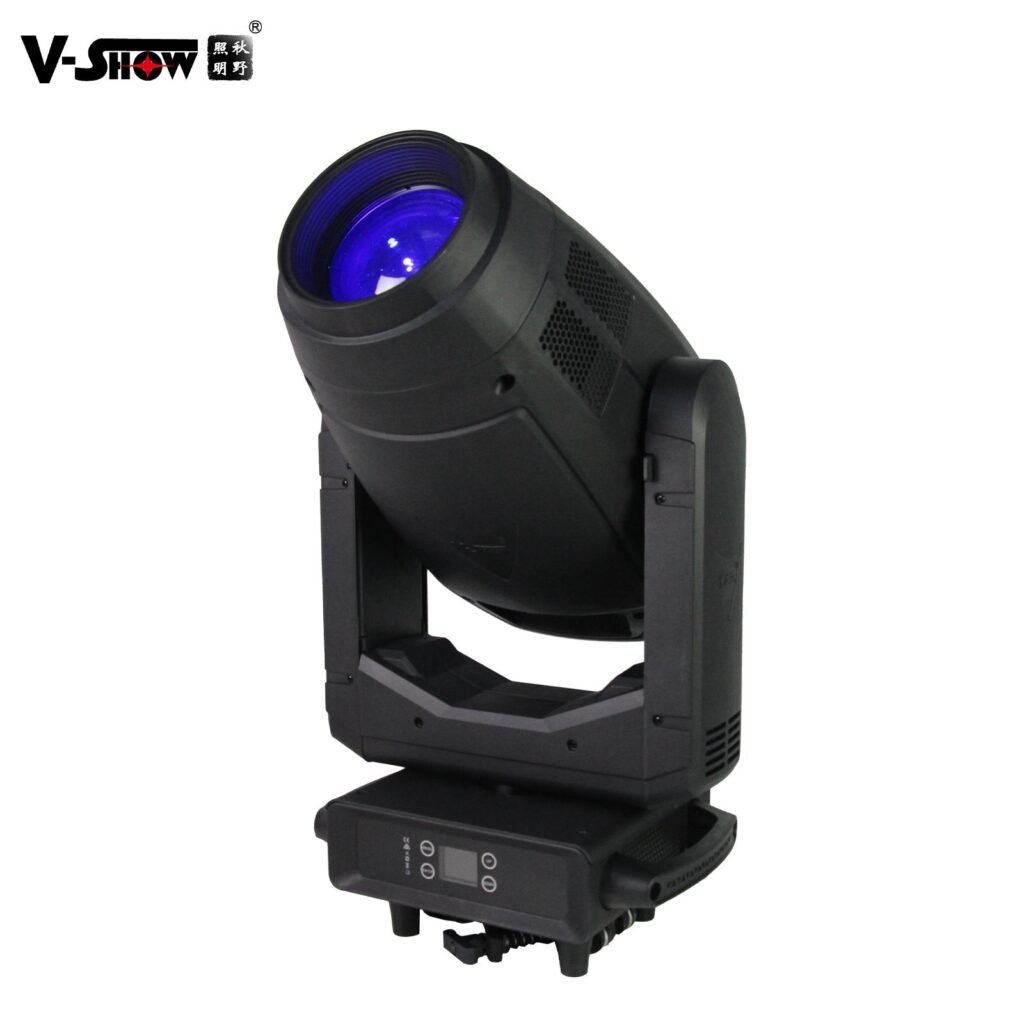

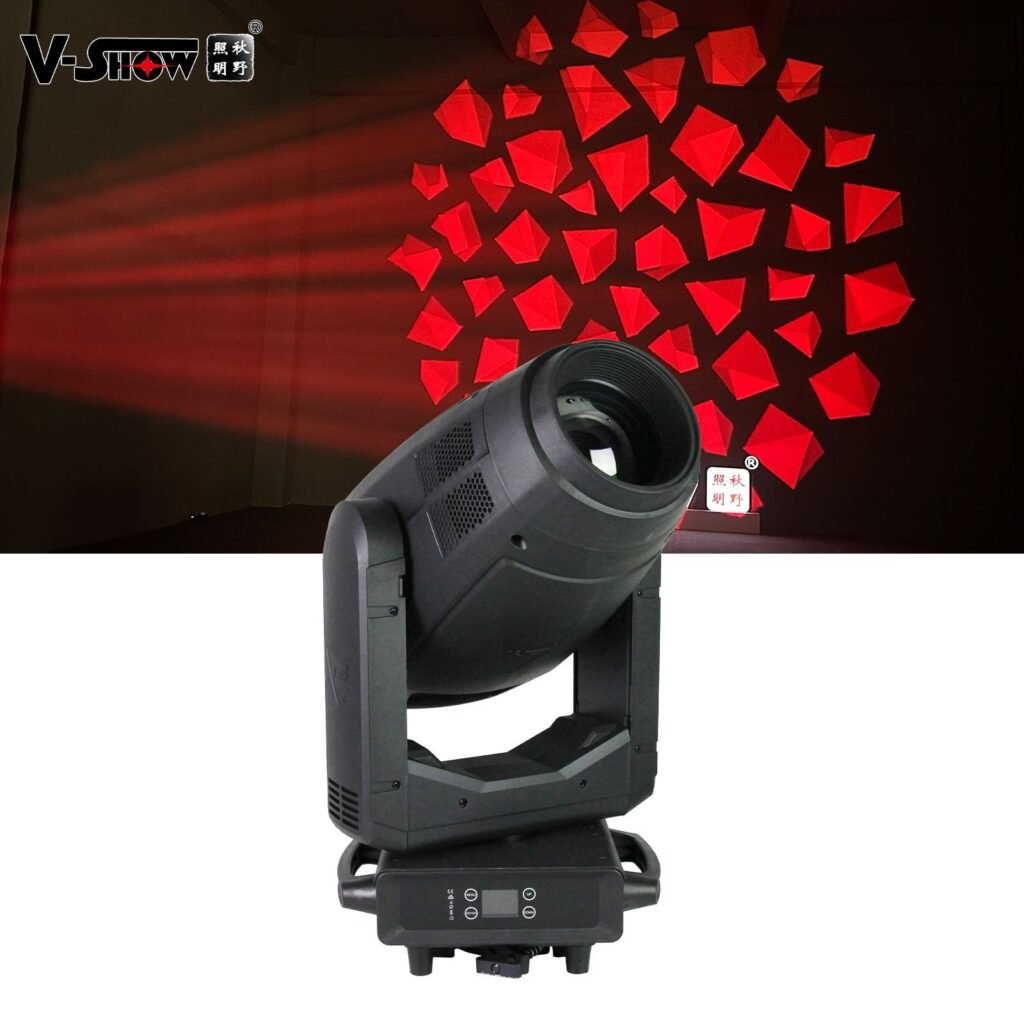

VSHOW S711 is a professional high-performance LED moving head light, built for all professional stage scenarios with premium optical and mechanical design. It features a 600W custom LED engine delivering 35,000lm ultra-bright output, paired with a 120mm large-diameter combined optic lens for clear, sharp imaging without blurring. The dual CRI modes and variable CTO (2700K-7000K) + linear CMY color mixing ensure accurate color reproduction and flexible color adjustment for diverse stage effects.
Equipped with multi-effect light wheels (5-color wheel, 8-gobo static wheel, 7-gobo rotatable wheel with easy replacement) and a 4-facet bidirectional rotating prism, it creates endless color and pattern combinations. The 4-channel independent framing shutters support full blackout and ±90° rotation for precise area light control, matching with flicker-free 0-100% motorized dimming, motorized focus and linear iris for delicate light adjustment.

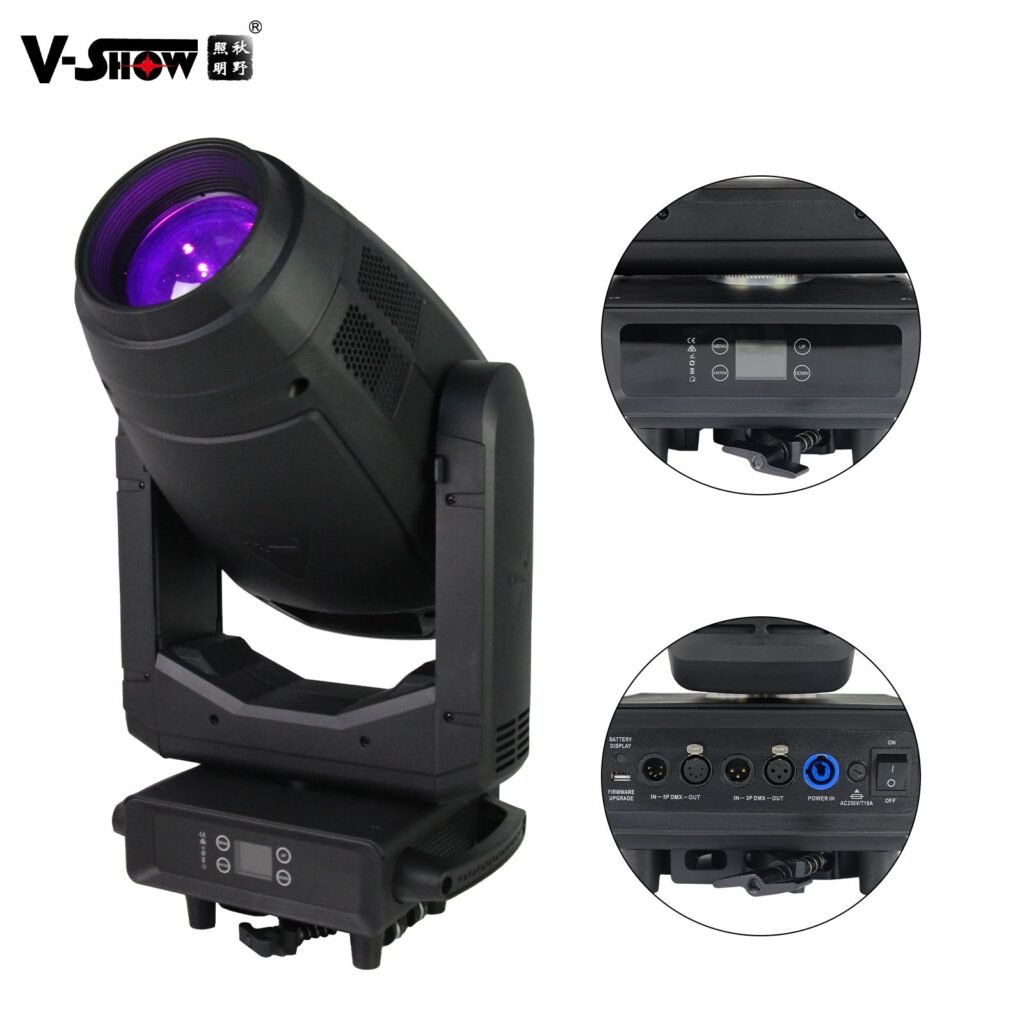

For stable and quiet operation, it adopts 3-phase magnetic coding positioning motors, with automatic pan/tilt position correction and tilt lock to avoid deviation and reduce on-site debugging. The humanized design includes a 4-button touch panel + color display, battery-powered display for wire-free short setting, and dual power/data in/out interfaces (3P/5P XLR, RJ45) for multi-device series connection. With 2 foldable universal truss clamps, it enables quick installation for hoisting or ground placement. The PA6 nylon casing and 800W power supply ensure durability and stable long-time full-load operation in harsh stage environments.
Product Specs
| Input Voltage | 100-240V, 50/60Hz |
| Power Consumption | 600W |
| Light Source | 600W High-power LED Module Engine |
| Total Lumen Output | 35,000lm |
| Color Temperature & CRI | 8500K; Standard Ra＞70 / High CRI Ra＞90 |
| Zoom Angle | 5-55° Motorized Zoom |
| Pan/Tilt Movement | 540° Pan / 270° Tilt (16bit High Resolution) |
| DMX Channels | 34/35/39CH |
| Operation Modes | DMX512, RDM, Auto-run, Master/Slave |
| Casing Material | PA6 Nylon (High Temp Resistant ≤200°C, Flame Retardant) |
