Function description

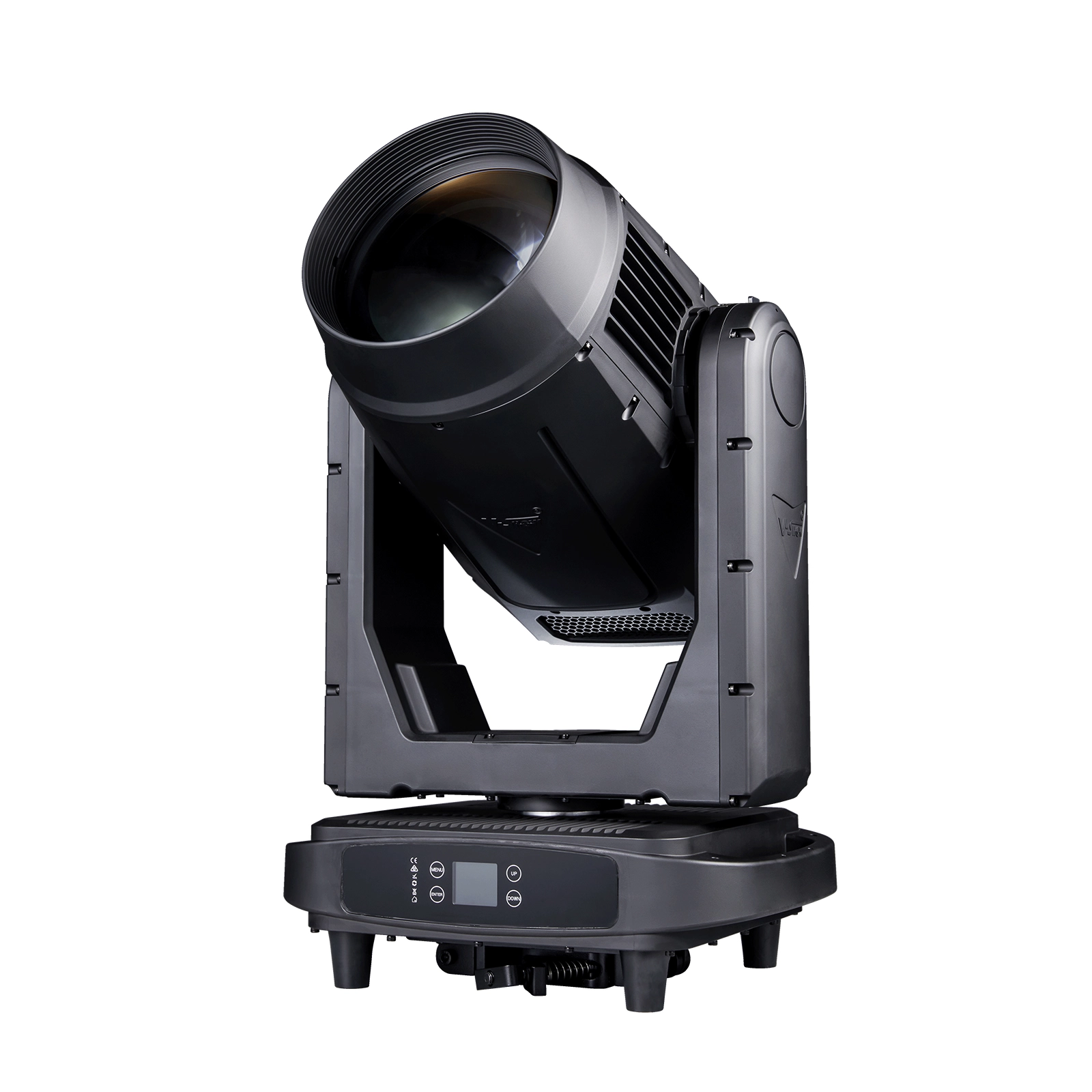

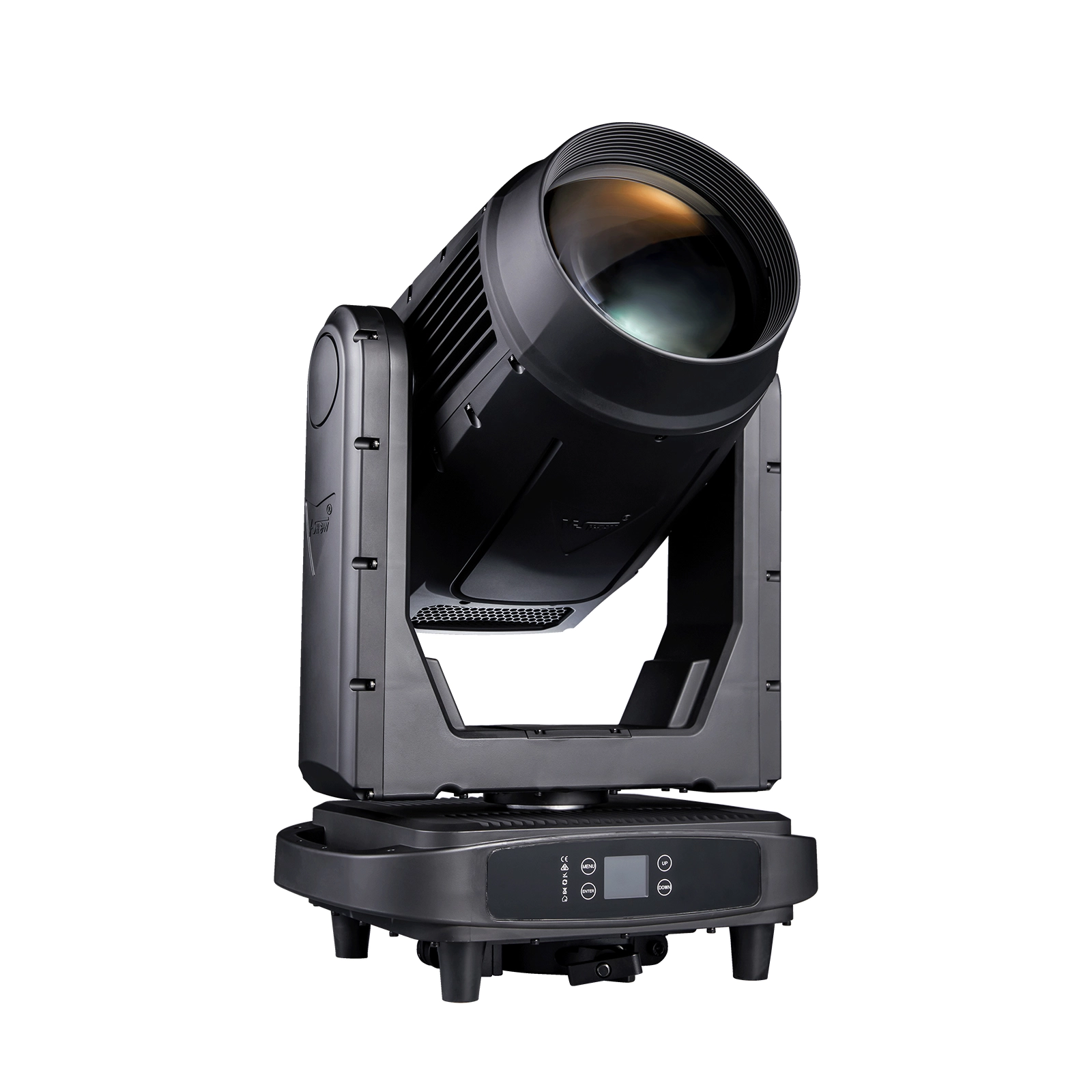

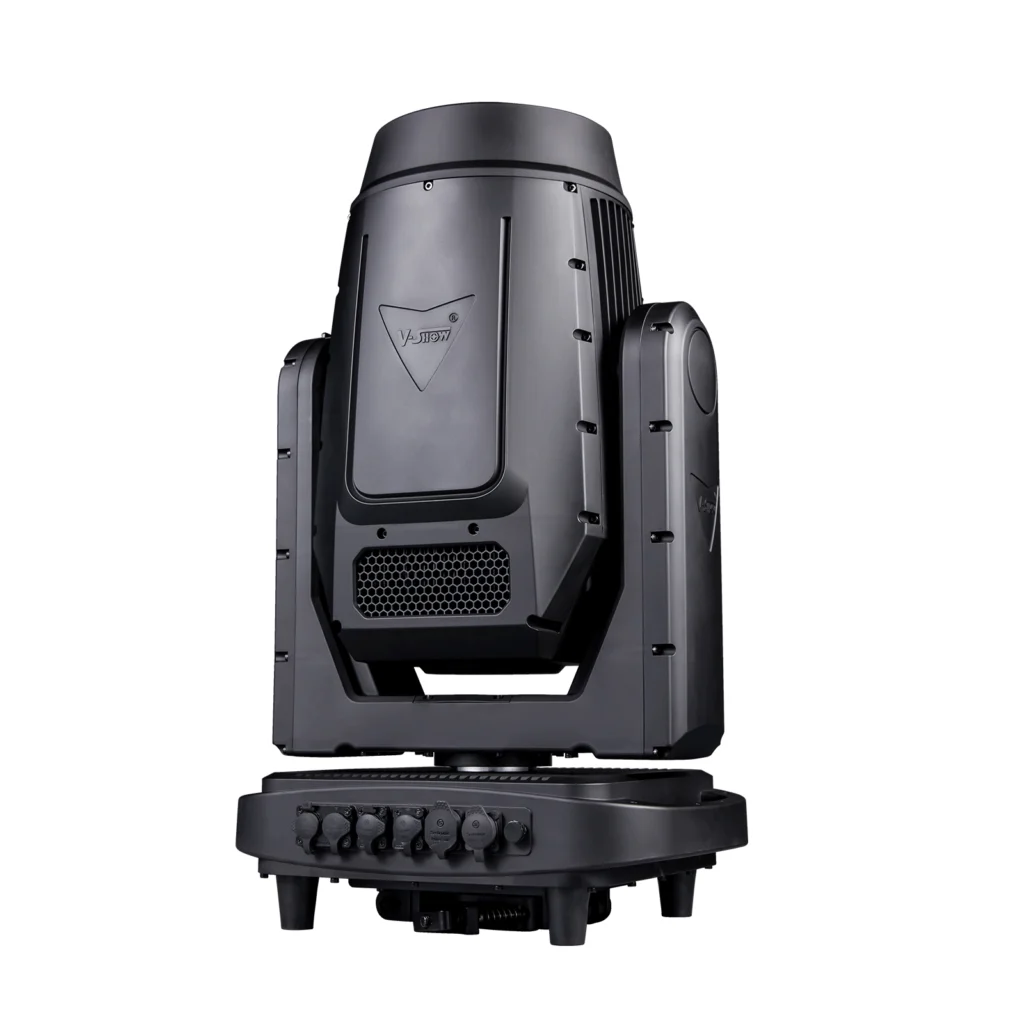

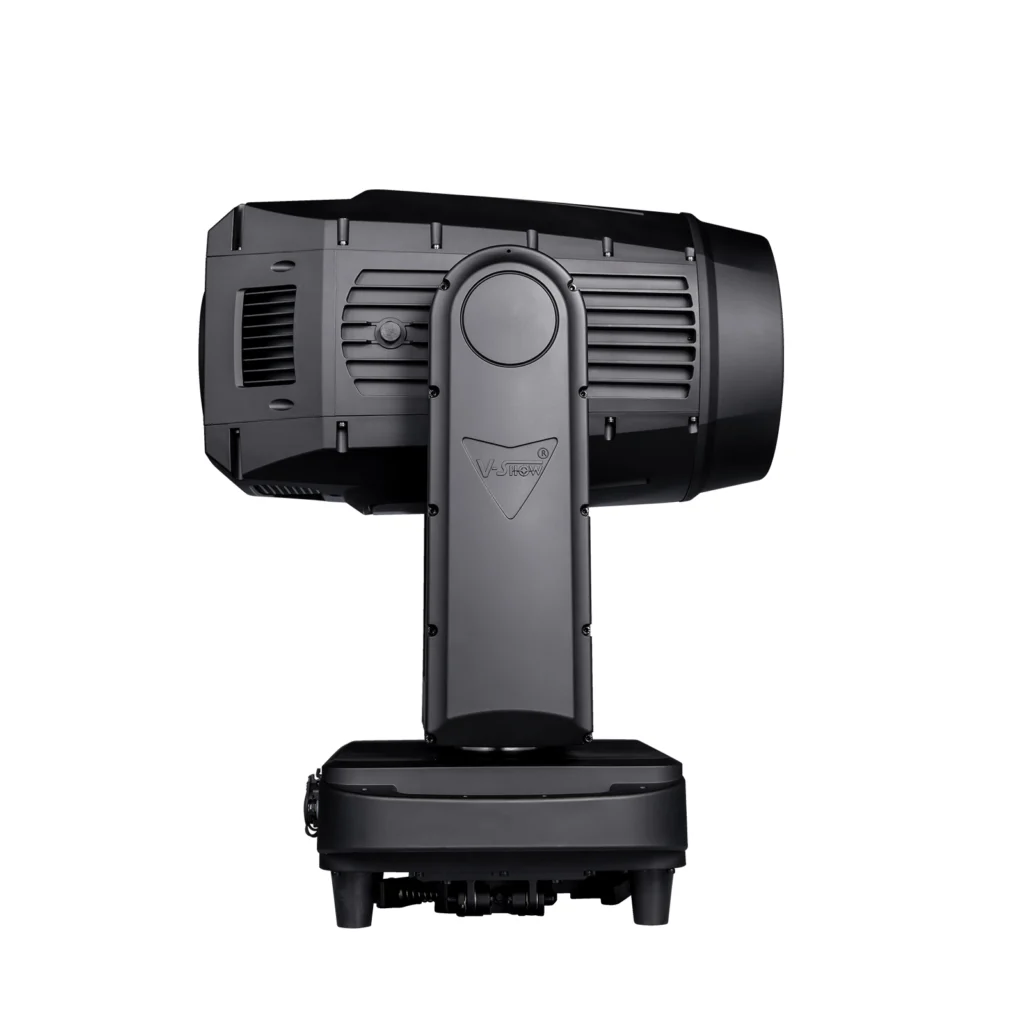

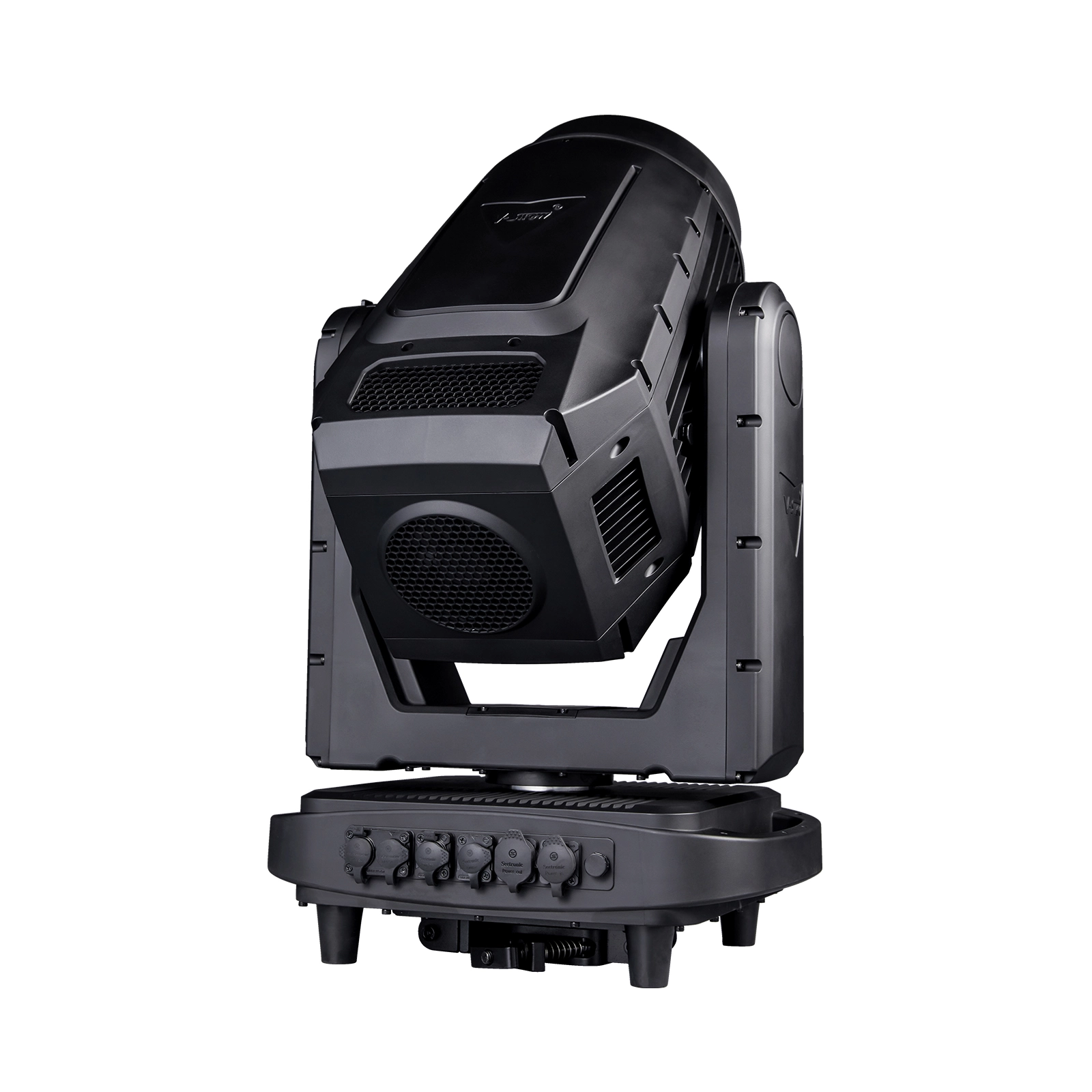

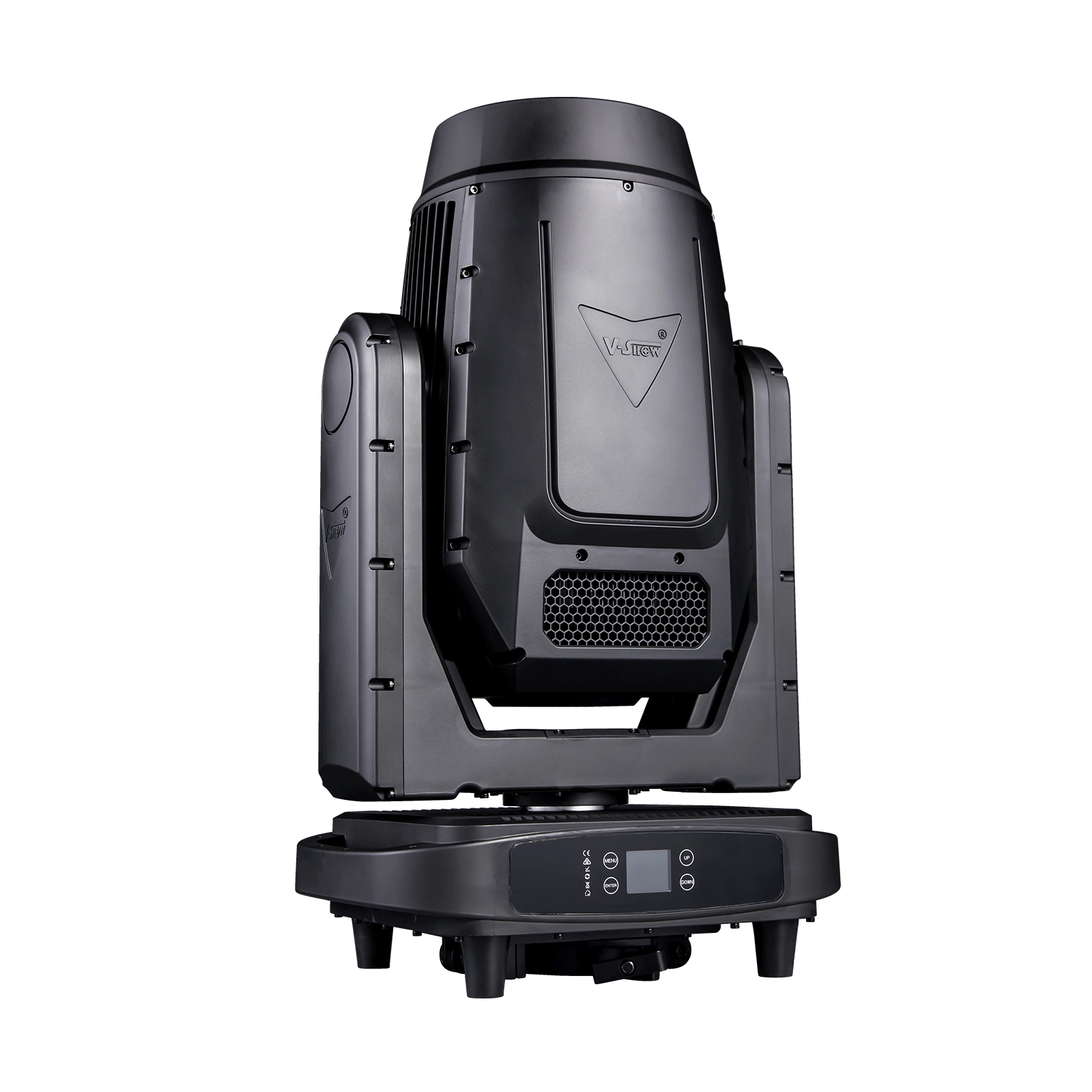

Beam IP66, the VShow G45 420W IP66 Waterproof Beam Moving Head Light features a USHIO NSL420S sharp beam with CMY+CTO color mixing and a 200mm optic lens, designed for precise stage illumination in demanding environments. Choose VSHOW for reliable, high-quality performance built to withstand outdoor use.
Parameters
| put Voltage | 100-240V, 50/60Hz | Light source | USHIO NSL420S |
| Power supply | 800W | Power consumption | 560W |
| Lifetime | 4000 Hours | Color temperature | 7600K |
| Beam angle | 1.3° | Diamter of optic lens | 200mm |
| CMY | Linear CMY color mixing | CTO | Linear CTO color temperature |
| Color wheel | 13 fixed colors + CRI, rainbow effect | Fixed Gobo | 10 gobo + 3 effect gobo + white |
| Effect Gobo | Effect 1: 3 gobo, can be superimposed with the fixed bobo Effect 2: Two homogenizing plates, effectively improving the uniformity of the light spot and eliminating the hollow feel of the beam | Prism | 8-facet prism, 6-sided linear prism, 24-facet prism, 48-facet prism 8-facet prism can rotate and stack with 24 or 48 prisms bidirectionally. 6-sided linear prism can rotate and stack with 24 or 48 prisms bidirectionally can be stacked and rotated in both directions |
| Control panel | LCD touch screen with backlight | Protection Grade | IP66 |
| Power socket | Power Connector Input | Signal socket | standard 3 Pin XLR 5 pin XLR socket |
| Operate mode | DMX512, RDM Auto | DMX Channel | 24CH |
| Net Weight | 31kg | Gross Weight | 35kg |
| Fixture size | 412x284x687mm | Package size |
Details & Features

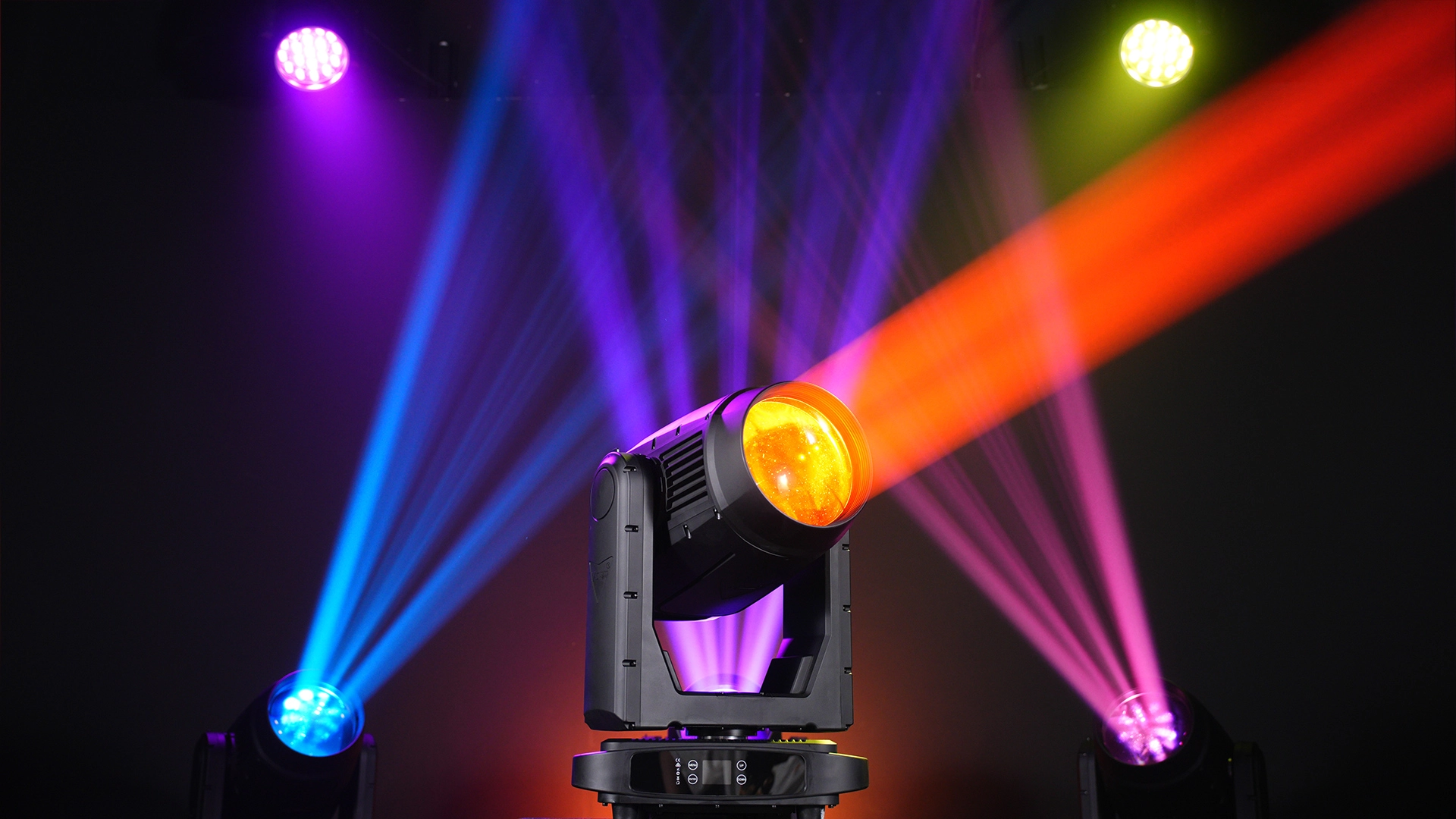

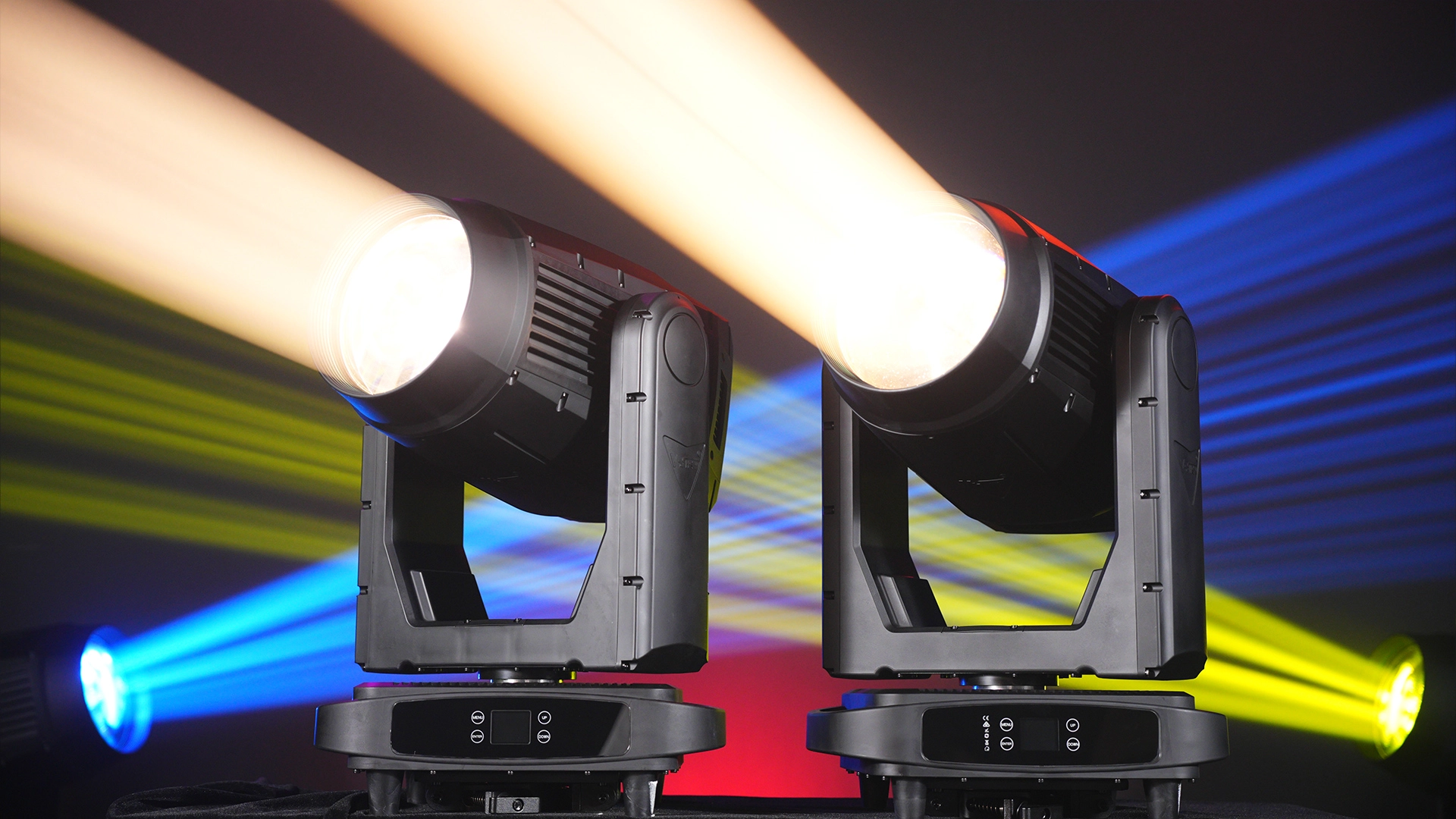

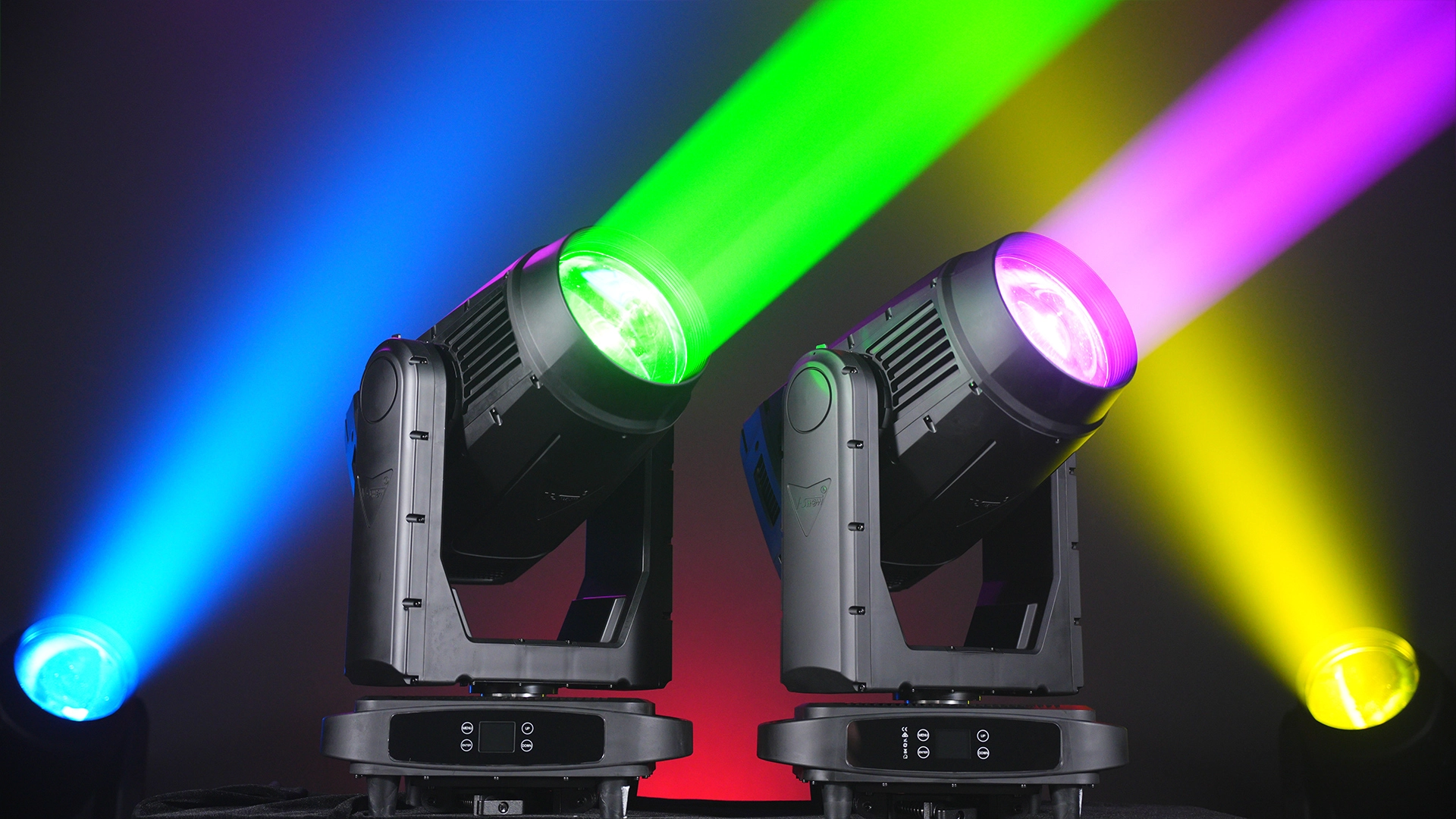

Excellent color mixing effect
