Buyer Protection: We Keep Buyer Information Completely Confidential!Function description

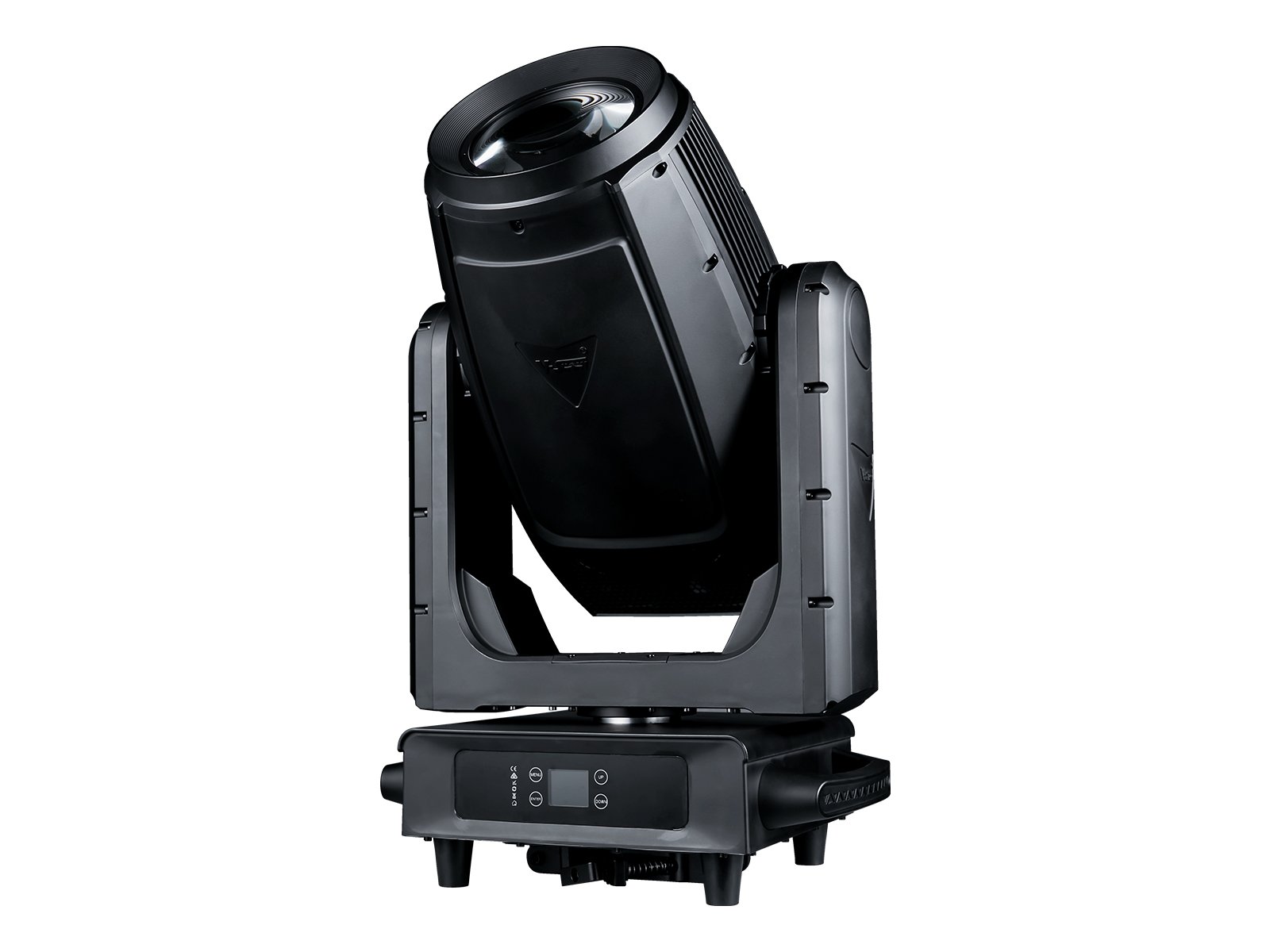

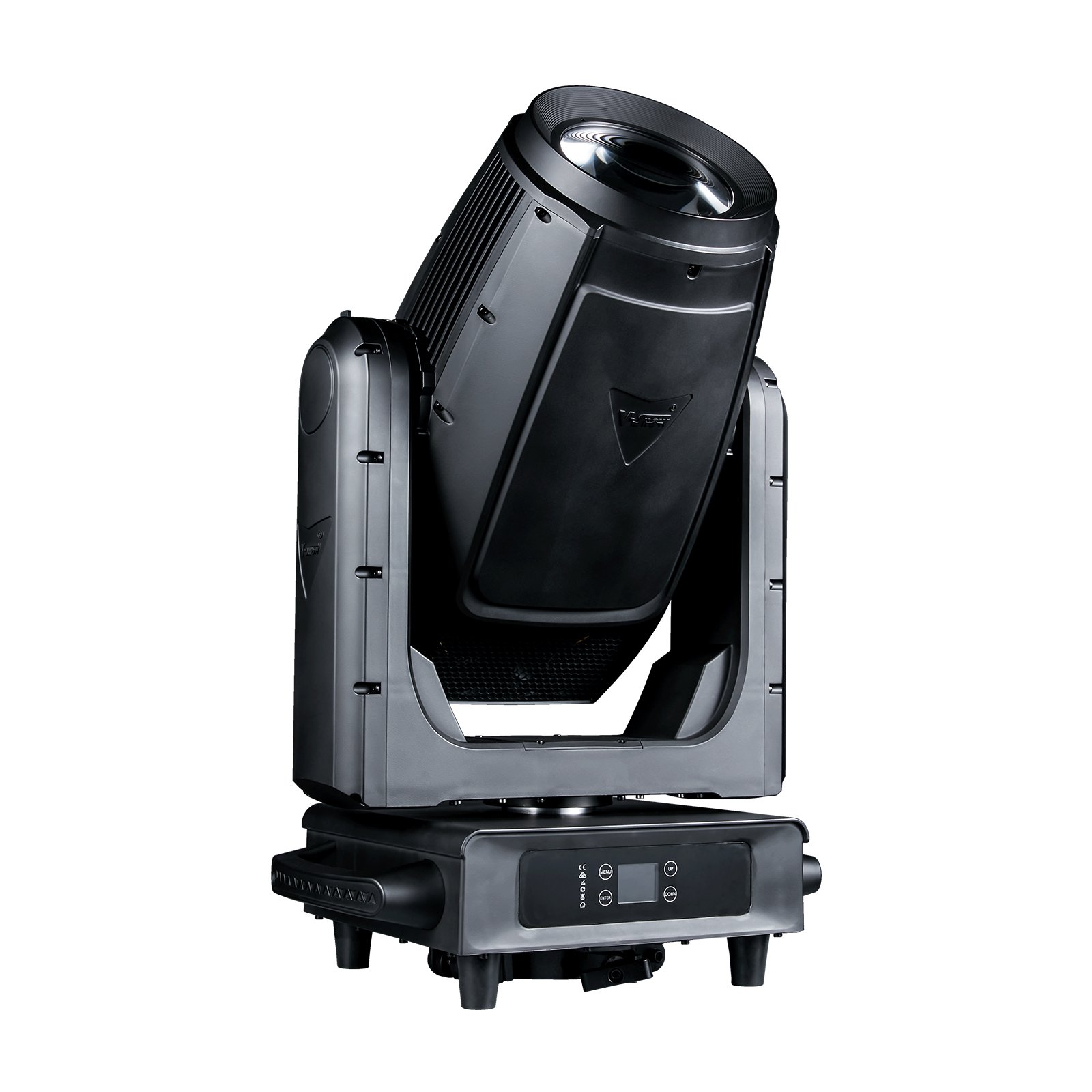

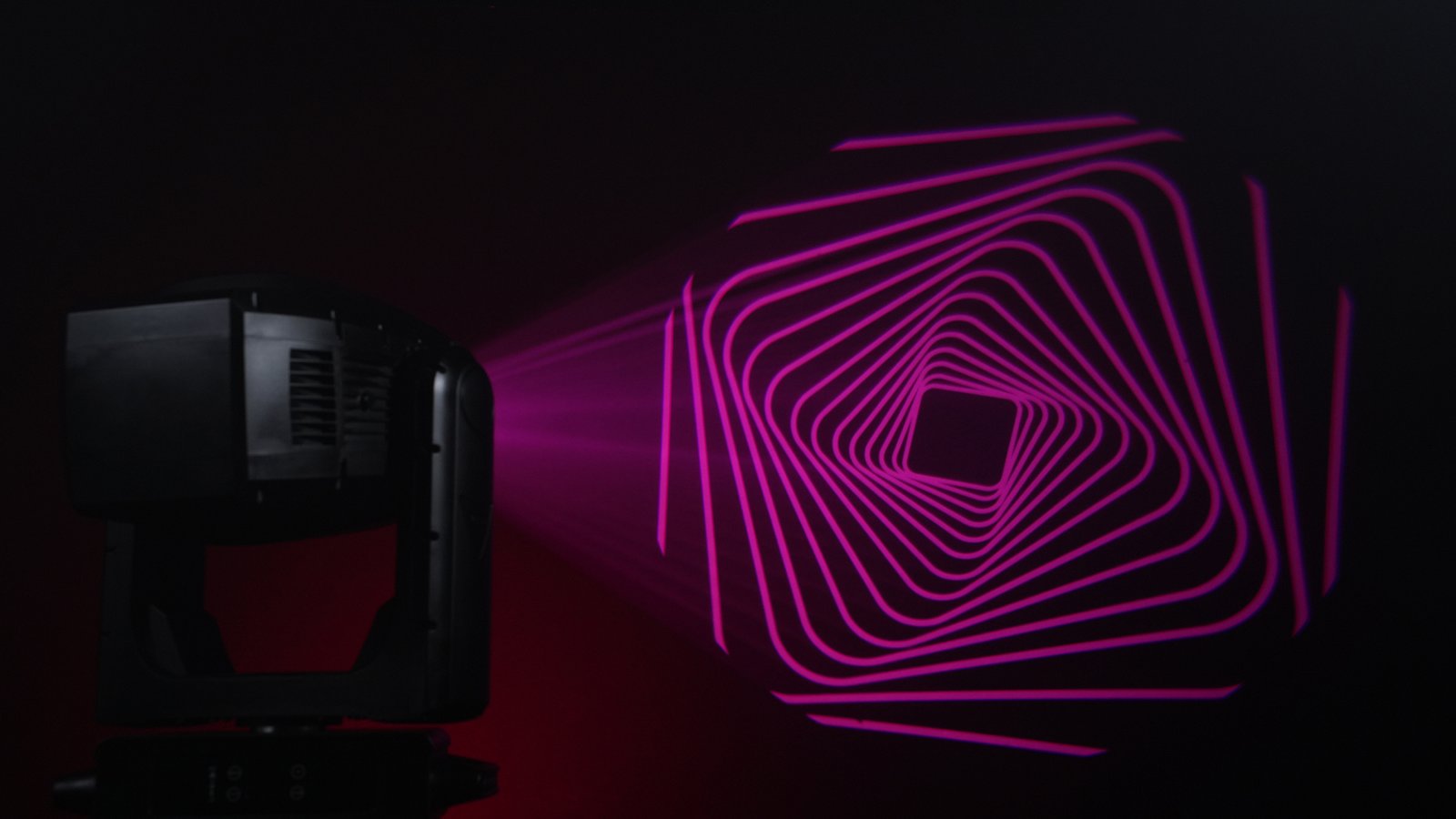

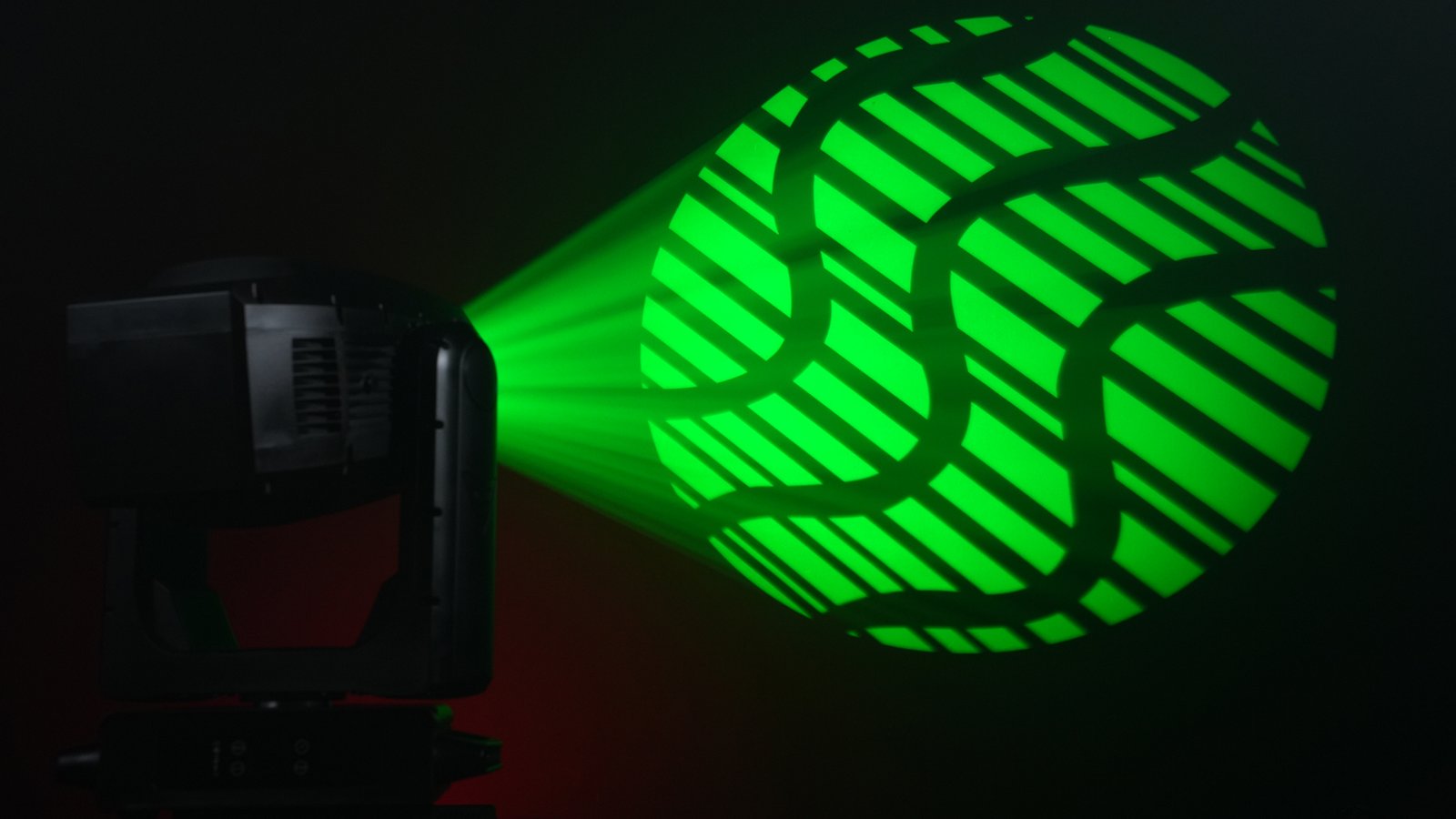

fixture set light beam, spot, wash and cutting functions in one, pure color, uniform spot, color plate, glass gobo plate, CTO, CRI plate are schott materiallt, , Plug in CMY color system, Provides rich color saturation and clear seamless color transitions. LED adopts energy-saving and environment-friendly 1000W monochrome LED light engine, which can produce extremely high light output white light, color temperature of 7500K, CRIRA≥90, and zoom range 6°- 50,The cutting system consists of 4 gratings, which can be rotated ± 60°, giving designers unlimited spot creativity. Two high brightness atomizing pieces of new materials can be respectively inserted and superimposed,All day use, waterproof rating IP65
Parameters
| Input Voltage | 100-240V, 50/60Hz | Cutting system | 4 grating to achieve fast and smooth cutting, each grating cutting direction and Angle can be independently controlled; The entire cutting module can be rotated 120° |
| Power consumption | 1050W | Dimming | 0-100% 16bit smooth dimming(Four dimming modes) |
| Power supply | 1200W | Feature | Adjustable refresh frequency HD camera shooting without flicker |
| Light source | 1000W Module LED Engine | Feature | More strobe effects,variable speed |
| Lifetime | ≥20,000Hours | DMX Channel | 22/30/31/39/40CH |
| Color temperature | 7500K | Operate mode | DMX512, master/slave |
| Linear CTO color temperature adjustment | 3000K-7000K | Function | Electronic autofocus |
| Standard color rendering index Ra | ≥ 70 | Effect | Outstanding strobe effect with variable speed |
| High color rendering index Ra | ≥ 90 | Control panel | LCD touch screen |
| Beam angle | 5°-50° | System | Intelligent protection of overheat temperature |
| CMY | Linear CMY color mixing system | X-axis rotation angle | 540° |
| Color wheel | 1 color wheel, 6 fixed colors+CRI color that can be rotated in both directions | Y-axis rotation angle | 270° |
| Fixed Gobo | 1 fixed gobo, 9 fixed gobo | P/T | 16 bit precision scanning, no deviation |
| Rotation Gobo | 1 rotating gobo, 7 Rotation Gobo, patterns can be replaced | Postion | XY axis magnetic coding positioning is more accurate |
| Animation gobo | imitating water patterns and flame effects, dynamic disc rotatable | Structure | Three phase motor with SY Brand |
| Prism | 4-prism,4-sided straight mirror, both capable of bi-directional rotation | Signal socket | Standard 3-pin XLR and 5-pin XLR socket or RJ45 |

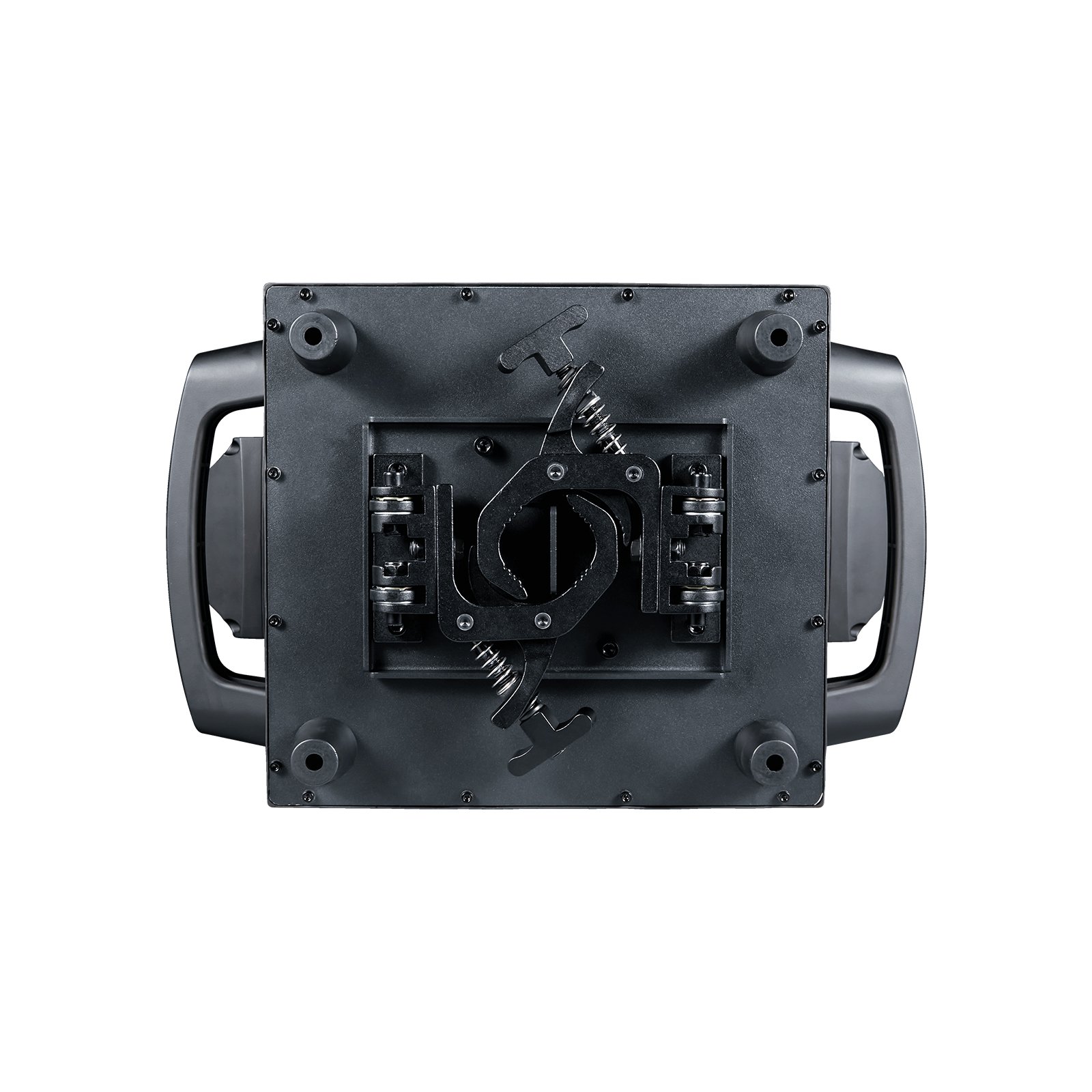

| Two independent frost tablets | (Mild and moderate) can be used in combination | Folding clamp | Standard with 50MM folding fixture |
| Fixture size | 442x308x730mm | Protection level | IP65 |
| Net weight | 38.KG | package size |
