Function description

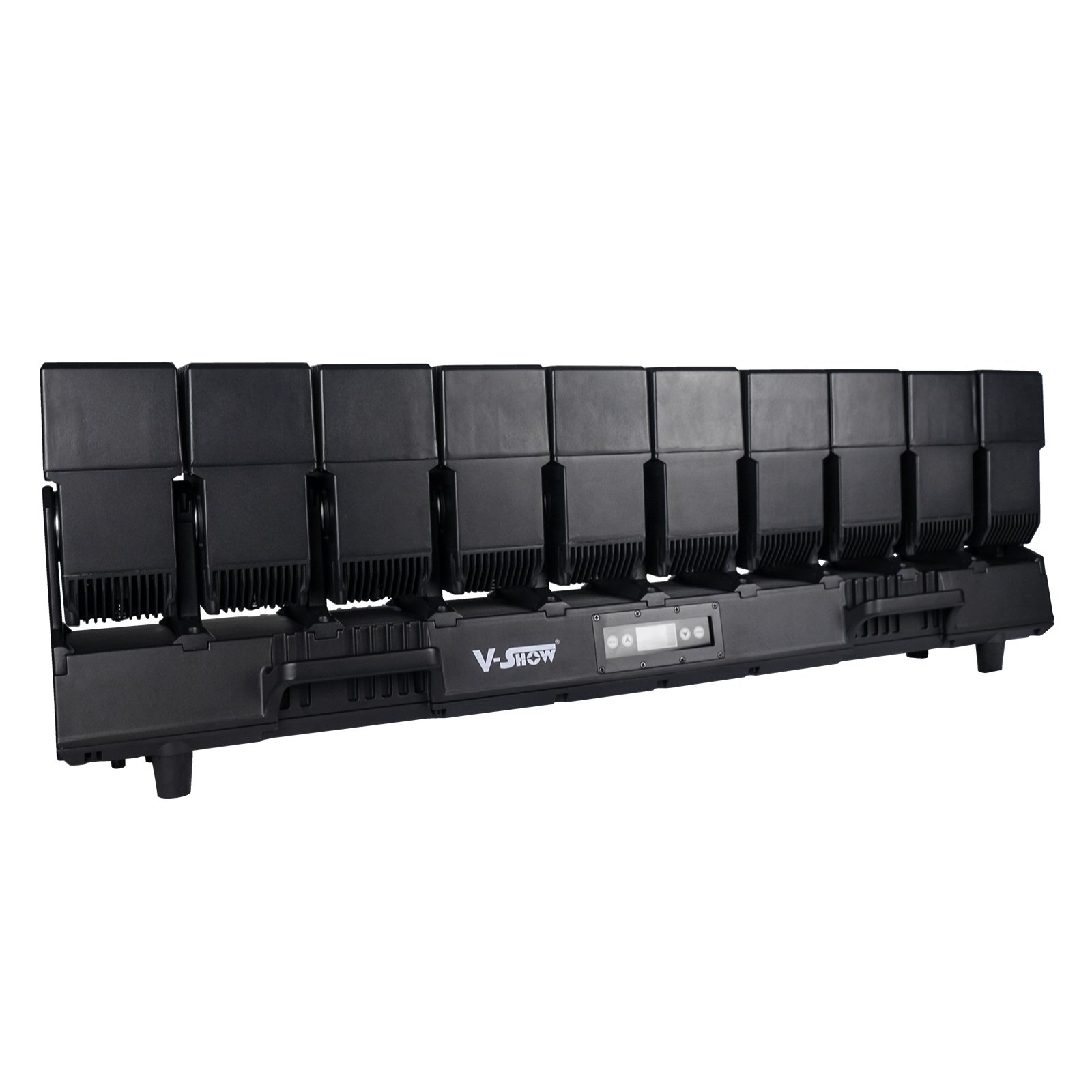

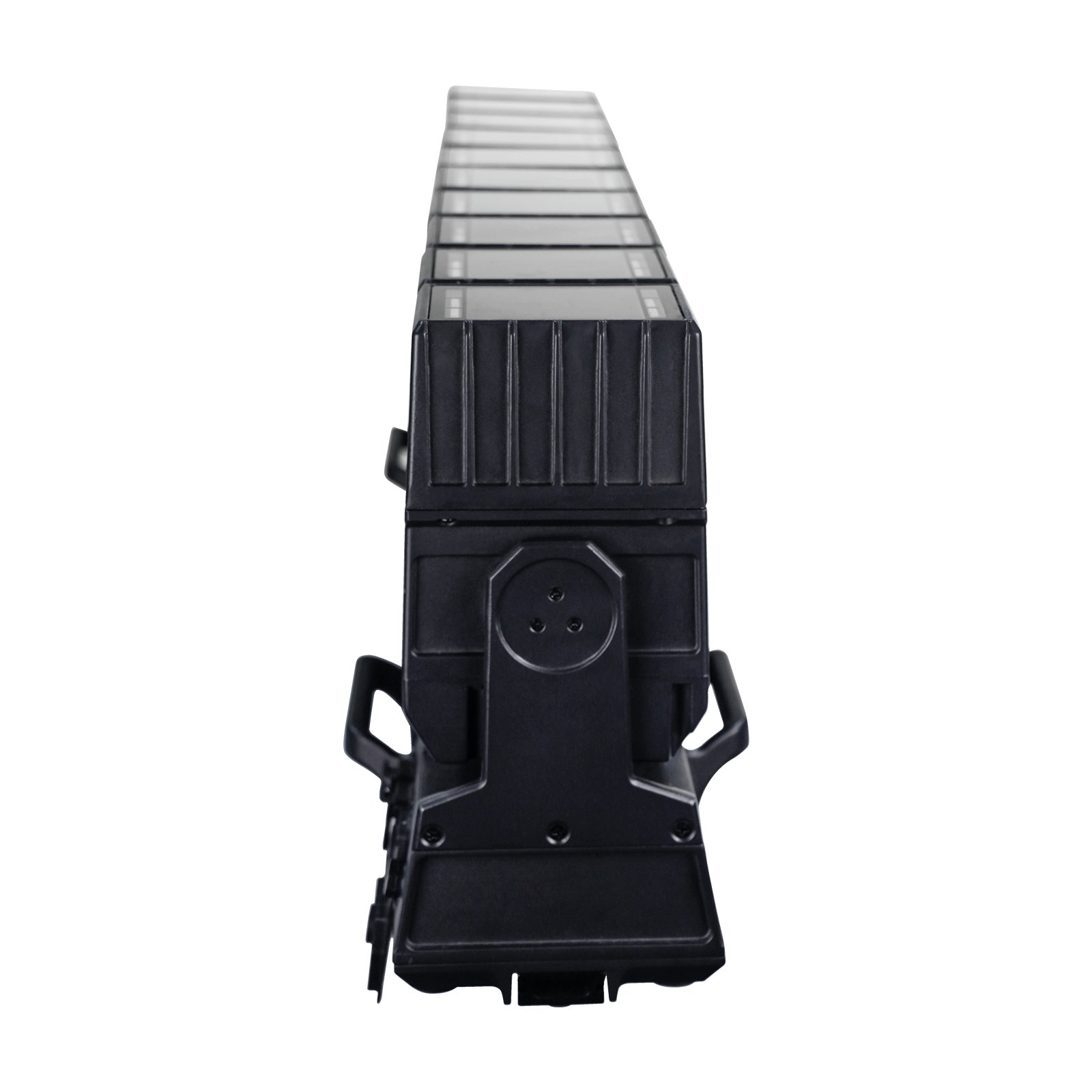

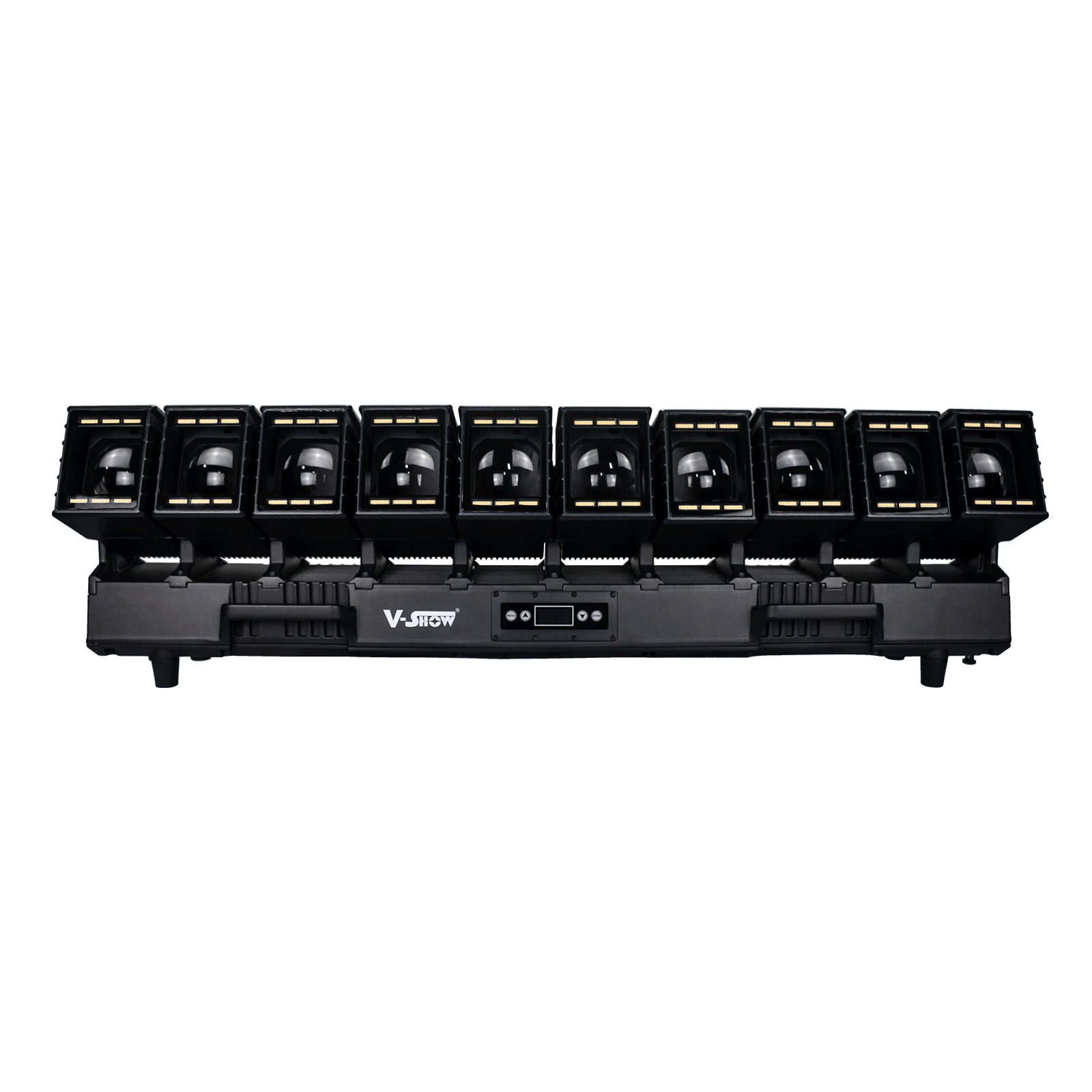

<p>The VSHOW W1060 Wave Line IP65 is a high-performance moving bar featuring 10pcs 60W RGBW 4in1 LEDs. This durable moving bar zoom effect light with strobe delivers vibrant wave line effects, perfect for dynamic stage lighting. IP65 rated for reliable outdoor use.</p>
<p>The auxiliary light area uses LED light strips independently controlled by 12 areas on one side, which has the color mixing function.</p>
<p>The auxiliary light area uses LED light strips independently controlled by 12 areas on one side, which has the color mixing function.</p>
Parameters
|
Input Voltage |
100-240V, 50/60Hz |
Light Source |  10PCSx60W RGBW 4IN 1 |
LED lifespan |
>20000 hours
|
|
Power supply |
1000W |
Zoom angle |
4-40°
|
Dimming |
 0-100% smooth linear dimming
|
|
Strobe light |
1-25HZ strong output flicker effect |
DMX Channels |
29/56/142/216/262/282 CH
|
Operate mode |
DMX512,Auto, master-slave/ RDM /Art-net/SACN
|
| Dimming curves |
linear, square law, inverse square law, S-curve
|

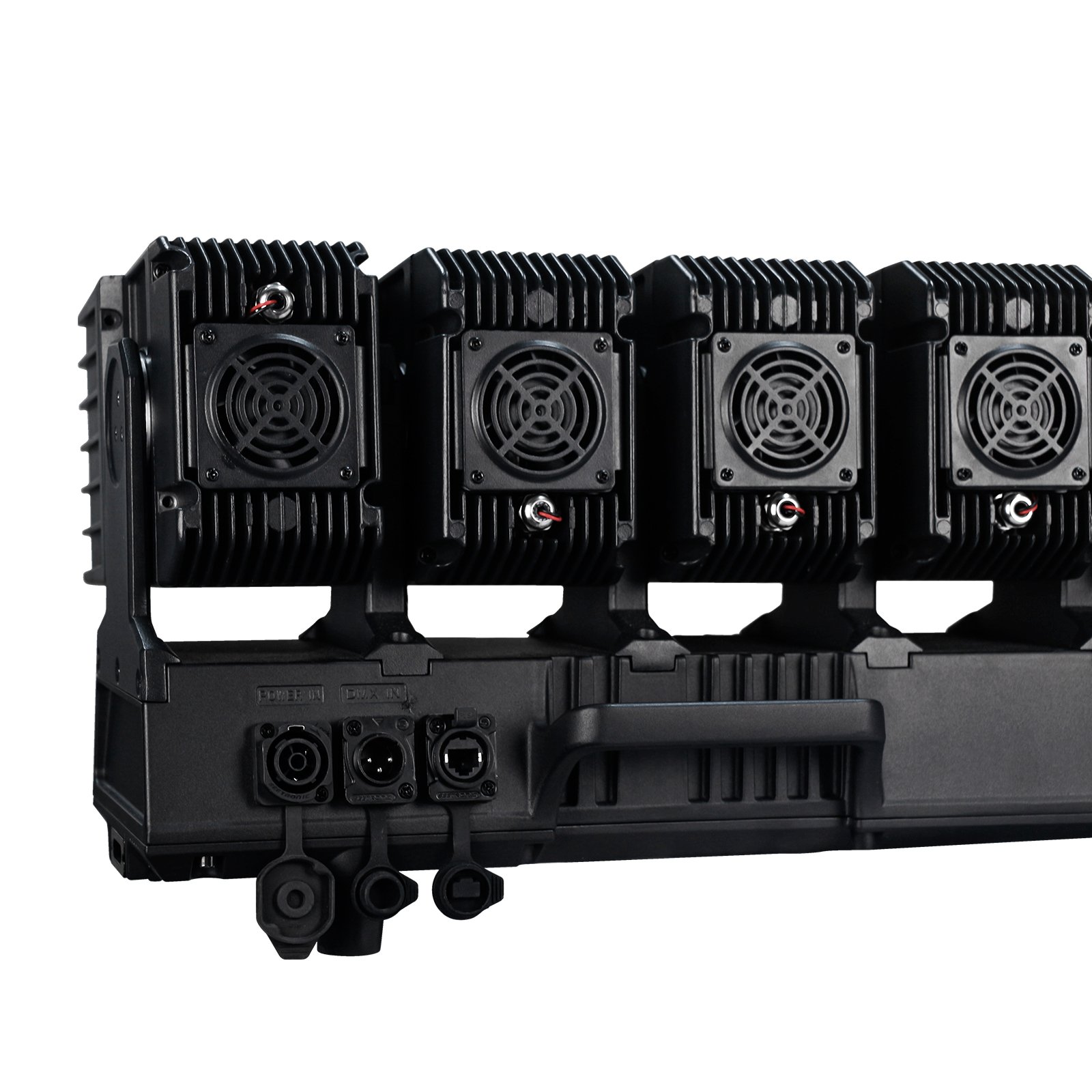

Signal output |
Â
3-pin OR 5-pin and RJ45 waterproof XLR sockets Â
|
working enviroment | -40°-45° |
| Pixel matrix |
 Main light 17psc controlled separately
|
Pixel matrix |
Main light 17psc controlled separately
|

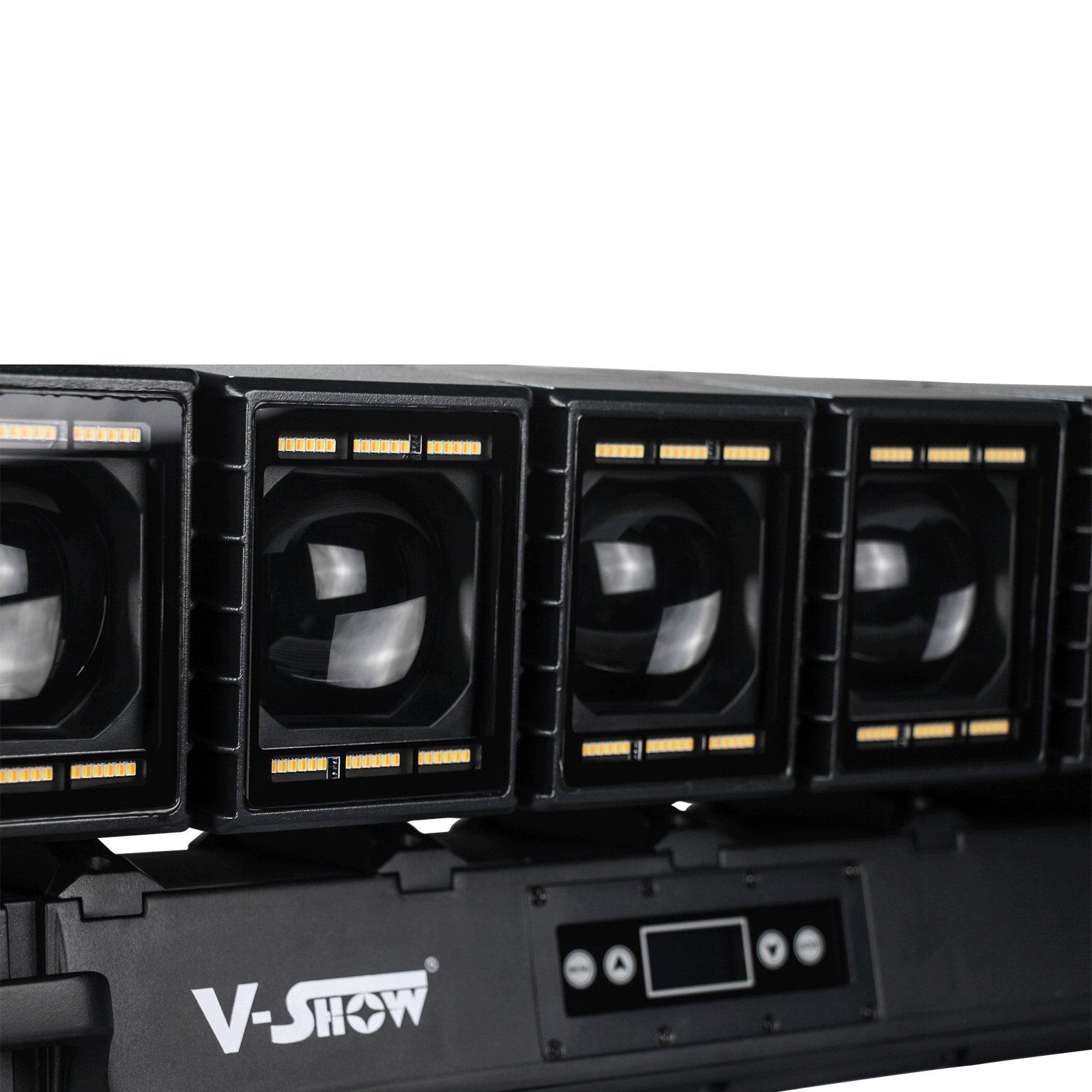

Display | OLED display |
| Protection level |
IP65
|
Net weight |
30kg
|
 Light size | 1002x110x268mm |
Details&Features

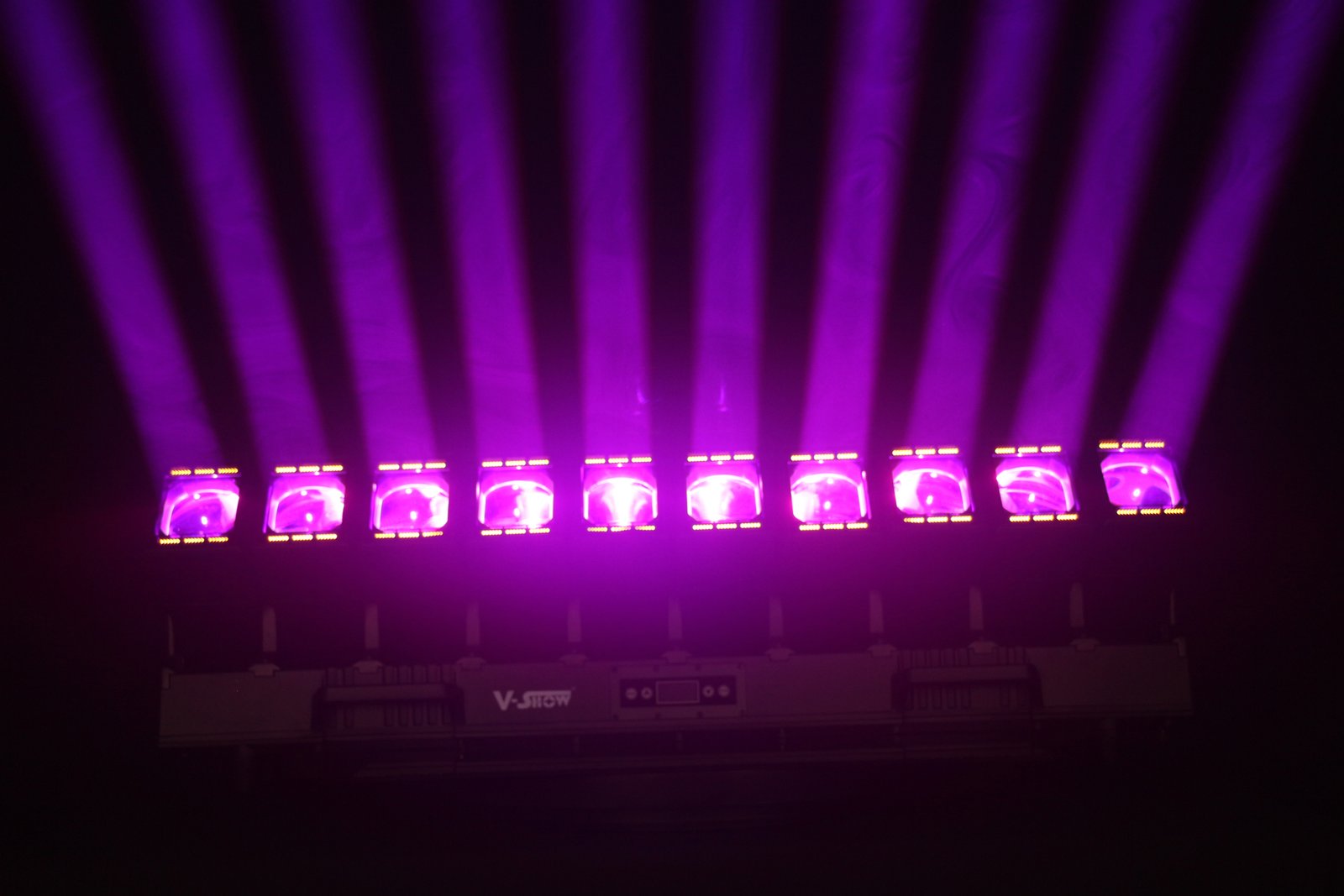

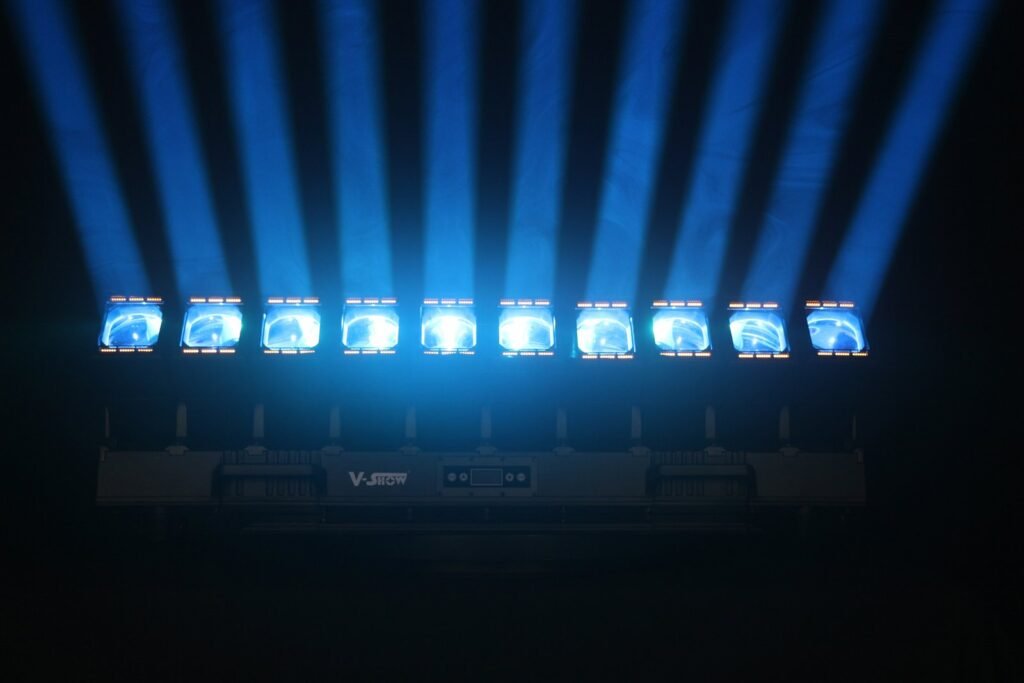

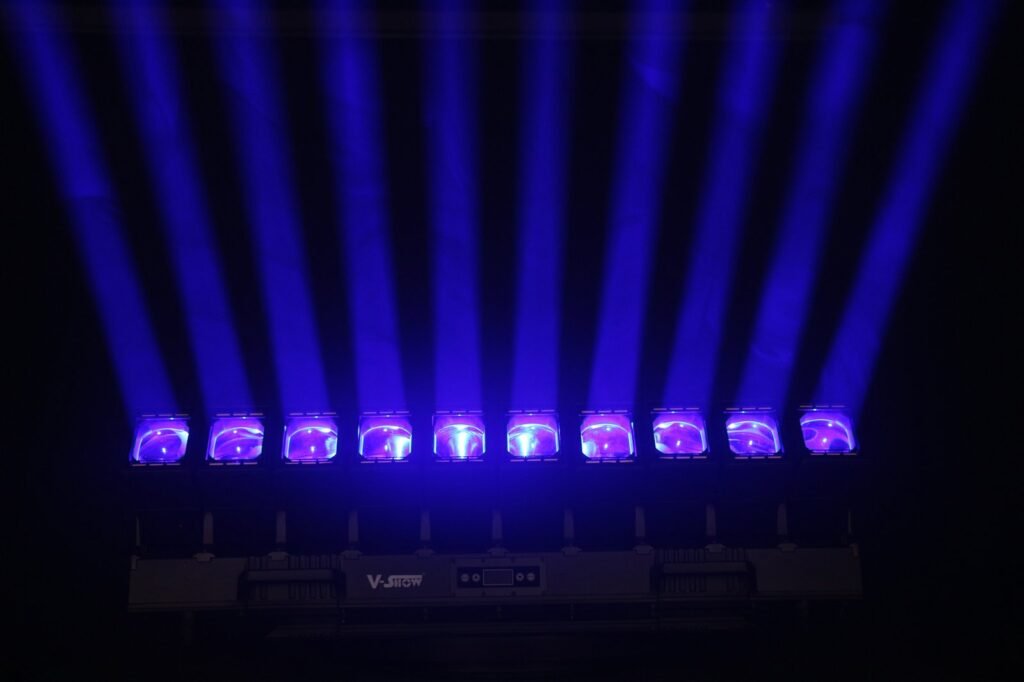

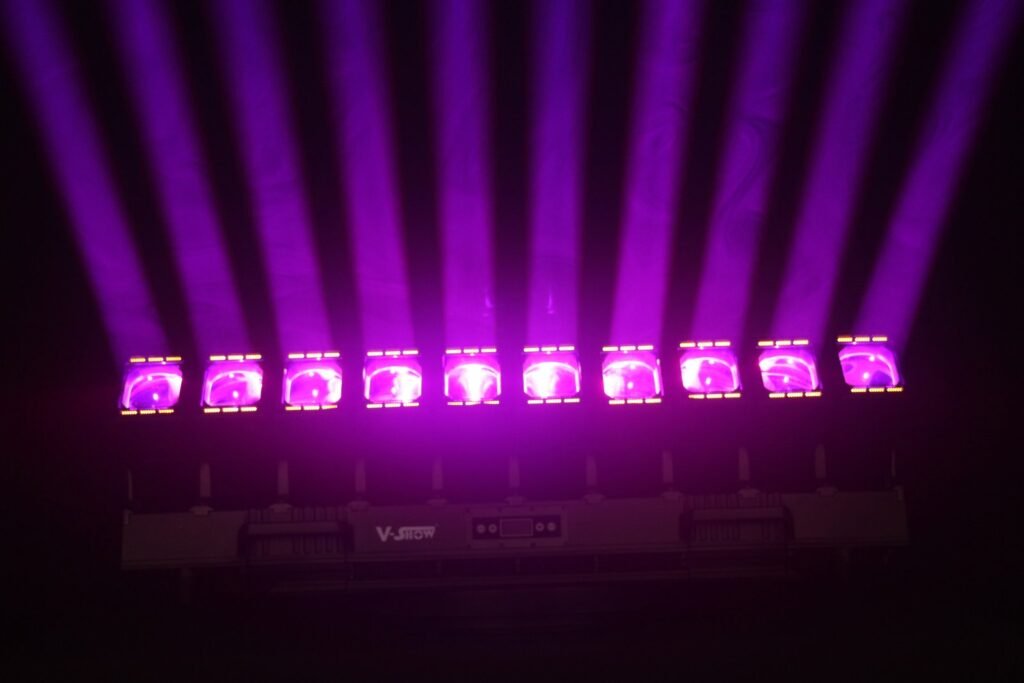

Excellent color mixing effect
